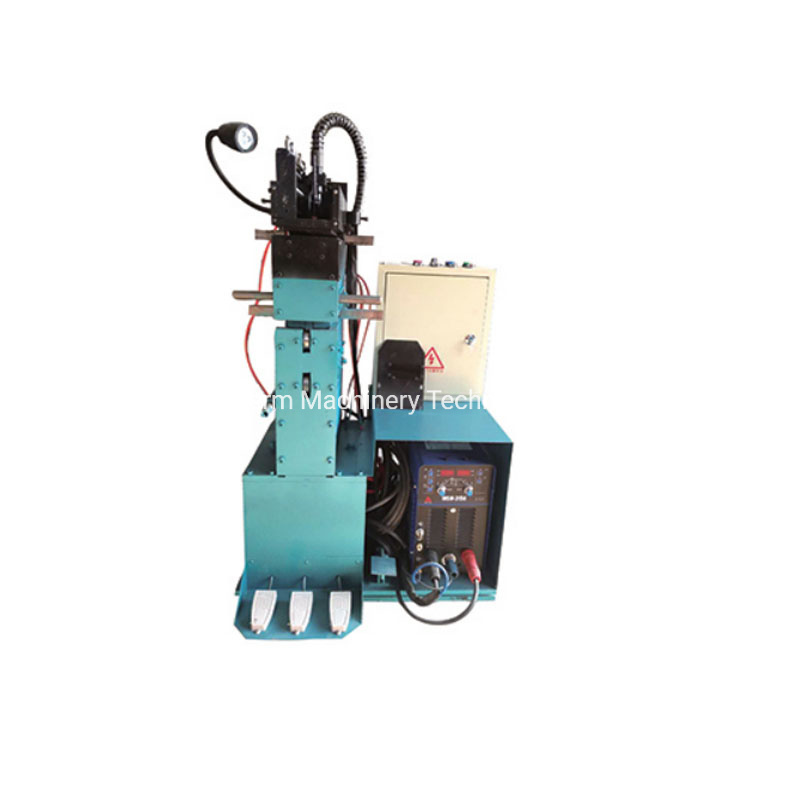

20-208mm Touch Screen Automatic SS Strip Butt Welding Machine#
1.Description This machine is good for welding metal Strip, our company can provide many machines according to your material and working process
Pneumatic shear welding thickness 0.7-2.2mm, welding width 20-280mm
Features of touch screen servo motor:
1. Save labor, ordinary workers can operate, and one person can complete it. Save the cost of high-paid welders.
2. Welding is smooth without polishing and without burrs. With compressed gas as power, work is convenient, quick and time-saving.
3. Parallel to the base material, no bulge, no scraping of the magnetic rod, no damage to the unit, high strength of the strip after welding, and can be used as a finished pipe. Reduce the appearance of diodes, reduce costs, and increase yield. 2.Application Our machine is use for CPL,CAPL,CCL,CGL,TCM,PL-TCM,EDL,RCL, 3.Welder Overlap welder, Arc welder, Spot welder, Flash butt welder, Laser welder | Product | JTD-Q260 Shearing and welding machine |
| Effective cutting weld length | 20<280mm (Can be Customized) |
| Positive and negative welding bead gas protection | Front protection device |
| Applicable workpiece thickness | 0.7-2.2mm |
| Welding speed range | 0-1500mm/min |
| Walking accuracy | 0.10mm |
| Cylinder shear or cylinder shear | 0.1-8.0MPA |
| power supply | 380v AC |
| weight | About 600KG |

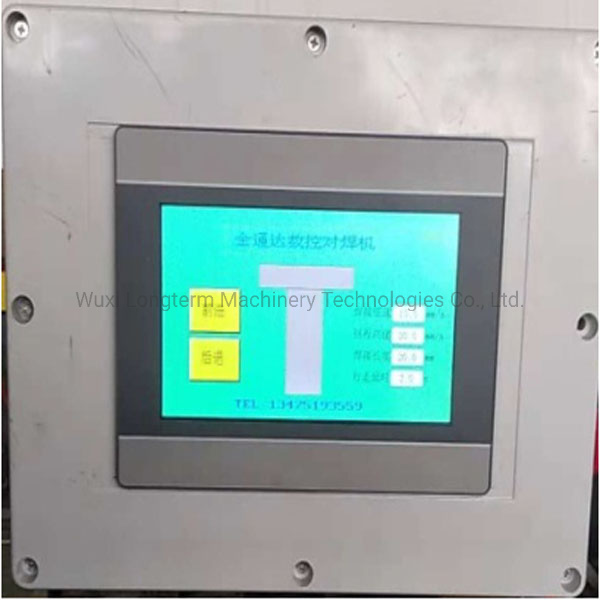

4.Detailed Pictures of Butt Welding Machine PLC control with touch screen The width of the strip and the accuracy of walking are directly input to the screen, and the operation is simple by digital control. The touch screen film only needs an emergency stop switch and does not require too many buttons. After the touch screen is set, it can be rotated so that the strip will not damage the screen to protect the screen.

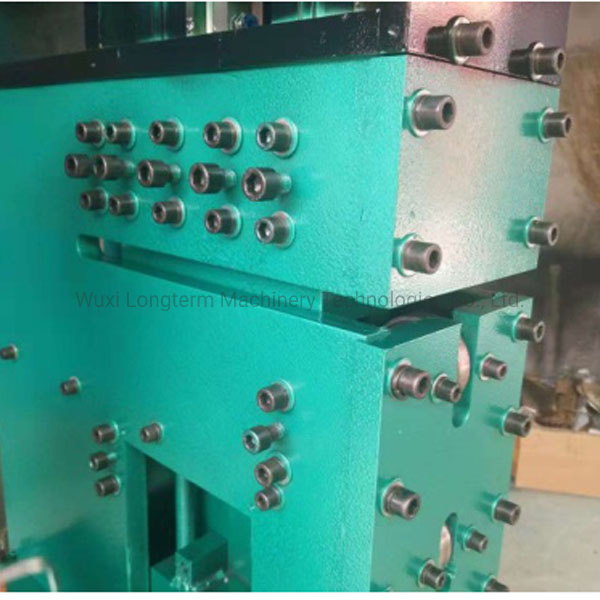

Shearing compression is made of abrasive springs, which guarantees no deformation after 300,000 compressions. The shearing knife is a combination of three-sided knives, made of CY12 or molybdenum vanadium, and the service life can reach more than 5 years.

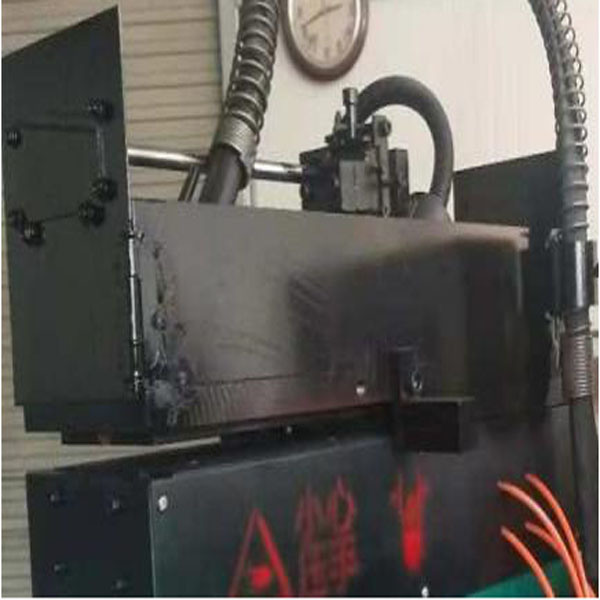

High-precision ball screws are used for welding walking, and bidirectional ball bearings are used for walking guidance to make welding more stable and accurate. Welding compaction adopts red copper plate compaction thickness of 8mm thick, flat grinding process to keep the plate flat and ensure good welding effect.

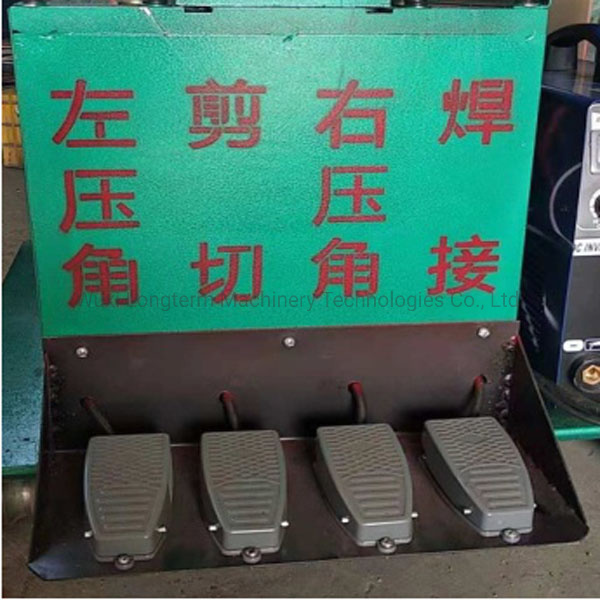

With 4 pedals, it is safer and more user-friendly to use. Welding only needs to be operated with feet, without operation on the touch screen. Manual operation of the strip on the touch screen is easy to scratch the operator, and the use of foot welding to improve the safety factor is easier to operate. Finished Prodcut
Company Profile Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of Strip Butt welding equipment (0.5mm - 5 mm Thickness ) Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, stainless steel products and other industries.
FAQ 1. The Thickness of Strip.
2. The Width of Strip.
3. The Material of strip, galvanized steel or painted steel,etc..
4. It would be better if you tell me whether the strip is processed before. such as Pickling, galvanizing.
