High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine

Quantity:
  • LTM
  • 380V
  • Hydraulic Compression
  • TIG Welding
  • 0-1500mm/Min
  • 0.1mm
  • Servo Motor
  • Hydraulic Shear
  • 20-400mm
  • 1.0-4.0mm
  • Standard Sea Wood Package
  • 900*1400*1450mm
  • LTM
  • Jiangsu, China
  • 8515290000
  • 1000 Sets / Year
  • Available | Customized Request

Product Description

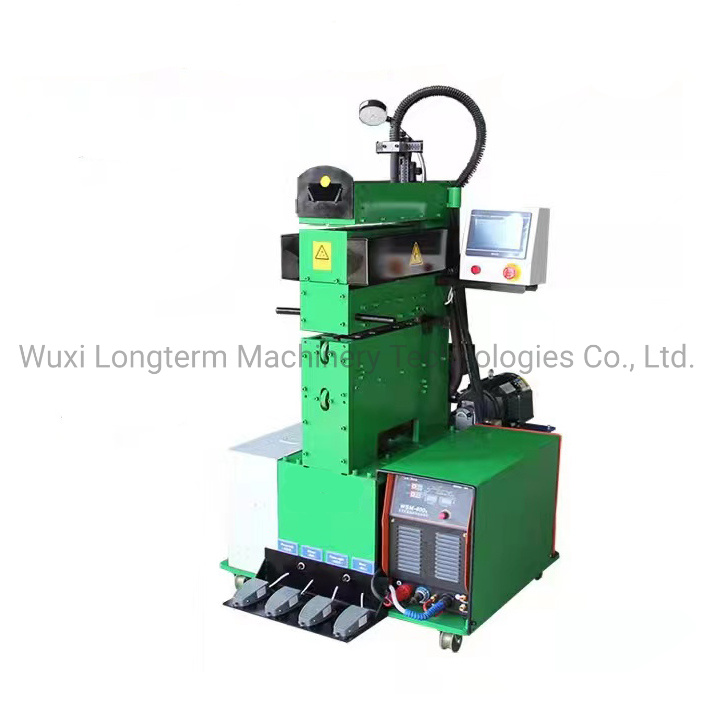

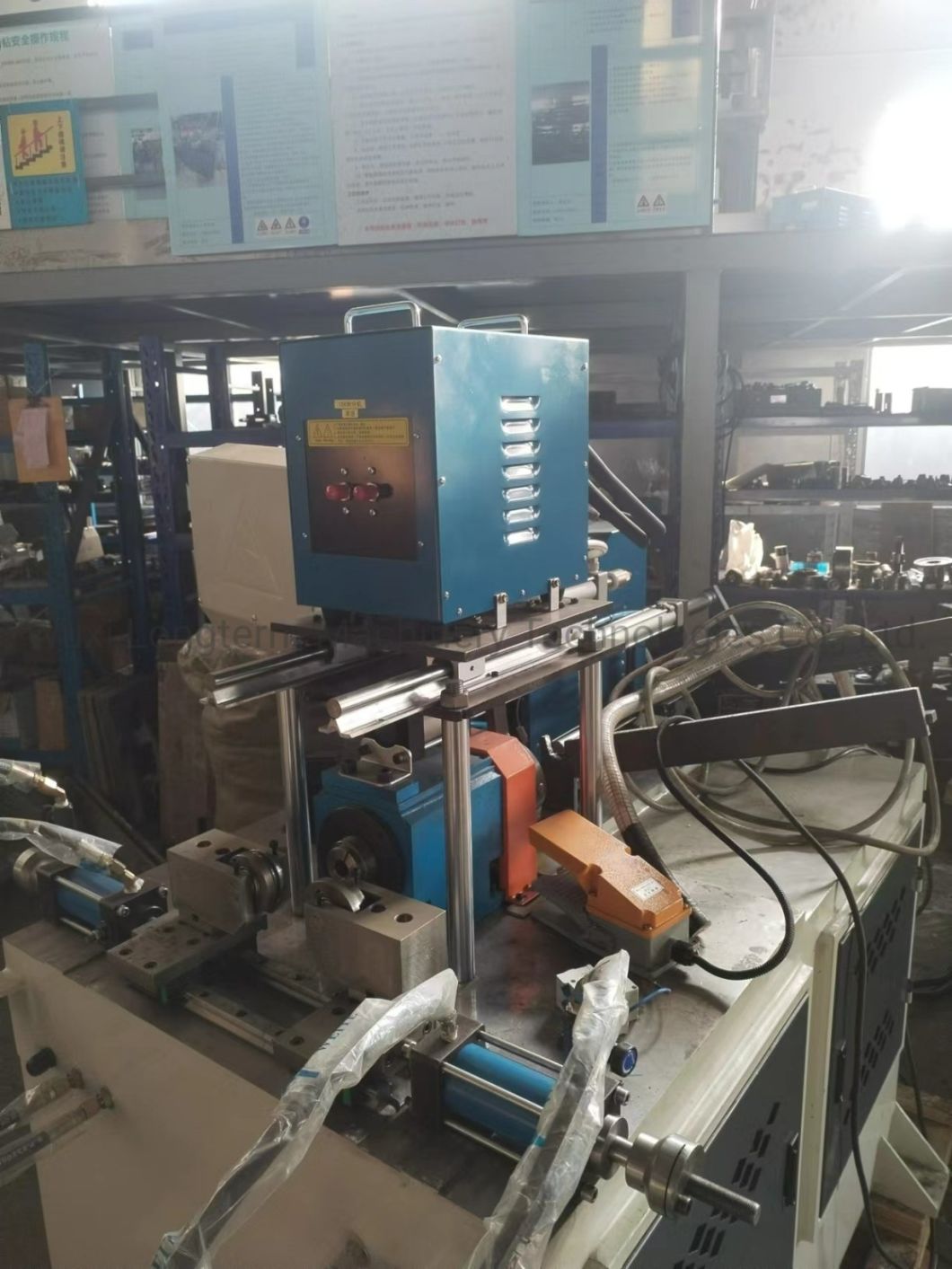

YN-400Y Steel Strip Automatic Shearing Butt Welding Machine

High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
Prodcut Description

The metal strip automatic shearing butt welding machine produced by our company can weld the cutting and welding of carbon steel, stainless steel, steel, aluminum, copper, galvanized strip steel, black strip steel and other plate processing production lines, and the whole process is automatic.
Product Features
1. Using advanced technology to cut, the cut is smooth and free of burrs.
2. Equipped with a unique strip centering and positioning device, the positioning is accurate and the operation is convenient.
3. The strip welding seam adopts advanced tungsten electrode TIG welding, the welding seam is flat, and no grinding is required, which reduces the impact force caused by the failure when the strip is pulled.
4. The welding seam is of good quality, high strength, smooth and burr-free.
5. The welding process adopts servo motor and PLC automatic control, and automatically completes the whole process of starting, running, arc striking, pre-arc, repair welding, welding current ramping up, arc stabilization, current ramping down, arc extinguishing, and automatic resetting of the welding gun with high degree of automation.

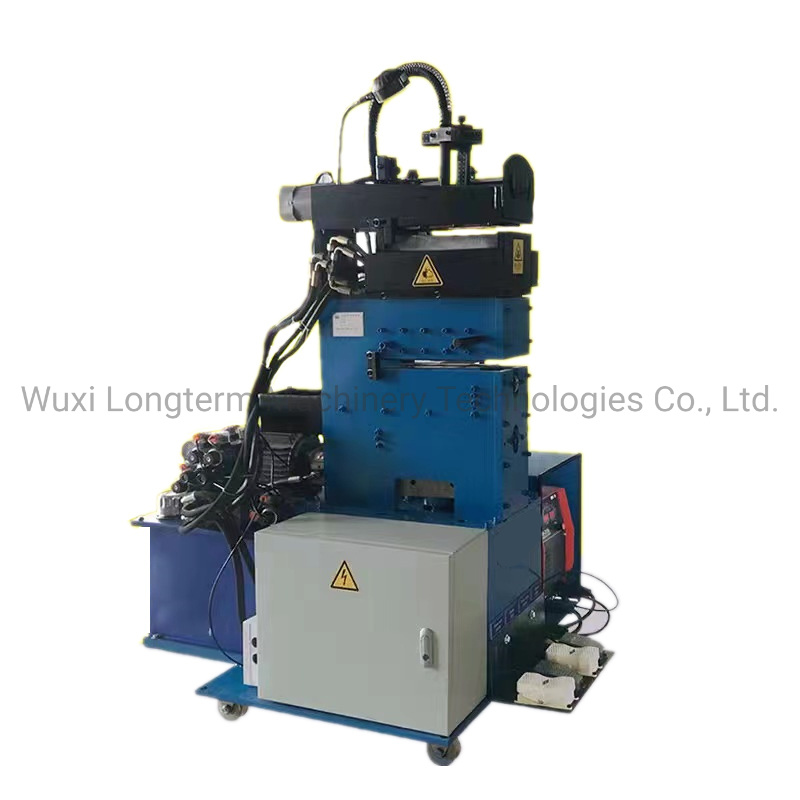

High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine

Product advantages
1. High-quality welding effect - small welding seam and high strength without grinding. Greatly reduces the impact caused by the welding bump when the strip is pulled.
2. PLC centralized control - touch screen operation, welding parameters are directly set on the screen. easy and convenient.
3. Foot-controlled air cylinder (oil cylinder)---In strip positioning, the foot-operated control air cylinder (oil cylinder) works easily and conveniently.
4. The precision guide rail drives the welding torch to walk, and both ends of the welding seam can be welded to the edge without gaps.
5. The height of the fuselage is moderate, and the throwing operation is convenient.
6. The equipment has a storage function, which can store high-quality welding data, which greatly improves work efficiency and work quality.

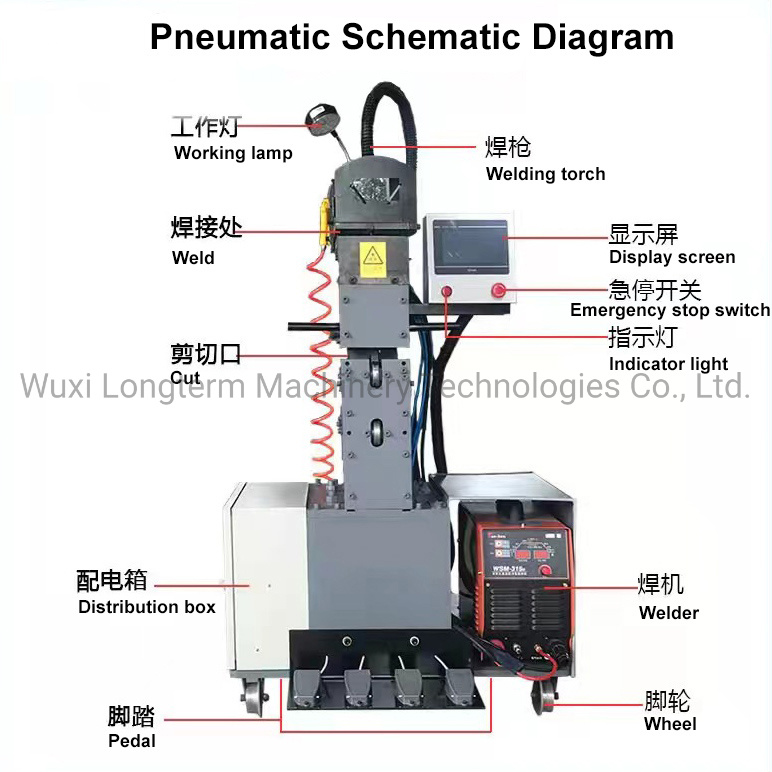

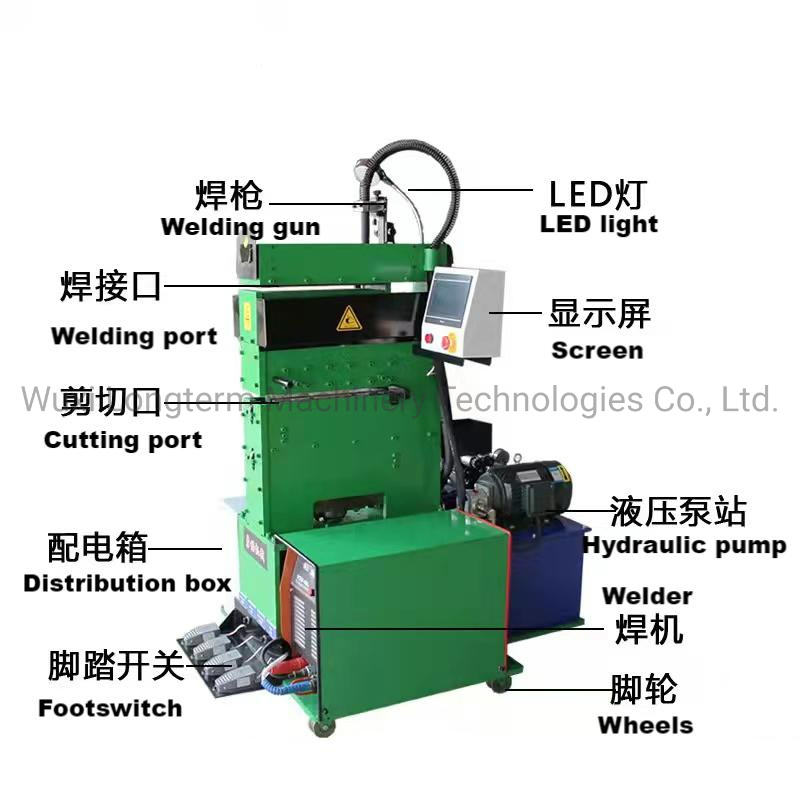

High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine

Technical Parameters
device name Steel strip shearing butt welding machine
Voltage 380V/50Hz
Dimensions 900*1400*1450mm (L*W*H)
Welded Steel Strip Specifications Width: 20-400mm Thickness: 1.0-4.0mm
Cutting way hydraulic shear
compression method hydraulic compression
Welding method TIG welding, single-sided welding, double-sided forming
Welding speed range 0-1500mm/min
Welding gun travel accuracy 0.1mm
Welding torch travel drive during welding servo motor
Welder brand kelda or han god
Welding gun accessories The tungsten electrode includes matching magnetic nozzle, conductor and jacket
Welding torch adjustment Can be adjusted up and down, left and right
Cutting, pressing, welding control mode foot pedal control
changeover operation Touch screen system to input steel strip size and welding speed
Shearing knife material Cr12MoV, life guarantee at least 5 years
Machine movement Steel strip shearing butt welding machine
Remark 380V/50Hz
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine

Package & Delivery
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine

Company Profile
We are professional welding machine manufacuturer in China for more than 25 years. We have a professional technical team to design machine technology and procedures. Our machines have two different modes of full automation and semi-automation for you to choose from. In the past year, we cooperate with many clients from all over the market, Hungary,Malaysia, Bangladesh, Vietnam, Turkey, Columbia,India etc..
Exhibition
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
Our customer
Our customer
High Precision Yn-400y Steel Strip Automatic Shearing Butt Welding Machine
