Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

Quantity:
  • HFH320*5-14000/HFH550*8-12000

  • 630A

  • 60-322 mm/200-550 mm

  • 5 mm/8 mm

  • 20 MPa

  • 5 MPa/6 MPa

  • 3 Kw

  • 25ml/R

  • 3 Months

  • 1 Year

  • Seaworthy Package

  • 5500kg/8200kg

  • HLT

  • Jiangsu, China

  • 2 Sets/Quarter

  • Available | Customized Request

Product Description

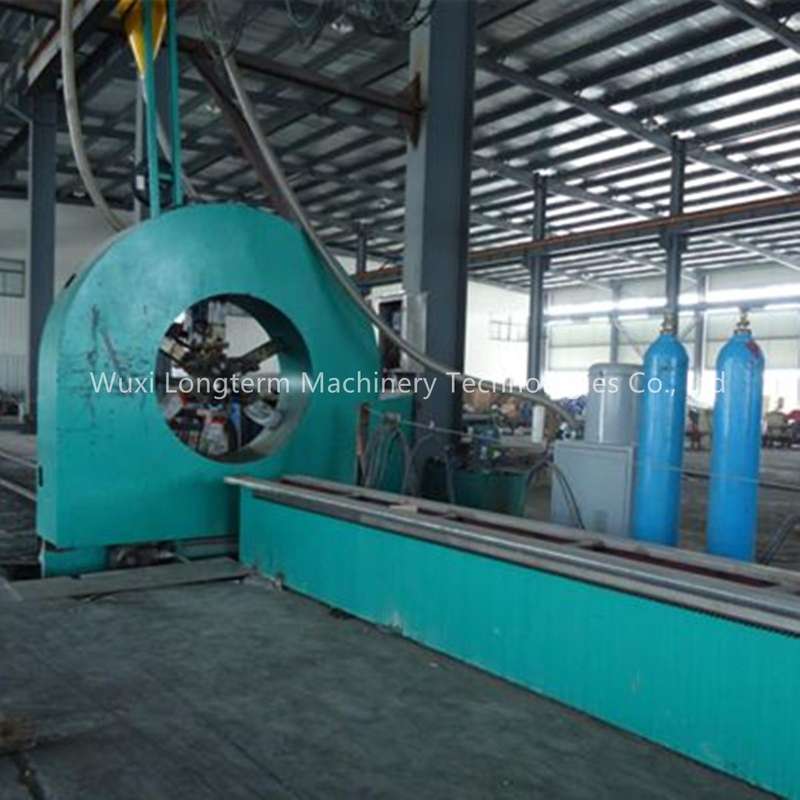

Light pole production line/Automatic Longitudinal seam welding machine


------ Product Description

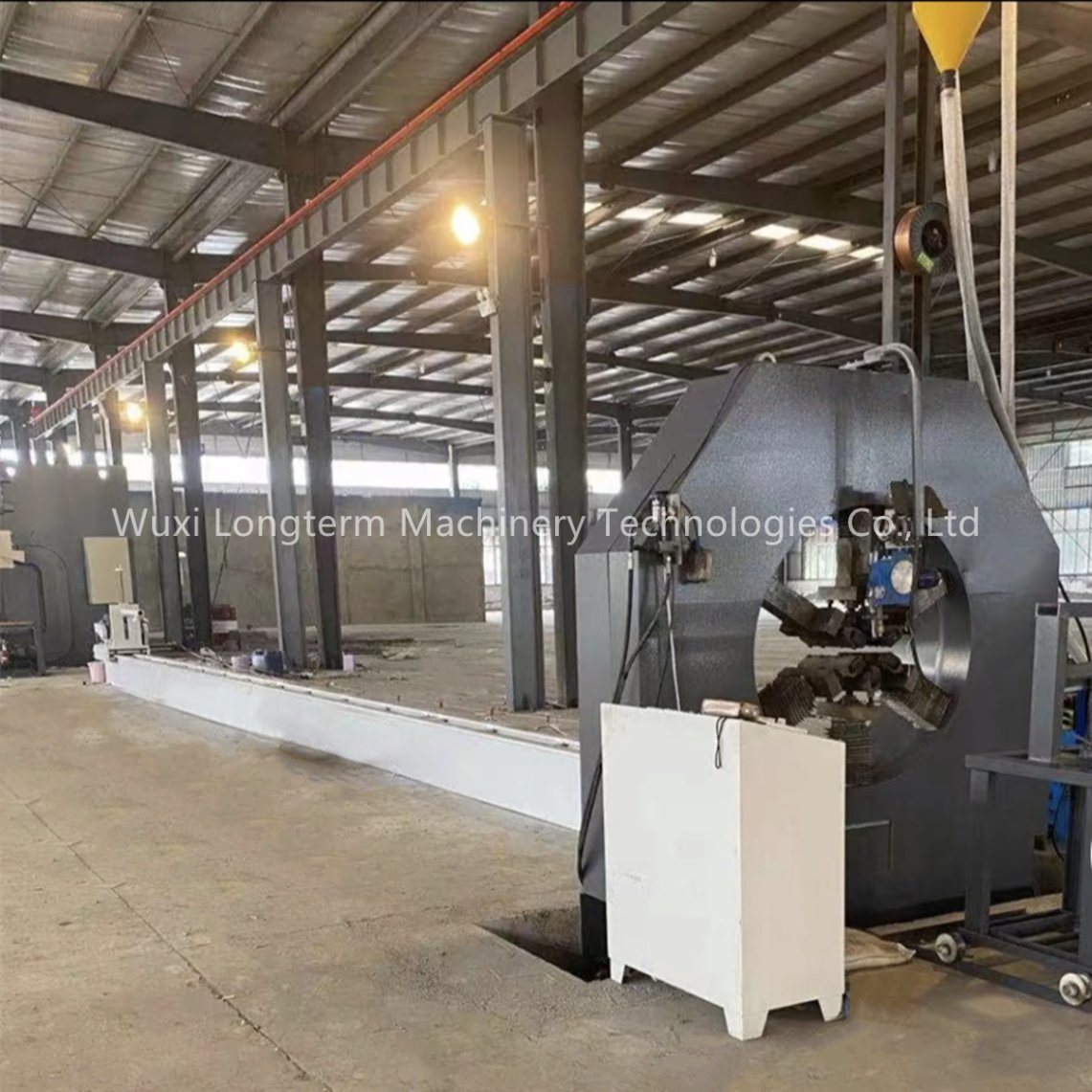

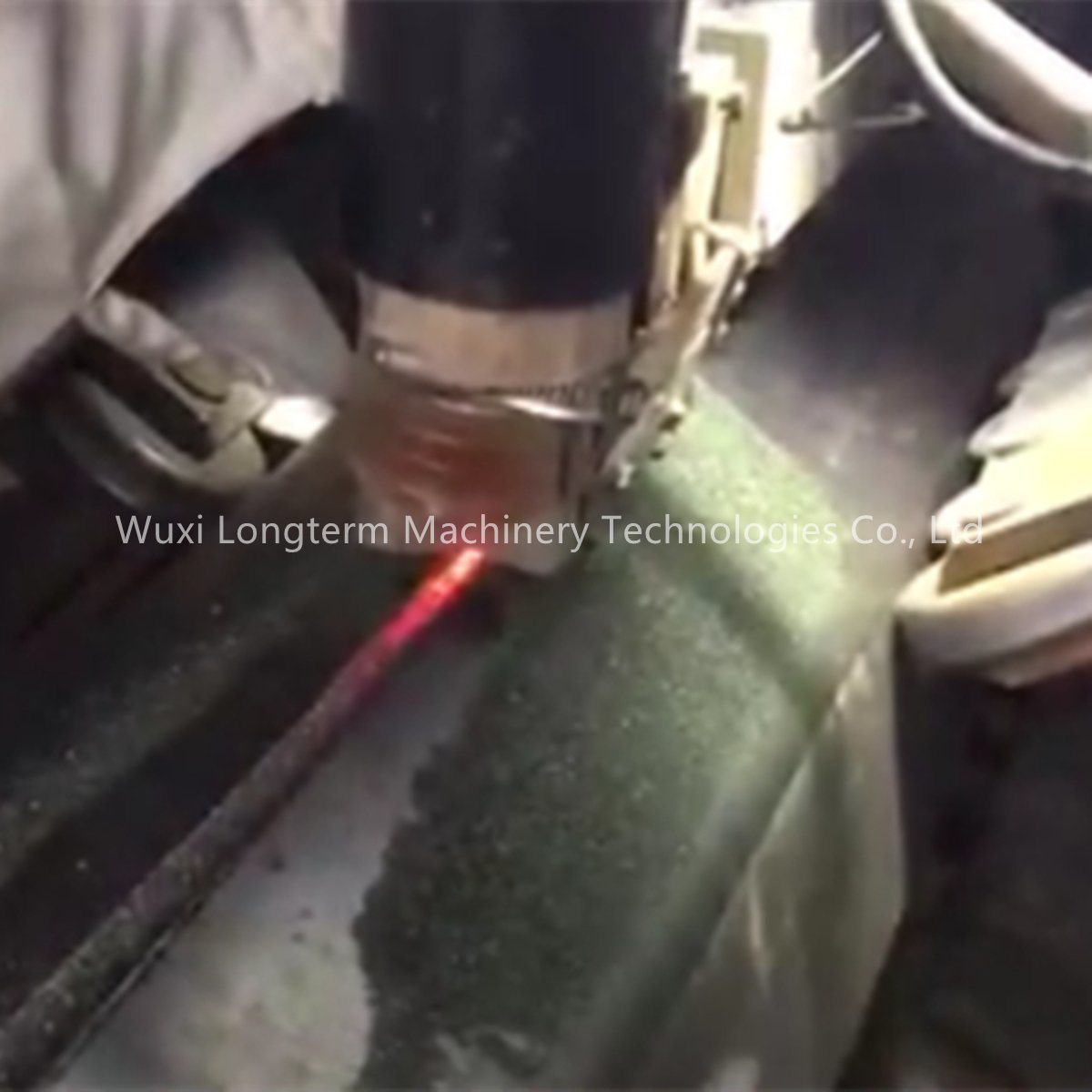

The machine is composed of host header and traction bed and feed bench, traction bed by sports car collet clamp steel pole head, sports car, driving steel pole by the cone than by small head to head on the host clip first six claw clamping under uniform motion, steel pole supporting the heel in the push pole feeding trolley, by elements of the guide wheel on the head of seam automatically, steel pole joint at the same time, the welder began to arc weld. This equipment adopts submerged arc automatic welding, flux automatic recovery, weld uniform continuous beautiful, strong penetration, one forming, high welding efficiency, speed 2-3 meters/min, is three times of gas welding. The welding cost is lower than that of gas shielded welding, which is the fastest welding speed, good effect and lowest price equipment in domestic light pole industry.
Light Pole Production Line/Automatic Longitudinal Seam Welding Machine
HFH320×5-14000 Automatic longitudinal seam welding production line
No
Item
Data
1
Welding length
≤12000 mm
2
Maximum welding thickness
5 mm
3
Host head dimensions (Length*Width*Height)
1500*480*1645 mm
4
Workbench dimensions(Length*Width*Height)
16500*400*480 mm
5
Maximum welding diameter
φ320 mm
6
Minimum welding diameter
φ60 mm
7
Welding current
630A
8
Traveling device motor
Model: YCT160-4B
3 KW
9
Oil pump motor
Model: Y2100L2-4
3 KW
10
Recovery device motor
Model: Y90L-2
2.2 KW
11
Gear pumps
Model: CBN-E306
25ml/r
12
Maximum system pressure
20 Mpa
13
System working pressure
≤5 Mpa


14


Machine Dimensions
Length
32000 mm
Width
1600 mm
Height
1650 mm
15
Total machine weight
5500 kg

HFH550×8-12000 Automatic longitudinal seam welding production line

No
Item
Data
1
Welding length
≤12000 mm
2
Maximum welding thickness
8 mm
3
Host head dimensions (Length*Width*Height)
2100*620*1945 mm
4
Workbench dimensions(Length*Width*Height)
16500*400*480 mm
5
Maximum welding diameter
φ550 mm
6
Minimum welding diameter
φ200 mm
7
Welding current
630A
8
Traveling device motor
Model: YCT160-4B
3 KW
9
Oil pump motor
Model: Y2100L2-4
3 KW
10
Recovery device motor
Model: Y90L-2
2.2 KW
11
Gear pumps
Model: CBN-E306
25ml/r
12
Maximum system pressure
20 Mpa
13
System working pressure
≤6 Mpa
14
Machine Dimensions
Length
32000 mm
Width
2100 mm
Height
1950 mm
15
Total machine weight
8200 kg


------ Relative Equipments

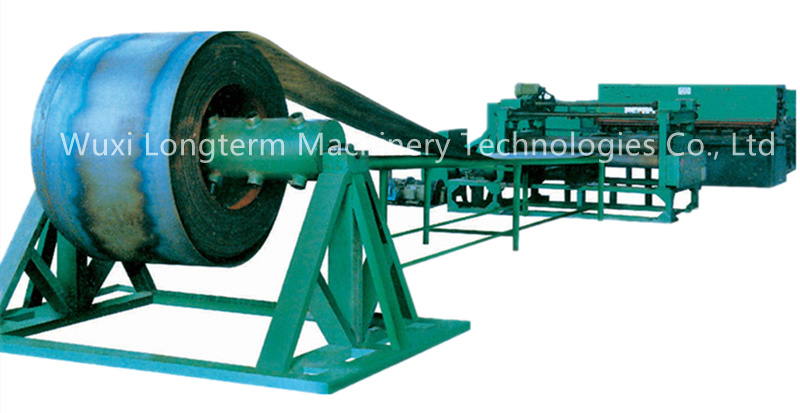

Simple coiling and flattening production line
This machine is a unit used to unwind, level and cut steel coils to the required size. After the board head is fed into the leveling machine with manual assistance, according to the set cutting length, the unit is operated to complete the leveling and cutting actions.
Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

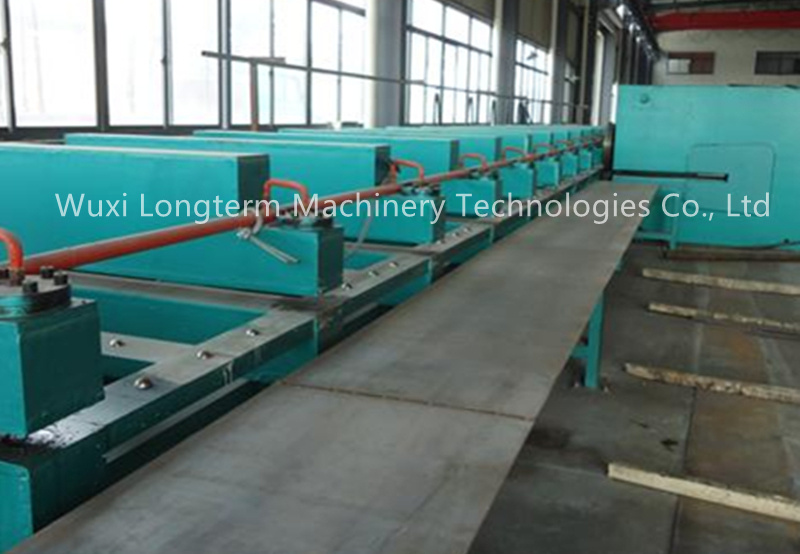

Steel plate oblique shear production line
This machine is suitable for the shear processing of plates, especially long plates, with convenient operation, and the length of the cut plates can be adjusted arbitrarily, with high labor productivity. The plate to be cut is pressed on the traveling device by a hydraulic cylinder, and the plate is cut with the operation of the traveling device under the rotation and shearing of the hob. When pressing the material, the plate is placed diagonally according to the required size, and the tapered plate can be cut. Therefore, this machine is widely used in light poles, containers, metal structures, ships, daily hardware, construction and other industries.
Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

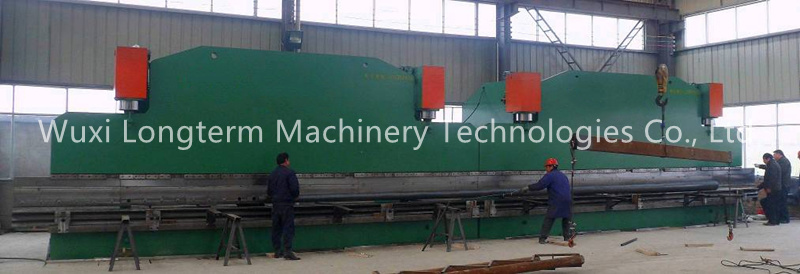

Plate material bending machine
The machine is composed of two 300-ton bending machines, and the two machines are linked to realize synchronous work. A single machine is composed of a workbench slider and left and right wall panels. Due to the transportation of the equipment, the wall panels adopt an assembled structure, and the frame has sufficient rigidity. The two oil cylinders are respectively installed on the left and right wall panels. Under the action of the electrical operating system, the hydraulic system drives the slider to go down. The upper die is installed on the slider. When the upper and lower die contact the workpiece, the system boosts the pressure to shape the workpiece. Different molds can get different shapes of workpieces under different bending methods. The quality is stable and reliable.

Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

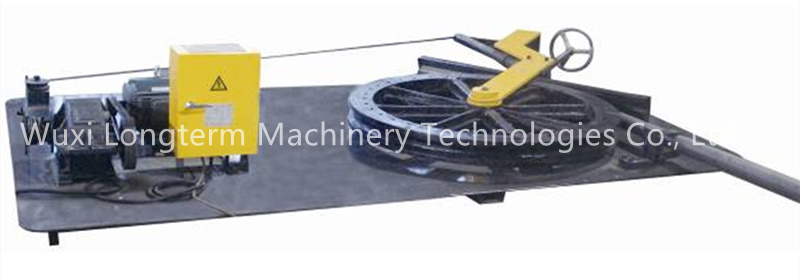

Tube bending machine
The machine is composed of a main board and a bending mold, with two sets of molds. The straight mold is drawn by the motor reducer, and the steel pole pressed on the round mold is bent along the arc surface. It is simple to operate, does not require heating and fillers, and is economical. Compared with the large-scale tube bender in this industry, it has the same effect as the large tube bender. The necessary equipment for steel pole manufacturers.
Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

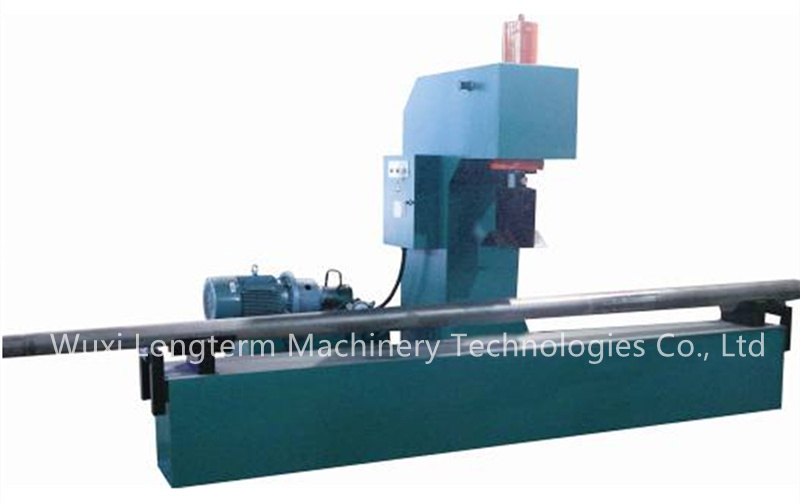

Steel straightening machine
The device has a simple and compact structure, convenient and reliable. In specific operations, the steel pole can be manually placed on the press mold, and the hand-held button box is held by the worker to press the type. The straightness of the steel pole is controlled by manual visual inspection, and the efficiency is high.
Light Pole Production Line/Automatic Longitudinal Seam Welding Machine

This complete set of equipment is the most economical configuration for the production of light poles, with high production efficiency and reliable quality. It allows users to produce from raw materials to blank poles without outsourcing.
Light pole production line equipment (according to the process flow) composition:
1. Simple coil material opening production line.
2. Steel plate oblique shear production line.
3. Double machine linkage bending machine (Special for street light pole and high light pole).

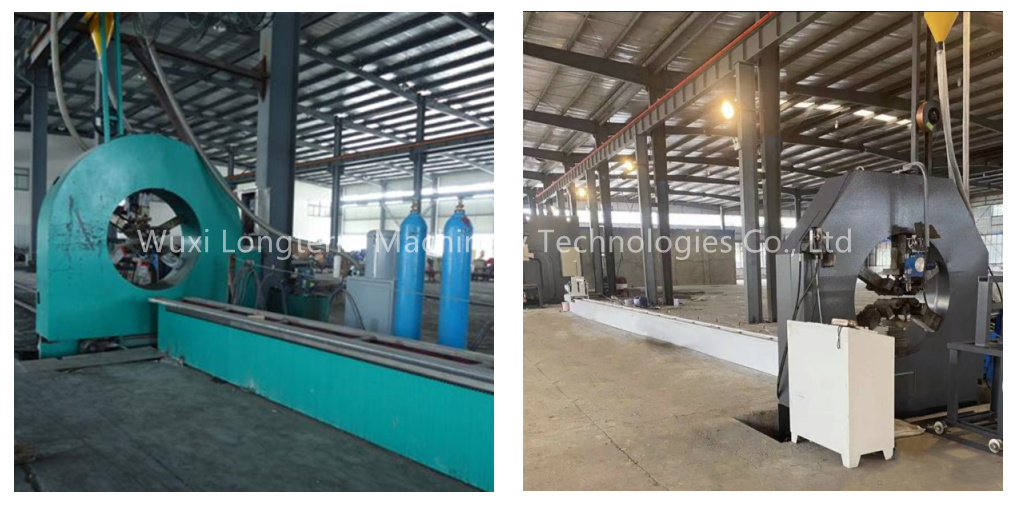

4. Automatic seam welding production line.
5. Tube bending machine.
6. Steel straightening machine.
7. Electrostatic spraying.


------ Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd
Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment.Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.

Light Pole Production Line/Automatic Longitudinal Seam Welding Machine
------ RFQ
Q1: How about your after sales service?
A1: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.
Q2:What's the policy for guarantee and broken parts?
A2:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
