Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Diameter:
350-571mm
Height:
450-1000mm
Thickness:
0.45-0.5mm
Power Supply:
500V,1000Hz
Voltage:
50Hz,380V±10% Three Phase or Customized
Welding Power:
160kVA
Welding Speed:
6-12m/Min
Compressed Air:
0.6MPa,300L/Min,≤25ºC
Dimension:
3.85m*3.2m*2.1m
Cooling Water Flow:
20L/Min
Cooling Water Pressure:
0.4 MPa 10L/Min
Color:
as Your Needs
Transport Package:
Steel Tray Packaged
Specification:
4027*1980*2450
Trademark:
LTM
Origin:
Jiangsu, China
HS Code:
84369900
Production Capacity:
5000PCS/Year
Customization:
Available | Customized Request

Product Description

Product Description

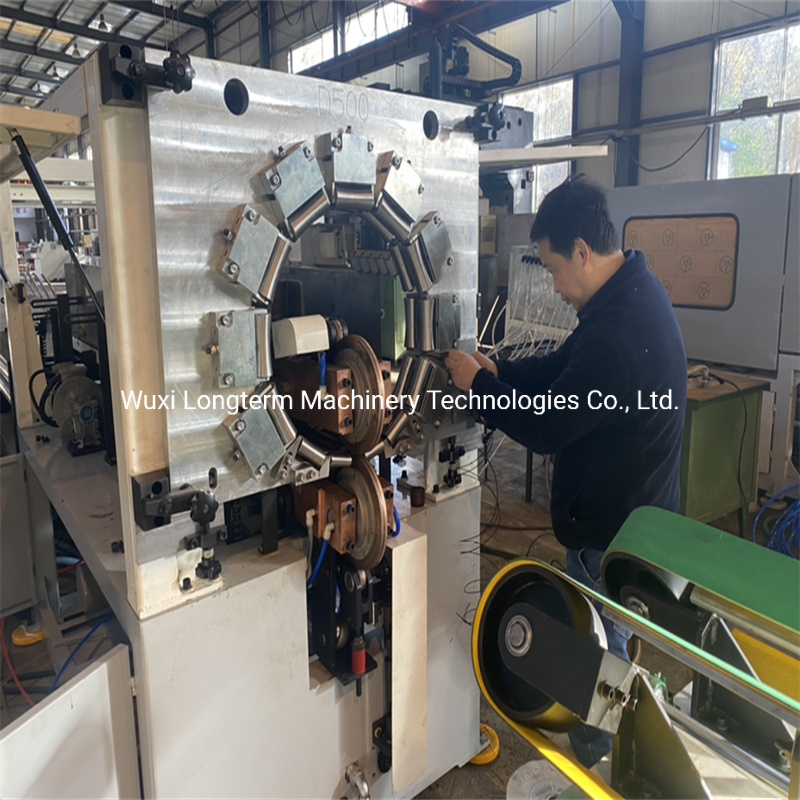

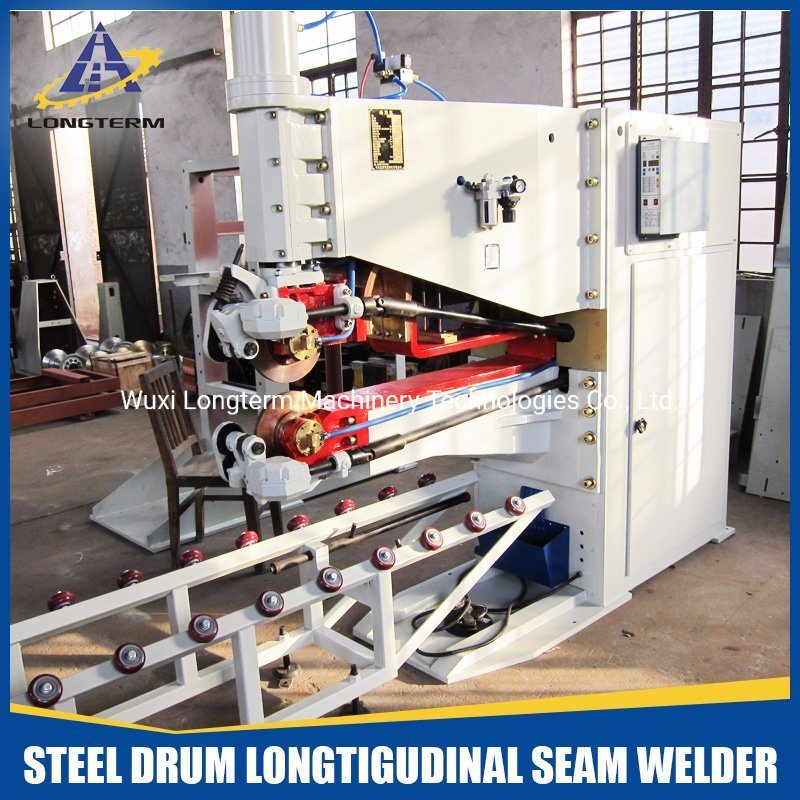

"Inverter automatic steel drum seam welder" (hereinafter referred to as seam welder) is an important device for producing metal drums. Its working principle belongs to the scope of resistance welding: that is, after the workpieces are assembled, the electrode applies pressure and the current flows through the steel plate. The contact area of the overlap and the adjacent area generate resistance heat, thereby forming a series of overlapped nuggets to obtain an airtight weld.
The welding method adopted by this equipment is roll seam welding. The electrode is a cylindrical roller. Its width is larger than the overlap of the steel plate to control the thickness of the joint. Welding uses a large electrode pressure and continuous welding current. By controlling welding specifications, including parameters such as electrode pressure, welding current, and welding speed, stable welding quality can be obtained, and seam welding procedures for longitudinal welds with a diameter of 560mm to 571.6mm can be completed.
The operation flow of this equipment: Manually put the cut sheet on the pedal, and automatically transfer it to the automatic slitter. After being automatically conveyed into the machine and rolled into a cylindrical shape, the spot welding is not necessary, that is, the steel drum is longitudinally welded. Seam welding, automatic unloading.
Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

Main Specification:
Diameter	350-571mm
Height	450-1000
Thickness	0.45-0.5
Power supply	500V,1000HZ
Voltage	50HZ,380V±10% Three Phase
Welding Power	160KVA
Welding Speed	6-12m/min
Compressed air	0.6Mpa,300L/min,≤25ºC
Dimension	3.85m3.2m2.1m
Weight	3 T
cooling water flow	≥20L/min
cooling water pressure	0.4 Mpa,10L/min

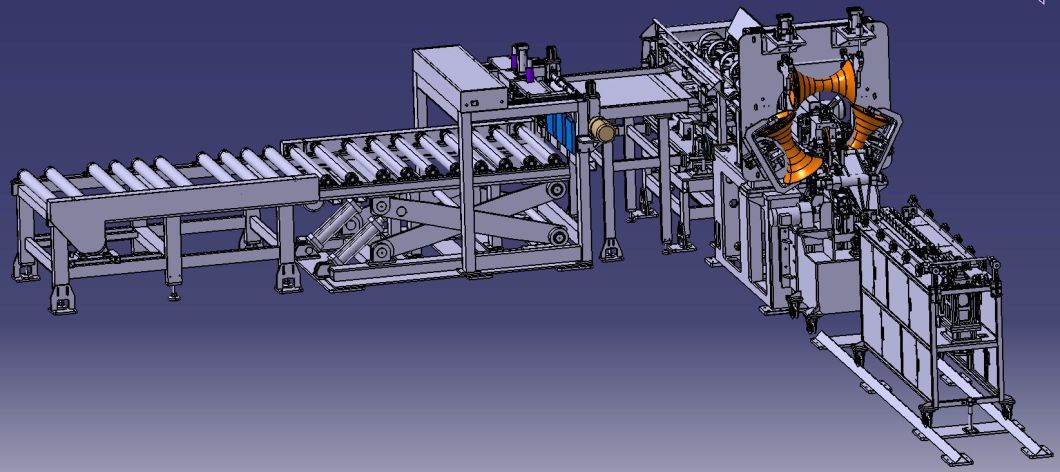

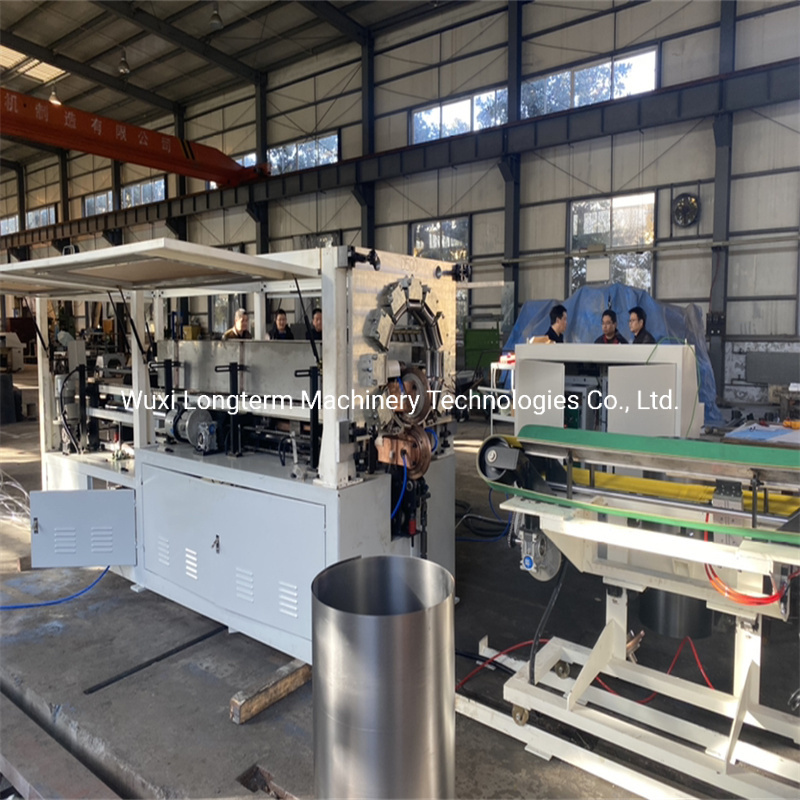

The process
Suction cup automatically feeds to the rolling area---Rolling---rolled drum movement---welding area---welding---welded---Cutting--auto unloading---repeat the above actions
Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

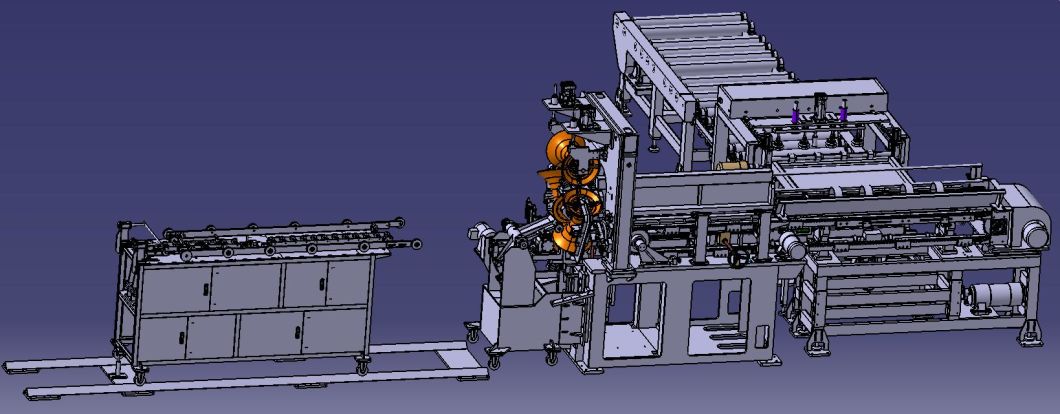

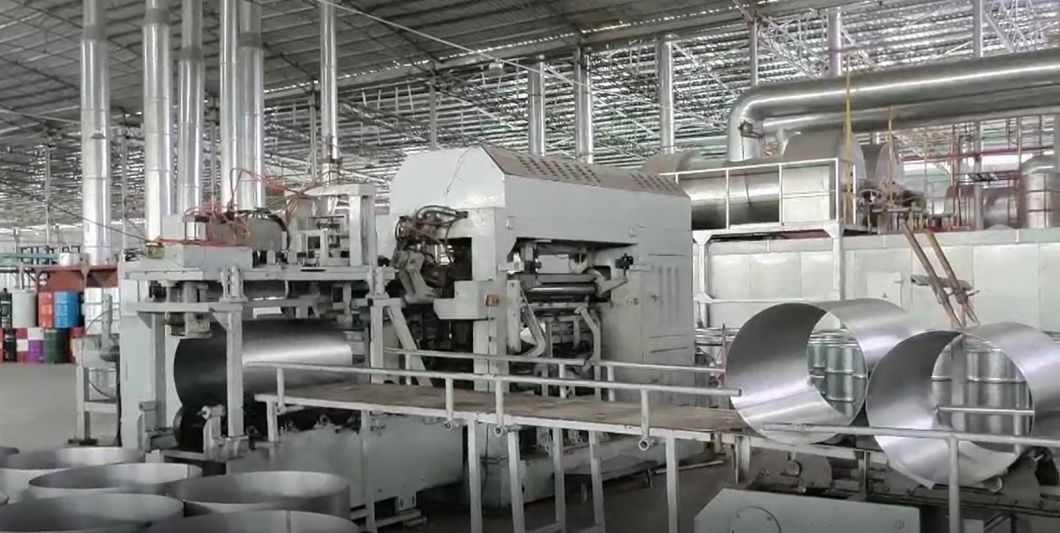

The rolling and welding process is divided into four process steps: feeding, trimming, rolling, welding, and unloading; the advancing direction of the feed is perpendicular to the forming axis of the parts at each station of rolling and welding coaxial, unloading is parallel to the previous step. The area requirement is not less than 10X7m2
Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

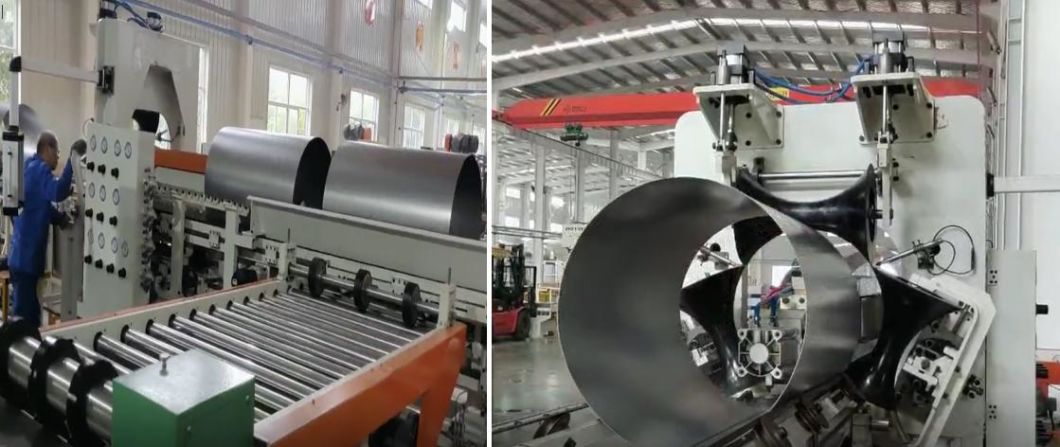

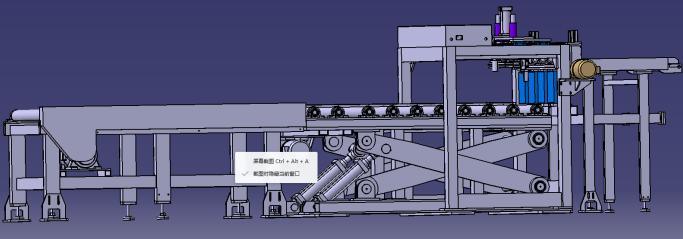

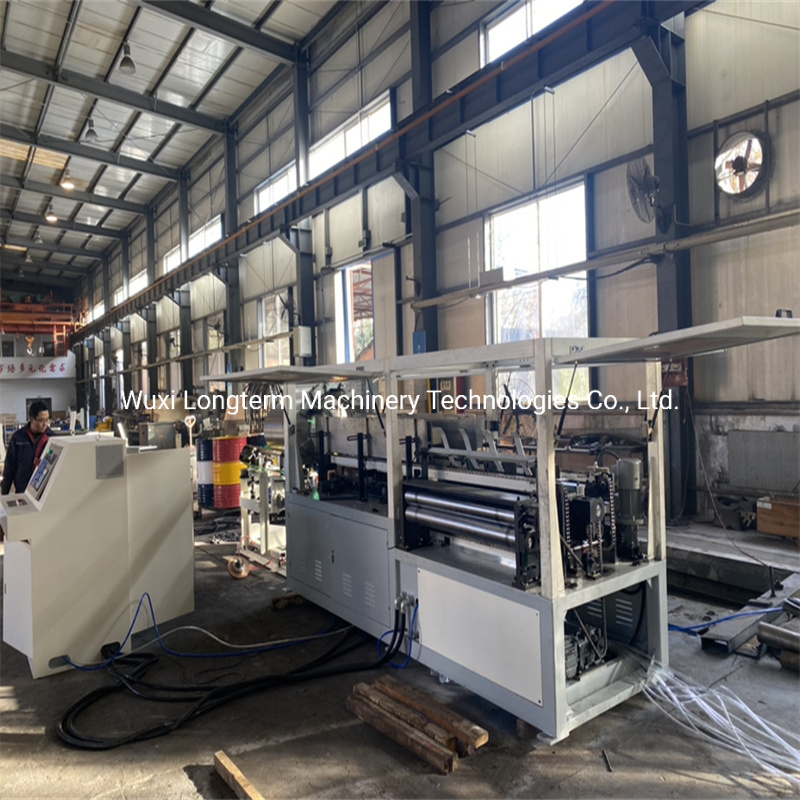

Auto Feeding
Cutted sheets are stacked on the rack to be loaded, and then the sheets are conveyed into the rolling device one by one through a vacuum suction cup.
Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

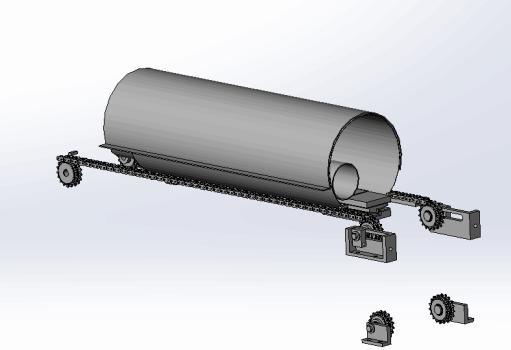

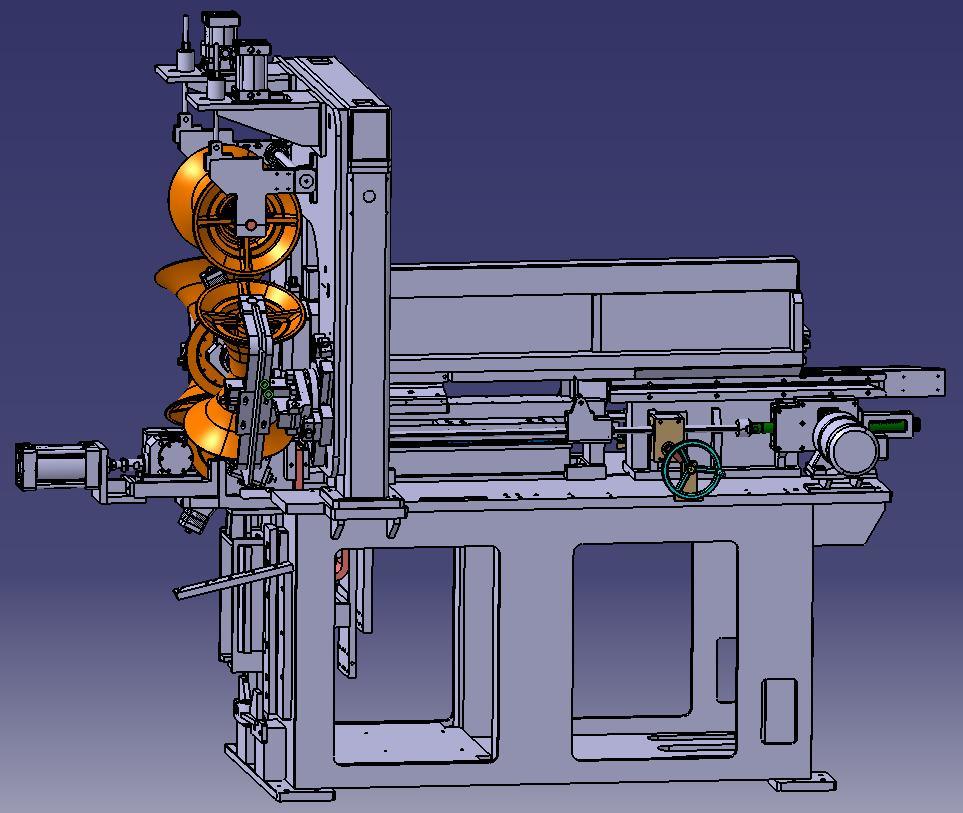

Conveying part:
The cylindrical workpiece is pushed to the welding station for a short time by the pawl of the conveying part, and waits. After the welding of the workpiece at the welding station, the electrical automatic control part sends a signal, and the pushing part can push the workpiece from the to-be-welded station to the welding station again, and then cycle.

Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

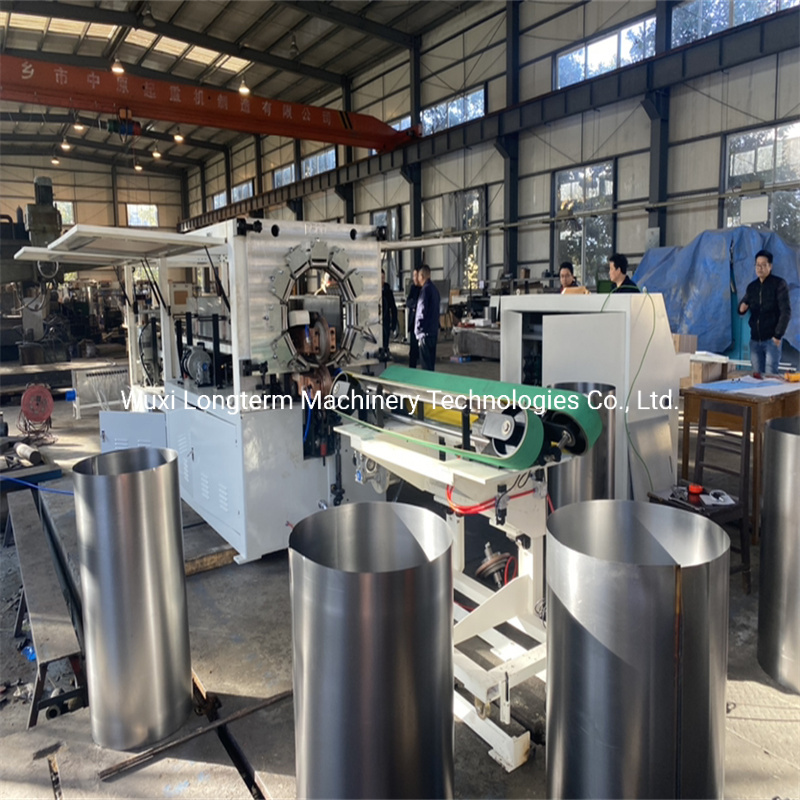

Overlap control part:
Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line

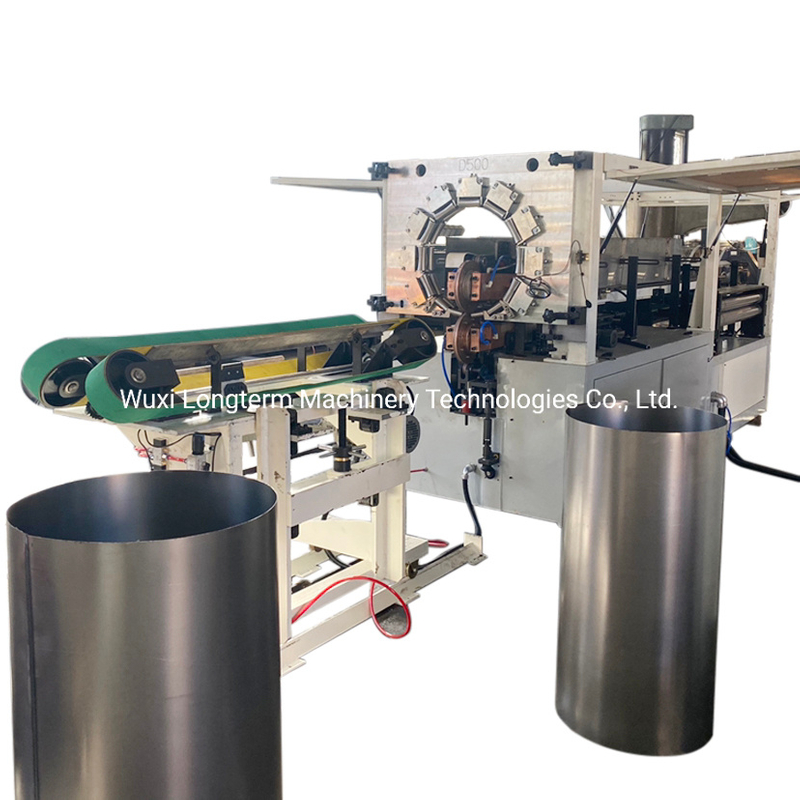

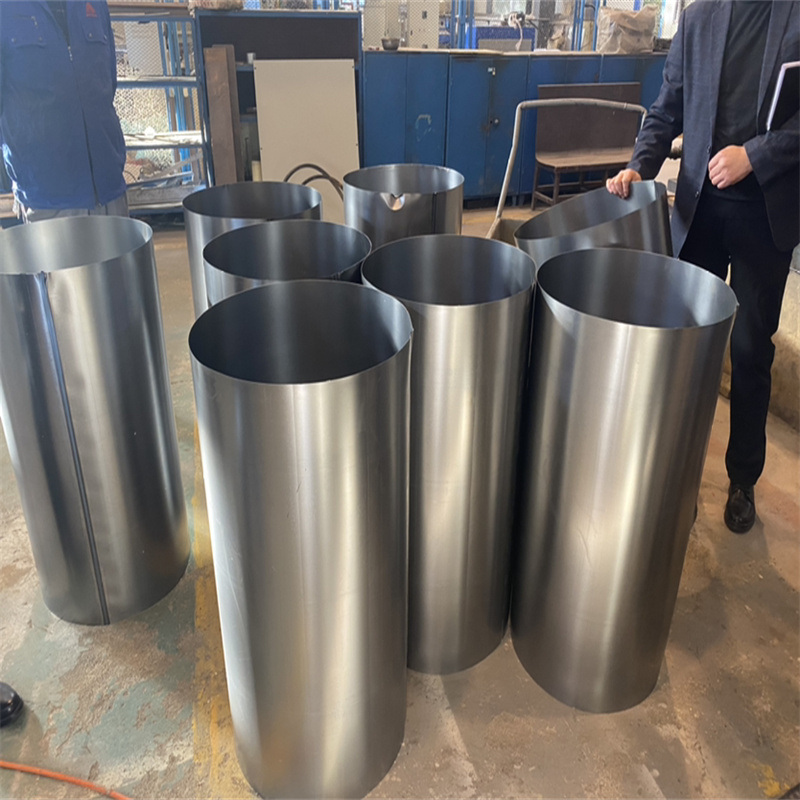

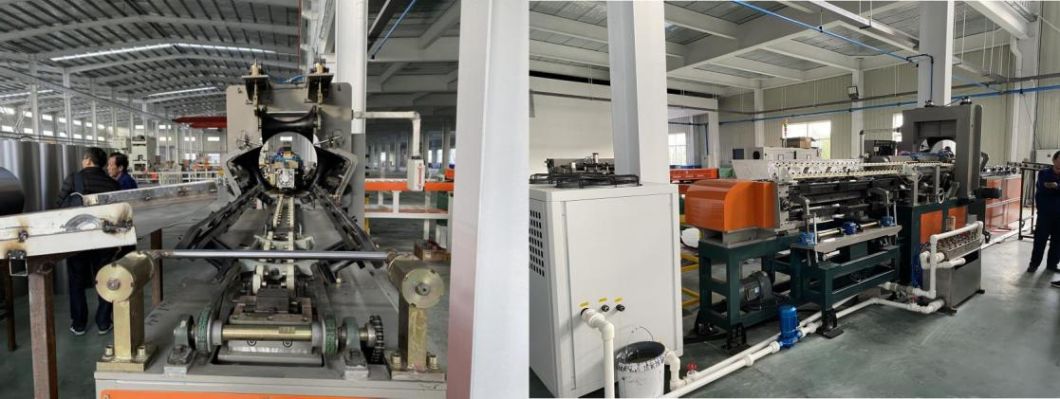

Finished Products Steel Drum Resistance Auto Welding Machine, Steel Drum Production Line
