High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^

Quantity:
  • HLT

  • Provided

  • Vertical Flanging Beading Seaming Machine

  • SPCC, Q195-215A

  • 571.5mm, 560mm

  • 0.8-1.2mm

  • 850-1000mm

  • 1050mm

  • 12 PCS/Min

  • Meet Tn-S System.

  • Less Than or Equal to Plus or Minus 2mm

  • Plus or Minus 1mm

  • Standard Seaworthy Package

  • customized

  • HLT

  • Jiangsu, China

  • 8462919000

  • 100 Sets Per Year

  • Available | Customized Request

Product Description

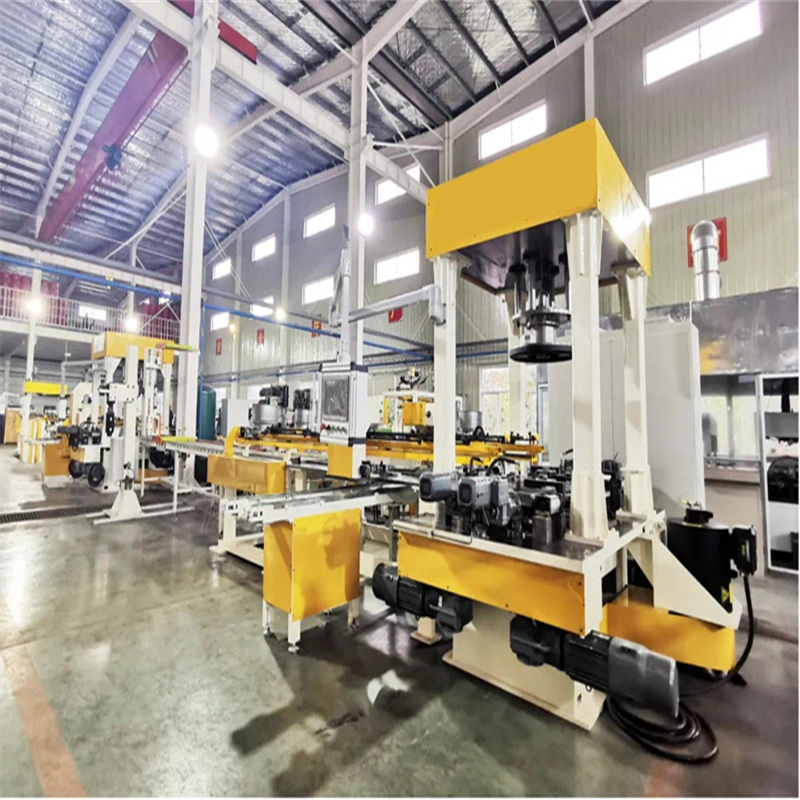

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^
Product Description

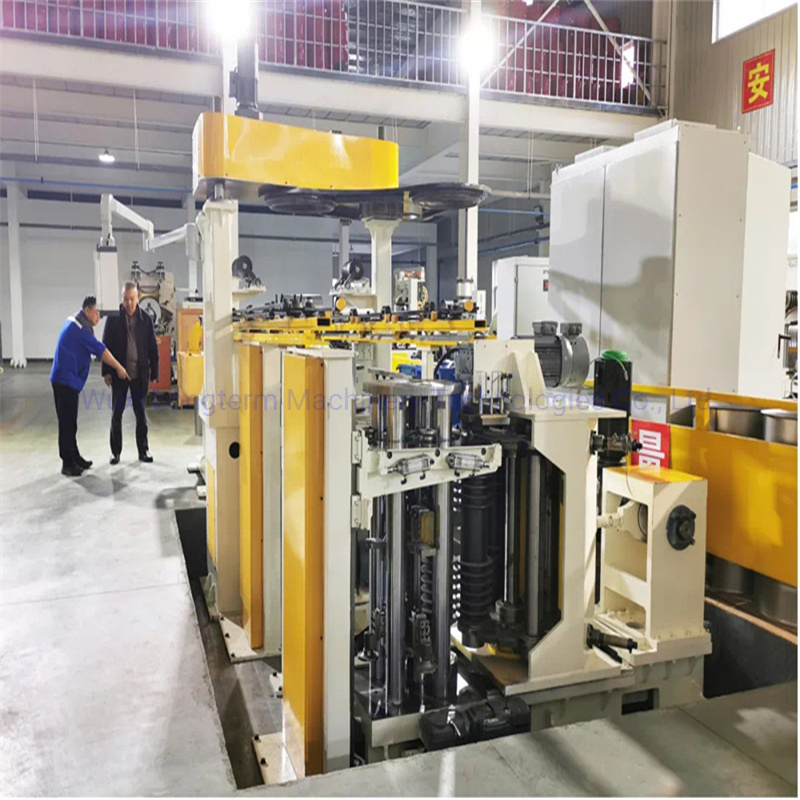

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^


I. We have ready-made customers to run vertical steel drum production line stably, modular installation, within 2 weeks to absolutely guarantee the stable operation of the production line,.

II. Vertical plate edge machine adopts energy storage hydraulic system, with smooth and high efficiency operation, low failure rate and long service life.
With fast automatic mold change function; barrel hand movement adjustment range: 850mm -1000mm; concentricity error of flanging machine within 0.2mm; the equipment comes with 208L two sets of closed molds and one set of open molds (mold life: 3 years or 2 million barrels)

III. Vertical corrugation machine can produce a variety of specifications steel barrel corrugation.

IV. The distance of the big tendon of the rising machine can be adjusted at will.

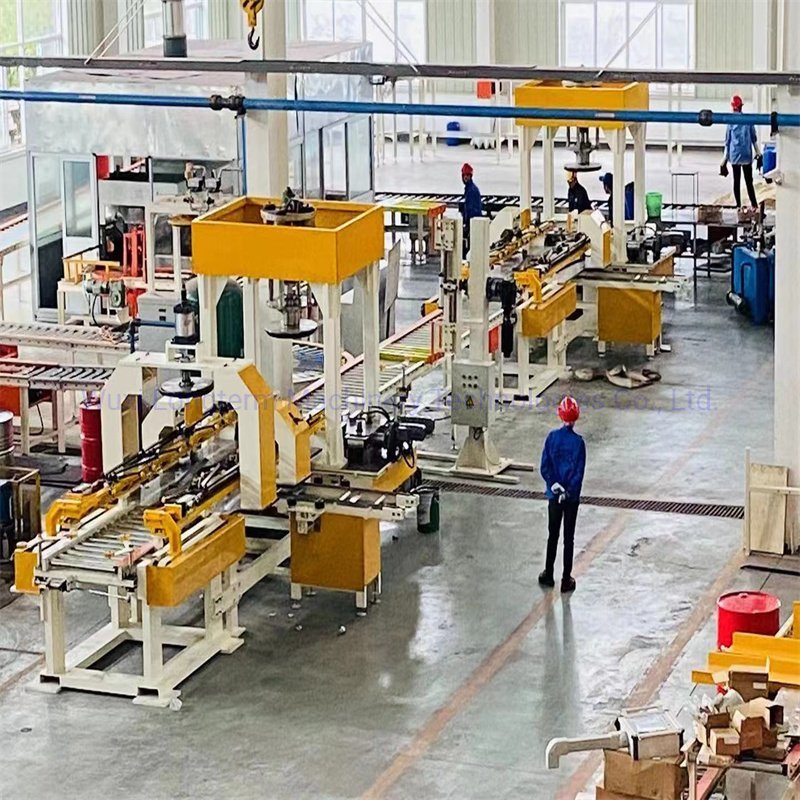

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^


V. Vertical barrel cap sealing machine has precise positioning of welding seam, comes with 4 sets of sealing wheels, freely switch various specifications and improve production efficiency.

VI. Vertical barrel turning machine occupies little space, simple and light structure, easy maintenance and energy saving.

VII. All machine base box is annealed after welding.

VIII.The control system adopts the latest SIEMENS.

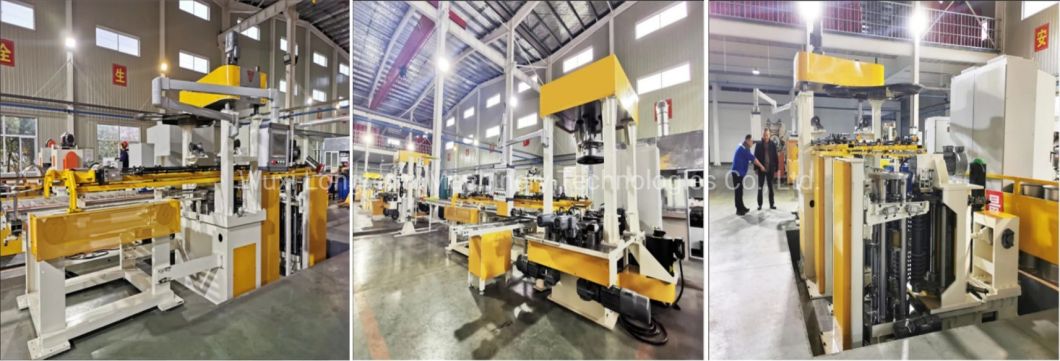

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^

Product Parameters
High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^
Efficiency 12 pcs/min
Workpiece barrel diamete Φ571.5mm, Φ560mm.
Steel plate thickness 0.8-1.2mm
Steel plate length 850-1000mm
Steel plate material: SPCC, Q195-215A
Conveying method Vertical conveying, depending on the form of the host
Energy Meet TN-S system.
Conveying elevation 1050mm
Related machine

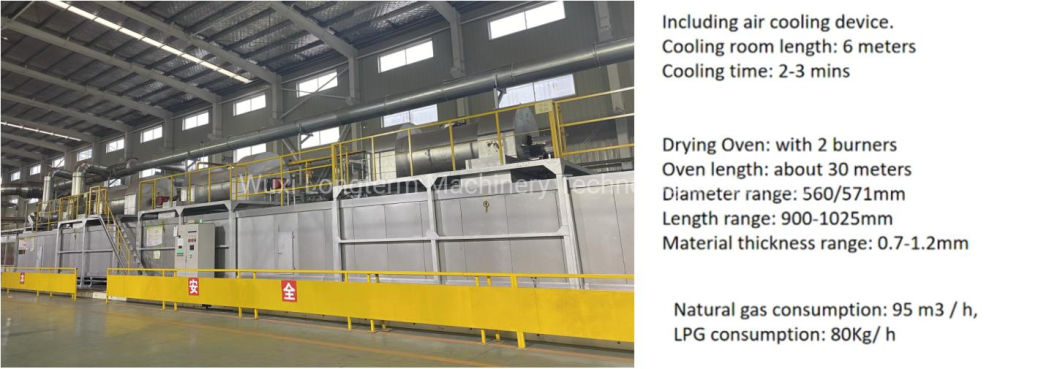

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^ High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^ Drying oven
High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^

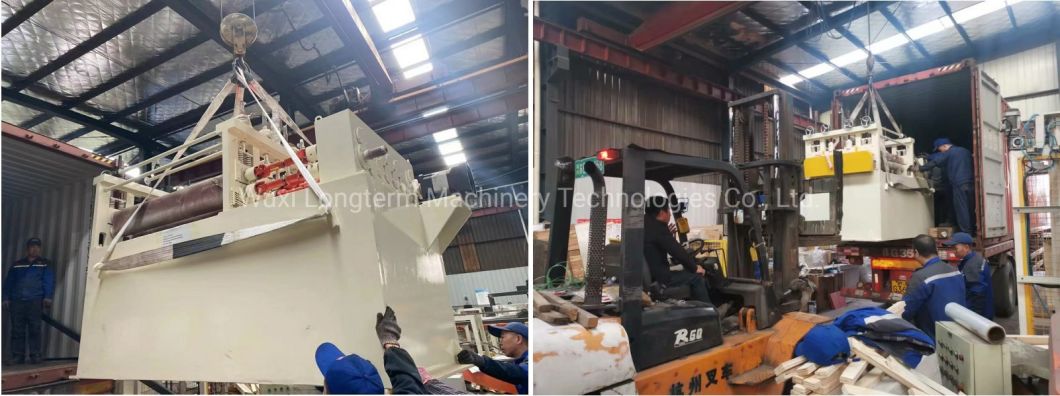

Packaging & Shipping


High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^

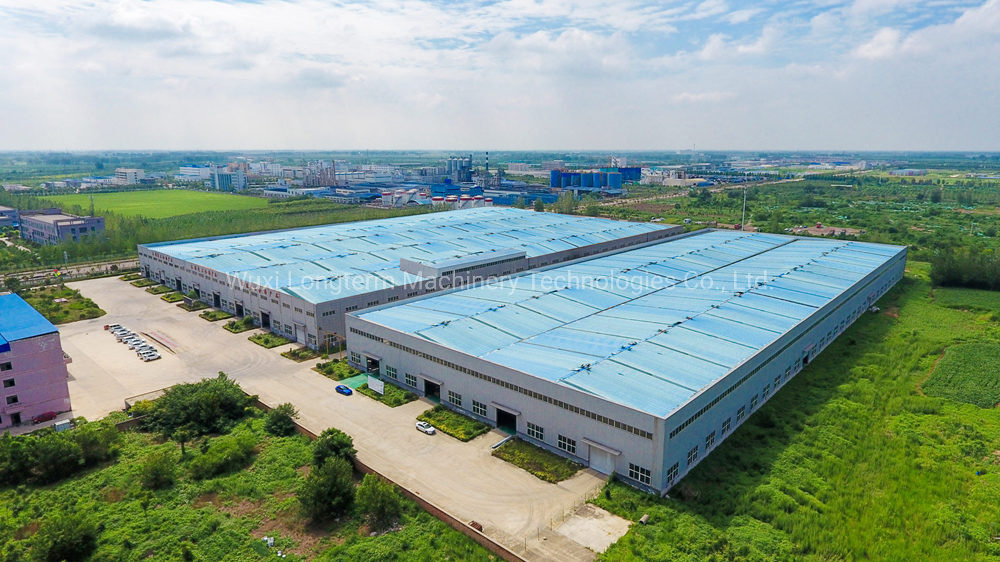

Company Profile

High Speed Vertical Flanging Beading Seaming Machine for 55 Gallon Steel Drum Production Line^Wuxi Longterm Machinery Technologies Co., Ltd

We are drum machine manufacturer with more than 25 years' experience, like automatic resistance welding machine, inner & outer cleaning machine, corrugation and flanging machine, painting booth and curing oven. With advanced technology and the best service, we cooperate with many clients from all over the market, Malaysia, Bangladesh, Vietnam, Turkey, India, Columbia, some of them purchases our advanced machine to upgrade their existing line to achieve higher output; some of them purchases the whole line from us, incl. blanking line, welding, painting booth etc. All machines are running very well in their plants and help a lot! We believe that we are your best choice.

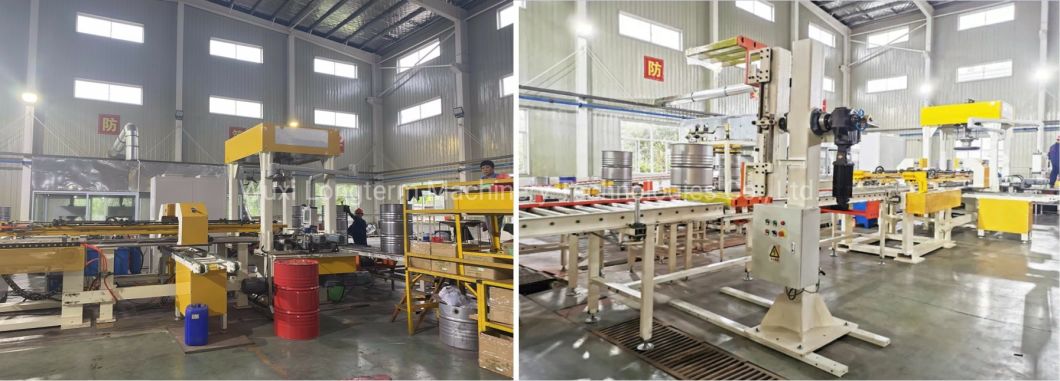

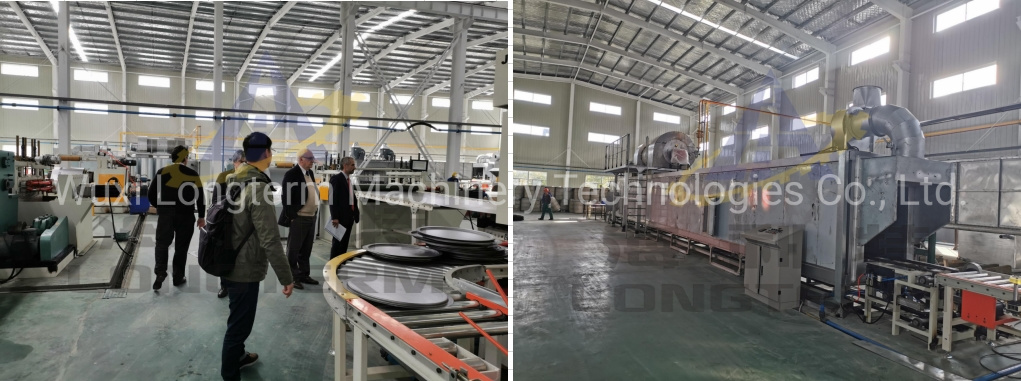

Customer Visiting

Irina Flanging

FAQ

Q: How can we guarantee quality?
A: Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the Steel drum production line.

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

To enable me send you offer for correct machines, please tell me following details:

A: Technical drawing

B: Size of the steel drum you want to manufacture

C: What's the capacity per shift/day?

Welcome to Inquiry!
