Solar Water Heater Tank Making Machine with Panasonic Lweder
Features:
Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
Water cooling with copper backing covered with Argon gas

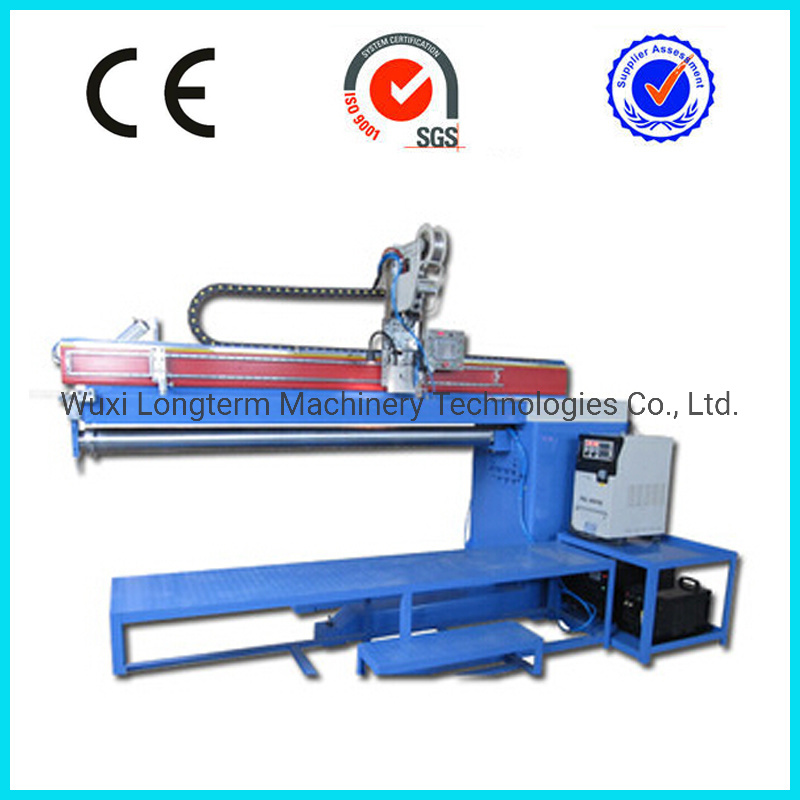

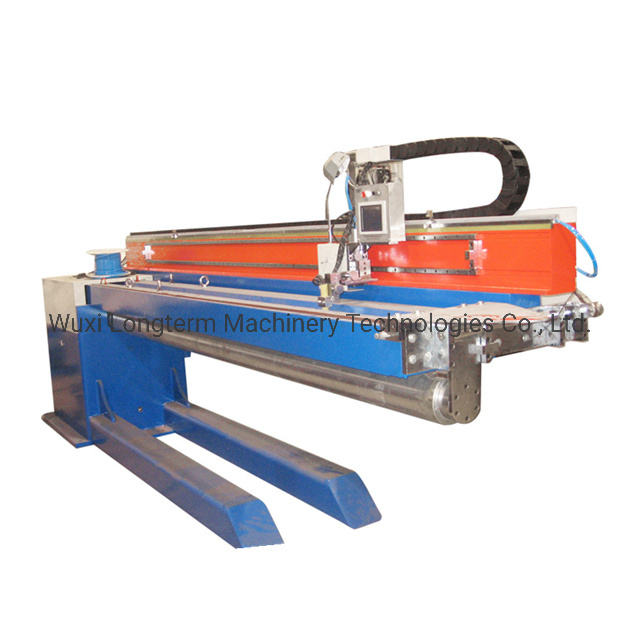

Longitudinal seam welding machine parameter:
| Welding length | 1500-3000mm |
| Clamping | pneumatic with keyboard and clamping board |
| Clamping control | footswitch/remote control |
| Trolley motion speed | 100-500mm/min |
| Clamping thickness | 2.0-4.0mm |

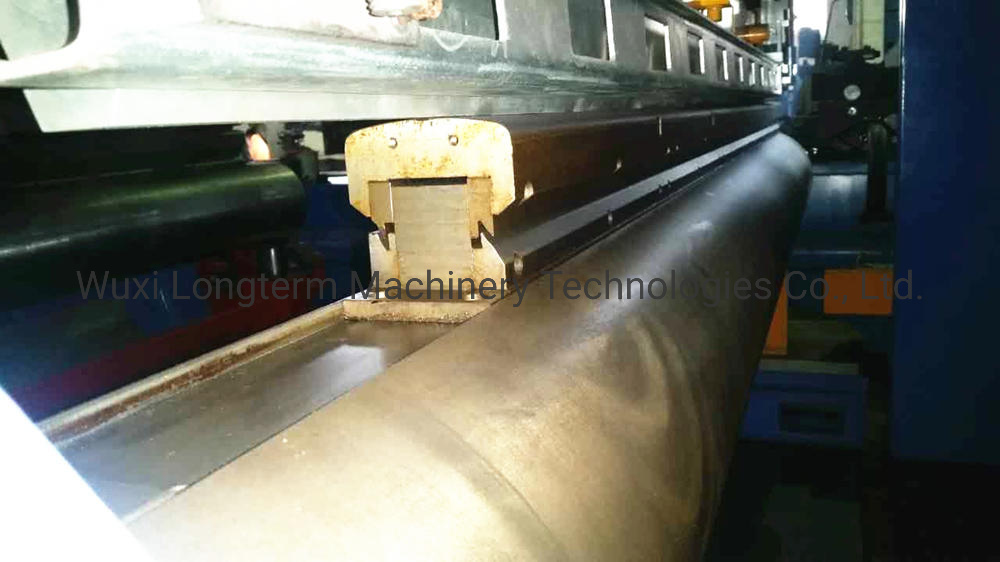

| Mandrel cooling | external water cooling |
| Cable assembly | drag chain |
Circumferential seam welding machine parameter:
| Description | Data |
| Payload capacity | 200kg |
| Rotation speed | 0.05-0.5rpm |
| Diameter coverage | OD300-OD500mm |
| Speed regulation | AC frequency conversion |
| Suitable for work-piece length | 3000mm |
| Clamping | pneumatic cylinder |
| Support | manual operation support |
FAQ:
Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type
Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need following information to offer you accurate propposal:
1. Whether you have technical drawing of solar tank or not.
2. Material of tank (galvanized steel or stainless steel 304,316)
3. Thickness of the tank
4. Diameter range of tank
5. Length of tank
6. Are you new in this area or you already have some machines in the workshop?
7. Capacity you require, i.e. how many pieces and sizes you want to make per day?
