Water Geyser Longitudinal Seam Welding Machine

  • HLT

  • Argon Gas Mixture

  • High Frequency

  • AC

  • 1500mm

  • Less Than 0.5mm

  • Stainless Steel and Carbon Steel

  • 5.5kw(380V 50Hz)

  • 250-500mm

  • Standard Seaworthy Package

  • ISO9001

  • HLT

  • Jiangsu, China

  • 85158000

  • 1000 Sets Per Year

  • Available | Customized Request

Product Description

Water Tank Longitudinal Seam Welding Machine

Water Geyser Longitudinal Seam Welding Machine

Product description:

Welded Solar Water Heater Tank

Water Geyser Longitudinal Seam Welding Machine

Company Profile:

Wuxi Longterm Machinery Technologies Co., Ltd is the leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders,Solar water heater tank. The whole process from blanking to powder coating and finishing line. With strong technical force and rich experience, our team is quite technical and high-quality. Our company has been engaged in welding research since 1975. We have fully automatic welding line from trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers with output 2000pcs per 8hrs. Our automatic MIG welding line is patent protected, which has been exported to America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...

Solar water heater tank manufacturing line:

The production line can be applicated in the production of solar water heater tank.
The warranty for each machine is one year and our engineers can service overseas.

Item Product Description
1 Shteeting feeding robort arm
2 Full automatic 6 roller rolling machine
3 Material feeding transition position
4 Material feeding transferring dolly
5 Tunnel type circumference welding machine KEMPPI MasterTig MLS DC4000
6 2 position air transfer machine
7 Joggling machine
8 3 pipes circumferenec welding machine KEMPPI FastMig 350
9 Bracket resistance welding beading machine TZ-200
10 2 welding guns flange circumference welder KEMPPI FastMig 350
11 Cap assembly machine
12 Automatic cap loading robort arm
13 2 position air transfer machine
14 2 welding guns cap circumference welder KEMPPI FastMig Pulse 450
15 2 position air transfer machine
16 T-joint reweld KEMPPI XIM350
17 Pipe positioning device
18 Automatic leakage testing machine

This machine is used for auto. MAG double-head circumferential welding of LPG cylinder, fire extinguisher bottle, solar water heater tank.

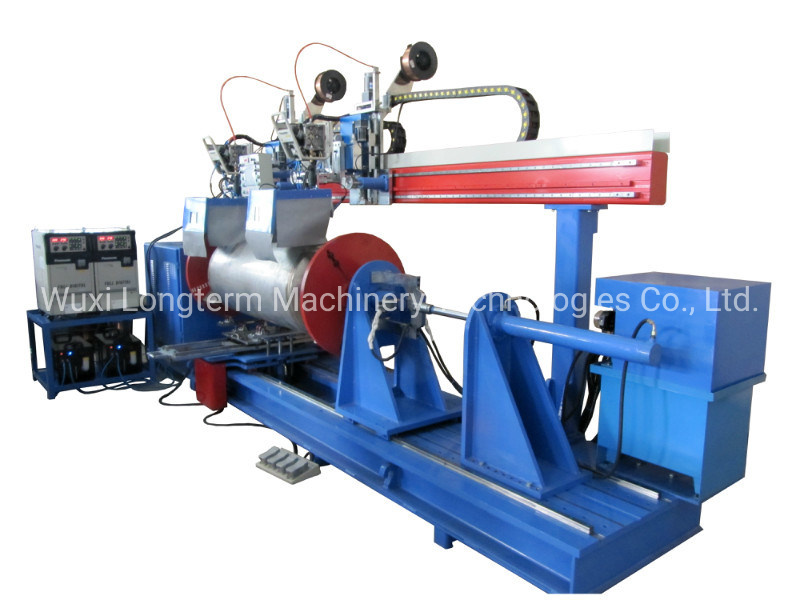

Machine Picture:

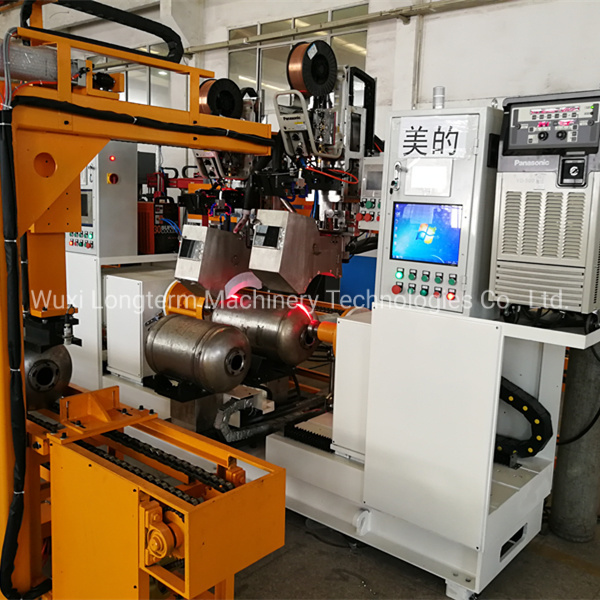

Water tank circumferential seam welding machine for Midea/Haier Company.

Water Geyser Longitudinal Seam Welding Machine

Water Geyser Longitudinal Seam Welding Machine

Water Geyser Longitudinal Seam Welding Machine

Longitudinal seam welding data sheet:
Description Data
Effective length 3000
Clamping: pneumatic with keyboard and clamping board
Clamping control footswitch/remote control
Trolley motion speed 100-1000mm/min
Wall thickness 0.35-1.2mm
Mandrel cooling external water cooling
Cable assembly drag chain

Circumferential seam welding data sheet:
Description Data
Payload capacity 200kg
Rotation speed 0.05-0.5rpm
Diameter coverage OD300-OD500mm
Speed regulation AC frequency conversion
Suitable for work-piece length 3000mm
Clamping pneumatic cylinder
Support manual operation support
Item No. HLT-2000l
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding system
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union

Customer Visiting

Water Geyser Longitudinal Seam Welding Machine


Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type.

Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:

Whether you have technical drawing of solar tank or not.

Material of tank (galvanized steel or stainless steel 304,316)
Thickness of the tank
Diameter range of tank
Length of tank

Are you new in this area or you already have some machines in the workshop?

Capacity you require, i.e. how many pieces and sizes you want to make per day?
