Solar Water Tank Girth Welding Machinery

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Shielding Gas:
Argon Gas Mixture
Frequency Range:
High Frequency
Electric Current:
AC
Length:
1500mm
Shearing Precision:
Less Than 0.5mm
Material:
Stainless Steel and Carbon Steel
Main Motor Power:
5.5kw(380V 50Hz)
Diameter:
250-500mm
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
85158000
Production Capacity:
1000 Sets Per Year
Customization:
Available | Customized Request

Product Description

Product Description

Solar Water Tank Girth Welding Machinery

Product description:

Welded Solar Water Heater Tank

Company Profile:

Wuxi Longterm Machinery Technologies Co., Ltd is the leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders,Solar water heater tank. The whole process from blanking to powder coating and finishing line. With strong technical force and rich experience, our team is quite technical and high-quality. Our company has been engaged in welding research since 1975. We have fully automatic welding line from trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers with output 2000pcs per 8hrs. Our automatic MIG welding line is patent protected, which has been exported to America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...

Solar water heater tank manufacturing line:

The production line can be applicated in the production of solar water heater tank.
The warranty for each machine is one year and our engineers can service overseas.

Item	Product	Description
1	Shteeting feeding robort arm
2	Full automatic 6 roller rolling machine
3	Material feeding transition position
4	Material feeding transferring dolly
5	Tunnel type circumference welding machine	KEMPPI MasterTig MLS DC4000
6	2 position air transfer machine
7	Joggling machine
8	3 pipes circumferenec welding machine	KEMPPI FastMig 350
9	Bracket resistance welding beading machine	TZ-200
10	2 welding guns flange circumference welder	KEMPPI FastMig 350
11	Cap assembly machine
12	Automatic cap loading robort arm
13	2 position air transfer machine
14	2 welding guns cap circumference welder	KEMPPI FastMig Pulse 450
15	2 position air transfer machine
16	T-joint reweld	KEMPPI XIM350
17	Pipe positioning device
18	Automatic leakage testing machine

This machine is used for auto. MAG double-head circumferential welding of LPG cylinder, fire extinguisher bottle, solar water heater tank.

Machine Picture:

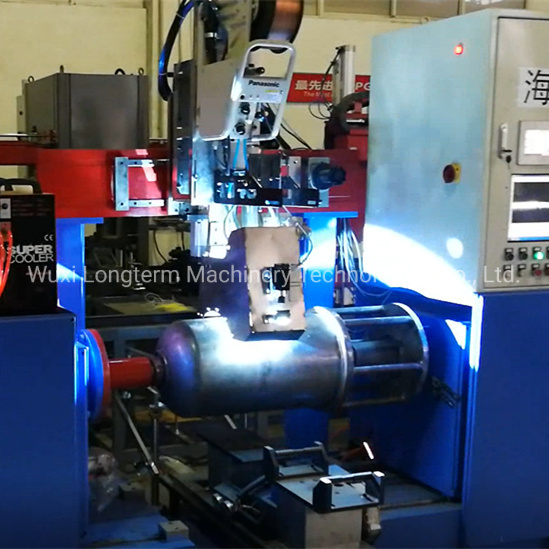

Water tank circumferential seam welding machine for Midea/Haier Company.

Solar Water Tank Girth Welding Machinery

Longitudinal seam welding data sheet:

Description	Data
Effective length	3000
Clamping:	pneumatic with keyboard and clamping board
Clamping control	footswitch/remote control
Trolley motion speed	100-1000mm/min
Wall thickness	0.35-1.2mm
Mandrel cooling	external water cooling
Cable assembly	drag chain

Circumferential seam welding data sheet:

Description	Data
Payload capacity	200kg
Rotation speed	0.05-0.5rpm
Diameter coverage	OD300-OD500mm
Speed regulation	AC frequency conversion
Suitable for work-piece length	3000mm
Clamping	pneumatic cylinder
Support	manual operation support

Item No.	HLT-2000l
Features	Strong and reliable structure & design Fast welding speed (0.8m/min) Low noise level<45dB Easy operation water cooling with copper backing covered with Argon gas
Standard Assessories	water cooling welding torch automatic cycling water tank Panasonic welding system
Packing Details	Plywood cases/boxes
MOQ	1set
Warranty	1 year after delivery
Payment	T/T,L/C,D/P, Western Union
OEM & ODM	OK

Customer Visiting

Solar Water Tank Girth Welding Machinery

FAQ:

Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type.

Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:

Whether you have technical drawing of solar tank or not.

Material of tank (galvanized steel or stainless steel 304,316)
Thickness of the tank
Diameter range of tank
Length of tank

Are you new in this area or you already have some machines in the workshop?

Capacity you require, i.e. how many pieces and sizes you want to make per day?
