Solar Water Heater System Automatic Longitudinal Seam Welding Machine

Quantity:
  • HLT2000

  • 100-1000mm/Min

  • Drag Chain

  • External Water Cooling

  • Low Noise Level<45db Easy Opeationr

  • Water Cooling Welding Torch

  • Direct Current

  • TIG

  • Container

  • Standard Seaworthy Package

  • SGS

  • HLT

  • China Jiangsu

  • 844790900

  • 500/Year

  • Available | Customized Request

Product Description

solar water heater system automatic longitudinal seam welding machine

description
Wall thickness 0.35-1.2mm
Clamping: pneumatic with keyboard and clamping board
Trolley motion speed 100-1000mm/min
length: 3000mm
TIG and MAG welding shall be conducted for stainless steel plate, hot rolling plate, cold rolling plate and other metallic materials. The welding sheet is 0.4-1.0 mm in thick, with smooth welding seam, signal welding and double forming. There is little transformation of the work parts after welding, and corrosion of grain boundary complies with quality requirements.

Item No.
HLT-2000l
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy opeationr
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding system
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union
OEM & ODM OK

Longitudinal seam welding Data sheet
Description Data
Effective length 3000
Clamping: pneumatic with keyboard and clamping board
Clamping control footswitch/remote control
Trolley motion speed 100-1000mm/min
Wall thickness 0.35-1.2mm
Mandrel cooling external water cooling
Cable assembly drag chain

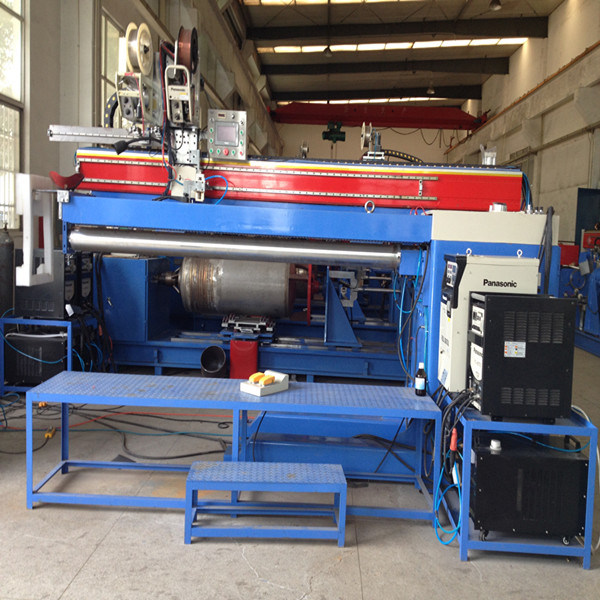

Picture of machine
Solar Water Heater System Automatic Longitudinal Seam Welding Machine
picture of tank
Solar Water Heater System Automatic Longitudinal Seam Welding Machine
picture of factory
Solar Water Heater System Automatic Longitudinal Seam Welding Machine

Company information

Our company is located in Wuxi new district, i.e.Wuxi National Hi-Tech Development Zone where there are more than 300 international famous companies.
Our company was established in the year of 2000, covering area more than 10000m2 and building area more than 8900m2. There are more than 100 empolyees working in our factory, among them, there are 10 engineers for design machineries.
We are very strong in stainless steel with thickness 0.31-3.0mm and carbon steel/galvanized steel 3-12mm with more than 30years of experience. We were listed as 'China Famous Brand' since 2010. Our machineries were exported to Europe, Asia and South America. The main machineries are TIG, MAG and MIG welding machines for different application, including longitudinal seam welding machine and circumferential seam welding for solar water heater tank, LPG and LNG cylinder.
I.Solar Water Tank Manufacturing Line
1 Precision Shearing Machine
2 Digital Punching machine
(for making the holes for vacuum tube)
3 Longitude Seam Welding Machine (open type)
4 Air pressure reinforced ring making machine
5 Automatic Air pressure flanging machine(double end)
6 Automatic Nozzle Welding Machine(double head)
Automatic Nozzle Welding Machine(single head)
7 Automatic impulse seam welding machine(resistance seam welding machine)
8 Nozzle end flattening machine
9 Four-roller Sheeting Rolling machine

FAQ FOR Solar water heater manufacturing equipment
Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type
Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
1. Whether you have technical drawing of solar tank or not.
2. Material of tank (galvanized steel or stainless steel 304,316)
3. Thickness of the tank
4. Diameter range of tank
5. Length of tank
6. Are you new in this area or you already have some machines in the workshop?
7. Capacity you require, i.e. how many pieces and sizes you want to make per day?
