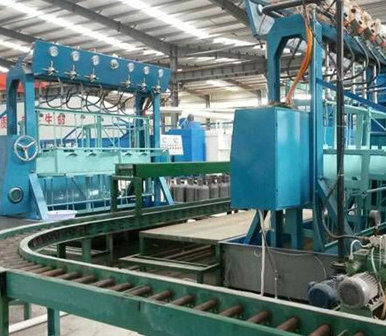

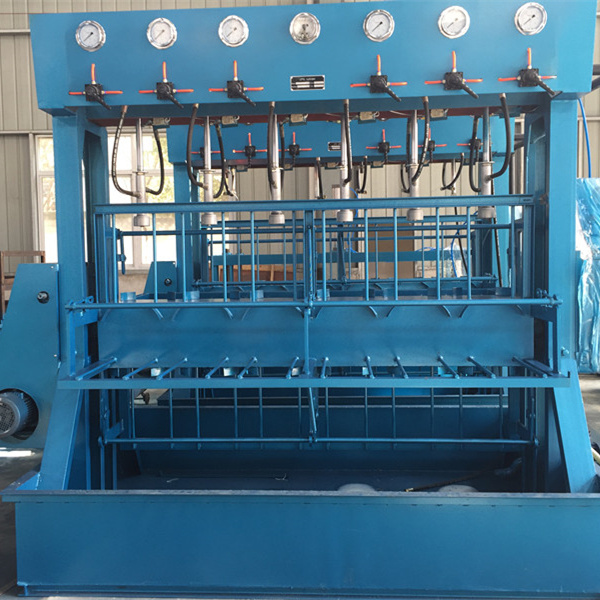

Semi Automatic LPG Gas Cylinder Hydro Testing Machine A. Product description Main technical parameter: - Air pressure: 0.6Mpa
- Water test pressure: 3.2Mpa (adjustable)
- Holding time: 60s
- Irrigation time: 90s
- Dewatering time: 50s
- Motor power: 3KW?
- Weight of machine: 4ton, 6ton
- No. of station: 12 station, 18 station
- Size of cylinder available: 320*700-420*1250mm?
B. Automatic lpg gas cylinder production line Machine list: No | Machine name |
1 | Mechanical decoiler,straightening and blanking line(with scrap shearing machine) |
2 | Deep drawing machine |
3 | Auto flushing machine for deep drawn heads |
4 | Automatic trimming &polishing machine |
5 | Automatic hole punching &logo making machine |
6 | Automatic socket welding machine |
7 | Automatic handle welding machine |
8 | Lower end dish trimming and polishing machine |
9 | Lower end dish automatic joggling machine |
10 | Automatic bottom base welding machine |
11 | Assembly and spot welding machine |
12 | Circumferential welding machine |
13 | LPG gas furnace(heat treatment) |
14 | Automatic online hydro testing machine |
15 | Drying oven |
16 | Shot blasting machine |
17 | Zinc metalizing machine |
18 | Powder coating line or Liquid Painting Line |
19 | Valve mounting machine |
20 | Air leakage testing machine |
21 | Printing machine |
22 | Handle decoiler &straightening and cutting line |
23 | Handle hole punching machine |
24 | Hydraulic Presser-letter stamping(Optional) |
25 | Handle end bending machine(Optional) |
26 | Hydraulic coding machine |
27 | Handle rolling machine |
28 | Handle top R forming machine |
29 | Handle low R forming machine |
30 | Vertical Bottom base rolling machine |
31 | Double welding position welding fixture |
32 | Base forming machine |
33 | Hydraulic Precision sheet shearing machine(33KG only) |
34 | Sheet rolling machine(33KG only) |
35 | Automatic Seam Welder(33KG only) |
Production Process Automatic trimming & polishing machine with arms for both end dishes This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line
Automatic hole punching & logo making machine with arms for female half/top half Punch the hole on top of the cylinder& stamp the logo
Shot blasting machine Remove the rust, oxide layer and burr free of pipe. Clean welding slag, showing a metallic luster,
make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel tube
C. FAQ: LPG cylinder manufacturing equipment Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries: 1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
