LPG Gas Cylinder Hydro Testing Line Automatic Loading Propane Gas Bottle Hydraulic Testing Machine

I. Machinery list

II. Technical specification:

1. Residual liquid removal machine
Used for the recycling of residual gas and liquid in the LPG cylinder.
1. Power:7.5kw
2. Gas & liquid separator:0.4m³
3. Air source pressure:0.4-0.6Mpa
4. Turnover period:<30s/time
5. One time residual cleaning time:≥2min
6. Overall size:4700*1500*2050mm
7. Working efficiency: 125 cylinders/hour


2. Valve mounting and dismantling machine

Suitable to mounting and dismantling the valves of model
YSP-10, 15 and 50 LPG cylinders.
1. Motor power:1.5kw
2. Drive speed ration:1:30
3. Main shaft speed ration:31r/min
4. Air source pressure:0.5-0.6MPa
7. Working efficiency: 125 cylinders/hour
8. Overall size:600*600*1800mm

3. LPG Cylinder Incinerator furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder
1. Furnace chamber temperature setting: <400ºC
(On the basis of meeting the requirements of burning bottles)
2. Workpiece temperature: ≈400ºC
3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set
4. Power supply: 3.3Kw
5. Speed ratio: 493
6. Overall dimension: 15000 x 1500 x 1800mm
7. Working efficiency: 125 cylinders/hour

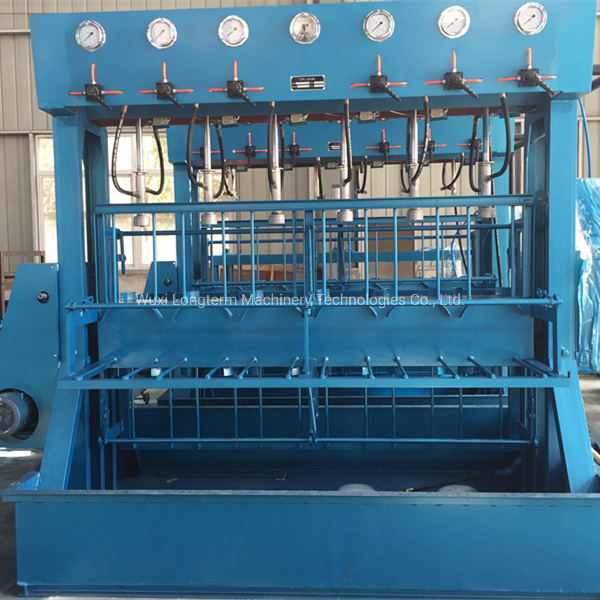

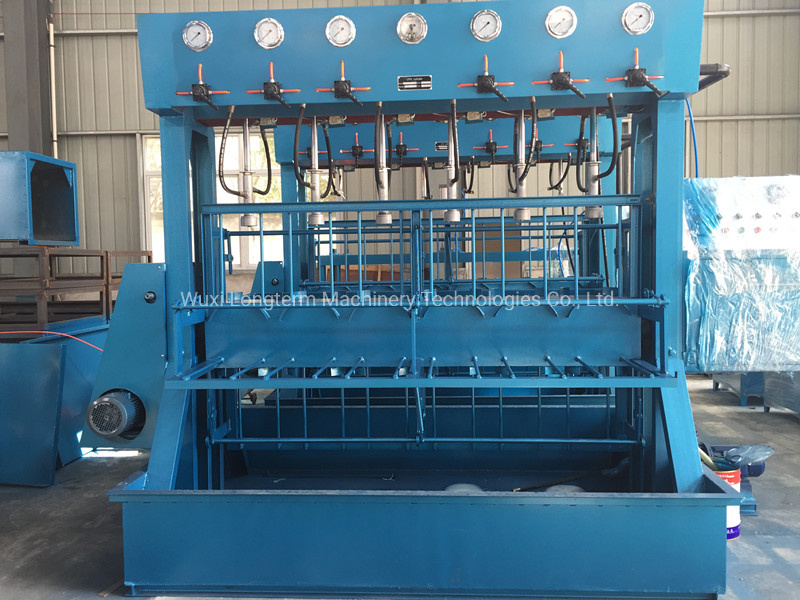

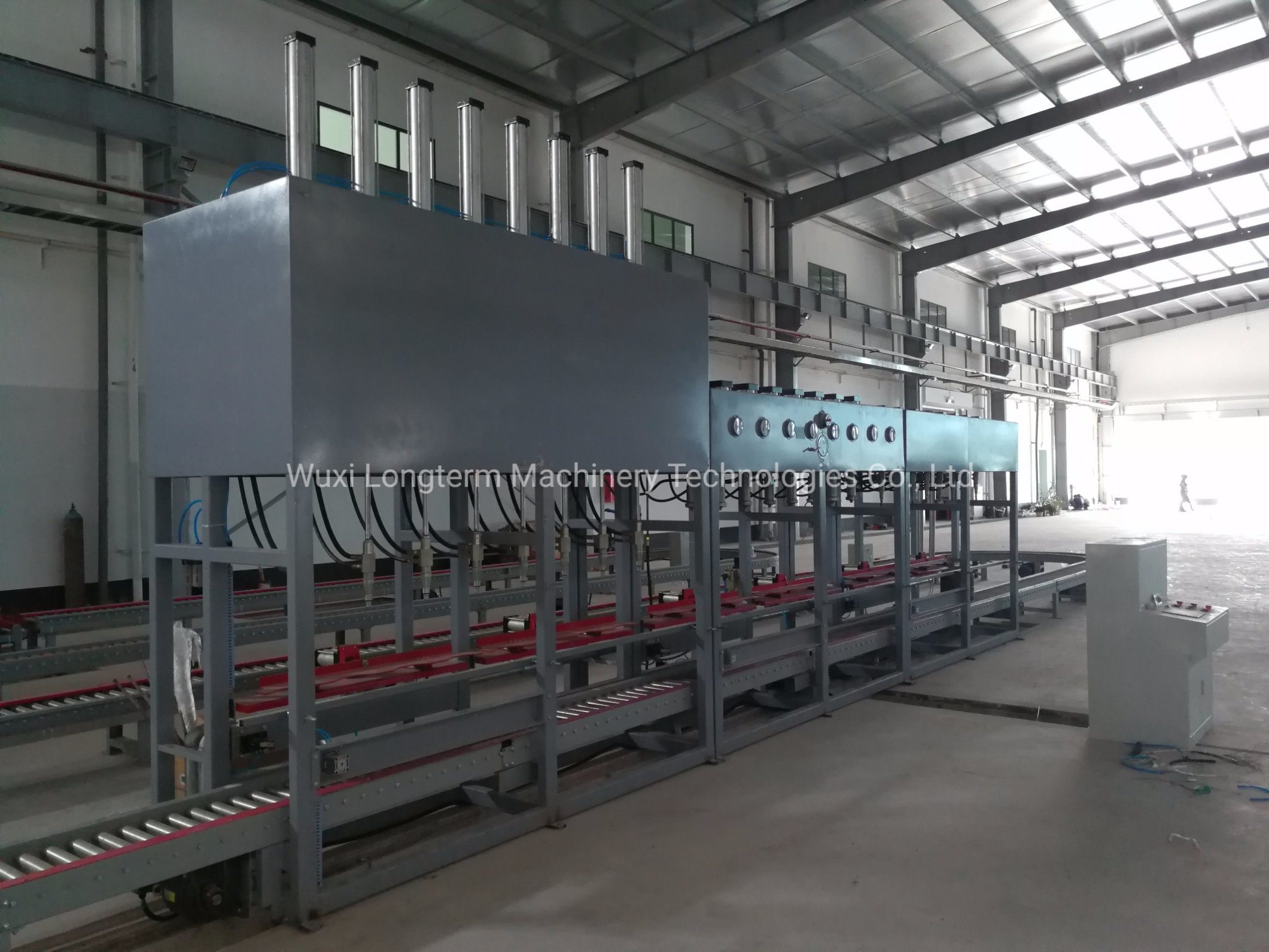

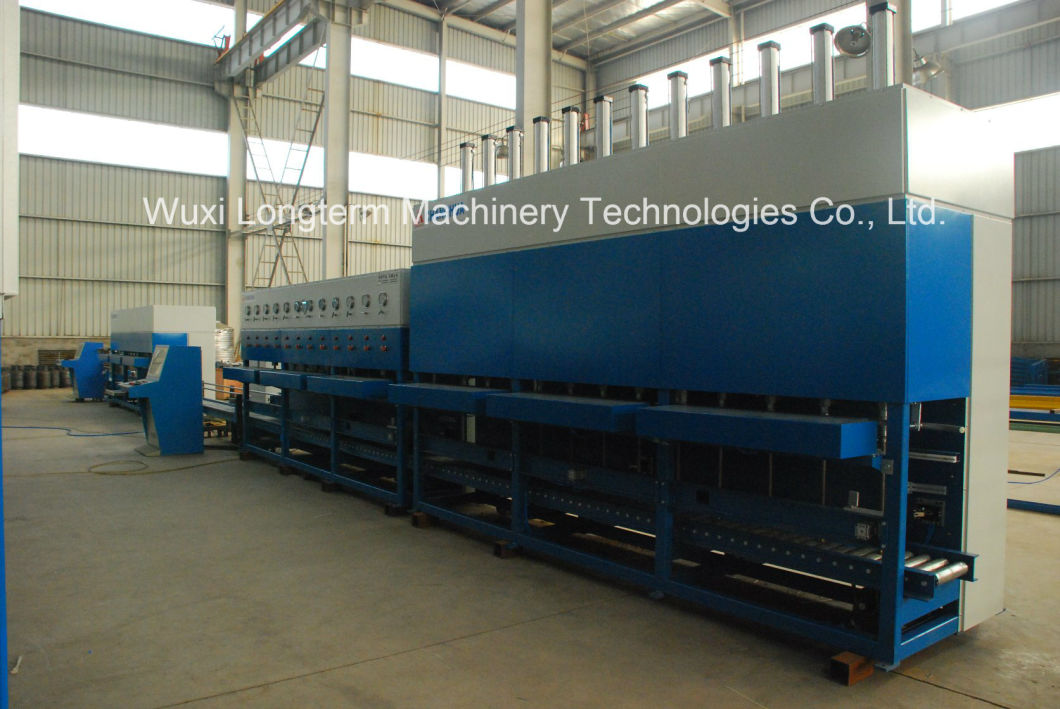

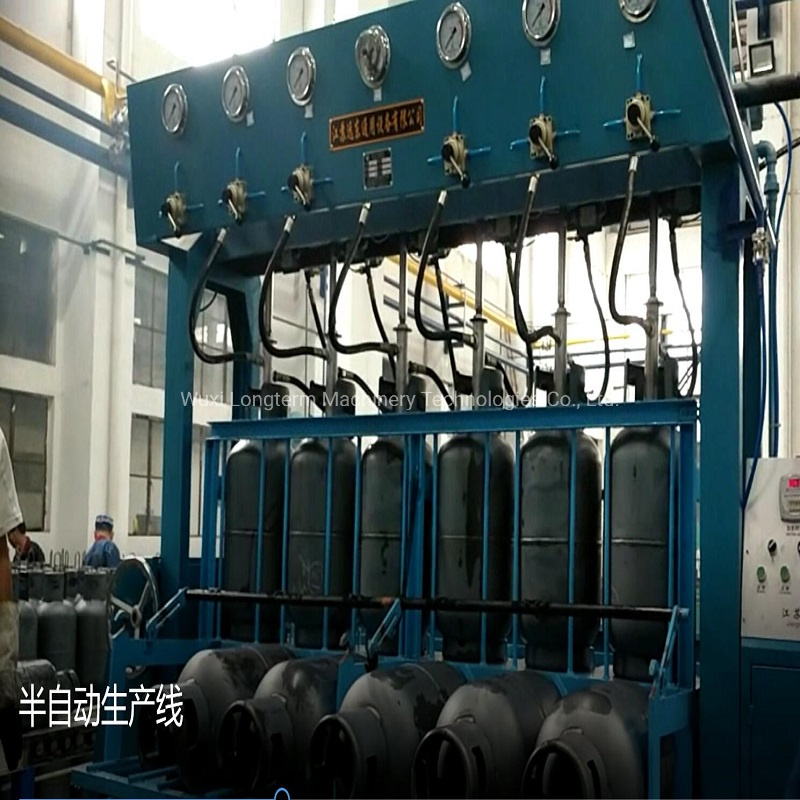

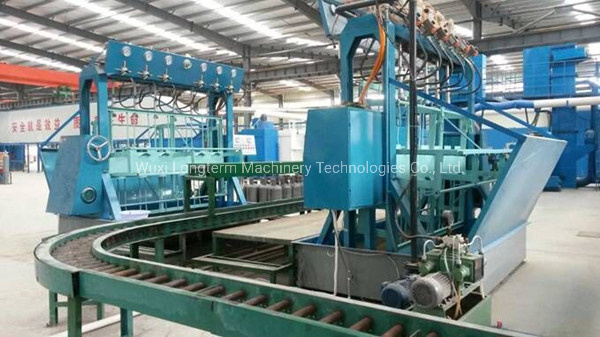

4. YS-4C Automatic Hydro pressure testing machine

Air pressure: 0.6Mpa
Water test pressure: 3.2Mpa (adjustable)
Holding time: 60s
Irrigation time: 90s
Dewatering time: 50s
Motor power: 3KW
Weight of machine: 4ton, 6ton
No. of stations: 6 station
Size of cylinder available: 320*700-420*1250mm

5. Shot blasting & derusting machine




6. Fully-automatic powder coating line



7. Valve moutning and dismantling machine (mounting)
Parameter is similar as No.2. Valve mounting and dismantling machine

8. Air leakage testing machine

1. Working pressure testing: 2.1MPa
2. Air cylinder working pressure: 0.5~0.6MPa
3. Working efficiency: 150pcs/hour(on basis of YSP-15 standard), 6 stations
4. Weight: 3T



9. Vacuum machine

1. Pumping rate: 15L/S
2. Ultimate pressure: ≤6×10-2 Pa
3. Motor power: 2.2Kw
4. Temperature rise: ≤80 ºC
5. Noise: ≤80 dB(A)
6. Inlet diameter: Φ40 mm
7. Pump revolution speed: 320 rmp
8. Oil consumption: 2.8L
9. Overall dimension: 790mm*530mm*540mm
10. Weight: 190kg
11. Working efficiency: 75pcs/per machine/per hour

10. The cylinder valve calibration table

The machine is used to align the LPG cylinder valve.
1. Medium pressure air pressure:>2.1MPa
2. Testing pressure: 2.1Mpa
3. Air cylinder working pressure: 0.4-0.5MPa
4. Test medium: Compressed air
5. Working efficiency:75pcs/h

11. Printing machine

The machine adopts the scraper printing principle, it is suitable
for cylinder inspection center and cylinder manufacturer.
It is ideal LPG cylinder printing equipment.
1. Working efficiency:150Pcs/h
2. Air source pressure:0.5-0.6Mpa
3. Printing cylinder specification: QGB50×400MF2
Bottle cylinder specification: QGB50×200MP2
Pressing cylinder specification: QGB50×100MF1
4. Overall size:1200*800*1220mm
5. Weight: About 200kg


12. Automatic Zinc metalizing machine

1. Arc spraying zinc machine total power: 15KVA*N
2. Vacuum cleaner engine power: 5.5KW
3. The compressed air input pressure: 0.55~7Mpa
4. Diameter of the zinc wire: 2-3mm
5. Rated input voltage: 220V~280V
6. Productivity: Max. 90 pcs/hour
7. Zinc wire consumption: 93 kgs/hour
8. Full load power of zinc metalizing line: 50KW
Consumption of 0.5-0.7Mpa compressed air : 8m³/min
