Hydrostatic Testing Unit for LPG Gas Cylinder

  • 1
  • Water
  • Dynamic Load
  • Digital
  • Computer Control
  • 1000-2000Kg
  • AC220V
  • LPG Cylinder Water Pressure Testing Machine
  • Available
  • 3kg 6kg 12kg 33kg 45kg
  • Test LPG Cylinder
  • T/T
  • 45days
  • Standard Seaworthy Package
  • Standard Seaworthy Package
  • HLT
  • China Jiangsu
  • 500 One Year
  • Available | Customized Request

Product Description

Online LPG Cylinder Water Pressure Testing Machine, Automatic Cylinder Hydrostatic Testing unit
Description of machine
tested with compressed air and pressured water. Air and water are applied with high pressure inside of the cylinders to check whether they have leakage or not.
Hydrostatic Testing Unit for LPG Gas Cylinder
Hydrostatic Testing Unit for LPG Gas Cylinder

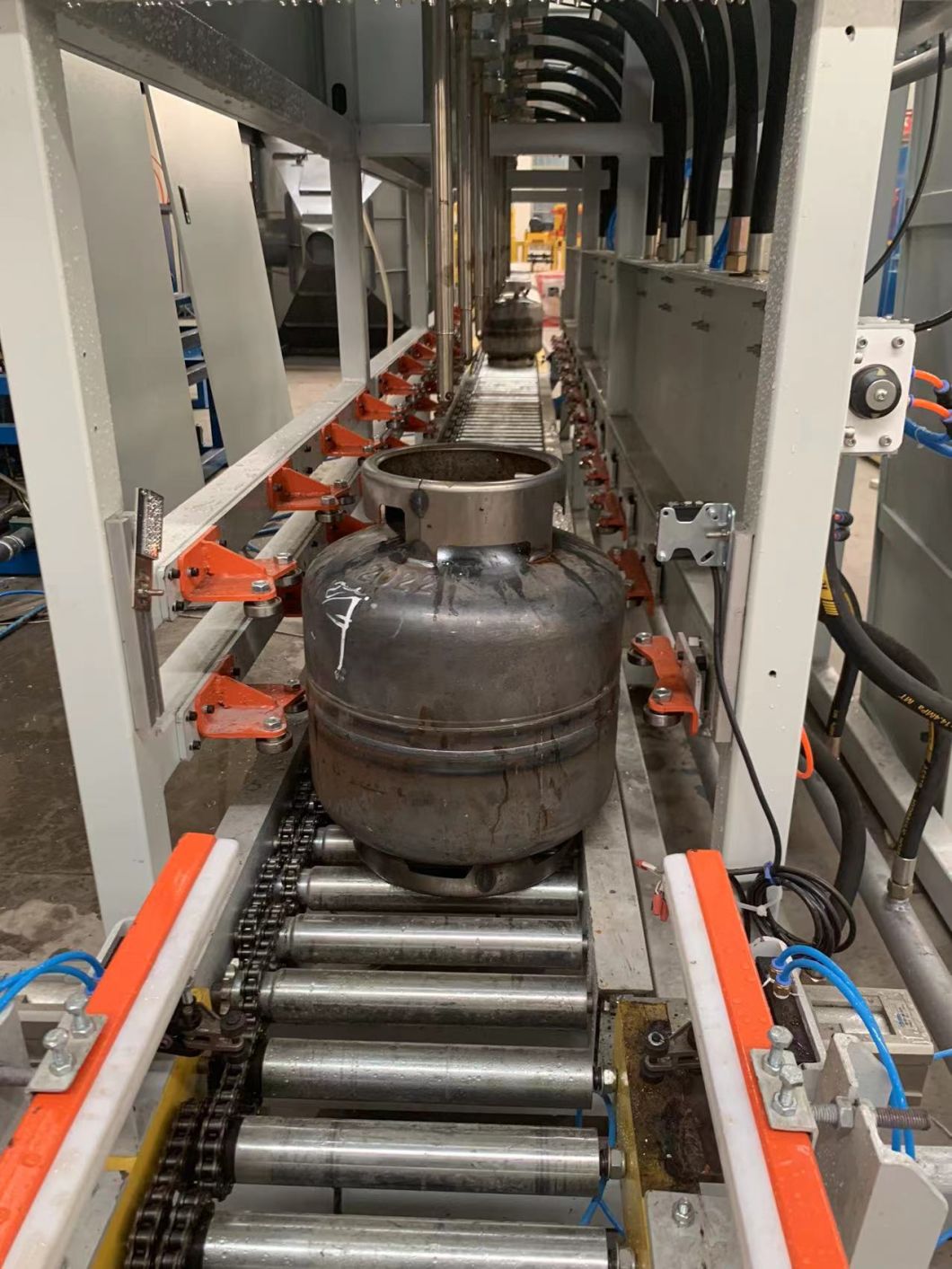

The integration and automatic YS-8/12 LPG cylinder hydraulic testing equipment is special used for LPG cylinder hydro testing.
The workstation of the equipment is 12, the design improve the productivity by testing the 12 cylinders at the same time.
Hydrostatic Testing Unit for LPG Gas Cylinder

1. Productivity: 220-260 pcs/hr
2. Working air pressure: ≤6MPa
3. Power: 12KW AC380V 50Hz, 1KW AC220V 50Hz
4. Water quantity for testing: ≥2m3 water tank or water pool

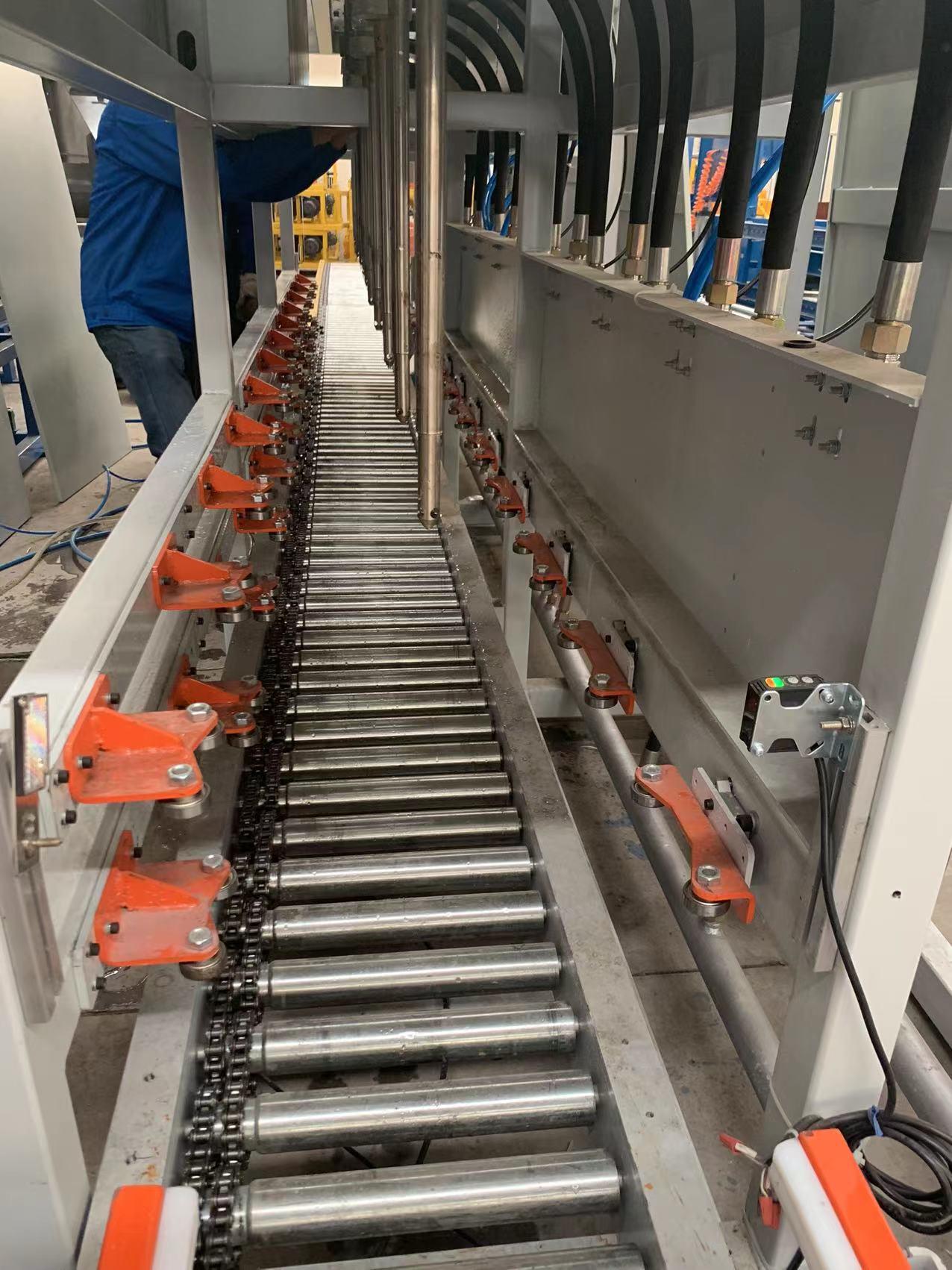

The water filling part equips with 1 set roller conveyor line, 1 set water filling device, 1 set cylinder block device, 3 sets
locator device.
Water pressure testing area equipment include one roller conveyor line,one set water pressure testing device, 1 set resistance of
bottle opener, locator 3 sets.

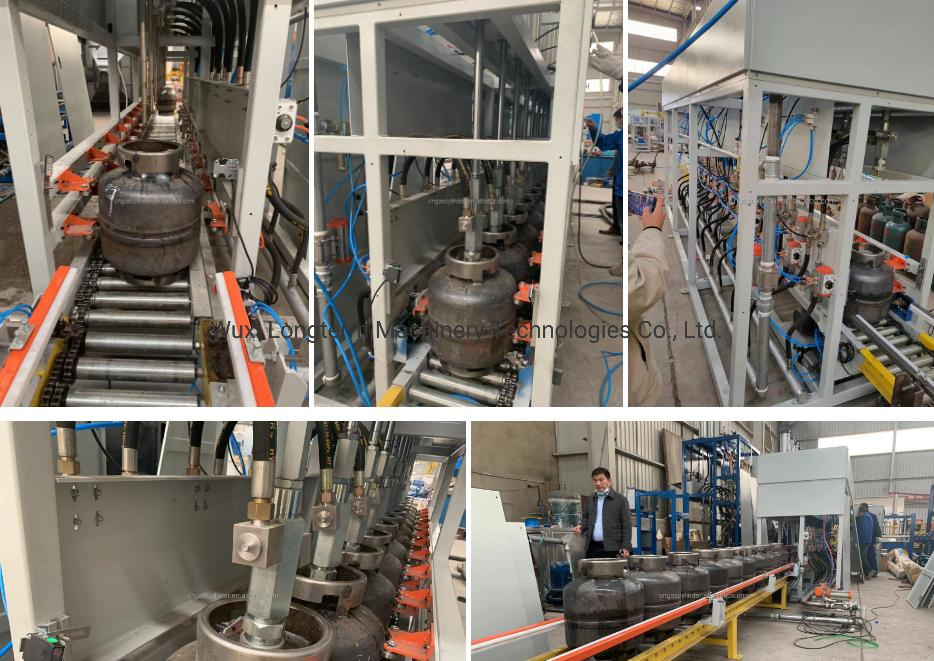

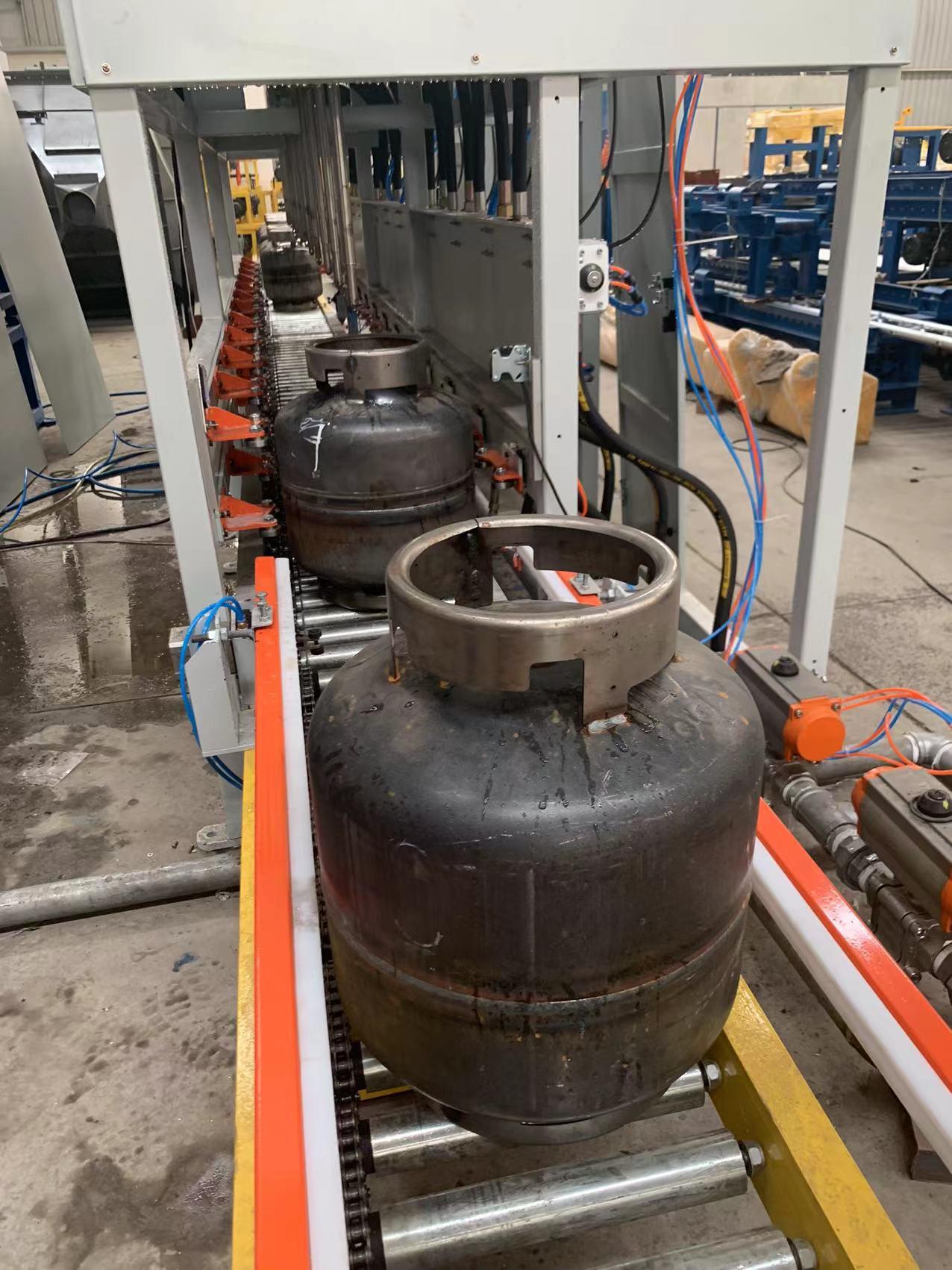

Machine details
Hydrostatic Testing Unit for LPG Gas Cylinder

More Machine to choose

Hydrostatic Testing Unit for LPG Gas Cylinder

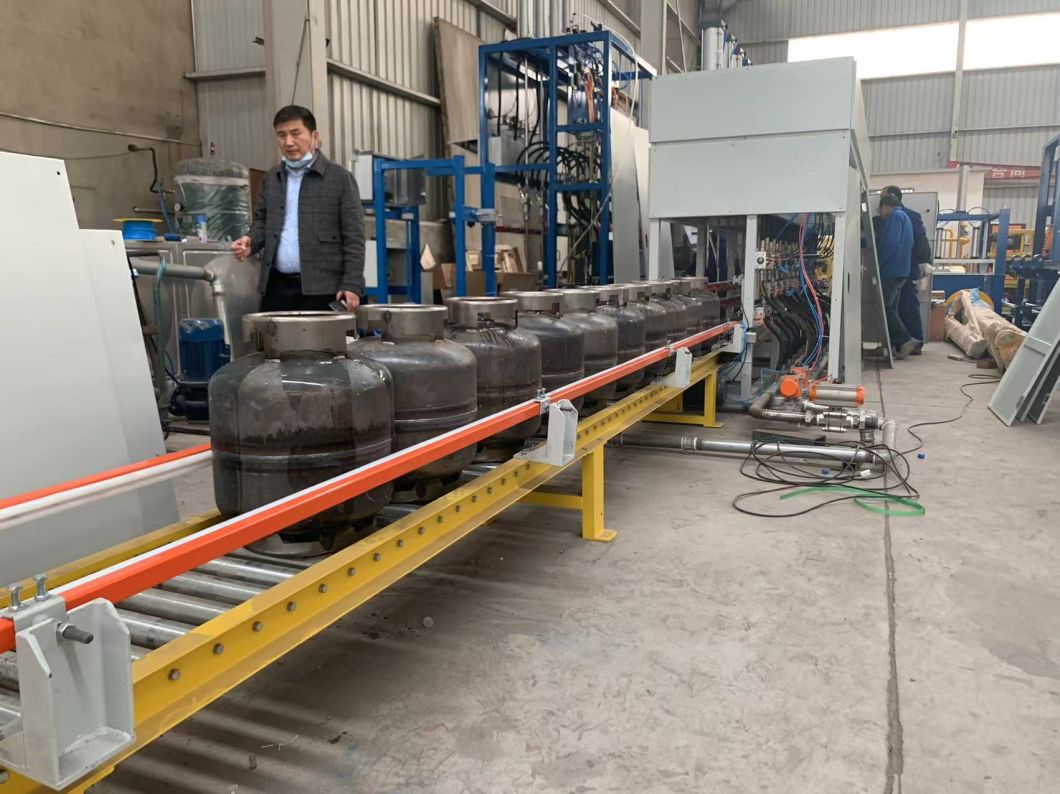

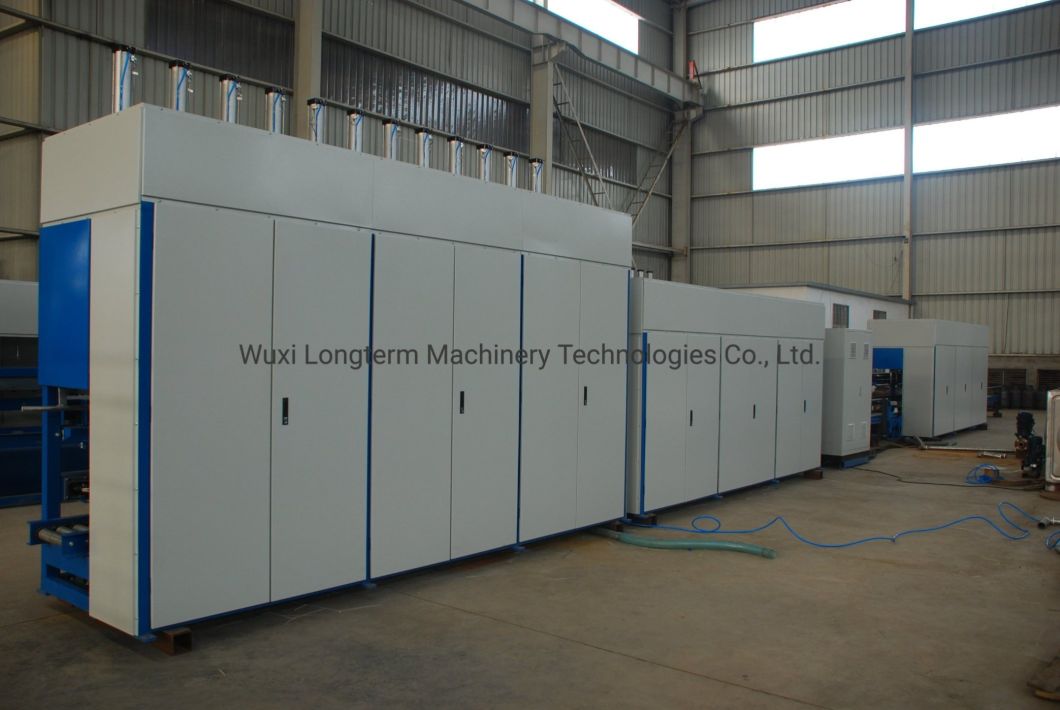

Through type hydro testing machine for LPG cylinders
The water pressure is through-type, with its own water tank, filling, pressurizing and maintaining pressure, and draining in the same
station, one bottle and one meter, which can be individually controlled. All the control valves adopt stainless steel pneumatic
ball valves to realize the control of self-over-activation. , Drain the water in the bottle through the drain pipe through
high-pressure air, equipped with two sets of drain pipes.
According to the output, the water pressure of 10 stations should be selected,

Hydrostatic Testing Unit for LPG Gas Cylinder

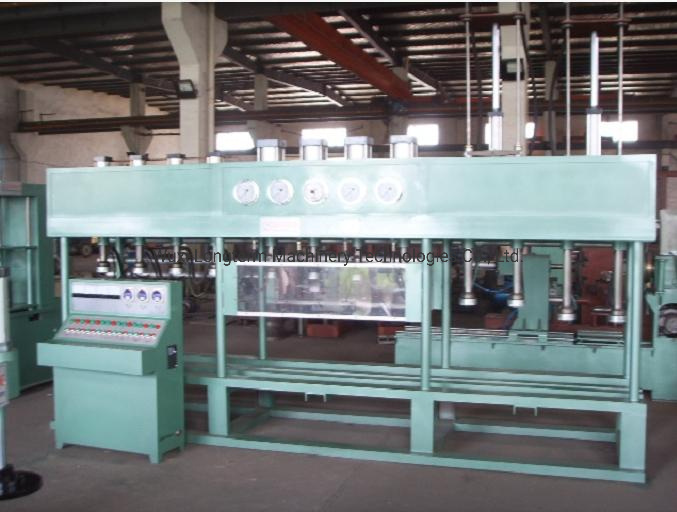

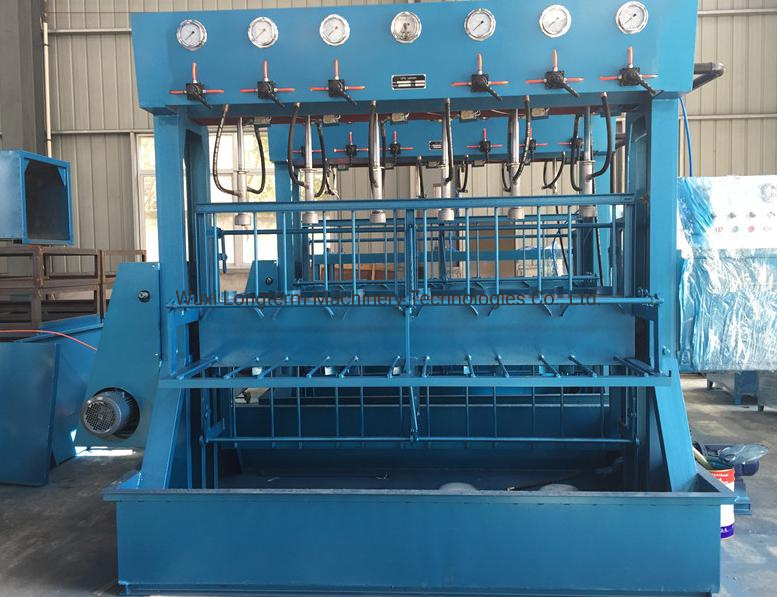

Semi auto hydraulic testing machine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Hydrostatic Testing Unit for LPG Gas Cylinder

Hydrostatic Testing Unit for LPG Gas Cylinder
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hydrostatic Testing Unit for LPG Gas Cylinder

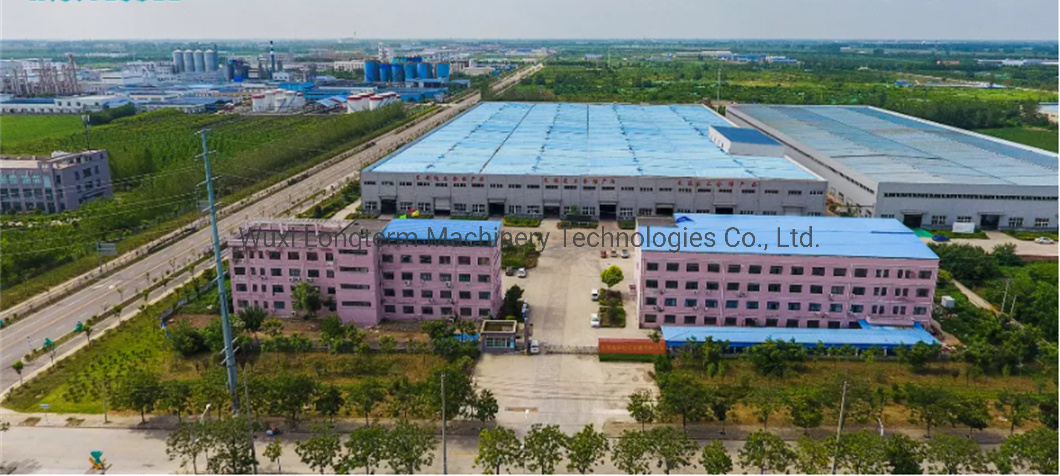

Wuxi Longterm Machinery Technologies Co., Ltd. specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.

Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the manpower and increasing the productivity.

We can give you the most professional advice and guidance on the DOT certification.
Hydrostatic Testing Unit for LPG Gas Cylinder Hydrostatic Testing Unit for LPG Gas Cylinder
Hydrostatic Testing Unit for LPG Gas Cylinder

Q: What size of LPG cylinder your machine can test?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to test?
2.How many pcs you want to test per 8hrs
