Air Leakage Testing Working Pressure Test LPG Gas Cylinder Hydraulic Pressure Testing Machine

Quantity:
  • Gas

  • Medium Pressure (1.6MPa≤p<10.0MPa)

  • New

  • 3~50kgs

  • Comflex

  • PLC

  • Available

  • LPG Gas Cylinder Refurbishing Line

  • Full Automatic

  • Tt

  • Available

  • Available

  • Standard Seaworthy & Strong Package

  • SGS, ISO

  • Comflex

  • Wuxi, Jiangsu, China(Mainland)

  • 85152100

  • 50 Plants One Year

  • US$ 200/Piece 1 Piece(Min.Order) | Request Sample

Product Description

LPG Cylinder Online Hydro Testing Machine

Air Leakage Testing Working Pressure Test LPG Gas Cylinder Hydraulic Pressure Testing Machine

I. Machinery list
Equipment name Model Unit
Residual liquid removal machine YCH-1 set
Manual type pour residual frame set
Valve mounting and dismantling machine(dismantling) YJ-2 set
LPG Cylinder incinerator furnace YFL-1 set
Equipped with additional device:
TL-1B cylinder loading and unloading device set
desulphuration and dust removing device TL-1 set
Forced air cooling set
Automatic Hydro testing machine
YS-4C Hydro water pressure testing machine(22kg) with video scanning serial code & testing record set
YS-4C Hydro water pressure testing machine(50kg) with video scanning serial code & testing record set
AH-28 Pump Station set
YC-6T Shot blasting & derusting machine set
CPS/X-1 Type Automatic Cylinder loading & unloading mechanical arm
Bag-type dust collector 5.5KW
Zinc Metalizing Machine
Powder coating line set
Valve mounting and dismantling machine(mounting) QFL-1 set
Air leakage testing machine(22kg) YQ-3 set
Air leakage testing machine(45kg&50kg) CM-3 set
Air injection gun/distributing air cylinder set
Vacuum machine 2X-15 set
YF-1 Valve calibration machine YF-1 set
PSJ-1 Lifting platform
GS-1 Roller conveyor
Burst Pressure testing machine

II. Technical specification:

1. Residual liquid removal machine
Used for the recycling of residual gas and liquid in the LPG cylinder.
1. Power:7.5kw
2. Gas & liquid separator:0.4m³
3. Air source pressure:0.4-0.6Mpa
4. Turnover period:<30s/time
5. One time residual cleaning time:≥2min
6. Overall size:4700*1500*2050mm
7. Working efficiency: 125 cylinders/hour


2. Valve mounting and dismantling machine

Suitable to mounting and dismantling the valves of model
YSP-10, 15 and 50 LPG cylinders.
1. Motor power:1.5kw
2. Drive speed ration:1:30
3. Main shaft speed ration:31r/min
4. Air source pressure:0.5-0.6MPa
7. Working efficiency: 125 cylinders/hour
8. Overall size:600*600*1800mm

3. LPG Cylinder Incinerator furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder
1. Furnace chamber temperature setting: <400ºC
(On the basis of meeting the requirements of burning bottles)
2. Workpiece temperature: ≈400ºC
3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set
4. Power supply: 3.3Kw
5. Speed ratio: 493
6. Overall dimension: 15000 x 1500 x 1800mm
7. Working efficiency: 125 cylinders/hour

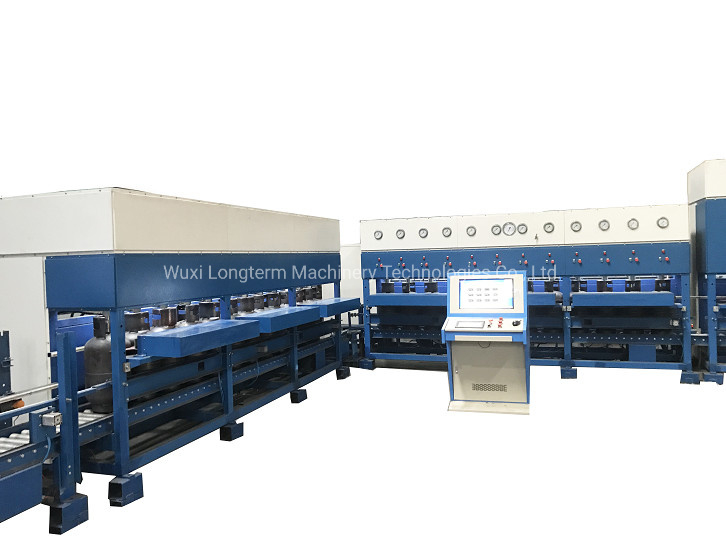

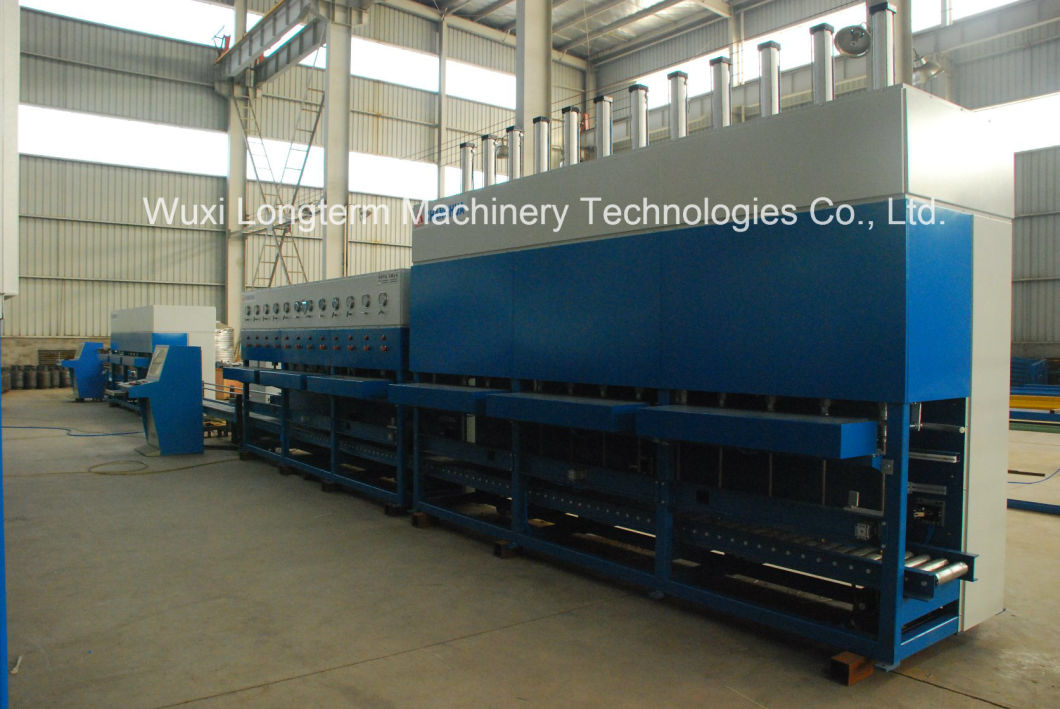

4. YS-4C Automatic Hydro pressure testing machine

Air pressure: 0.6Mpa
Water test pressure: 3.2Mpa (adjustable)
Holding time: 60s
Irrigation time: 90s
Dewatering time: 50s
Motor power: 3KW
Weight of machine: 4ton, 6ton
No. of stations: 6 station
Size of cylinder available: 320*700-420*1250mm

5. Shot blasting & derusting machine




6. Fully-automatic powder coating line



7. Valve moutning and dismantling machine (mounting)
Parameter is similar as No.2. Valve mounting and dismantling machine

8. Air leakage testing machine

1. Working pressure testing: 2.1MPa
2. Air cylinder working pressure: 0.5~0.6MPa
3. Working efficiency: 150pcs/hour(on basis of YSP-15 standard), 6 stations
4. Weight: 3T



9. Vacuum machine

1. Pumping rate: 15L/S
2. Ultimate pressure: ≤6×10-2 Pa
3. Motor power: 2.2Kw
4. Temperature rise: ≤80 ºC
5. Noise: ≤80 dB(A)
6. Inlet diameter: Φ40 mm
7. Pump revolution speed: 320 rmp
8. Oil consumption: 2.8L
9. Overall dimension: 790mm*530mm*540mm
10. Weight: 190kg
11. Working efficiency: 75pcs/per machine/per hour

10. The cylinder valve calibration table

The machine is used to align the LPG cylinder valve.
1. Medium pressure air pressure:>2.1MPa
2. Testing pressure: 2.1Mpa
3. Air cylinder working pressure: 0.4-0.5MPa
4. Test medium: Compressed air
5. Working efficiency:75pcs/h

11. Printing machine

The machine adopts the scraper printing principle, it is suitable
for cylinder inspection center and cylinder manufacturer.
It is ideal LPG cylinder printing equipment.
1. Working efficiency:150Pcs/h
2. Air source pressure:0.5-0.6Mpa
3. Printing cylinder specification: QGB50×400MF2
Bottle cylinder specification: QGB50×200MP2
Pressing cylinder specification: QGB50×100MF1
4. Overall size:1200*800*1220mm
5. Weight: About 200kg


12. Automatic Zinc metalizing machine

1. Arc spraying zinc machine total power: 15KVA*N
2. Vacuum cleaner engine power: 5.5KW
3. The compressed air input pressure: 0.55~7Mpa
4. Diameter of the zinc wire: 2-3mm
5. Rated input voltage: 220V~280V
6. Productivity: Max. 90 pcs/hour
7. Zinc wire consumption: 93 kgs/hour
8. Full load power of zinc metalizing line: 50KW
Consumption of 0.5-0.7Mpa compressed air : 8m³/min
III. Introudction of our company
We are professional manufacturer of solar water tank machinery, LPG&LNG cylinder and steel drum welding equipment with many years of experience. We are improving technologies all the time and developing welding machinery market. We provide clients with inner and outer solar water tank, LPG&LNG cylinder, fire extinguisher, and steel drum welding machine and system solutions, including circumferential seam welding, longitudinal seam welding, nozzle welding, jacket layer welding system, etc...Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well accepted in many industries: pressure cylinders, fire extinguishers, solar water tank, stainless steel tanks, etc...Our machinery have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, etc...We can customized all our equipment according to different clients requirement.

We hope to cooperate with friends at home and abroad to create glorious future together.

IV. Customer reference list

1 .TK Group in Bangladesh

2. Hangzhou Yuhang Zhangshan Steel Cylinder Co.,Ltd.http://kelly-huang71.en.made-in-china.com, it is 3rd biggest LPG gas cylinder manufacturer in China, daily output is 18000pcs including all sizes from 2kgs to 50kgs.

3. TPA is manufacturing extremely high quality LPG cylinders for North America, European,UK and Australia. http://kelly-huang71.en.made-in-china.com, we supplied automatic welding line for their China plant in Dongguan. Now we are building new LPG gas cylinder factory in Vietnam, Hangphone, at the end of August , 2017, it will be set up and commissed.

4: Shandong Huanri Group co.,Ltd., http://kelly-huang71.en.made-in-china.com, they are biggest and strongest cylinder manufacturer in China, they bought our machines both for 12.5 and15kgs manufacturing and 50kgs manufacturing.

5.AYGAZ in Turkey, kelly-huang71.en.made-in-china.com.tr, last week, they have already ordered the complete welding line at us after comparing with SAW welding.

6. Manchester Tank from USA

7. Sahuwala Cylinder in India

8. Delta LPG Limited (SEACOM Group), they are setting up a new plant and we will take responsible for their 12.5kgs and 33kgs production line.
