LPG Gas Cylinder Online Hydro Testing Machine

Quantity:
  • longterm machinery

  • Product Line

  • 220-260 PCS/Hr

  • <=0.6MPa

  • 12kw AC380V 50Hz

  • 1kw AC220V 50Hz

  • 12

  • 12 Cylinders at The Same Time

  • 2.65-4mm

  • 6kg, 15kg, 25kg, 48kg, or Customized

  • 250~800mm or Customized

  • Acceptable

  • Standard Seaworthy Package

  • 6kg, 12kg, 25kg, 48kg, or Customized

  • LONGTERM

  • China

  • 85158000

  • 50/Year

  • Available | Customized Request

Product Description

LPG gas cylinder online hydro testing machine

A. Product Description
LPG Gas Cylinder Online Hydro Testing Machine
Technical Data:
The integration and automatic YS-8/12 LPG cylinder hydraulic testing equipment is special used for LPG cylinder hydro testing.
The workstation of the equipment is 12, the design improve the productivity by testing the 12 cylinders at the same time.
1. Productivity: 220-260 pcs/hr
2. Working air pressure: ≤0.6MPa
3. Power: 12KW AC380V 50Hz, 1KW AC220V 50Hz
4. Water quantity for testing: ≥2m3 water tank or water pool
The water filling part equips with 1 set roller conveyor line, 1 set water filling device, 1 set cylinder block device, 3 sets locator device.
Water pressure testing area equipment include one roller conveyor line,one set water pressure testing device, 1 set resistance of bottle opener, locator 3 sets.

B. Production Process
LPG Gas Cylinder Online Hydro Testing Machine


C. Other Related Machines

1. Circumferential welding machine
LPG Gas Cylinder Online Hydro Testing Machine

Cylinder thickness: 2.65-4mm, speed: 333pcs/8hr

2. LPG gas furnace
LPG Gas Cylinder Online Hydro Testing Machine
Cylinder weight 12.5kg
Diameter of cylinder DN200-400mm
Working efficiency 250pcs/hour
Entrance temperature 30ºC
Cylinder heating temperature 900ºC±25ºC
The max. working temperature of the furnace body ≤1000ºC
Fuel type nature gas
Fuel calorific value 8500 Kcal / kg
The form of combustion apparatus high-speed fuel burner
Heating quantity and thermal load distribution 8 pcs gas burner
No. of burners in heating section 4 pcs burners, 230KW/pcs
No. of burners in the front of temperature holding section 2 pcs burners, 230KW/pcs
No. of burners in the back end of temperature holding section 2pcs burners, 150KW/pcs
Power supply 20KW, 380V, 50Hz

3. Zinc metalizing machine
LPG Gas Cylinder Online Hydro Testing Machine
Arc spraying zinc machine total power 15KVA*N
Vacuum cleaner engine power 5.5KW
The compressed air input pressure 0.55~7Mpa
Diameter of the zinc wire 2-3mm
Rated input voltage 220V~280V
Productivity Max. 150 pcs/hour
Full load power of zinc metalizing line 50KW
Consumption of 0.5-0.7Mpa compressed air 8m³/min
No of zinc spraying machine 4 sets

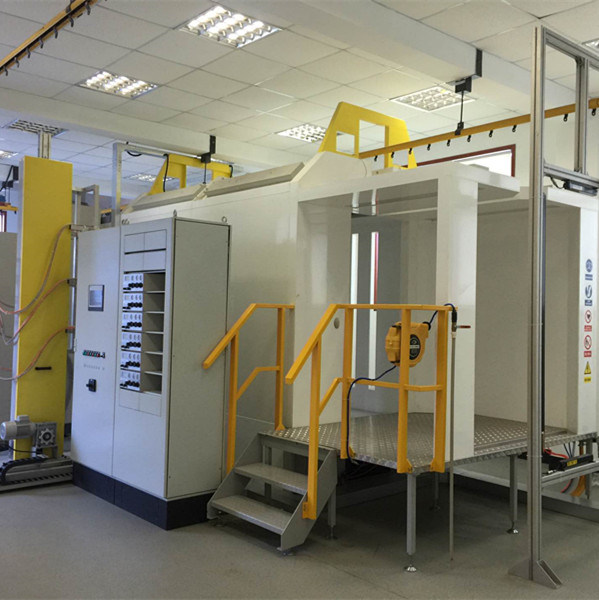

4. Powder coating line LPG Gas Cylinder Online Hydro Testing Machine
Max. workpiece size Φ300xH570mm,Φ360xH1055mm
Workpiece weight ≤35kg
Braced chain QXT250/50Kg light chain
Machine capacity 250pcs/hour
Heating source Nature gas
Hanging type One cylinder every two pitch, that means one cylinder per 500mm

D. Automatic LPG gas cylinder production line
Machine list:
No Machine name
1 Mechanical decoiler,straightening and blanking line(with scrap shearing machine)
2 Deep drawing machine
3 Auto flushing machine for deep drawn heads
4 Automatic trimming &polishing machine
5 Automatic hole punching &logo making machine
6 Automatic socket welding machine
7 Automatic handle welding machine
8 Lower end dish trimming and polishing machine
9 Lower end dish automatic joggling machine
10 Automatic bottom base welding machine
11 Assembly and spot welding machine
12 Circumferential welding machine
13 LPG gas furnace(heat treatment)
14 Automatic online hydro testing machine
15 Drying oven
16 Shot blasting machine
17 Zinc metalizing machine
18 Powder coating line or Liquid Painting Line
19 Valve mounting machine
20 Air leakage testing machine
21 Printing machine
22 Handle decoiler &straightening and cutting line
23 Handle hole punching machine
24 Hydraulic Presser-letter stamping(Optional)
25 Handle end bending machine(Optional)
26 Hydraulic coding machine
27 Handle rolling machine
28 Handle top R forming machine
29 Handle low R forming machine
30 Vertical Bottom base rolling machine
31 Double welding position welding fixture
32 Base forming machine
33 Hydraulic Precision sheet shearing machine(33KG only)
34 Sheet rolling machine(33KG only)
35 Automatic Seam Welder(33KG only)

E. FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
