Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

Share to:

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

Quantity:



Inquire Add to Basket

Method Type:
Automatic
Condition:
New
Diameter:
571.5mm
Height:
895mm
Machine Dimension:
6000*4320*4000 mm
Plate Material:
SUS 304
Speed:
200 PCS/Hour
Control Method:
PLC Control
Max.Colors:
Three Colors Painting
Spray Nozzle Brand:
American Nordson
Conveying Method:
Stepping Conveying
Voltage:
380V/220V/Can Be Customized
Purification Method:
Water Curtain + Spray + Water Vapor Separator
Machine Name:
Automatic Steel Drum Barrel Painting Spray Booth
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
HLT
Origin:
Wuxi, Jiangsu
HS Code:
8424899990
Production Capacity:
500 Units/Year
Samples:
US$ 1/Set 1 Set(Min.Order) | Request Sample

Product Description

Product Description

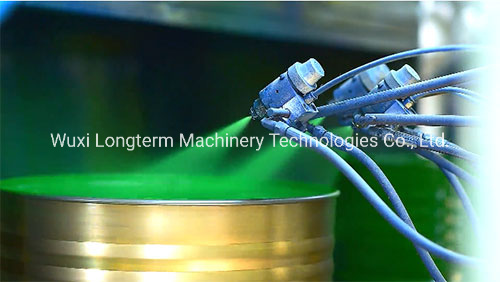

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

Main Specification:

Dimension	600043204000mm
Material	the structure is carbon steel; the sink, water curtain, Water vapor separation room is ss304
Purification method	Water curtain + shower + water vapor separator; solvent volatile gas is sent to the atmosphere
Pinch form	Two sets of fully enclosed steel drum rotating machines with four supporting wheels; one set of lifting rotating machine
Sprayer	1. Europe Airless spraying machine: 3 sets; 2. Ou Naishi spray gun: ZPQ 23; 3.Nozzles: 23, using the products of American Spray System Co., 4 of them use Nordson products.
Spraying method	Three-color vertical spraying
Production capacity	200 pcs/hour
PLC control cabinet	Use PLC to control spraying and transmission
Conveying method	Stepping

Machine Pictures

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

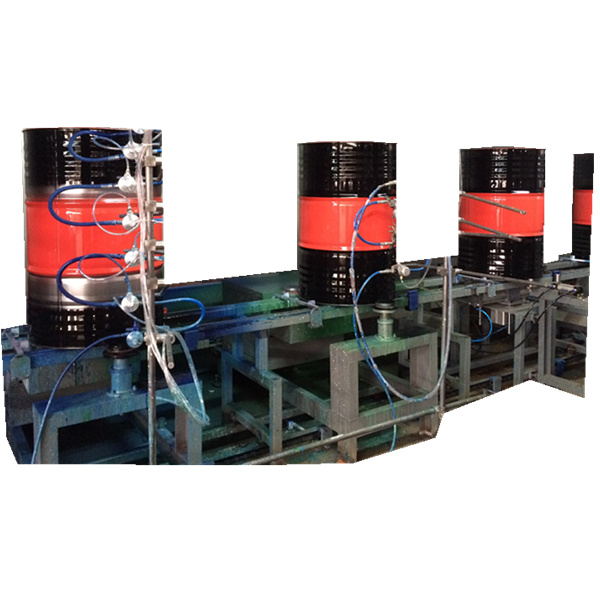

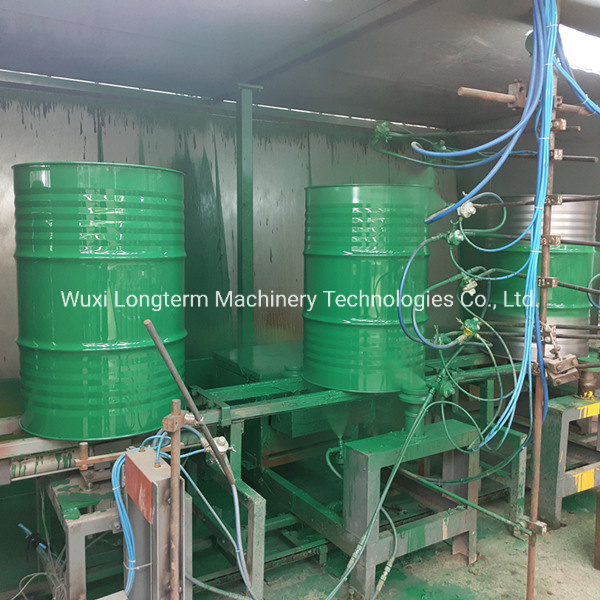

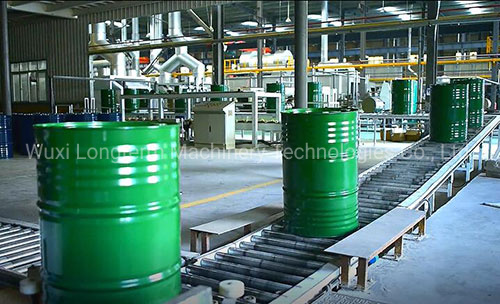

Finished drums after painting
Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

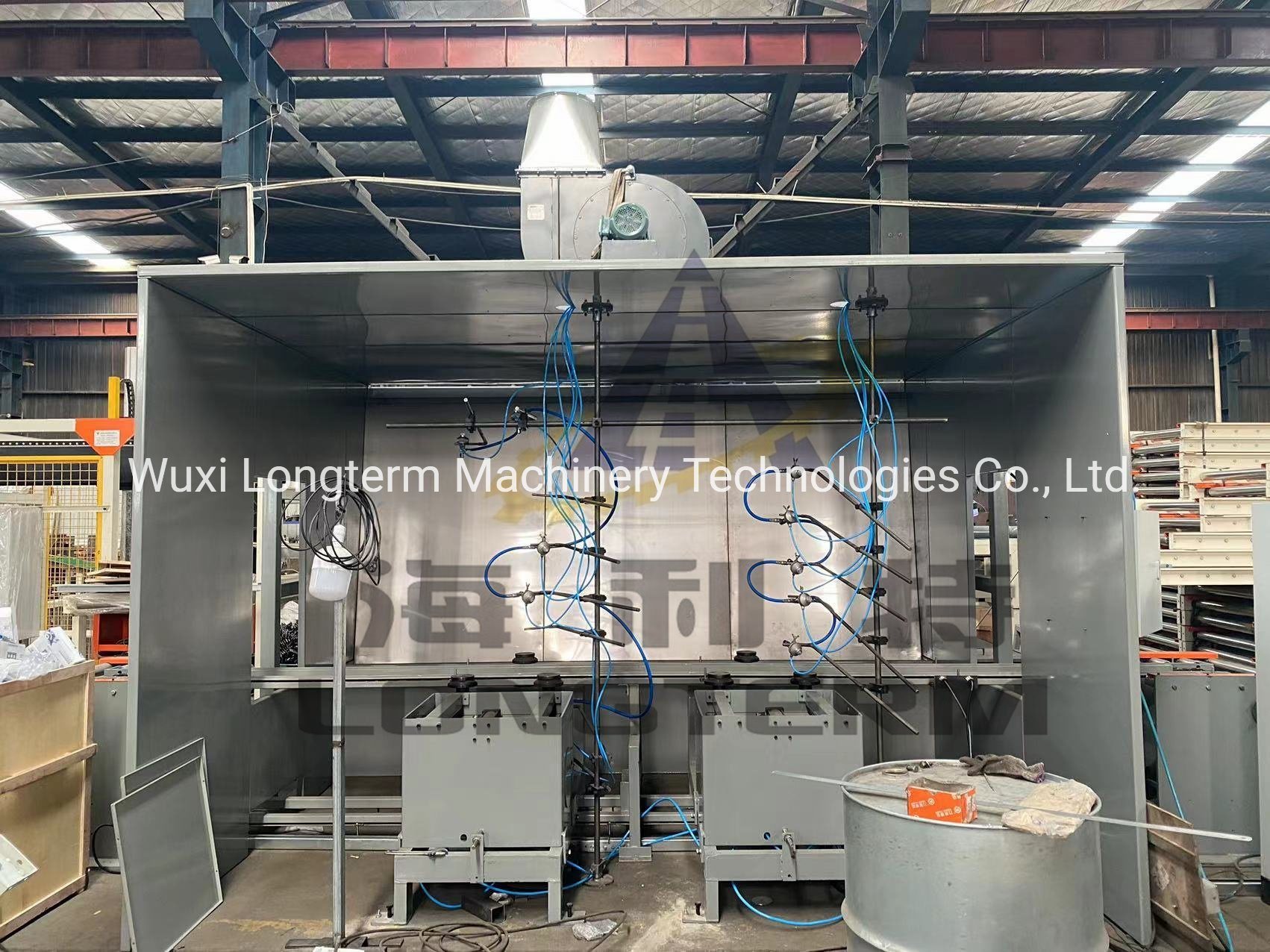

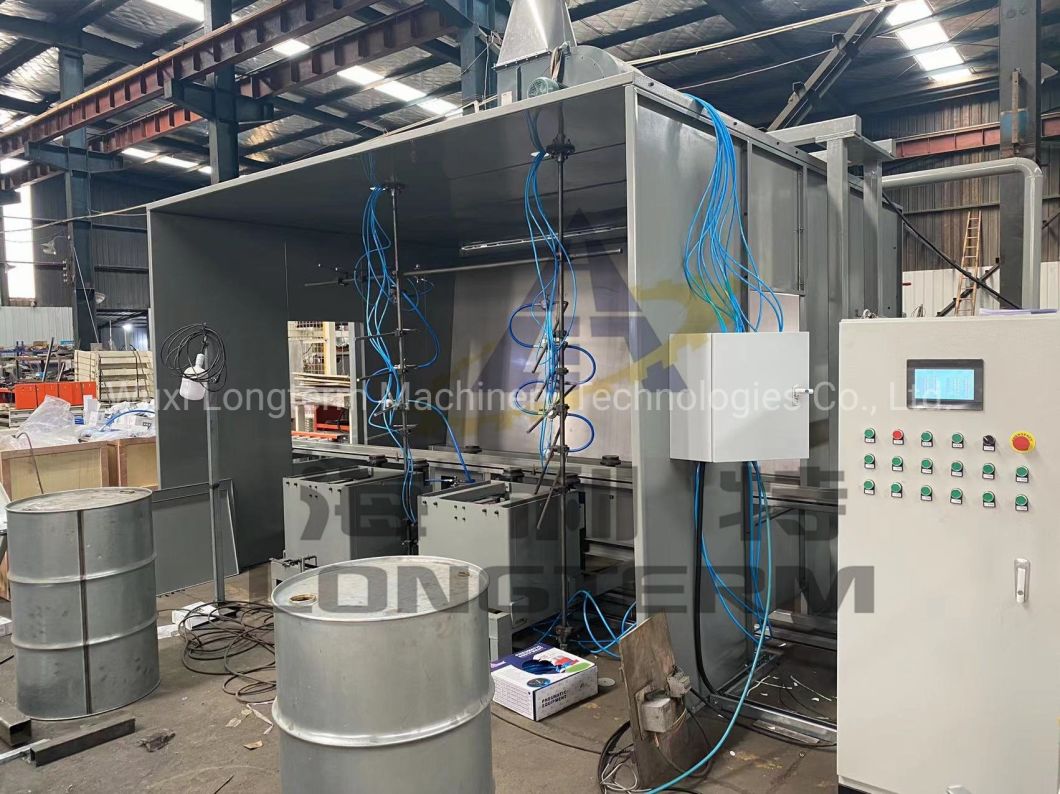

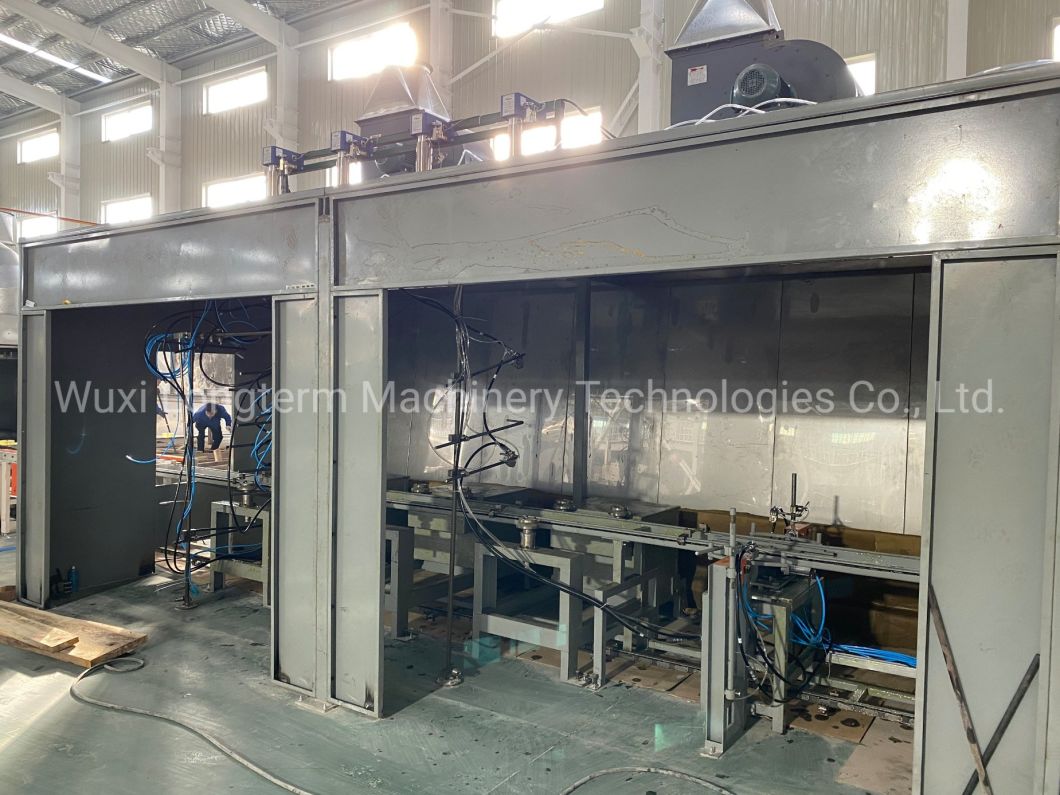

Drum Painting Spray Booth

The painting room is mainly composed of the main body of the painting room, the rotating and stepping conveying mechanism for the painting, the paint supply system and the electrical control system.

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

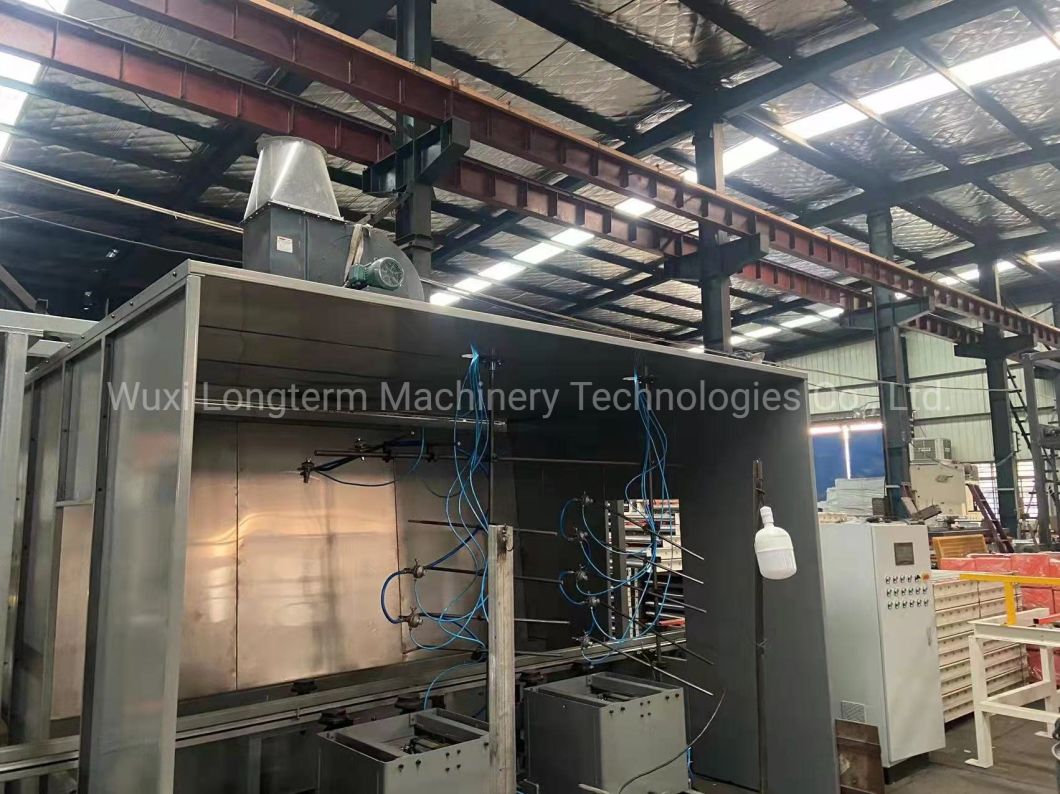

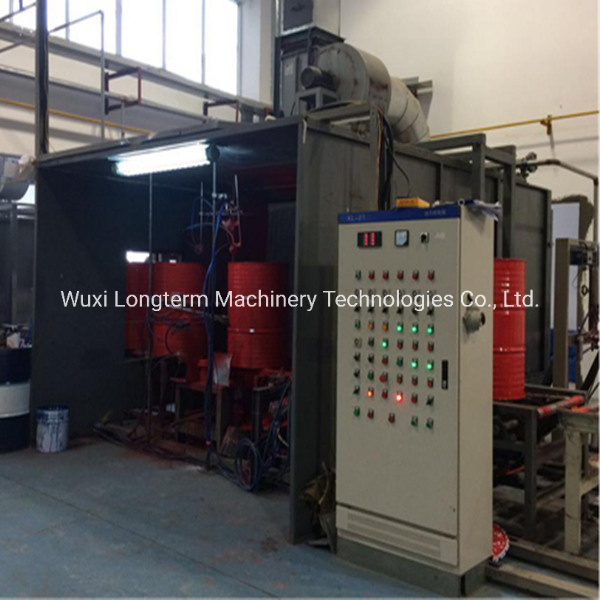

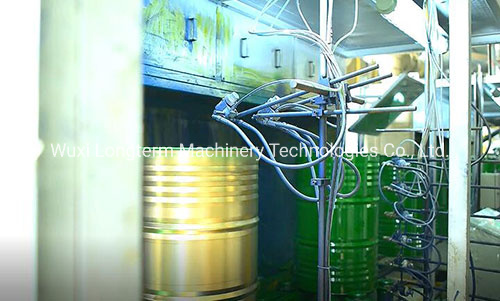

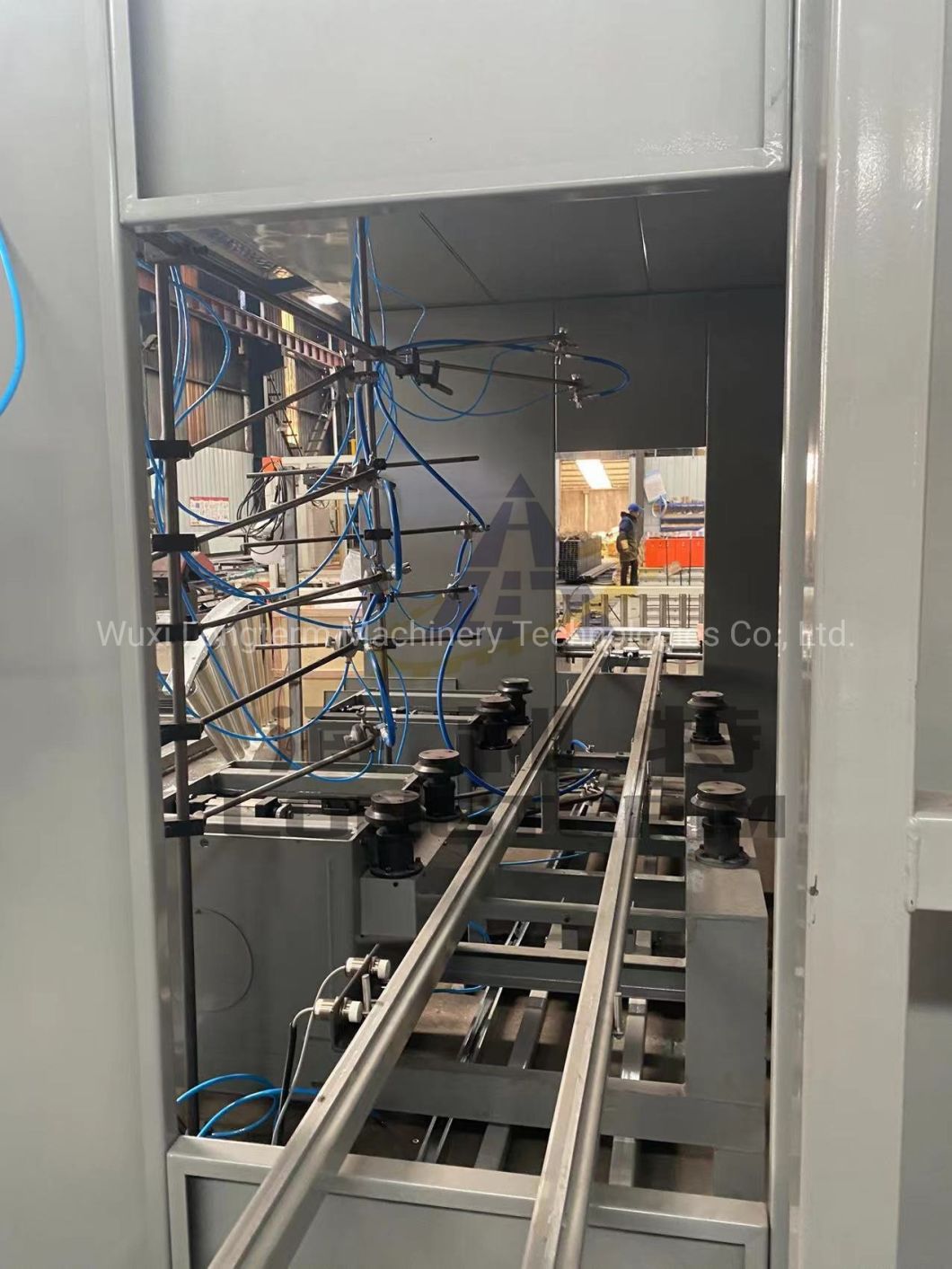

Painting Booth

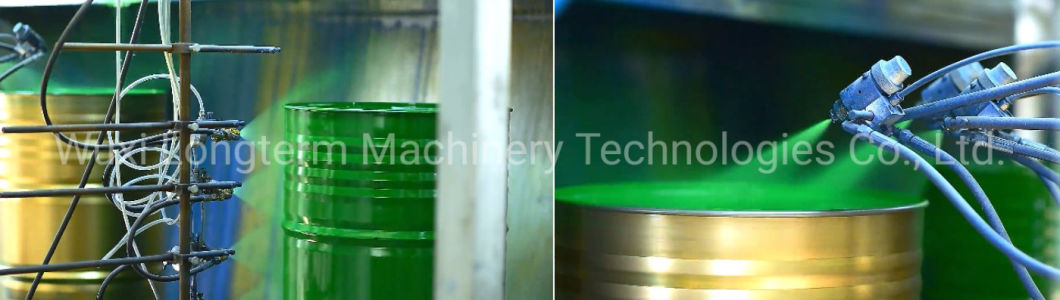

During the spraying process, when the paint mist mixed in the air hits the water curtain, the paint mist is washed, and the water curtain on the water curtain is turned by the venturi principle through the effect of the exhaust fan, so that the paint mist and water mist are fully mixed. Then, the air and water are separated by spraying and baffling secondary filtration, thereby reducing the moisture in the air, giving the operator a clean working environment, and the purification rate of paint mist can reach more than 90%.

After filtering, the paint mist flows into the water tank and floats on the water surface by condensing together in the water tank to facilitate cleaning. The water curtain spray booth adopts side air extraction structure, which has high dust removal efficiency, uniform spray, small water consumption, and covers an area small.

Certificate & Patent

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

Related Drum Making Machine

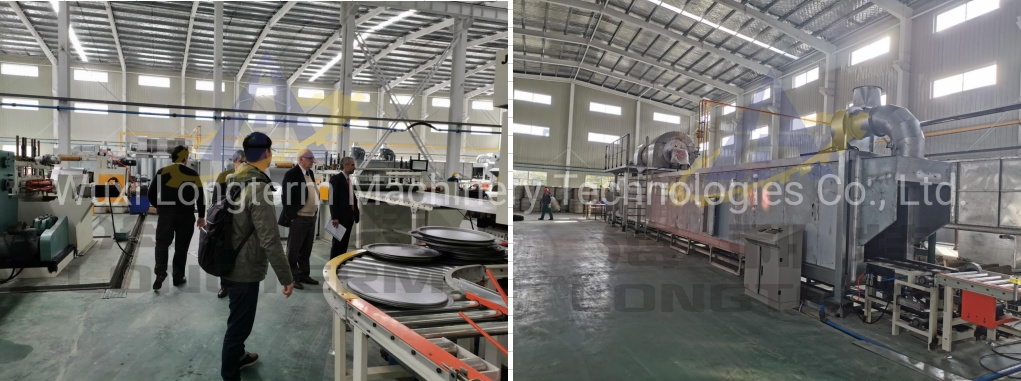

Steel drum Drying Oven

The paint drying room has the function of drying the coating on the surface of the steel barrel. The drying temperature in the drying tunnel must be uniform and equipped with a hot air circulation system and a diversion system. It consists of the following parts: front conveying device, front transmission device, drying tunnel body, main conveying chain, hot air duct, heating system, rear exhaust device, cooling device, rear transmission device, rear conveying device, electrical control system, pneumatic system, Exhaust duct part.

Automatic Drum Painting Machine/Painting Booth/Spraying Booth for Drum

- Length of drying tunnel: 20 meters
- Cooling length: 4 meters
- Inside width of drying tunnel: 1100mm
- Height inside drying tunnel: 1800mm
- Conveying form: single-row bucket, vertical, using C2080 double-pitch standard conveying chain. - Steel barrel specifications: φ570 * 930mm
- Production capacity: 100 pcs / hour (adjustable running speed),
- Working temperature: 120°C -180°C adjustable
- Drying time: 15 minutes (according to the drying temperature of the coating process)
- Fuel type: natural gas.
- Installed capacity: 250000kcal / h (according to coating process drying temperature)
- Number of heating chambers: 1 set
- Conveyor line elevation: 820m
