| Quantity: | |
|---|---|
HLT
New

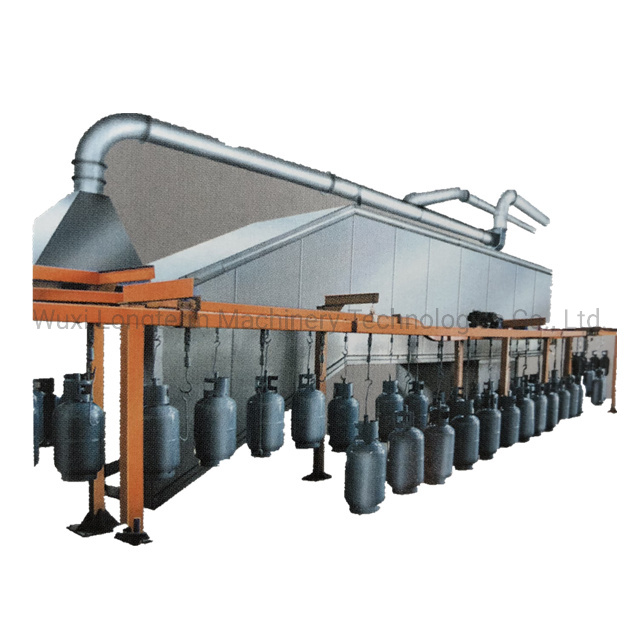

Spraying Painting Production Line
3kg-50kg
<30kg
Qxt250/50kg Light Common Chain
2000PCS/12hours
1.4m/Min
220-380V
Nature Gas(LPG)
180-190ºC
Auto + Manual

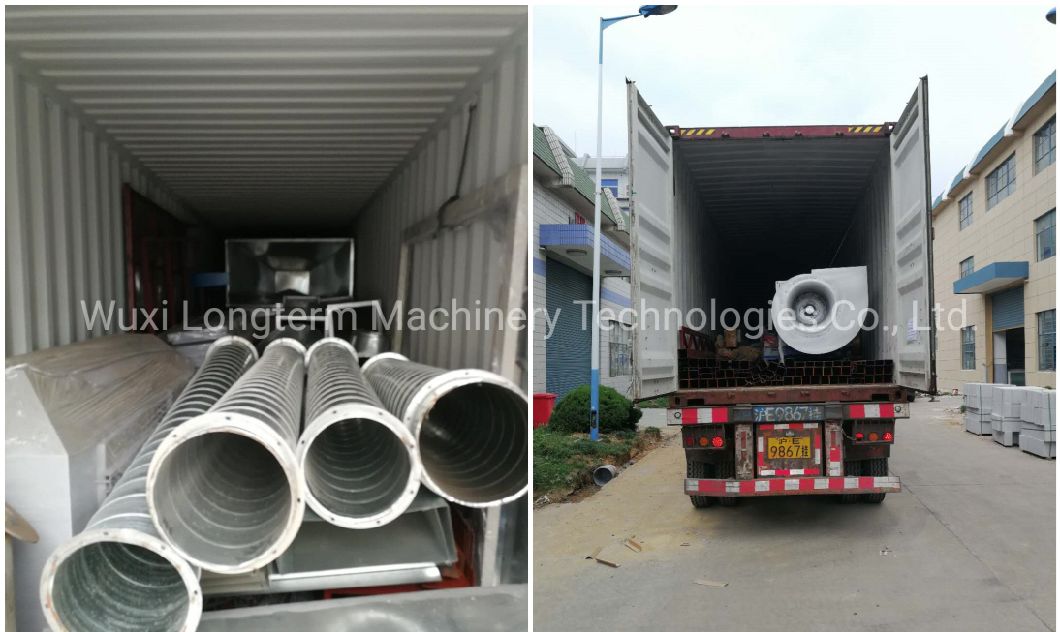

Standard Seaworthy Package
all sizes cylinders
HLT
Wuxi, Jiangsu
8447902000
20 Sets/Year
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description
| No | Name | Details |
| 1 | Workpiece | Gas cylinder |
| 2 | Workpiece material | Metal |
| 3 | Max. workpiece size | Φ300×H570(mm) |
| 4 | Workpiece weight | ≤30kg |
| 5 | Braced chain | QXT250/50Kg light common chain |
| 6 | Machine capacity | 2000pcs/12hours |
| 7 | Hanging type | One cylinder every two pitch, that means one cylinder per 500mm. |
| 8 | Linear speed | 2000pcs÷12h÷60min×0.5m/hang=1.4m/min |
| 9 | Heating source | Nature gas(LPG) |

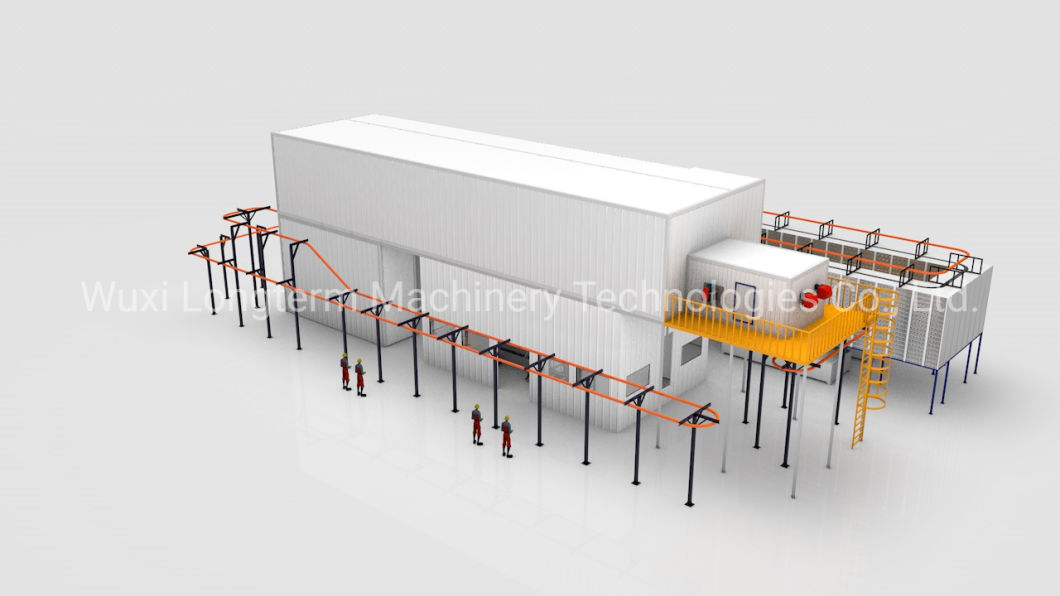

| 10 | Location area | See layout drawing, beam bottom height 8.5 meters |
| No | Name | Transit time | Working temperature | Operation |
| 1 | Loading | RT | Manual | |
| 2 | Powder coating | RT | Auto+manual | |
| 3 | baking | 17-18min | 180-190ºC | Heated air circle |
| 4 | cooling | 20min | ||
| 5 | unloading | Manual |
| No | Name | Technical parameter |
| 1 | Overall structure | Bridge type |
| 2 | No of tunnels | 4 |
| 3 | Size of the inner tunnel | L14×W3.2×H2.1(m). Leg height 2.5meters |
| 4 | Thickness of the insulation | 150mm |
| 5 | Material of the insulation | High quality rock wool board |
| 6 | Unit weight of the insulation | 100Kg/m3 |
| 7 | Material of the inner plate | δ0.8 galvanized steel sheet |
| 8 | Metarial of the outer plate | δ0.8 color sheet |
| 9 | Structure of inner and outer plate | Assembly structure |
| 10 | Material of the inner angle plate | δ1 galvanized steel sheet |
| 11 | Material of the outer angle plate | δ3 hot-rolled sheet with paint |
| 12 | Supporter material of the tunnel | δ3 carbon steel sheet, edgefold with paint |
| 13 | Outer temperature of the tunnel | Lower than environment temperature 15ºC |
| 14 | Inner temperature of the tunnel | 180ºC |
| 15 | Drain cracking-off | Top of the tunnel |
| No | Name | Technical parameter |
| 1 | Position and number of heating room | Bottom of the bake tunnel, 1 set |
| 2 | Heating room configuration | 300000 calories, 1 set |
| 3 | Inner plate of the heating room | Galvanized steel, δ1 |
| 4 | Outer plate of the heating room | Cold-roll steel sheet, δ1.5 |
| 5 | Thickness of the insulation | 150mm |
| 6 | Material of the insulation | High quality rock wool board |
| 7 | Unit weight of the insulation | 100Kg/m3 |
| 8 | Material of the inner angle plate | δ1 galvanized steel sheet |
| 9 | Material of the outer angle plate | δ3 hot-rolled sheet with paint |
| 10 | Supporter material of the tunnel | δ3 carbon steel sheet, edgefold with paint |
| 11 | Structure of inner and outer plate | Assembly structure |
| No | Name | Parameter |
| 1 | Model | GCF-630C |
| 2 | Rotation speed | 1250r/min |
| 3 | Air flow volume | 13500m3/h |
| 4 | Total pressure | 900Pα |
| 5 | Motor power | 5.5KW |
| 6 | Fan structure | Impeller is in the heating room |
| 7 | Insulation thickness | 150mm |
| 9 | Impeller material | 16Mn |
| 10 | No. Of fans | 1 set |
| 11 | Fans supplier | Shanghai Shuyuan or Kewangda |
| No | Name | Parameter |
| 1 | Hot air recycling | Internal recycle, no outer tubes |
| 2 | Air delivery type | Under floor air delivery |
| 3 | Air returning type | Under floor air returning |
| 4 | Duct material | Galvanized steelδ1 |
| 5 | No of air regulation plate | 1 set |
| 6 | Material of air regulation plate | Galvanized steelδ1 |

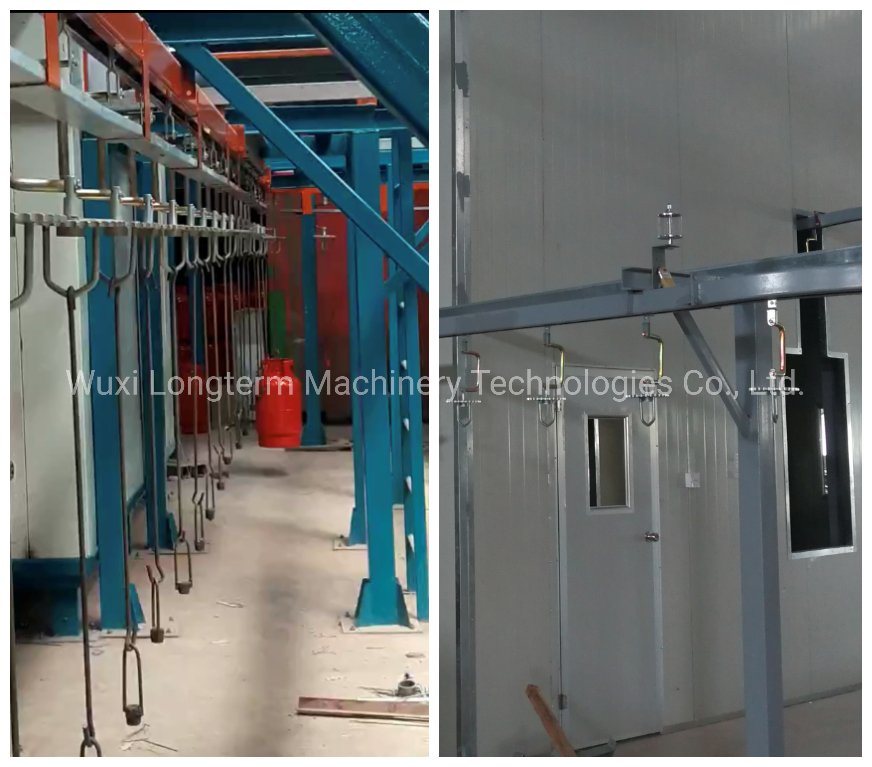

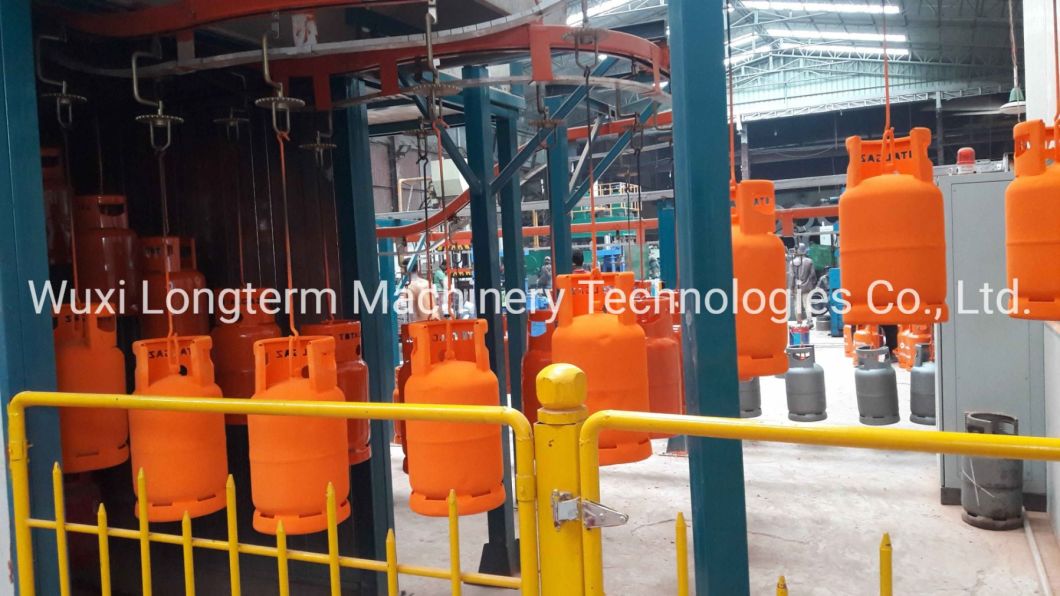

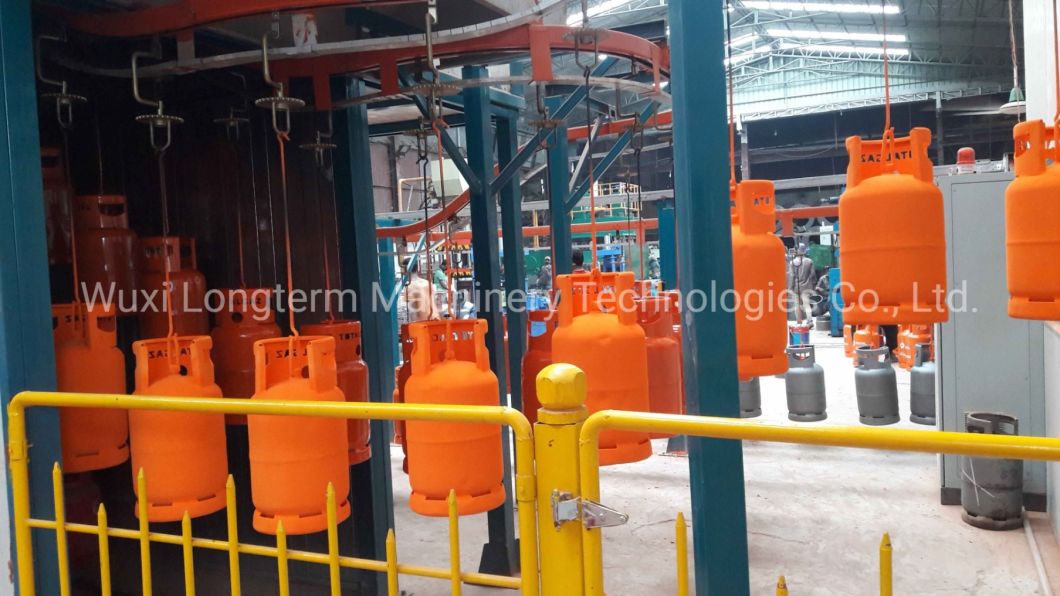

| No | Name | Technical specification |
| 1 | Driving device model | QXT-250 |
| 2 | Driving device quantity | 1 set |
| 3 | Overload protection for driving device | Adjustable safety clutch+travel switch |
| 4 | Driving device power | 3.0KW |
| 5 | Tension device type | Weight-loaded type |
| 6 | Tension device quantity | 1set |
| 7 | Turning radius of tension device | ≥R800(mm) |
| 8 | Frequency converter | Mitsubishi 1 set |
| 9 | Conveyor chain length | 125m |
| 10 | Conveyor chain pitch | 250mm |
| 11 | Hoisting weight of conveyor chain single point | 50Kg |
| 12 | Production speed | 1.4m/min |
| 13 | Production speed adjustable method | Frequency control(0.6-2.0m/min) |
| 14 | Column quantity,material | Complete set, steel section |
| 15 | Bottom plate quantity,material | Complete set, hot-rolled sheet steel |
| 16 | Beam quantity,material | Complete set, steel section |
| 17 | Diagonal bracing quantity,material | Complete set, steel section |
| 18 | lubrication system | Automatic oil drop device 1 set |
| 19 | "C" type jig and rotary rack | 250 pcs |
| 20 | Rotary rack | 1set |
| Machine type | Manual |
| Max. Hang range of the workpiece | W310xH570 |
| Conveyor speed | About 1.4m/min |
| Type of conveyor | Suspend conveyor |
| Coating material | Polyester powder and epoxy powder |
| Color | 2 kinds |
| Powder supplier | Local |

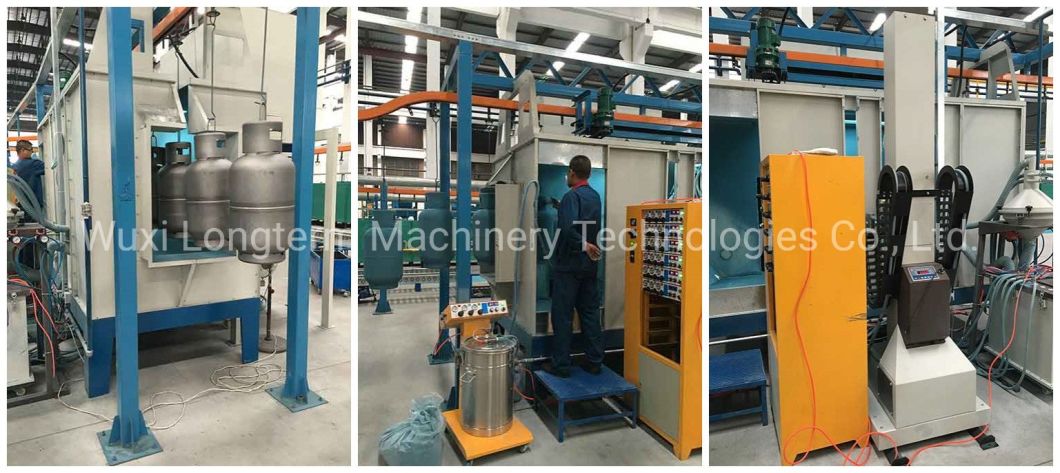

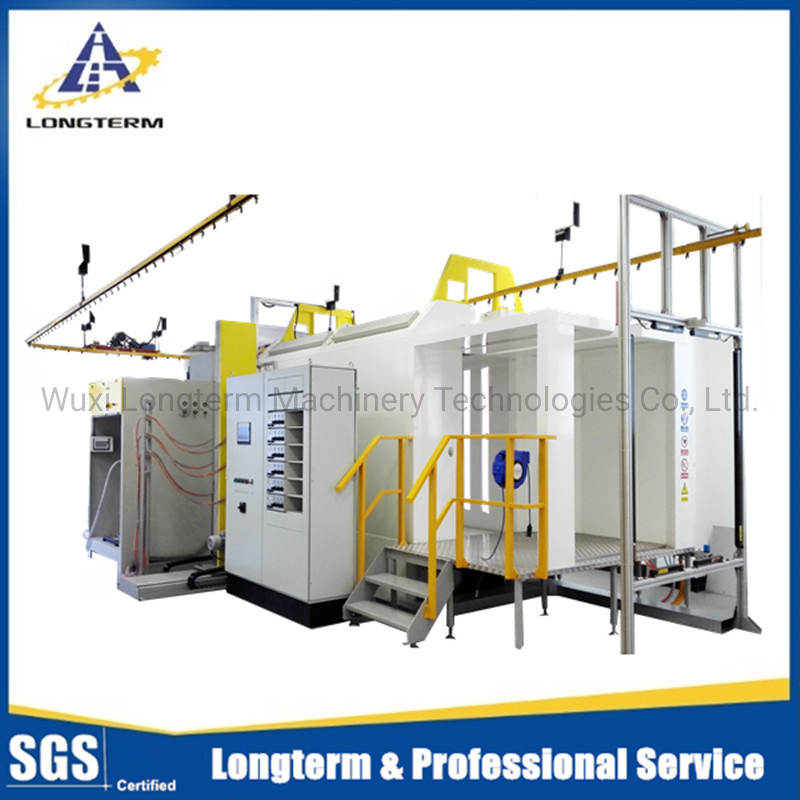

| Type of coating chamber | Filter type powder coating chamber |
| Type of powder coating systems | Corona torch |
| No of powder coating systems | 6 sets auto, 1 set manual spraying torch |
| Type of hoister | Reciprocating hoister |
| No of hoister | 1 set |
| No of the torch on the hoister | 2 sets on left, 2 sets on top, 2 sets on bottom |
| Suction capacity of coating chamber | 11000 m3/h |
| Required pressure for compressed air | 6 - 8 bar , + 0.1 bar |
| Remaining water in the compressed air | Max. 1.3 g/N m3 |
| Remaining oil in the compressed air | Max. 0.1 mg/N m3 |
| Estimated air consumption for chamber | 120 N m3/h |
| Power supply | 220/380 VAC, 50Hz, 3L/N/PE, 3 phase 5 wires |
| Estimated power consumption for powder coating | Approx. 10 KVA |
| Estimated power consumption for chamber | 15KVA -- powder coating chamber |
| Requirement for operation condition | Relative humidity<80% Ambient temperature< 30ºC Air speed near the chamber< 0.1 m/sec |
