Fully Automatic Steel Drum Painting Booth Machine with High Efficiency

Quantity:
  • HLT

  • Automatic

  • New

  • 571.5mm

  • 895mm

  • 6000*4320*4000 mm

  • SUS 304

  • 200 PCS/Hour

  • PLC Control

  • Three Colors Painting

  • American Nordson

  • Stepping Conveying

  • 380V/220V/Can Be Customized

  • Water Curtain + Spray + Water Vapor Separator

  • Long Service Life Steel Drum Painting Booth

  • 45 Days

  • T/T, LC

  • Nature Gas, LPG

  • Standard Seaworthy Package

  • ISO9001

  • HLT

  • Wuxi, Jiangsu

  • 8479400000

  • 500 Units/Year

  • Available | Customized Request

Product Description

Fully Automatic Steel Drum Painting Booth Machine with High Efficiency
Product Display
Fully Automatic Steel Drum Painting Booth Machine with High Efficiency
Fully Automatic Steel Drum Painting Booth Machine with High Efficiency
Product Description

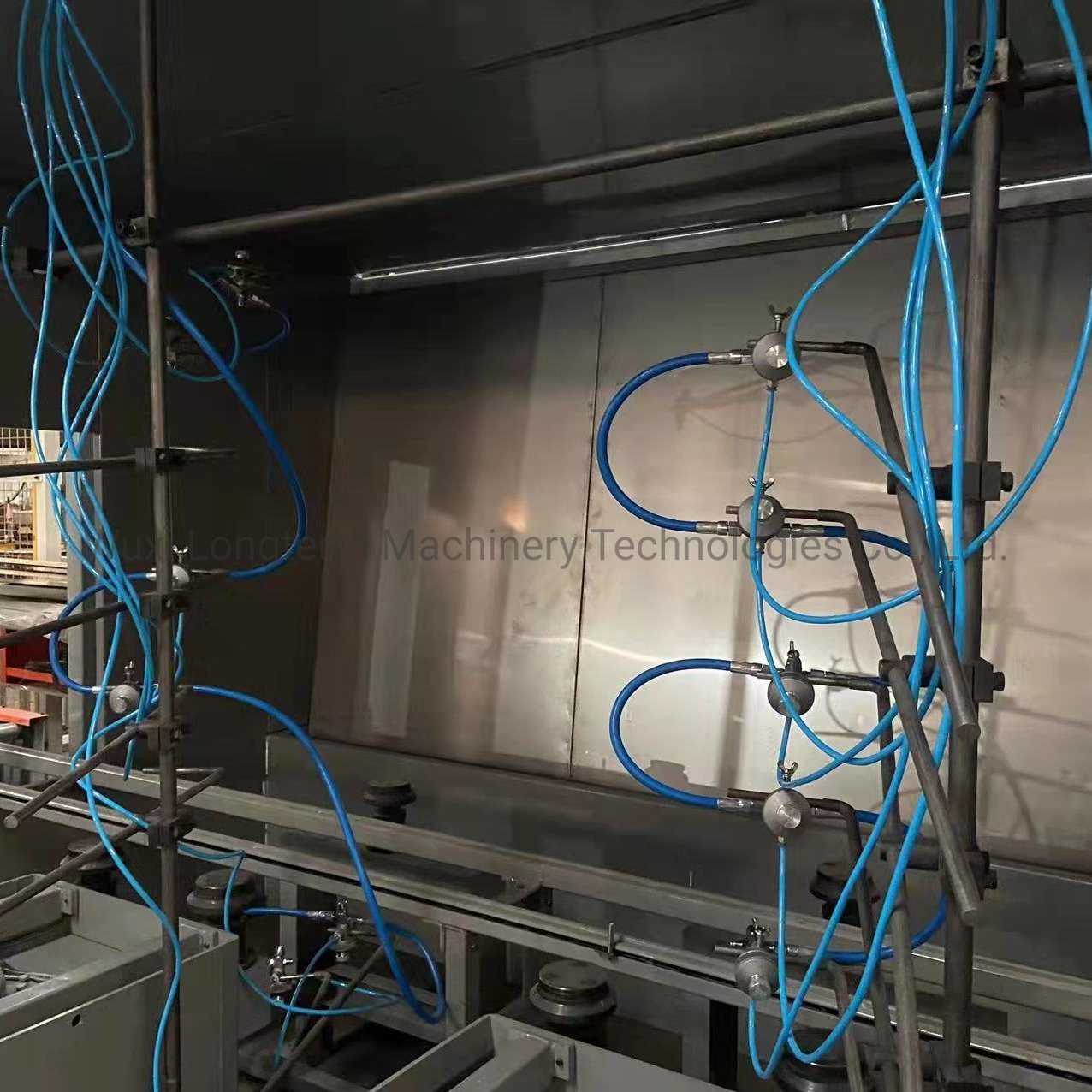

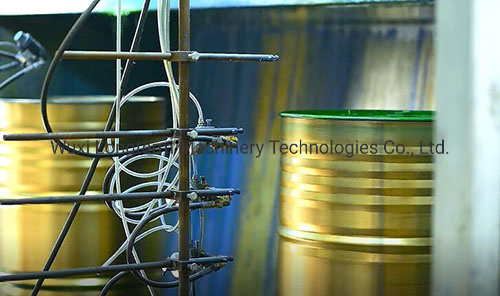

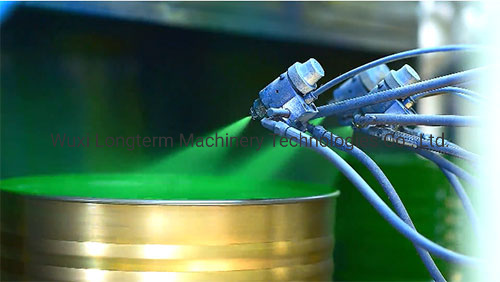

The conveyor device is controlled by PLC, rotating table make the drums closely, Painting system paint the drums in & outside with the spray gun. One color or Various can be alternative. Mode of water-curtain spraying dispels spraying.

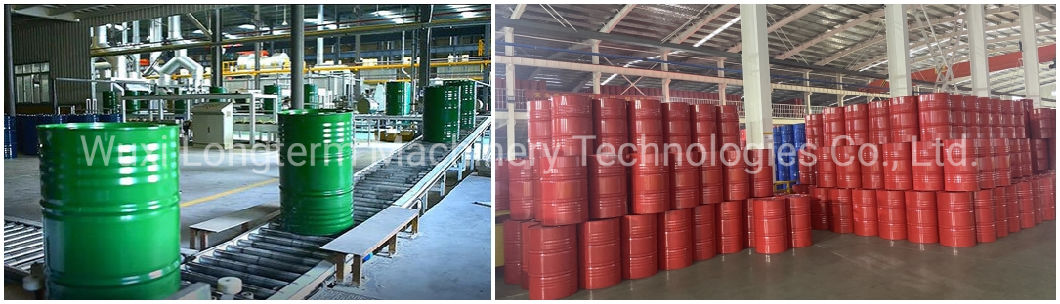

Finished drums after painting
Fully Automatic Steel Drum Painting Booth Machine with High Efficiency
Main Specification

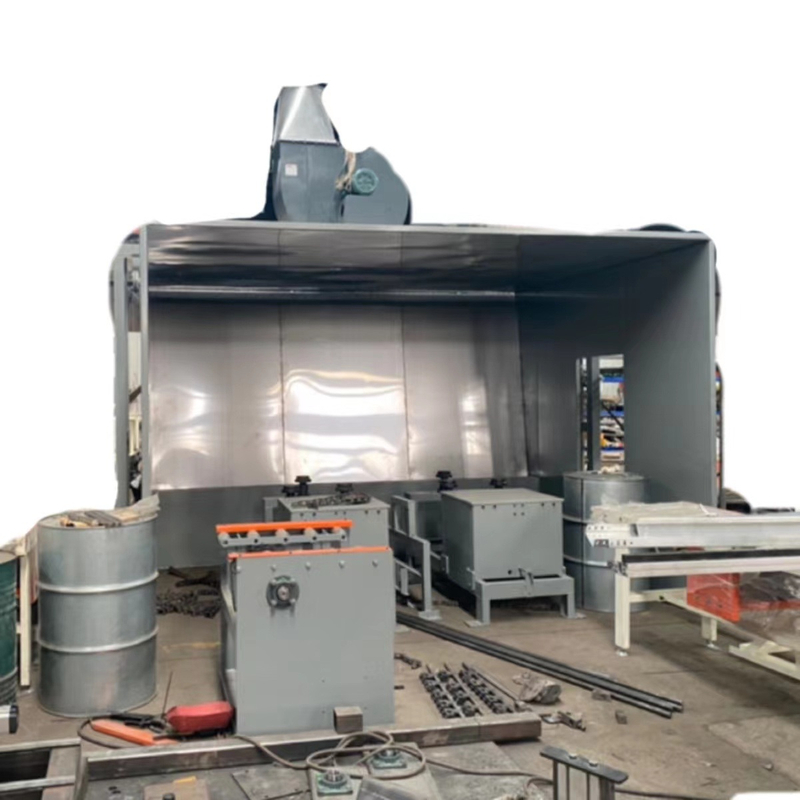

Dimension 6000*4320*4000mm
Material the structure is carbon steel; the sink, water curtain, Water vapor separation room is ss304
Purification method Water curtain + shower + water vapor separator;
solvent volatile gas is sent to the atmosphere
Pinch form Two sets of fully enclosed steel drum rotating machines
with four supporting wheels; one set of lifting rotating machine
Sprayer 1. Europe Airless spraying machine: 3 sets;
2. Ou Naishi spray gun: ZPQ 23;
3.Nozzles: 23, using the products of American Spray System Co.,
4 of them use Nordson products.
Spraying method Three-color vertical spraying
Production capacity 200 pcs/hour
PLC control cabinet Use PLC to control spraying and transmission
Conveying method Stepping

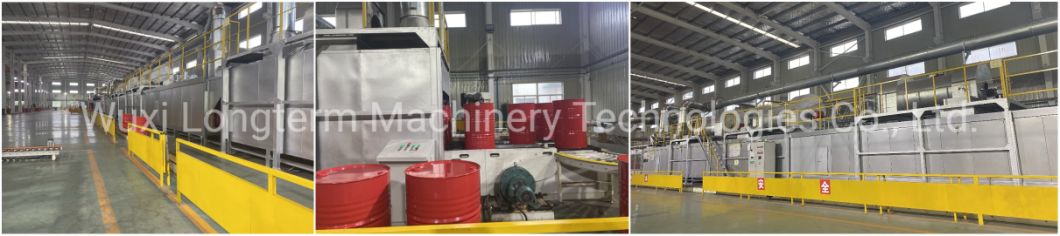

Drum Painting Spray Booth

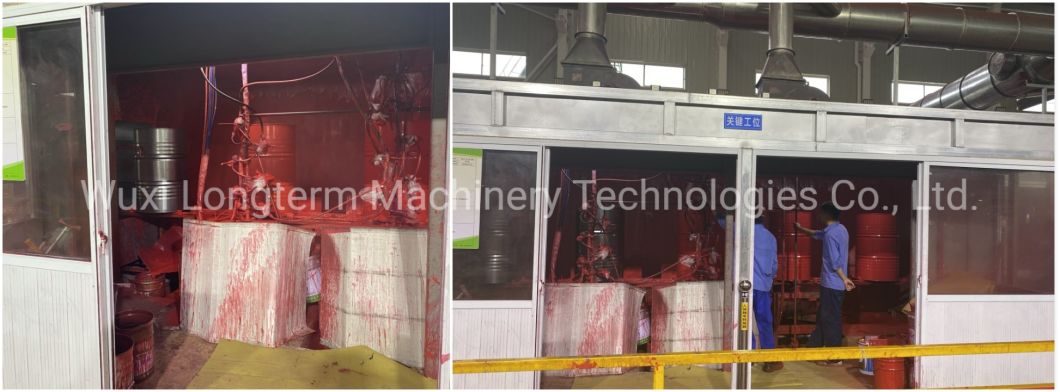

The painting room is mainly composed of the main body of the painting room, the rotating and stepping conveying mechanism for the painting, the paint supply system and the electrical control system.
During the spraying process, when the paint mist mixed in the air hits the water curtain, the paint mist is washed, and the water curtain on the water curtain is turned by the venturi principle through the effect of the exhaust fan, so that the paint mist and water mist are fully mixed. Then, the air and water are separated by spraying and baffling secondary filtration, thereby reducing the moisture in the air, giving the operator a clean working environment, and the purification rate of paint mist can reach more than 90%.
After filtering, the paint mist flows into the water tank and floats on the water surface by condensing together in the water tank to facilitate cleaning. The water curtain spray booth adopts side air extraction structure, which has high dust removal efficiency, uniform spray, small water consumption, and covers an area small.
Fully Automatic Steel Drum Painting Booth Machine with High Efficiency

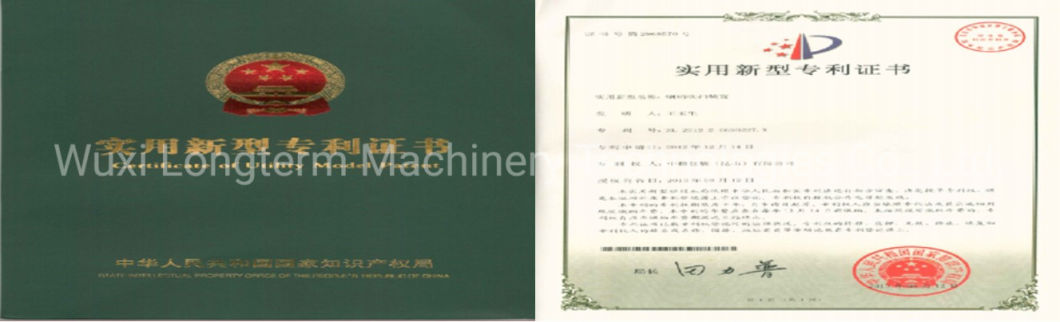

Certificate & Patent
Fully Automatic Steel Drum Painting Booth Machine with High Efficiency

Related Drum Making Machine
Steel Drum Drying Oven

The paint drying room has the function of drying the coating on the surface of the steel barrel. The drying temperature in the drying tunnel must be uniform and equipped with a hot air circulation system and a diversion system. It consists of the following parts: front conveying device, front transmission device, drying tunnel body, main conveying chain, hot air duct, heating system, rear exhaust device, cooling device, rear transmission device, rear conveying device, electrical control system, pneumatic system, Exhaust duct part.
