LPG Gas Cylinder Manufacturing Machine for Producing Line

Machine description

Specifications
Auto.Circumferential Welding Machine TIG/MIG welding
Welding speed:0-1000mm/min
Welding current:5-400A
The machine will automatically weld the cover with tank both ends at the same time.
This machine is used for Auto.double-head TIG circumferential welding of Duta-Cyi and LNG inner cylinder.
<=2000mm
Φ=250~800mm
δ=2.5~4mm


Application:

Application cylinder size: 6kg/12kg/15kg/50kg and customrized

Producing line machine list


Machine list:
Machine showing

2.Hydraulic Shell Forming machine

3.Automatic trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line

4.Hole punching machine
Punch the hole on top of the cylinder

5.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time

6.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

7.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

8.End dish shaping machine
9.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

10.Circumferential Seam welding machine



LPG Product showing



Technical data

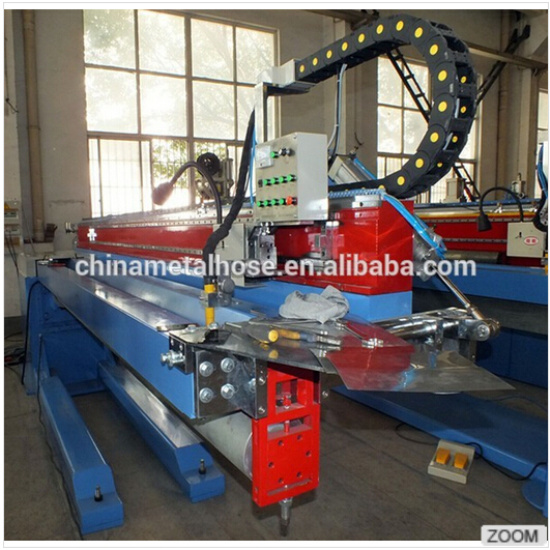

Longitudinal seam welding Data sheet

circumferential seam welding


FAQ

LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
