LPG Gas Cylinder Hydrostatic Testing Line

Quantity:
  • HLT

  • Dynamic Load

  • Digital

  • Computer Control

  • >2000Kg

  • AC380V

  • Under

  • 90 Second

  • 0.6 MPa

  • 3.2 MPa (Adjustable)

  • LPG Gas Cylinder Hydrostatic Testing Line

  • Available

  • 1 Year

  • Standard Seaworthy & Strong Package

  • SGS, ISO

  • Comflex

  • Wuxi, Jiangsu, China(Mainland)

  • 85152100

  • 1000sets/Year

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Technical specification

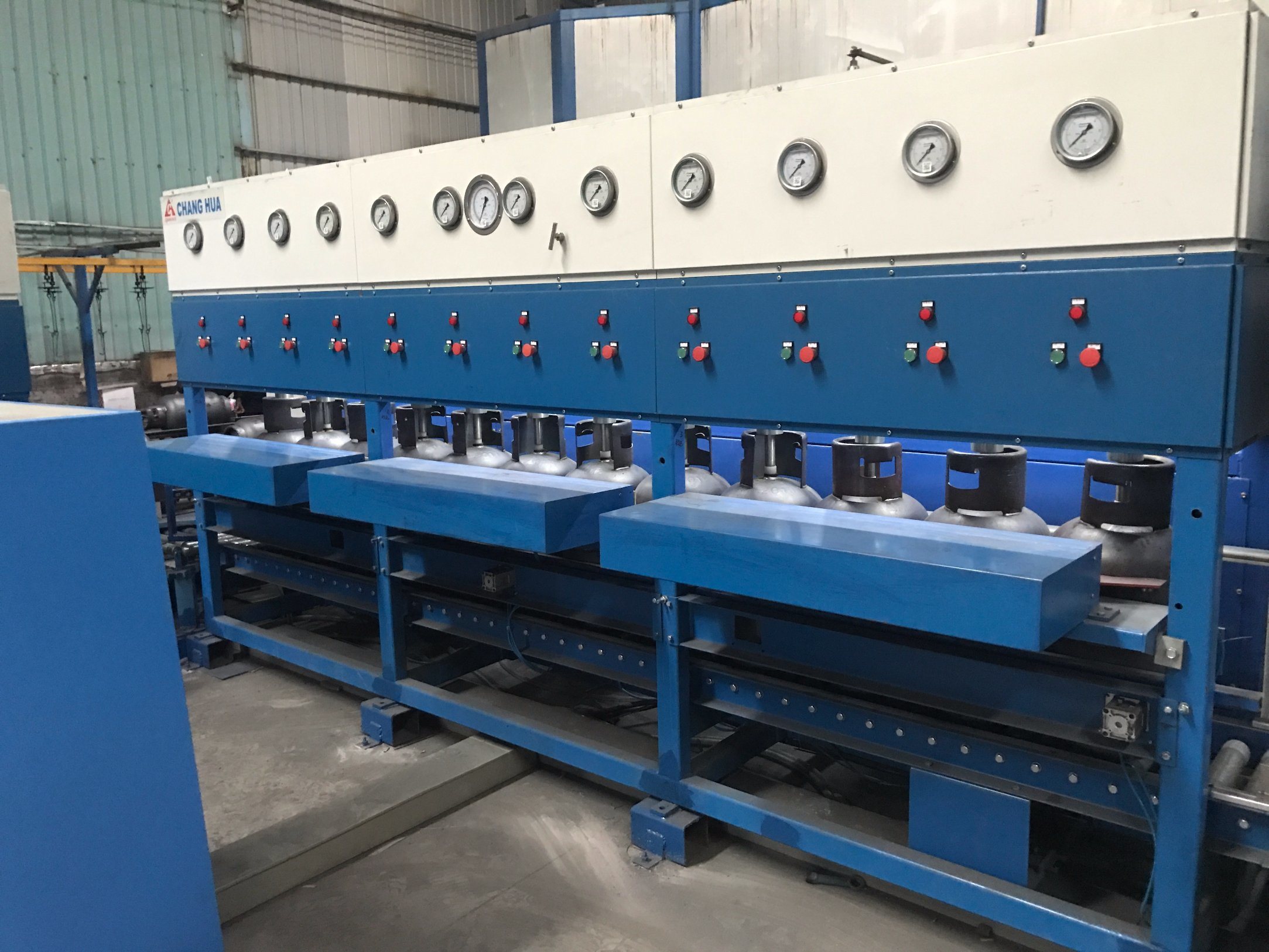

LPG Gas Cylinder Hydrostatic Testing Line

A. Equipment brief introduction

Design and manufacture in accordance with the national standard GB/T9251-2011 "cylinder hydrostatic test method and GB 5842-2006" liquefied petroleum gas cylinder "and so on.It's main composed of water pressure testing machine, roller conveyer, hydraulic pneumatic system and control system, etc.
B. Characteristic and performance

1, This machine is suitable for LPG cylinder pressure testing, 12 station irrigation, water pressure testing, air pressure drainage step by step to complete.
2, This equipment adopts PLC control, can be realized automatic in the process of LPG cylinder pressure test, irrigation, suppressed, unloading, drainage, out of the bottle,, improving production efficiency.
3, Lower part is equipped with a roller conveyer, installation and use independently, also can be used for conveying line.In order to realize LPG cylinder pressure test process, irrigation, water pressure test, pressure continuous and efficient drainage.
4, Adopts the water pump for water supply, water tank, water can be recycled application.
5, Choosing effective suppression pump to ensure reliable of LPG cylinder pressure test.
6, This machine structure is reasonable, the operation is simple, safe, and convenient maintenance, low labor intensity, test quality standard.

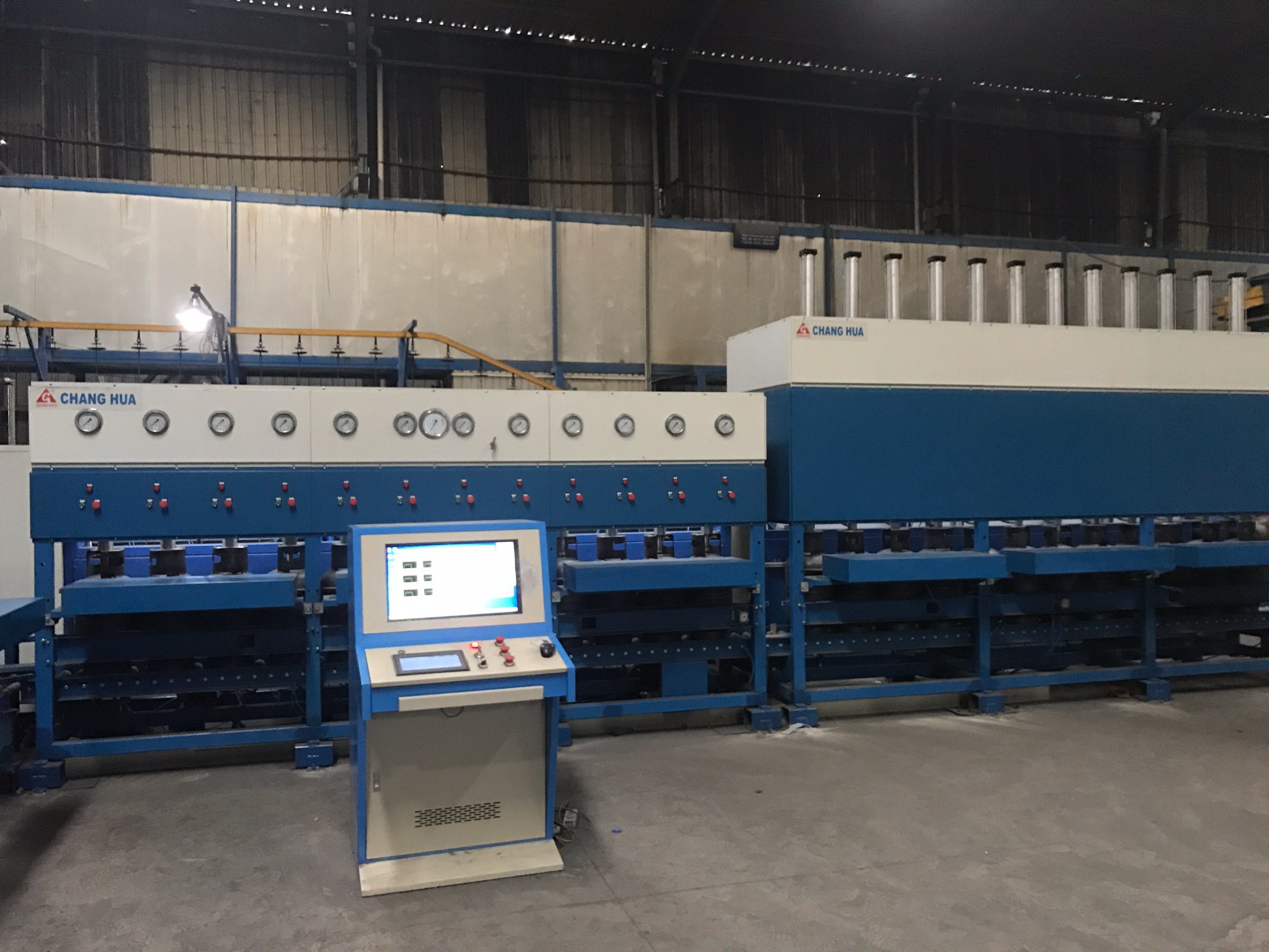

LPG Gas Cylinder Hydrostatic Testing Line
C. Main technical data

1.Testing pressure:3.2MPa
2.Testing efficiency:250-260pcs/h
3.Air pressure:0.6-0.8 MPa
4, Water pressure cylinder model:QGSφ63×280MF1 12pcs
Drainage pressure cylinder model:QGSφ125×250MF1 12pcs
Limited cylinder model:QGSφ80×100MF2 3pcs
5, Pneumatic solenoid valve 12pcs
6, Voltage,Frequency: 3-phase 380V/50Hz
7,Special Suppression head 12pcs,High pressure pneumatic valve:12pcs,Ball check valves 12pcs,Exhaust valve 12pcs
8,Hydraulic test pump model:2DSY-400/10,
Power:3KW;
Volume:400L/h
Pressure:10MPa
9, Roller conveying speed:V=0-5m/s
10,Weight:5T
D. Structure and function

This machine is made up of the hydraulic pressure testing machine, roller conveyer, hydraulic pneumatic system and control system.
1. The water pressure testing machine is composed of frame, water pressure device, the holding device, drainage clamping device, water pump, hydraulic test pump, 1# limit ,2# limit, 3# limit , pneumatic hydraulic parts.Frame panel is equipped with 9 pressure gauge, one of them is precision pressure measuring instrument, used to check test pressure with pressure measuring instrument, the other eight were used to show the actual test pressure and air pressure after the adjustment.
2. The roller conveyer, driven by the motor reducer and gear transmission, to send gas cylinders to set position.
3. Hydraulic pneumatic system: the motor drives the water pump to supply water pressure testing machine, testing water after the compressed air pressure drainage recycling back into water tank.Compressed air through the pneumatic circuit applied to each cylinder, control cylinder action accordingly.
4. The operation control system: the control cabinet of the whole control system, the distribution of each control button on the control panel.Can be realized in the process of liquefied petroleum gas cylinder pressure test, irrigation, suppression, unloading, drainage, and out of the bottle, automatically.

E. Installation and debugging

1, According to the specific situation of the workshop, locate equipment installation (roller conveyer top high above the ground is 400 mm).
2. connecting power and gas source, checking the water pump, hydraulic test pump, drive
3.According to the relevant button, checking whether the parts movement is flexible.

4.Pushing and pull the hand control valve, check wheter the related parts operation is flexible.

5.Sequence of operation:

5.1 pulling out "limit 1", "limit 2", "limit 3" hand control valve stem, "limit 1", "limit 2" "limit 3" cylinder driving "limit 1", send the cylinder to injection area (if transport too long, inching roller" reverse "button, adjustment in place, the same as below).

5.2 Each location of untest cylinders, starting the irrigation device button, water pressure device tightly sealed cylinder;


5.3 Pressure cylinders, open water pump 2 "and" limit 3 "in the peak;

5.4 Roller forward button, irrigation for the cylinder;

5.5 After cylinders filled with water, the water pump automatically shut down;.

5.6 Water pressure device automatically loosen cylinders;

5.7 Reset "limit 1" hand control valve rod, cylinder "limit 1" reset drive the stop lever down;


5.8 Starting conveyor line, sending the cylinders to the holding area;

5.9 Special crackdown on joint tightening up one by one,holding device sealing cylinder, faster plug with a high-pressure hose;

5.10 Starting testing pump, inlet valve open first for pressure pipe irrigation (also called a secondary irrigation water), water inlet valve and exhaust valve automatically shut down after the expiration of the water (secondary irrigation time controlled by time relay KT1, generally for 10 seconds or so), at the same time,high pressure testing pump open, up to 3.2 MPa after electric contact pressure gauge, pressure valve (8) closed at the same time, the holding 1 ~ 3 min (the holding time is controlled by time relay KT2).The holding time, (8 pcs) the pressure control valve and exhaust valve opening pressure relief at the same time;If the pressure valve and exhaust valve cannot open pressure relief, alarm, manual unloading.

5.11 One by one quickly remove the high pressure hose, then spiral out them one by one on joint;


5.12 Insert the drain;

5.13 Starting the drainage device button, the drainage pressure device tightly sealed cylinder;

5.14 Pulling out "inlet" hand control valve stem, compressed air into the cylinders, intake and drainage;

5.15 Gas cylinders after completion of drainage, drainage clamping device loosen cylinders;

5.16 Reset "limit 2" hand control valve rod, cylinder "limit 2" reset drive the stop lever down;

5.17 Starting the conveyor line, send the tested cylinders to the drainage station, behind a batch of cylinders and following up, when checked the cylinder base hit "limit 3" stop lever, conveyor line stop, remove checked cylinders, to complete a working cycle.


Note:
1. The functions of two pcs of time relays
1.1 KT1 time relay is specially used to control the secondary watering time (i.e. the opening interval time of the water supply valve and the pressure test pump).
1.2 KT2 time relay is used to control the pressure holding time.
2. "Limit 1" and "Limit 2" cylinders are at the working status only when it starts up to work (i.e. it is at working status).
3. Adjust the steel cylinder to the determined position:
3.1 The lower structures of watering and draining out compact units have the forced positioning function, which can remove the error on a certain range.
3.2 There is two pcs of guard rails at rear and front of machine so that the cylinder goes ahead without deviation.
F. Matter Need Attention

1. Ensure the power supply and the gas supply smooth, prohibit to drive the motor in reversal so as to damage the components.
2. We prepare the 2-2.5M3 compression air storage tank to ensure the gas supply pressure 0.5-0.6Mpa. The main pipe and its interface of air inlet pipe should be more than G1", ensure the gas supply flowing volume is enough.
3. Keep water clear in water tank, without any dirty, without any float sundries. If there is, remove the float drifting sundries, in case it blocks the pipeline and effect the normal test.
4. Add 20# machinery oil onto the standard level for reducer, often check it.
5. Before shift over, pls press the "stop" button, cut off the power supply and gas supply.
6. There is safety protection for earthing in machine.
7. If you find there is abnormal on the indication of pressure-proof test actual pressure measuring meter when you start up the first batch gas cylinder testing every day, please calibrate it by the precision pressure measuring meter.
8. When equipment runs normally, pls close tightly the valve access to the precision pressure measuring meter (i.e. the calibration valve, also named as pressure meter switch).
G.Maintenance

1. Add 20# machinery oil to lubricate the both side sliding blocks of pressure test pump for each shift. Add the 20# machinery oil into the reducer tank and the driving reducer meeting to requirement. After 36 hours, change one time. Then change oil one time for each 500 hours.
2. Ensure the equipment is clear without any dirty. If the pressure test pump is not used for long term, pls add the anti-corrosion water. After 3~5 minutes when start up machine, pls drain out the water storage in pipe of machine.
3. Pls add the 22# steam machinery oil into the triple oil forge device, and clean up the air filtration water piling. Add the oil into the roller table both side bearings twice for each working shift, ensure its lubrication.
4. Calibrate the pressure meter as stipulation.
LPG Gas Cylinder Hydrostatic Testing Line

Complete LPG gas cylinder production line

I. Machinery list:

No. Description Size&Specis Unit
I Main Equipment
1 Hydraulic Press 500T set
2 De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell) XL-2 set
3 Material cutting mould on hydraulic press set
4 63ton hydraulic logo stamping machine 63T set
5 Shell drawing machine 200/300 set
6 Shell forming mould LS-2 set
7 Automatic trimming machine QK-4 set
8 End dish necking machine SK-3 set
9 Cleaning machine QL-5 set
10 Hole punching machine CK-3 set
11 Valve Seat Welding Machine HP-2 set
12 Shroud welding machine HZ-1 set
13 Bottom base welding machine DZ-1 set
14 Assembling Machine ZH-1 set
15 Option NO.1:Circumferential Seam welding machine HJ-3 set
Option NO.2:Circumferential seam welding machine Single head MAG set
16 Annealing furnace with burner TW-1 set
17 Hydrostatic Testing Machine SY-6 set
18 Shot blasting machine QYP15 set
19 Spraying line JH-2 set
20 Valve mounting machine JF-2 set
21 Air Leakage Testing Machine Cm-2 set
22 Printing machine ZS-2 set
23 Roller conveyor line m
24 Curve Convoyer m
25 Conveyor line power set
26 Motorized testing pump set
27 Cylinder drying machine set
II Equipment For Accessories Manufacturing Equipment
28 Punching machine/power press 25T set
29 Punching machine/power press 63T set
30 Punching machine/power press 100T set
31 Bottom base hydraulic forming machine set
32 Shroud upper R hydraulic forming machine set
33 shearing machine 4mm*1.5m set
34 Shearing machine 4mm*2.5m set
35 Printing machine GZ-2 set
36 Coding machine BM-1 set
37 Shroud rolling machine set
38 Bottom base rolling machine set
39 Shroud mould set
40 Bottom base mould DM-2 set
41 Bottonm base welding machine set
III Auxiliary Equipment
42 Air compressor (screw) 10/0.8 set
43 Air compressor (piston) 2.0/3.0 set
44 Air storage tank 1m3/3Mpa set
45 Air storage tank 2m3/1Mpa set
IV Testing Equipment
46 X-ray detecting equipment 2505C set
47 Mechanical property testing equipment WES-600B set
48 Burst pressure testing equipment set
49 Ultrasonic wall thickness testing equipment set

II. Description for each equipment:

1. De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell)
Technical data:
Raw material specifications:
Plate Thickness:2-4mm Width of plate:Max.1170mm
ID of steel coil:450-800mm OD of steel coil:Max.1800mm Weight of steel coil:Max.25T
Coil blanking specification:Ø370-Ø615mm Blanking period:12s/time including auxiliary time

Hydraulic machine technical data
Motor power:46KW Norminal capacity:6300KN Max.working pressure:25Mpa
Slide travel speed:120mm/s

Working table size:2500mm(front+back)*1500mm(left*right)
Weight of decolier:12T Weight of hydraulic press machine:23T

2.63ton hydraulic logo printing machine

3. Hydraulic press drawing the head
Press the round sheet into a shell with dies.

4. Automatic trimming machine
This machine is reliable, easy to operate.
Technical data
Motor power:5.5KW Air pressure:0.6Mpa Trimming time:20s Weight of machine:1.5T

5. End dish necking machine

Technical data
Motor power:4.5-11kw Air pressure:0.6Mpa Thickness of plate:1-10mm

Necking head diameter:150-1200mm Necking time:10-50s (adjustable)
Weight of machine:1.5-3T

6.Cleaning machine
Technical data
Motor power:1.5kw Polishing motor power:1.5kw*2 Air pressure:0.6Mpa
Polishing wheel feed range:0.2-20mm Efficiency:180Pcs/hour Weight of machine:1.2T

7.Hole punching machine
Punch the hole on head of the cylinder
Technical data
Motor power:5.5kw Punching speed:180Pcs/hour Weight of machine:1.5T

8.Valve Seat Welding Machine

To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time
Technical data
Rated voltage:220V Motor power:0.25kw Air pressure:0.6Mpa

9.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Current:AC380V+N Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa

10.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Rated voltage:AC380V Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa

11.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding
Technical data
Cylinder diameter:250mm Air cylinder pressure:0.5-0.7Mpa

12.Circumferential Seam welding machine

Option NO.1:
Technical data

Voltage:AC380V+N Motor power:0.55KW Rotation speed:Max.10rpm/min (adjustable)
Motor power:0.55kw

Option NO.2:
Technical data
This machine is applicated to automated MAG circumferential welding for LPG cylinder,fire extinguisher bottle,etc.
Welding Length:Max.1500mm Ø:250-400mm Thickness:2.5-6mm
This machine price include 1 set panasonic welding machine(Model:GL3-500A),1 set cooling water device,welding seam tracker.
Producing capacity:250 pcs/8 hrs

13. Gas car-bottom heat treating furnace machine
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.

Technical data
Producing efficiency:75pcs/hr Feeding type:Chain drive/cylinder feeding
Cleaning size:Ø320*700mm------Ø420*1250mm
Dimension:(L*W*H):12500*1390*1560mm removable transport

14. Hydrostatic Testing Machine
The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled.
Technical data:
Pneumatic pressure:0.6Mpa Motor power:3kw
Hydrostatic test pressure:3.2Mpa Weight:1.1T

15. Cylinder drying machine
The equipment is used for drying the bottle cylinder after water pressure test.

16. Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
Technical data
Produing efficiency:80-120pcs/hr Shot blasting machine:2 sets
Hoist motor power:2.2KW Total power:31.2KW
Weight:16T Workpiece size:Ø320mm*680mm
Machine dimension:(L*W):7885*2460mm

17. Spraying production line
The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun 4,manual gun 1.Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying

Technical data
Working voltage:380V 50HZ Air pressure:0.4-0.6Mpa
Total power:15KW Working efficiency:180Pcs/jr

18. Valve mounting machine
The equipment is suitable for the liquefied petroleum gas cylinder angle value installation and use,it absorbs the domestic and foreign advance technology,using electrical control,pneumatic clamping,torque adjustable device,when reaching a certain torque,and go to the specificed direction after the automatic shutdown.The machine operation and flexible,convenient and safe
Technical data

Motor power:2.2KW Motor speed:1400r/min
Work spindle speed:15.5r/min Working air pressure:0.5-0.6Mpa
Consumption per hour:1.14m3 Clamping cylinder stroke:120mm
Rotation speed ration:1:59 Weight:0.9T

19. Leakage Air Test Machine
The device for cylinder do tightness test with,composed of a water tank,a lifting cylinder,a bottle feeding machine,electric control part and other parts,work a bottle feeding mechanism of automatic cylinder will send to be test station,a lifting cylinder will fall into the water.the operating personnel rotation observations of the cylinder is not leaking cylinder,after the test and the cylinder out of water,a loop end.This machine is reasonable in structure,simple operation and maintenance.
Technical data
Air pressure:0.6Mpa Testing air pressure:2.2Mpa
Holding pressure time:60s Weight:1.8T

III. Machinery picture:

Automatic circumferential welding machine

LPG Gas Cylinder Hydrostatic Testing Line

Shot blasting machine

LPG Gas Cylinder Hydrostatic Testing Line

Powder coating line

LPG Gas Cylinder Hydrostatic Testing Line

IV. Successful projects:

1 .TK Group in Bangladesh


2. Hangzhou Yuhang Zhangshan Steel Cylinder Co.,Ltd.http://kelly-huang71.en.made-in-china.com, it is 3rd biggest LPG gas cylinder manufacturer in China, daily output is 12000pcs including all sizes from 2kgs to 50kgs.


3. TPAis manufacturing extremely high quality LPG cylinders for North America, European,UK and Australia. http://kelly-huang71.en.made-in-china.com, we supplied automatic welding line for their China plant in Dongguan. Now we are building new LPG gas cylinder factory in Vietnam, Hangphone, at the end of July, 2017, it will be set up and commissed.


4. Mintai is a newly set-up LPG gas cylinder manufacturing factory in China, the reason we took you there is to see different equipment, especially the online x-ray testing device for the size more than 25kgs which is required 100% X-ray testing in China. The machines for handle and bottom base are samiliar with the ones we will supply to you
5: Shandong Huanri Group co.,Ltd. ,ho http://kelly-huang71.en.made-in-china.com, they are biggest and strongest cylinder manufacturer in China, they bought our machines both for 12.5 and15kgs manufacturing and 50kgs manufacturing.


6.AYGAZ in Turkey, kelly-huang71.en.made-in-china.com.tr


7. Manchester Tank from USA



Previous:
Next:

CONTACT US

Copyright  2018 Wuxi Longterm Machinery Technologies Co.,Ltd. all rights reserved.

Address :No.2-18 Longshan Road, Wuxi National Hi-tech Industiral Development Zone, Jiangsu,China
Contact person: Ms. Kelly Huang
Tel :+86-510-85225618,85226980
Cellphone/Whatsapp :+86-15052276858, 13182761356
Email :kily_li3@126.comkelly.huang@longtermmachinery.com
Skype ID:Kellyhuang7110
Wechat:+86 15052276858
QQ: 188081344
Home
