LPG Gas Cylinder Hydro Testing Machine

Quantity:
  • HLT

  • Compression Testing Machine

  • Available

  • 0.6 MPa

  • Under

  • Standard Seaworthy & Strong Package

  • SGS, ISO

  • HLT

  • Wuxi, Jiangsu, China(Mainland)

  • 85152100

  • 1000sets/Year

  • Available | Customized Request

Product Description

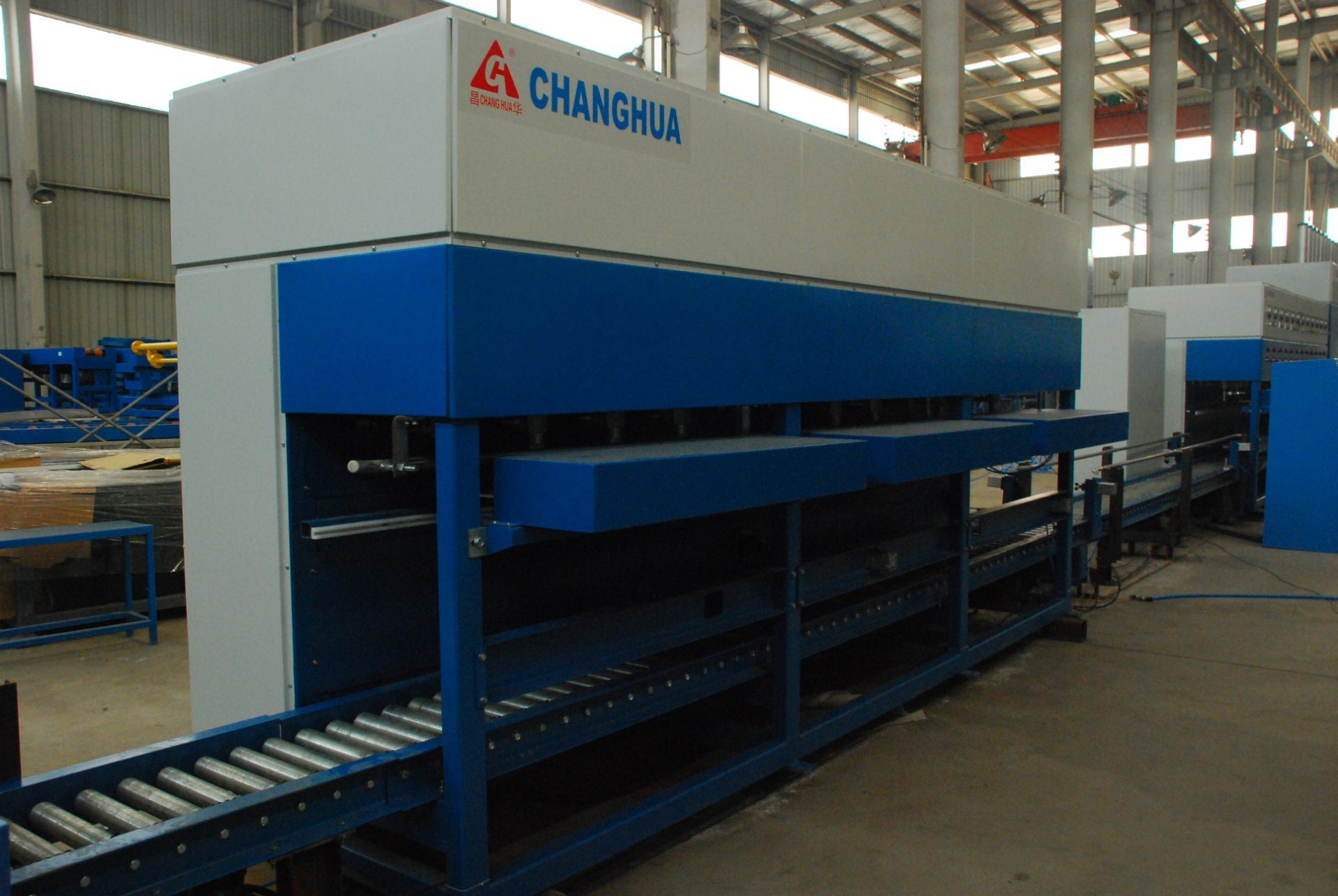

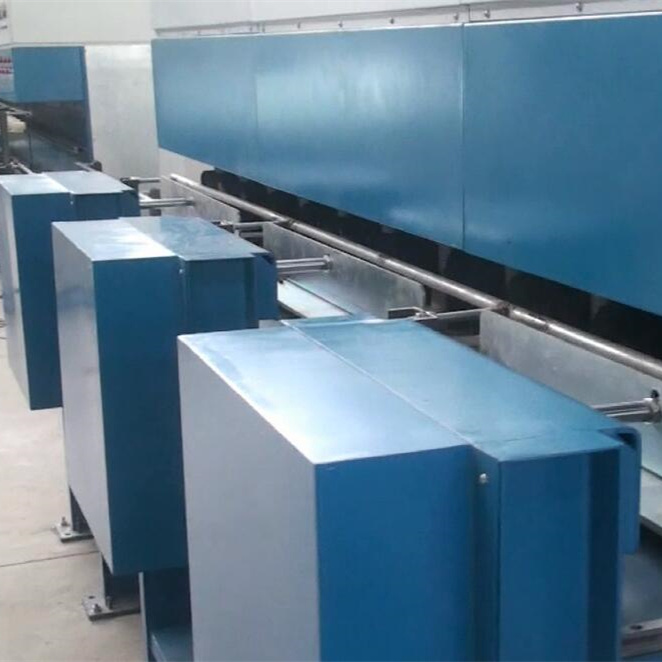

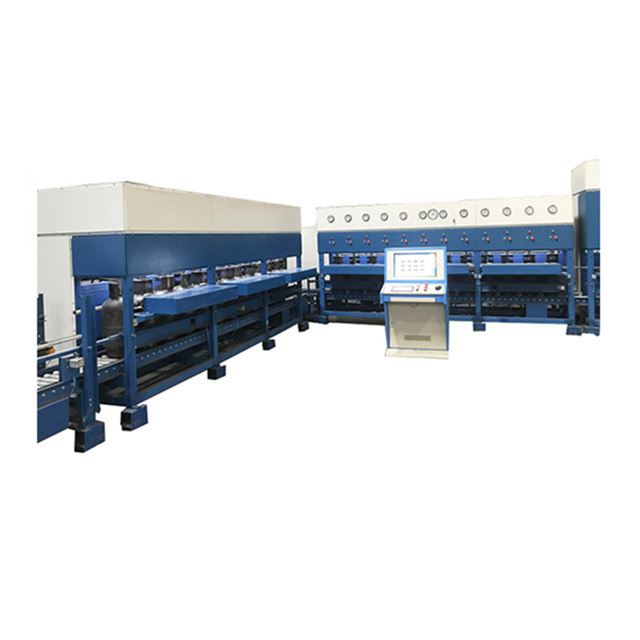

SY-1 type Cylinder Hydro Testing Machine

LPG Gas Cylinder Hydro Testing Machine


LPG Gas Cylinder Hydro Testing Machine

LPG Gas Cylinder Hydro Testing Machine


No. Description Size&Specis Unit
I Main Equipment
1 Hydraulic Press 500T set
2 De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell) XL-2 set
3 Material cutting mould on hydraulic press set
4 63ton hydraulic logo stamping machine 63T set
5 Shell drawing machine 200/300 set
6 Shell forming mould LS-2 set
7 Automatic trimming machine QK-4 set
8 End dish necking machine SK-3 set
9 Cleaning machine QL-5 set
10 Hole punching machine CK-3 set
11 Valve Seat Welding Machine HP-2 set
12 Shroud welding machine HZ-1 set
13 Bottom base welding machine DZ-1 set
14 Assembling Machine ZH-1 set
15 Option NO.1:Circumferential Seam welding machine HJ-3 set
Option NO.2:Circumferential seam welding machine Single head MAG set
16 Annealing furnace with burner TW-1 set
17 Hydrostatic Testing Machine SY-6 set
18 Shot blasting machine QYP15 set
19 Spraying line JH-2 set
20 Valve mounting machine JF-2 set
21 Air Leakage Testing Machine Cm-2 set
22 Printing machine ZS-2 set
23 Roller conveyor line m
24 Curve Convoyer m
25 Conveyor line power set
26 Motorized testing pump set
27 Cylinder drying machine set
II Equipment For Accessories Manufacturing Equipment
28 Punching machine/power press 25T set
29 Punching machine/power press 63T set
30 Punching machine/power press 100T set
31 Bottom base hydraulic forming machine set
32 Shroud upper R hydraulic forming machine set
33 shearing machine 4mm*1.5m set
34 Shearing machine 4mm*2.5m set
35 Printing machine GZ-2 set
36 Coding machine BM-1 set
37 Shroud rolling machine set
38 Bottom base rolling machine set
39 Shroud mould set
40 Bottom base mould DM-2 set
41 Bottonm base welding machine set
III Auxiliary Equipment
42 Air compressor (screw) 10/0.8 set
43 Air compressor (piston) 2.0/3.0 set
44 Air storage tank 1m3/3Mpa set
45 Air storage tank 2m3/1Mpa set
IV Testing Equipment
46 X-ray detecting equipment 2505C set
47 Mechanical property testing equipment WES-600B set
48 Burst pressure testing equipment set
49 Ultrasonic wall thickness testing equipment set
Machine Description for LPG Production Line

1. De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell)
Technical data:
Raw material specifications:
Plate Thickness:2-4mm Width of plate:Max.1170mm
ID of steel coil:450-800mm OD of steel coil:Max.1800mm Weight of steel coil:Max.25T
Coil blanking specification:Ø370-Ø615mm Blanking period:12s/time including auxiliary time

Hydraulic machine technical data
Motor power:46KW Norminal capacity:6300KN Max.working pressure:25Mpa
Slide travel speed:120mm/s
Working table size:2500mm(front+back)*1500mm(left*right)
Weight of decolier:12T Weight of hydraulic press machine:23T


2.63ton hydraulic logo printing machine


3. Hydraulic press drawing the head
Press the round sheet into a shell with dies.


4. Automatic trimming machine
This machine is reliable, easy to operate.
Technical data
Motor power:5.5KW Air pressure:0.6Mpa Trimming time:20s Weight of machine:1.5T


5. End dish necking machine
Technical data
Motor power:4.5-11kw Air pressure:0.6Mpa Thickness of plate:1-10mm
Necking head diameter:150-1200mm Necking time:10-50s (adjustable)
Weight of machine:1.5-3T


6.Cleaning machine
Technical data
Motor power:1.5kw Polishing motor power:1.5kw*2 Air pressure:0.6Mpa
Polishing wheel feed range:0.2-20mm Efficiency:180Pcs/hour Weight of machine:1.2T


7.Hole punching machine
Punch the hole on head of the cylinder
Technical data
Motor power:5.5kw Punching speed:180Pcs/hour Weight of machine:1.5T


8.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time
Technical data
Rated voltage:220V Motor power:0.25kw Air pressure:0.6Mpa


9.Bottom base welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Current:AC380V+N Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa


10.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.
Technical data
Rated voltage:AC380V Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa


11.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding
Technical data
Cylinder diameter:250mm Air cylinder pressure:0.5-0.7Mpa


12.Circumferential Seam welding machine

Option NO.1:
Technical data
Voltage:AC380V+N Motor power:0.55KW Rotation speed:Max.10rpm/min (adjustable)
Motor power:0.55kw

Option NO.2:
Technical data
This machine is applicated to automated MAG circumferential welding for LPG cylinder,fire extinguisher bottle,etc.
Welding Length:Max.1500mm Ø:250-400mm Thickness:2.5-6mm
This machine price include 1 set panasonic welding machine(Model:GL3-500A),1 set cooling water device,welding seam tracker.
Producing capacity:250 pcs/8 hrs


13. Gas car-bottom heat treating furnace machine
This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.

Technical data
Producing efficiency:75pcs/hr Feeding type:Chain drive/cylinder feeding
Cleaning size:Ø320*700mm------Ø420*1250mm
Dimension:(L*W*H):12500*1390*1560mm removable transport


14. Hydrostatic Testing Machine
The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled.
Technical data:
Pneumatic pressure:0.6Mpa Motor power:3kw
Hydrostatic test pressure:3.2Mpa Weight:1.1T


15. Cylinder drying machine
The equipment is used for drying the bottle cylinder after water pressure test.


16. Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
Technical data
Produing efficiency:80-120pcs/hr Shot blasting machine:2 sets
Hoist motor power:2.2KW Total power:31.2KW
Weight:16T Workpiece size:Ø320mm*680mm
Machine dimension:(L*W):7885*2460mm


17. Spraying production line
The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying
Technical data
Working voltage:380V 50HZ Air pressure:0.4-0.6Mpa
Total power:15KW Working efficiency:180Pcs/jr


18. Valve mounting machine
The equipment is suitable for the liquefied petroleum gas cylinder angle value installation and use,it absorbs the domestic and foreign advance technology,using electrical control,pneumatic clamping,torque adjustable device,when reaching a certain torque,and go to the specificed direction after the automatic shutdown.The machine operation and flexible,convenient and safe
Technical data
Motor power:2.2KW Motor speed:1400r/min
Work spindle speed:15.5r/min Working air pressure:0.5-0.6Mpa
Consumption per hour:1.14m3 Clamping cylinder stroke:120mm
Rotation speed ration:1:59 Weight:0.9T


19. Leakage Air Test Machine
The device for cylinder do tightness test with,composed of a water tank,a lifting cylinder,a bottle feeding machine,electric control part and other parts,work a bottle feeding mechanism of automatic cylinder will send to be test station,a lifting cylinder will fall into the water.the operating personnel rotation observations of the cylinder is not leaking cylinder,after the test and the cylinder out of water,a loop end.This machine is reasonable in structure,simple operation and maintenance.
Technical data
Air pressure:0.6Mpa Testing air pressure:2.2Mpa
Holding pressure time:60s Weight:1.8T

Introudction of our company:

We are professional manufacturer of solar water tank machinery, LPG&LNG cylinder and steel drum welding equipment with many years of experience. We are improving technologies all the time and developing welding machinery market. We provide clients with inner and outer solar water tank, LPG&LNG cylinder, fire extinguisher, and steel drum welding machine and system solutions, including circumferential seam welding, longitudinal seam welding, nozzle welding, jacket layer welding system, etc...Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well accepted in many industries: pressure cylinders, fire extinguishers, solar water tank, stainless steel tanks, etc...Our machinery have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, etc...We can customized all our equipment according to different clients requirement.

We hope to cooperate with friends at home and abroad to create glorious future together.

Service:

A:Sample avaliable:
B:Best after-sale service:
C:Effective training
D:Overseas installation

The machine is a special equipment for the detection of cylinder production, composed of a machine frame, a bottle feeding device, irrigation, compression pressure, drainage device, water tank, pressure cylinder, electronic control etc...This machine consists of 12 stations and 18 stations. The machine electric control adopts centralized control cabinet control, high degree of automation, convenient operation, safe and reliable.

Pneumatic pressure: 0.6 MPa
Hydraulic test pressure: 3.2 MPa (adjustable)
Irrigation time: 90s
Holding pressure time: 60s (adjustable)
Drainage time: 50s
Weight: 4T (12 station); 6T (18 station)

SY-2 type cylinder hydraulic testing machine

The machine is suitable for the cylinder manufacturers and testing station for withstand voltage test on 40kg, 50kg cylinder. Using irrigation, drainage and centralized control to complete the holding pressure. Convenient operation, low failure rate, safe and reliable.

Pneumatic pressure: 0.6 MPa
Hydraulic test pressure: 3.2 MPa (adjustable)
Irrigation time: 90s
Holding pressure time: 60s (adjustable)
Motor power: 3 KW
Weight: 3.8T

SY-4 type cylinder hydraulic testing machine

The machine is special for 50kg steel cylinder of liquefied gas cylinders, applicable to manufacturers and testing station for withstand voltage test on cylinder. Irrigation, pressurization, pressure maintaining centralized control and automatic pouring completed. Usig water pump, equipped with a water tank, water can be recycled.

Pneumatic pressure: 0.6 MPa
Hydraulic test pressure: 3.2 MPa (adjustable)
Motor power: 3 KW
Weight: 1.1T



Customer visiting

LPG Gas Cylinder Hydro Testing Machine

Exhibition Show

31st World LPG Forum in Houston
LPG Gas Cylinder Hydro Testing Machine

AEGPL MONACO-31st May-1st, June1st,2018

LPG Gas Cylinder Hydro Testing Machine


Company Introduction

Wuxi Longterm Machinery Technologies Co., Ltd
We are a professional manufacturer of solar water tank manufacturing line, LPG gas cylinder line, fire extinguisher manufacturing line, steel drum welding machine with more than 30 years of history. We are improving technologies all the time and developing welding machinery market. We provide customers with valued solutions including deep drawing, blanking, longitudinal seam welding, circumferential seam welding, nozzle welding, powder coating, hydro testing, shot blasting equipment, etc..Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well accepted in many industries: pressure cylinders, fire extinguishers, solar water tank, enamel water tank, stainless steel tanks, etc..Our machineries have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..

We are Longterm Company, we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.
