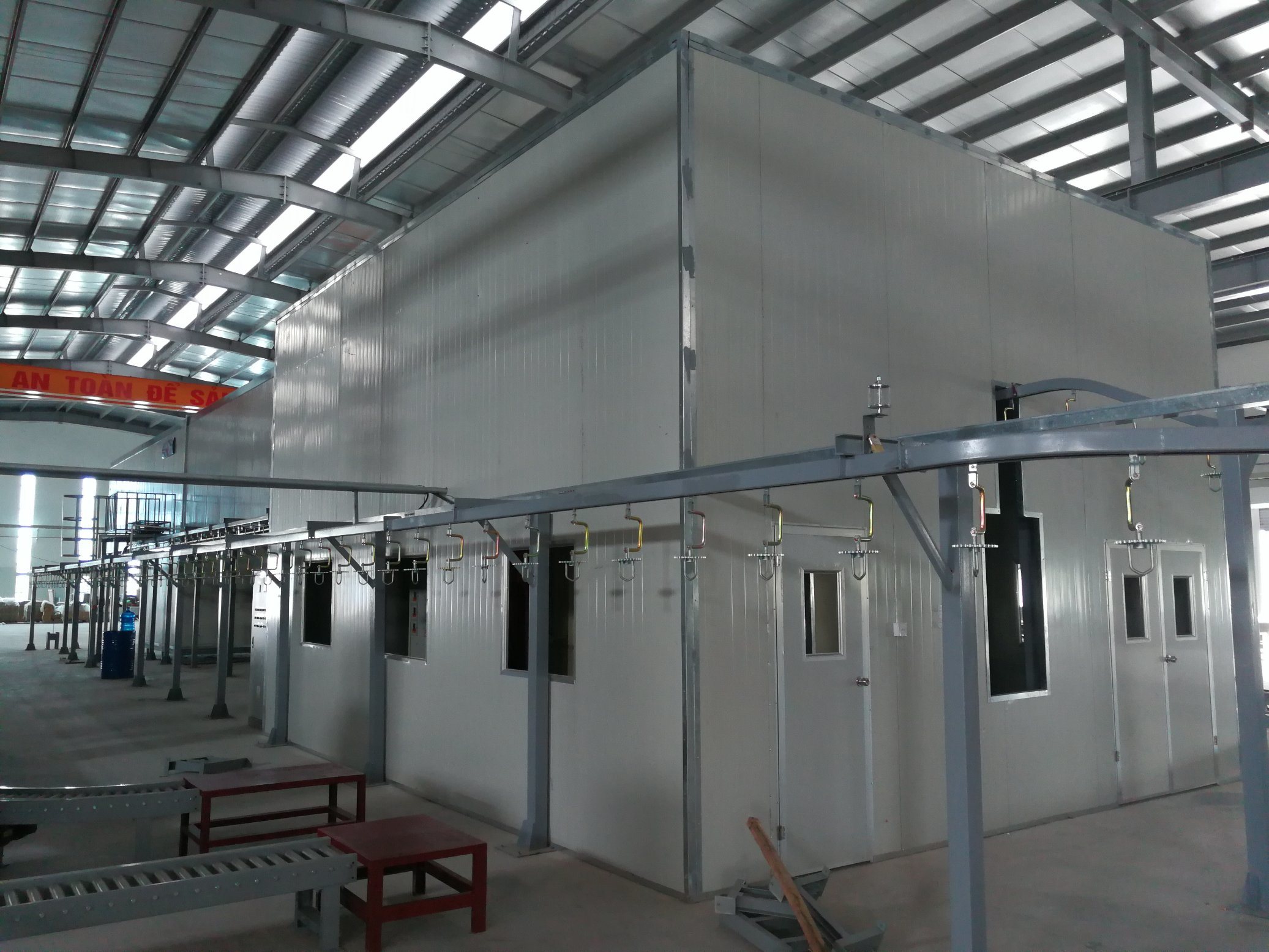

Powder coating line A. Product description Specifications as below:
Max. workpiece size: Φ300xH570mm,Φ360xH1055mm
Workpiece weight: ≤35kg
Braced chain: QXT250/50Kg light chain
Machine capacity: 250pcs/hour
Heating source: Nature gas
Hanging type: One cylinder every two pitch, that means one cylinder per 500mm B. Automatic lpg gas cylinder production line
Production Process Automatic trimming & polishing machine with arms for both end dishes
|No ||Machine name |
|1 ||Mechanical decoiler,straightening and blanking line(with scrap shearing machine) |
|2 ||Deep drawing machine |
|3 ||Auto flushing machine for deep drawn heads |
|4 ||Automatic trimming &polishing machine |
|5 ||Automatic hole punching &logo making machine |
|6 ||Automatic socket welding machine |
|7 ||Automatic handle welding machine |
|8 ||Lower end dish trimming and polishing machine |
|9 ||Lower end dish automatic joggling machine |
|10 ||Automatic bottom base welding machine |
|11 ||Assembly and spot welding machine |
|12 ||Circumferential welding machine |
|13 ||LPG gas furnace(heat treatment) |
|14 ||Automatic online hydro testing machine |
|15 ||Drying oven |
|16 ||Shot blasting machine |
|17 ||Zinc metalizing machine |
|18 ||Powder coating line or Liquid Painting Line |
|19 ||Valve mounting machine |
|20 ||Air leakage testing machine |
|21 ||Printing machine |
|22 ||Handle decoiler &straightening and cutting line |
|23 ||Handle hole punching machine |
|24 ||Hydraulic Presser-letter stamping(Optional) |
|25 ||Handle end bending machine(Optional) |
|26 ||Hydraulic coding machine |
|27 ||Handle rolling machine |
|28 ||Handle top R forming machine |
|29 ||Handle low R forming machine |
|30 ||Vertical Bottom base rolling machine |
|31 ||Double welding position welding fixture |
|32 ||Base forming machine |
|33 ||Hydraulic Precision sheet shearing machine(33KG only) |
|34 ||Sheet rolling machine(33KG only) |
|35 ||Automatic Seam Welder(33KG only) |
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line Automatic hole punching & logo making machine with arms for female half/top half
Punch the hole on top of the cylinder& stamp the logo Double head Circumferential welding machine
fully automatic welding and monitoring. C. FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
