Product Description
Main Features:
Main Features:
A: Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

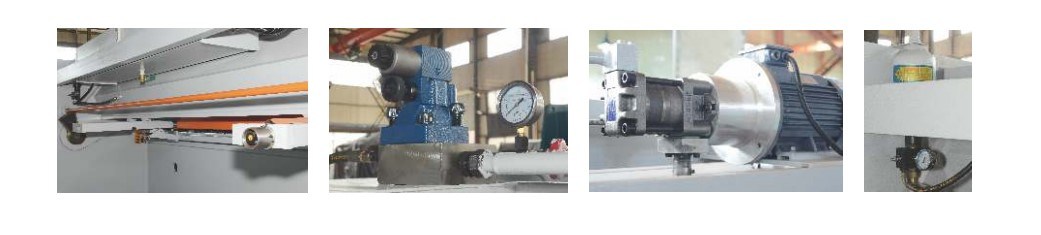

B: Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany(Optional), Easy to operate 10ft stainless steel plate cut shearing machine

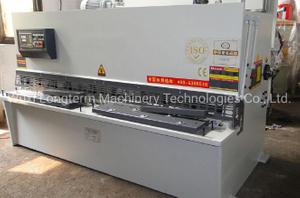

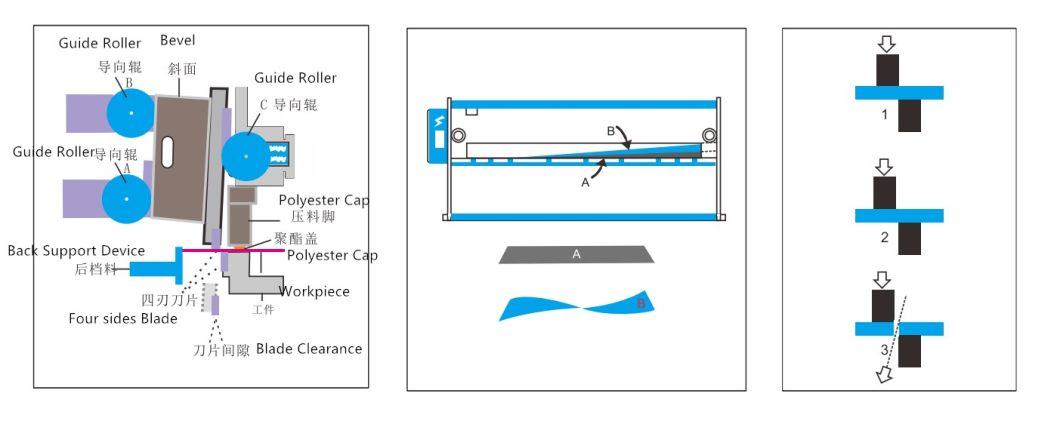

C: The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
D: The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine(Optional)
E: Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel
F: Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
Safety Equipment:
Safety Standards(2006/42/EC):
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain Optional)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection.

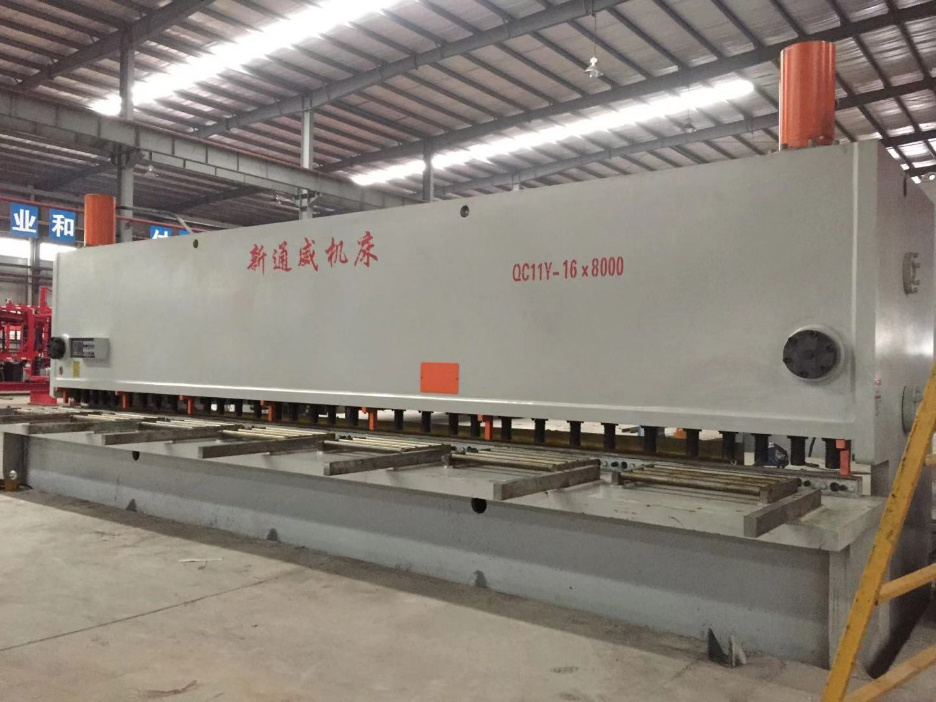

| Parameter Specification | Shearing Thickness(mm) | Shearing Width(mm) | Stroke(mm-1) | Backgauge Range(mm) | Shearing Angle(°) | Height Of Working Table(mm) | Main Power(kw) |
| QC11Y-6X2500 | 6 | 2500 | 16-35 | 20-600 | 30'-1°30' | 800 | 7.5 |
| QC11Y-6X3200 | 6 | 3200 | 14-35 | 20-600 | 30'-1°30' | 800 | 7.5 |
| QC11Y-6X4000 | 6 | 4000 | 10-30 | 20-600 | 30'-1°30' | 800 | 7.5 |
| QC11Y-6X5000 | 6 | 5000 | 10-30 | 20-800 | 30'-1°30' | 850 | 11 |
| QC11Y-6X6000 | 6 | 6000 | 8-25 | 20-800 | 30'-1°30' | 1000 | 11 |
| QC11Y-8X2500 | 8 | 2500 | 14-30 | 20-600 | 30'-2° | 800 | 11 |
| QC11Y-8X3200 | 8 | 3200 | 12-30 | 20-600 | 30'-2° | 850 | 11 |
| QC11Y-8X4000 | 8 | 4000 | 10-25 | 20-600 | 30'-2° | 900 | 11 |
| QC11Y-8X5000 | 8 | 5000 | 10-25 | 20-800 | 30'-2° | 1000 | 15 |
| QC11Y-8X6000 | 8 | 6000 | 8-20 | 20-800 | 30'-2° | 1050 | 15 |
| QC11Y-12X2500 | 12 | 2500 | 12-25 | 20-600 | 30'-2° | 840 | 15 |
| QC11Y-12X3200 | 12 | 3200 | 12-25 | 20-600 | 30'-2° | 900 | 18.5 |
| QC11Y-12X4000 | 12 | 4000 | 8-20 | 20-800 | 30'-2° | 940 | 18.5 |
| QC11Y-12X5000 | 12 | 5000 | 8-20 | 20-1000 | 30'-2° | 1000 | 22 |
| QC11Y-12X6000 | 12 | 6000 | 6-20 | 20-1000 | 30'-2° | 1060 | 30 |
| QC11Y-16X2500 | 16 | 2500 | 12-20 | 20-600 | 30'-2°30' | 840 | 22 |
| QC11Y-16X3200 | 16 | 3200 | 12-20 | 20-800 | 30'-2°30' | 900 | 22 |
| QC11Y-16X4000 | 16 | 4000 | 8-15 | 20-800 | 30'-2°30' | 940 | 22 |
| QC11Y-16X5000 | 16 | 5000 | 8-15 | 20-1000 | 30'-2°30' | 1000 | 30 |
| QC11Y-16X6000 | 16 | 6000 | 6-15 | 20-1000 | 30'-2°30' | 1100 | 37 |
| QC11Y-20X2500 | 20 | 2500 | 10-20 | 20-800 | 30'-3° | 900 | 30 |
| QC11Y-20X3200 | 20 | 3200 | 10-20 | 20-800 | 30'-3° | 940 | 30 |
| QC11Y-20X4000 | 20 | 4000 | 8-15 | 20-800 | 30'-3° | 1000 | 30 |
| QC11Y-20X5000 | 20 | 5000 | 8-15 | 20-1000 | 30'-3° | 1100 | 30 |
| QC11Y-20X6000 | 20 | 6000 | 6-15 | 20-1000 | 30'-3° | 900 | 37 |
| QC11Y-25X2500 | 25 | 2500 | 8-15 | 20-800 | 30'-3°30' | 950 | 37 |
| QC11Y-25X3200 | 25 | 3200 | 8-15 | 20-800 | 30'-3°30' | 1100 | 37 |
| QC11Y-25X4000 | 25 | 4000 | 6-12 | 20-1000 | 30'-3°30' | 1100 | 37 |
| QC11Y-32X2500 | 32 | 2500 | 8-12 | 20-800 | 30'-4° | 1000 | 55 |
| QC11Y-32X3200 | 32 | 3200 | 6-12 | 20-1000 | 30'-4° | 1100 | 55 |
| QC11Y-40X2500 | 40 | 2500 | 4-10 | 20-1000 | 30'-4° | 1200 | 55 |
| QC11Y-40X3200 | 40 | 3200 | 4-10 | 20-1000 | 30'-4° | 1200 | 55 |
| QC11Y-50X3200 | 50 | 3200 | 4-10 | 20-1000 | 30'-4° | 1200 | 90X3 |
| QC11Y-60X3200 | 60 | 3200 | 4-10 | 20-1000 | 30'-4° | 1200 | 90X4 |
