Hydraulic Guillotine Shearing Machine for Metal Sheet

Quantity:
  • Customized
  • Customized
  • Siemens or Other
  • Seaworthy
  • HLT
  • China Jiangsu
  • 400 Sets/Year
  • Available | Customized Request

Product Description

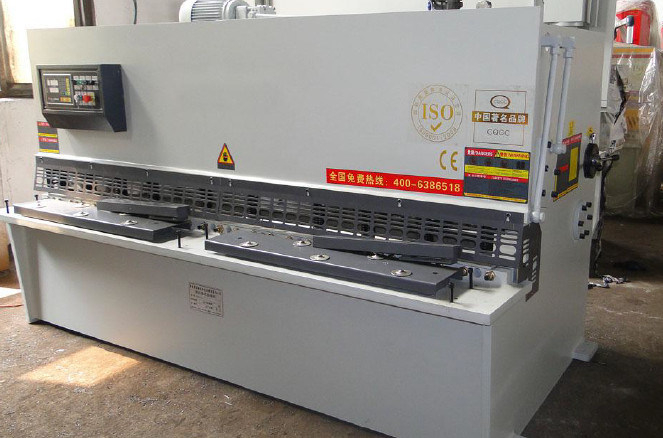

Hydraulic Guillotine Shearing Machine for metal sheet


 Hydraulic Guillotine Shearing Machine for Metal Sheet


Main Features:

Main Features:

A: Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

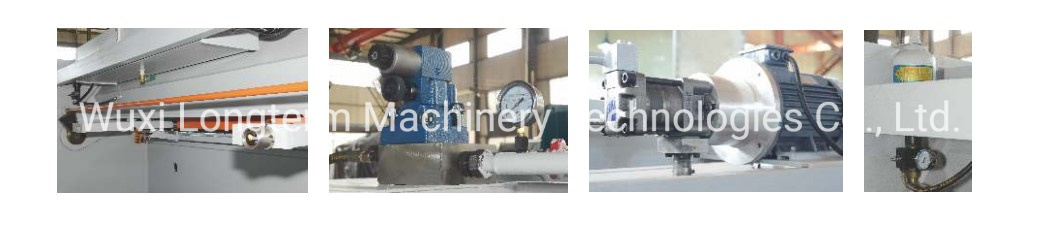

B: Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany(Optional), Easy to operate 10ft stainless steel plate cut shearing machine

C: The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.

D: The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine(Optional)

E: Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel

F: Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.


 Hydraulic Guillotine Shearing Machine for Metal Sheet

Safety Equipment:

Safety Standards(2006/42/EC):

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front finger Protection(Safety light curtain Optional)

Back metal safe fence with CE standards

Safety relay with Monitor the pedal switch and safety protection.


Features of this machine
A: The second generation of shear.
B: Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
C: Advanced integrated hydraulic system with and excellent reliabitity quality.

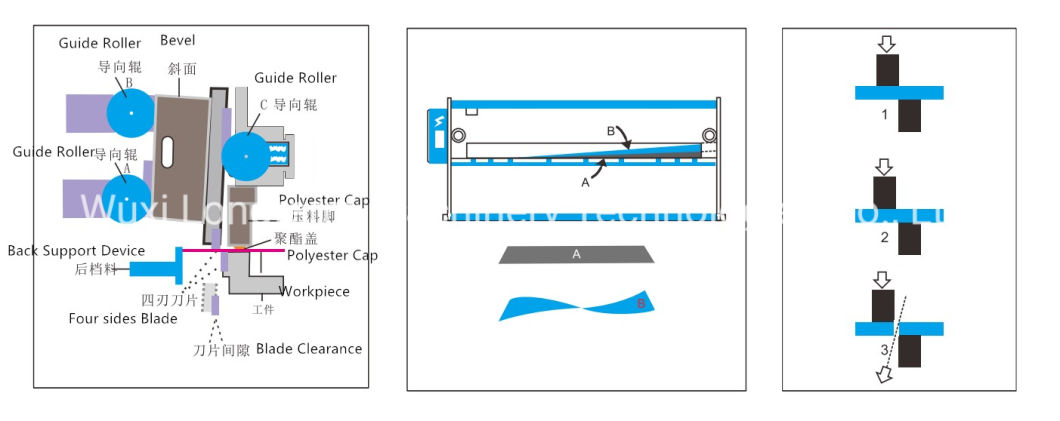

D: Rapidly,accurately and conveniently adjusting the blade clearance by motor
E: The adjustable rake angle can minimize plate deformation.
F: As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
G: Shearing in sections,shadow-line cutting.
H: Counter for the motorized back gauge.
I: Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine  Hydraulic Guillotine Shearing Machine for Metal Sheet
Parameter

Specification
Shearing Thickness(mm) Shearing Width(mm) Stroke(mm-1) Backgauge Range(mm) Shearing Angle(°) Height Of Working Table(mm) Main Power(kw)
QC11Y-6X2500 6 2500 16-35 20-600 30'-1°30' 800 7.5
QC11Y-6X3200 6 3200 14-35 20-600 30'-1°30' 800 7.5
QC11Y-6X4000 6 4000 10-30 20-600 30'-1°30' 800 7.5
QC11Y-6X5000 6 5000 10-30 20-800 30'-1°30' 850 11
QC11Y-6X6000 6 6000 8-25 20-800 30'-1°30' 1000 11
QC11Y-8X2500 8 2500 14-30 20-600 30'-2° 800 11
QC11Y-8X3200 8 3200 12-30 20-600 30'-2° 850 11
QC11Y-8X4000 8 4000 10-25 20-600 30'-2° 900 11
QC11Y-8X5000 8 5000 10-25 20-800 30'-2° 1000 15
QC11Y-8X6000 8 6000 8-20 20-800 30'-2° 1050 15
QC11Y-12X2500 12 2500 12-25 20-600 30'-2° 840 15
QC11Y-12X3200 12 3200 12-25 20-600 30'-2° 900 18.5
QC11Y-12X4000 12 4000 8-20 20-800 30'-2° 940 18.5
QC11Y-12X5000 12 5000 8-20 20-1000 30'-2° 1000 22
QC11Y-12X6000 12 6000 6-20 20-1000 30'-2° 1060 30
QC11Y-16X2500 16 2500 12-20 20-600 30'-2°30' 840 22
QC11Y-16X3200 16 3200 12-20 20-800 30'-2°30' 900 22
QC11Y-16X4000 16 4000 8-15 20-800 30'-2°30' 940 22
QC11Y-16X5000 16 5000 8-15 20-1000 30'-2°30' 1000 30
QC11Y-16X6000 16 6000 6-15 20-1000 30'-2°30' 1100 37
QC11Y-20X2500 20 2500 10-20 20-800 30'-3° 900 30
QC11Y-20X3200 20 3200 10-20 20-800 30'-3° 940 30
QC11Y-20X4000 20 4000 8-15 20-800 30'-3° 1000 30
QC11Y-20X5000 20 5000 8-15 20-1000 30'-3° 1100 30
QC11Y-20X6000 20 6000 6-15 20-1000 30'-3° 900 37
QC11Y-25X2500 25 2500 8-15 20-800 30'-3°30' 950 37
QC11Y-25X3200 25 3200 8-15 20-800 30'-3°30' 1100 37
QC11Y-25X4000 25 4000 6-12 20-1000 30'-3°30' 1100 37
QC11Y-32X2500 32 2500 8-12 20-800 30'-4° 1000 55
QC11Y-32X3200 32 3200 6-12 20-1000 30'-4° 1100 55
QC11Y-40X2500 40 2500 4-10 20-1000 30'-4° 1200 55
QC11Y-40X3200 40 3200 4-10 20-1000 30'-4° 1200 55
QC11Y-50X3200 50 3200 4-10 20-1000 30'-4° 1200 90X3
QC11Y-60X3200 60 3200 4-10 20-1000 30'-4° 1200 90X4
Factory View(Since 1993)
 Hydraulic Guillotine Shearing Machine for Metal Sheet
