High Quality QC11y/K-Series Hydraulic Guillotine Shearing Machine

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Cutting Length:
Customized
Cutting Thickness:
Customized
Motor Brand:
Siemens or Other
Transport Package:
Seaworthy
Trademark:
HLT
Origin:
China Jiangsu
Production Capacity:
400 Sets/Year
Customization:
Available | Customized Request

Product Description

Product Description

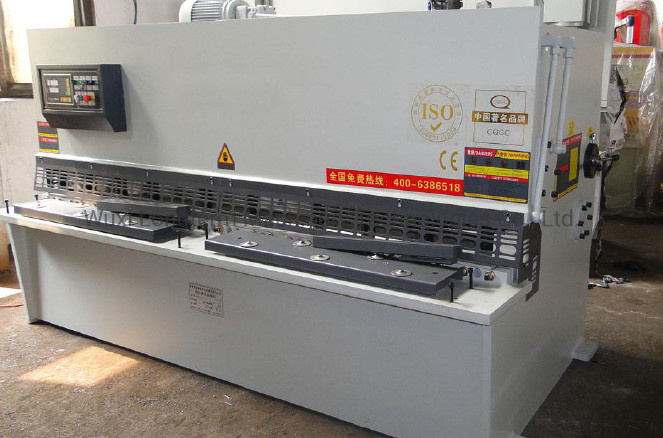

QC11Y/K-Series Hydraulic Guillotine Shearing Machine

Main Features:

Main Features:

A: Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

B: Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany(Optional), Easy to operate 10ft stainless steel plate cut shearing machine

C: The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.

D: The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine(Optional)

E: Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel

F: Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

Safety Equipment:

Safety Standards(2006/42/EC):

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front finger Protection(Safety light curtain Optional)

Back metal safe fence with CE standards

Safety relay with Monitor the pedal switch and safety protection.

Features of this machine
A: The second generation of shear.
B: Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
C: Advanced integrated hydraulic system with and excellent reliabitity quality.
D: Rapidly,accurately and conveniently adjusting the blade clearance by motor

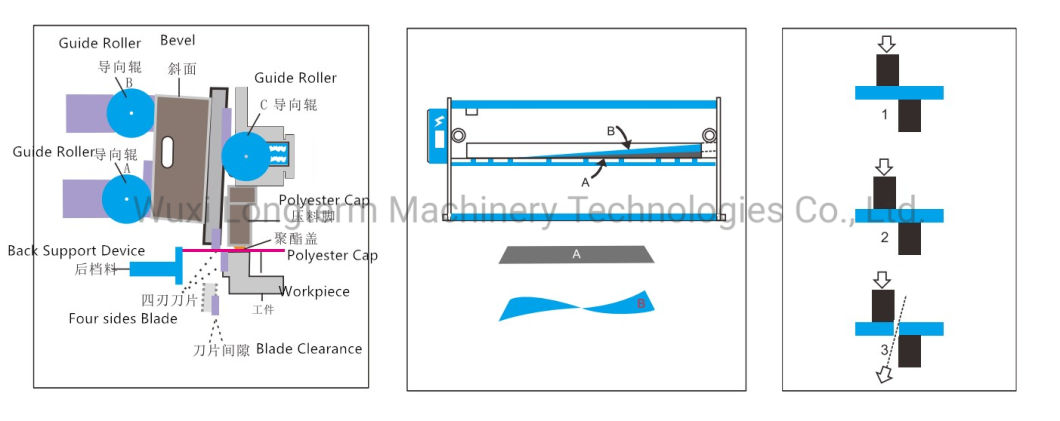

E: The adjustable rake angle can minimize plate deformation.
F: As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
G: Shearing in sections,shadow-line cutting.
H: Counter for the motorized back gauge.
I: Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine High Quality QC11y/K-Series Hydraulic Guillotine Shearing Machine

Parameter Specification	Shearing Thickness(mm)	Shearing Width(mm)	Stroke(mm-1)	Backgauge Range(mm)	Shearing Angle(°)	Height Of Working Table(mm)	Main Power(kw)
QC11Y-6X2500	6	2500	16-35	20-600	30'-1°30'	800	7.5
QC11Y-6X3200	6	3200	14-35	20-600	30'-1°30'	800	7.5
QC11Y-6X4000	6	4000	10-30	20-600	30'-1°30'	800	7.5
QC11Y-6X5000	6	5000	10-30	20-800	30'-1°30'	850	11
QC11Y-6X6000	6	6000	8-25	20-800	30'-1°30'	1000	11
QC11Y-8X2500	8	2500	14-30	20-600	30'-2°	800	11
QC11Y-8X3200	8	3200	12-30	20-600	30'-2°	850	11
QC11Y-8X4000	8	4000	10-25	20-600	30'-2°	900	11
QC11Y-8X5000	8	5000	10-25	20-800	30'-2°	1000	15
QC11Y-8X6000	8	6000	8-20	20-800	30'-2°	1050	15
QC11Y-12X2500	12	2500	12-25	20-600	30'-2°	840	15
QC11Y-12X3200	12	3200	12-25	20-600	30'-2°	900	18.5
QC11Y-12X4000	12	4000	8-20	20-800	30'-2°	940	18.5
QC11Y-12X5000	12	5000	8-20	20-1000	30'-2°	1000	22
QC11Y-12X6000	12	6000	6-20	20-1000	30'-2°	1060	30
QC11Y-16X2500	16	2500	12-20	20-600	30'-2°30'	840	22
QC11Y-16X3200	16	3200	12-20	20-800	30'-2°30'	900	22
QC11Y-16X4000	16	4000	8-15	20-800	30'-2°30'	940	22
QC11Y-16X5000	16	5000	8-15	20-1000	30'-2°30'	1000	30
QC11Y-16X6000	16	6000	6-15	20-1000	30'-2°30'	1100	37
QC11Y-20X2500	20	2500	10-20	20-800	30'-3°	900	30
QC11Y-20X3200	20	3200	10-20	20-800	30'-3°	940	30
QC11Y-20X4000	20	4000	8-15	20-800	30'-3°	1000	30
QC11Y-20X5000	20	5000	8-15	20-1000	30'-3°	1100	30
QC11Y-20X6000	20	6000	6-15	20-1000	30'-3°	900	37
QC11Y-25X2500	25	2500	8-15	20-800	30'-3°30'	950	37
QC11Y-25X3200	25	3200	8-15	20-800	30'-3°30'	1100	37
QC11Y-25X4000	25	4000	6-12	20-1000	30'-3°30'	1100	37
QC11Y-32X2500	32	2500	8-12	20-800	30'-4°	1000	55
QC11Y-32X3200	32	3200	6-12	20-1000	30'-4°	1100	55
QC11Y-40X2500	40	2500	4-10	20-1000	30'-4°	1200	55
QC11Y-40X3200	40	3200	4-10	20-1000	30'-4°	1200	55
QC11Y-50X3200	50	3200	4-10	20-1000	30'-4°	1200	90X3
QC11Y-60X3200	60	3200	4-10	20-1000	30'-4°	1200	90X4
