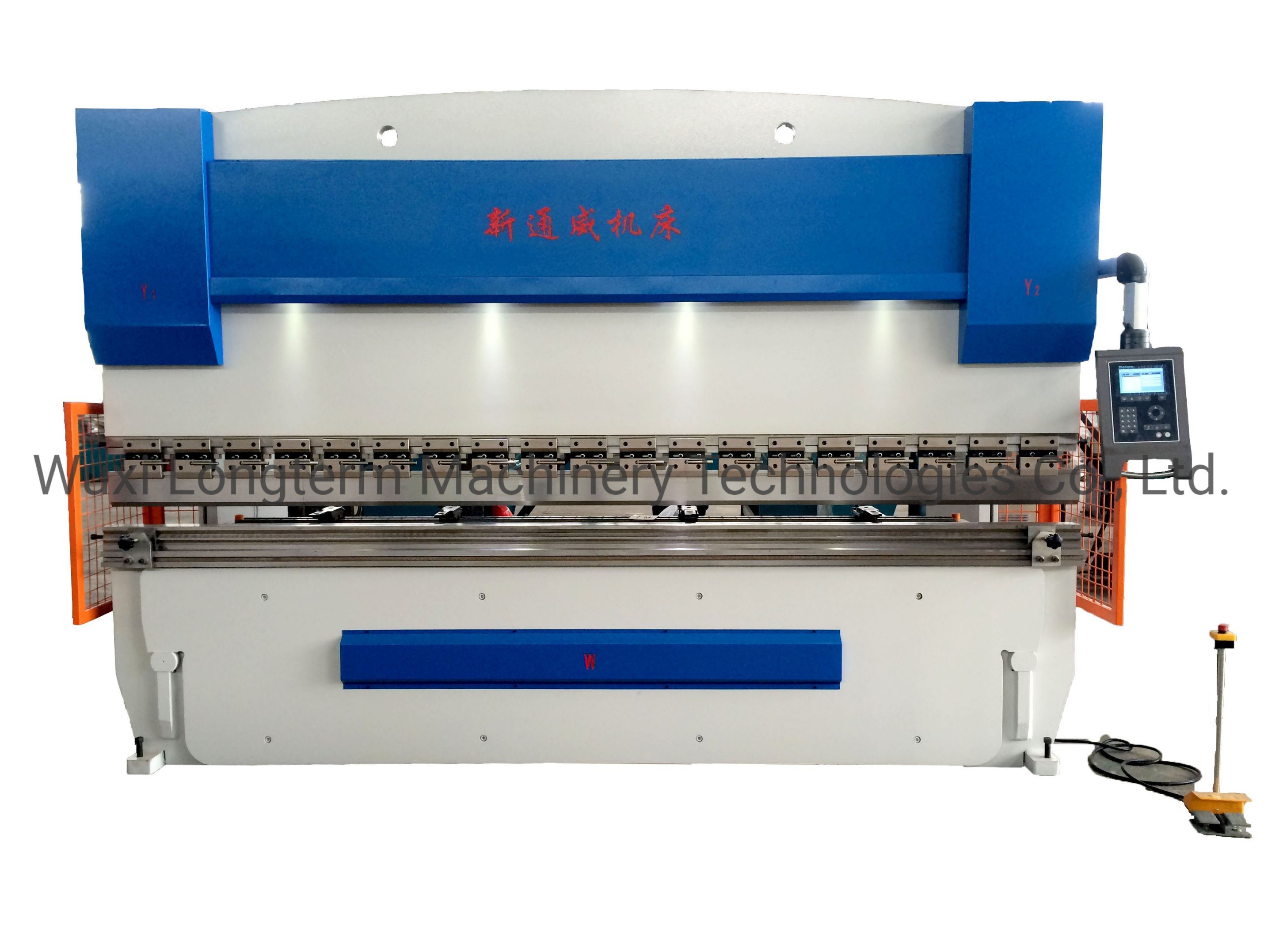

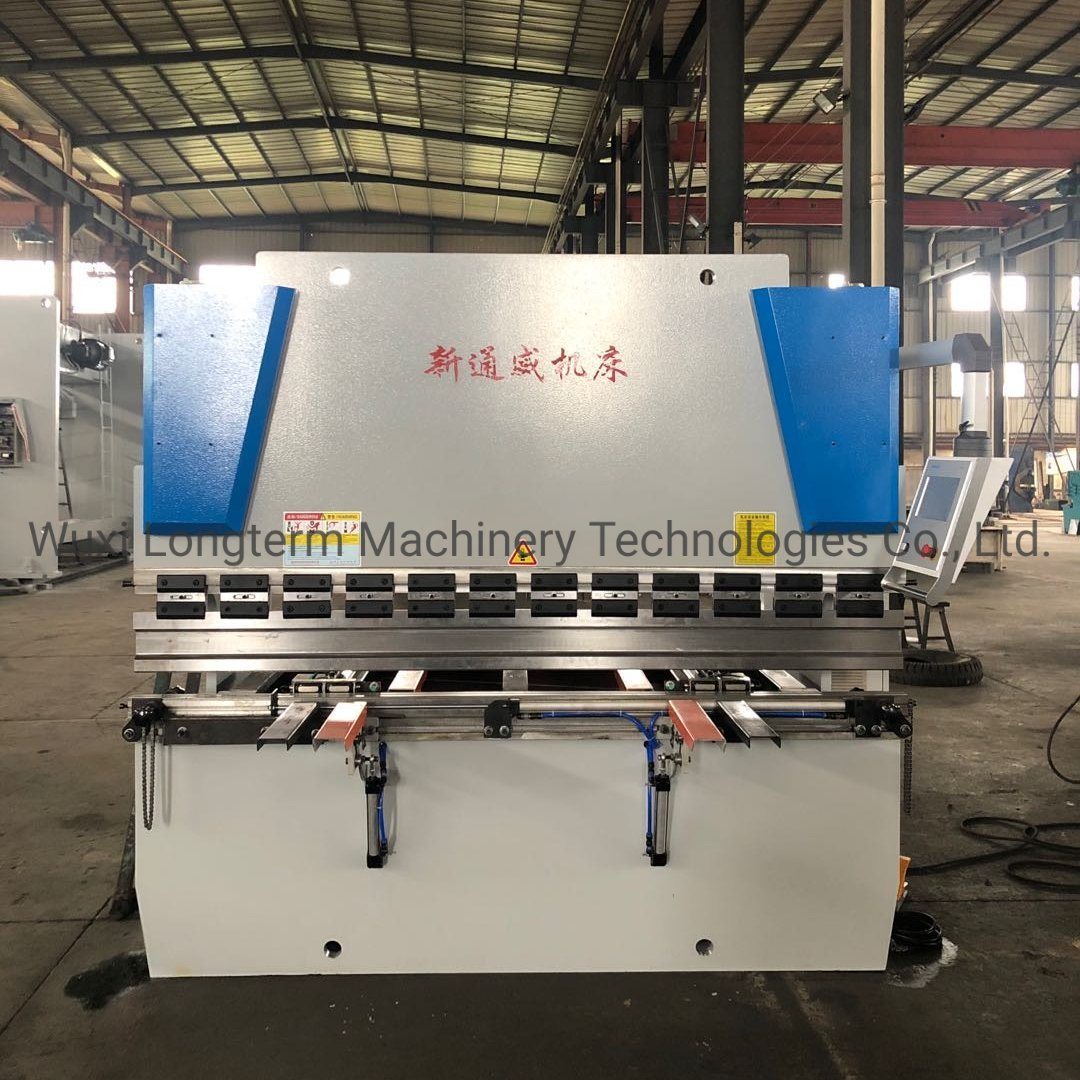

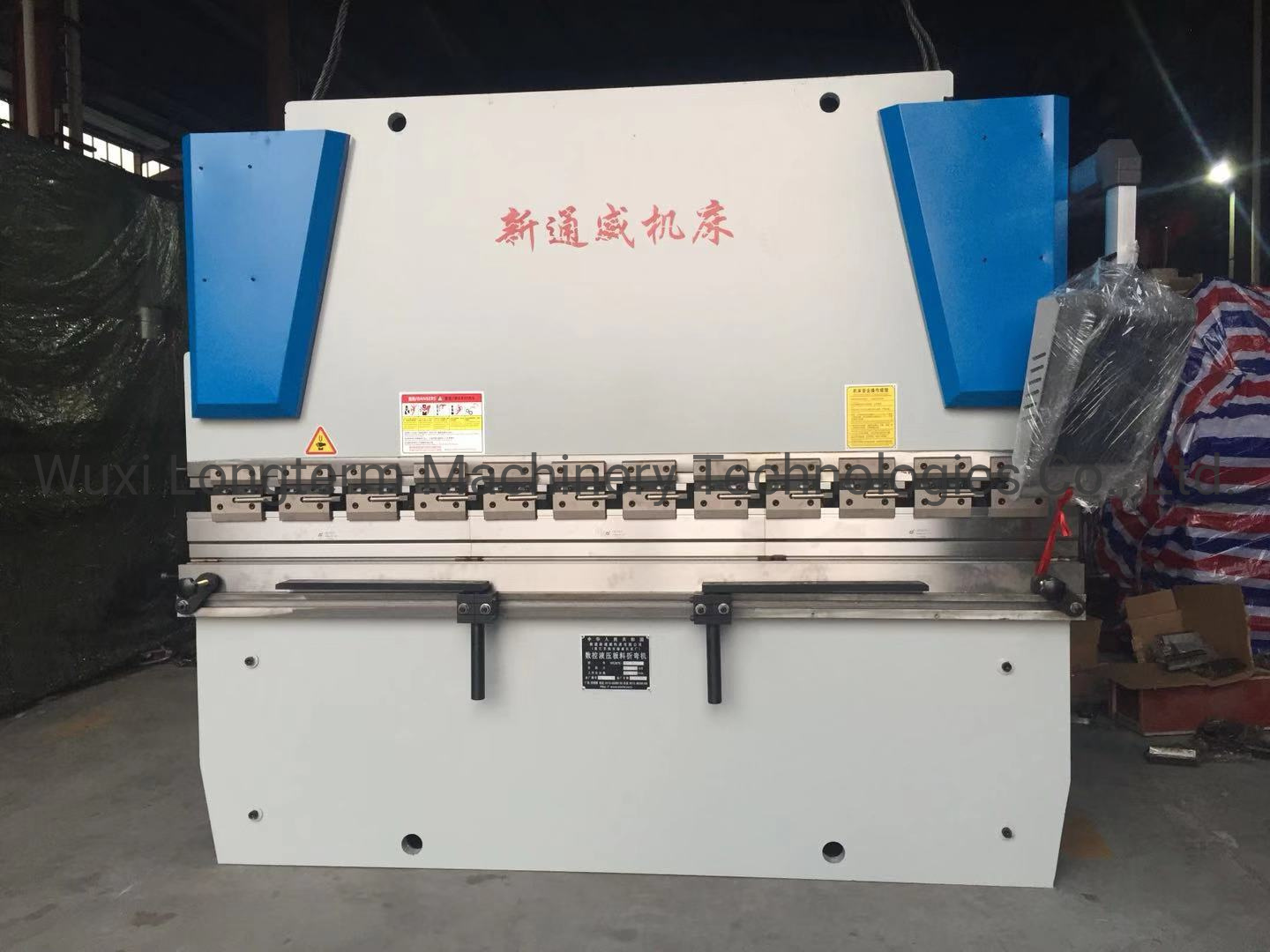

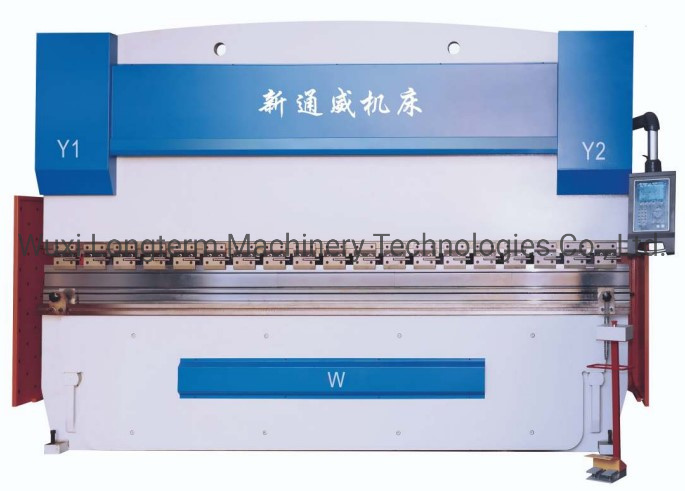

WC67Y/K Series Hydraulic Press Brake (WE67K-1200T/8100)
Fearures: A: High-configuration, high-degree, high-efficiency fully CNC hydraulic press brake equipment
B: Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity
C: The standard CNC system is DELEMDA-56, users can choose uDA-52, DA-56, DA-66, DA-69
D: Using up and down double deflection compensation structure
E: Mechanical upper die quick clamping device has both quick clamping function and upper wedge block compensation function
F: The hydraulic table deflection compensation device is automatically controlled by the CNC system to compensate the pressure
G: High-performance proportional hydraulic system and internal gear pump

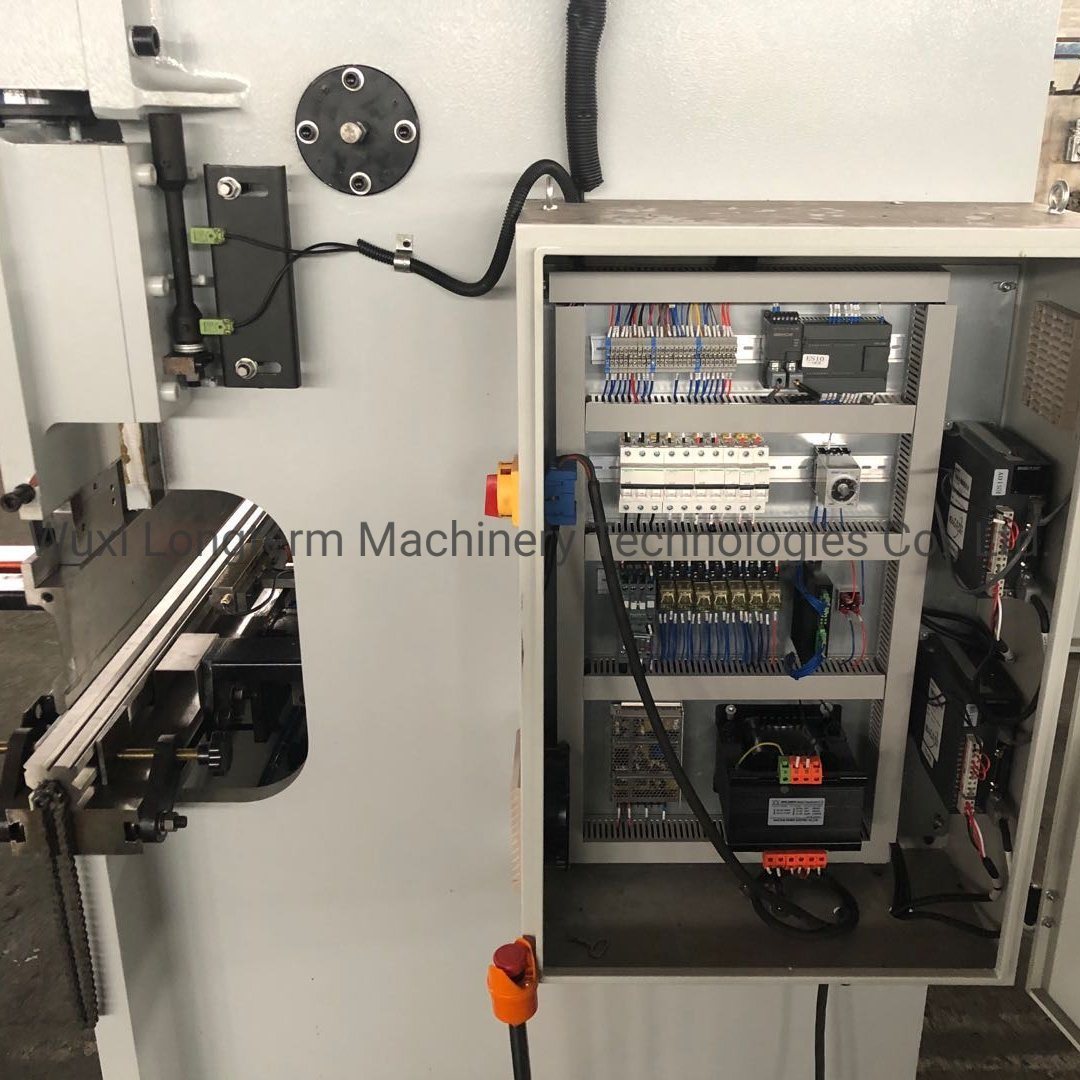

H: The key electrical components are all international famous brands Optional CE standard safety protection

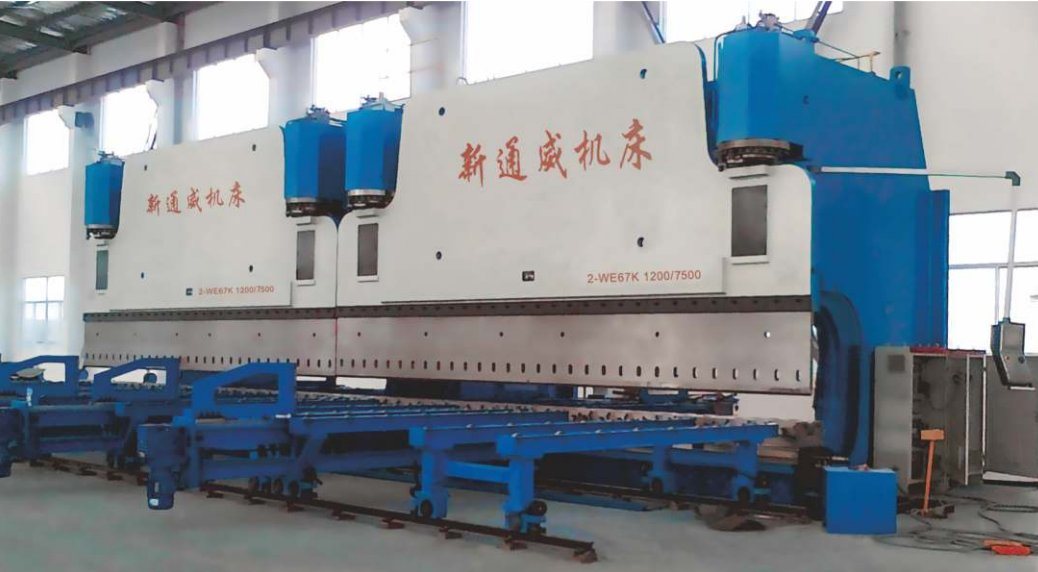

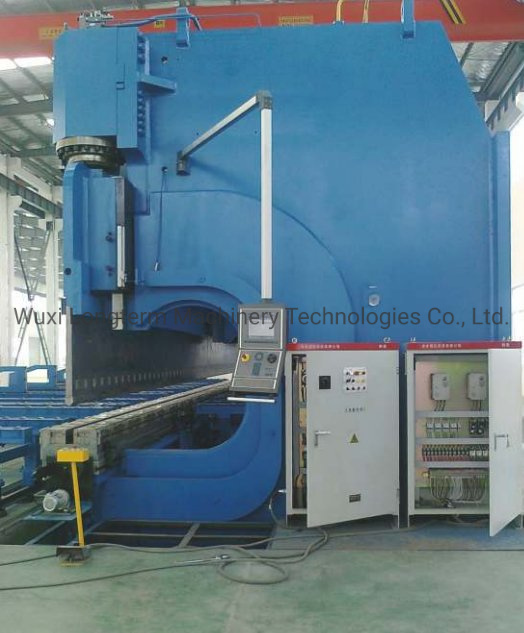

(Heavy duty 1200T/7100)

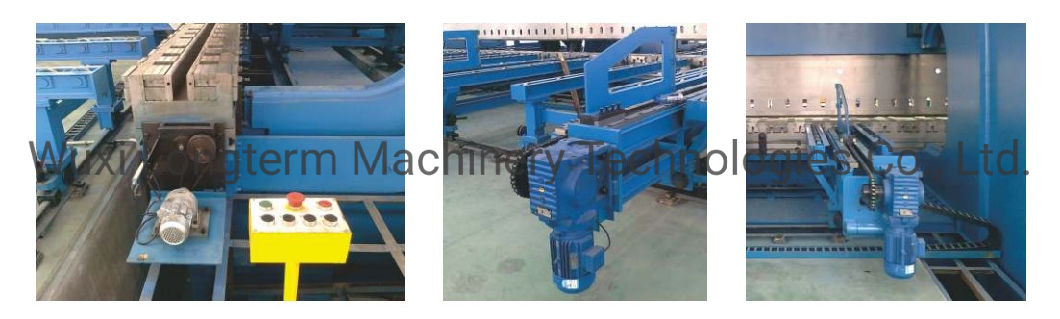

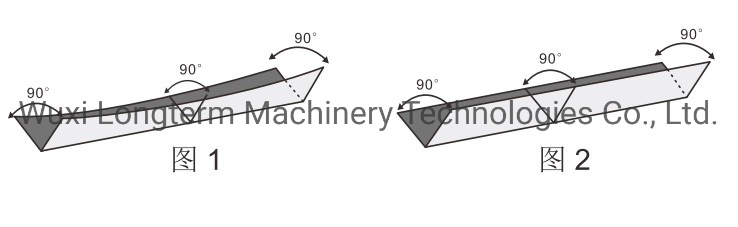

Customized Heavy Duty Press Brake CNC table convex(Optional) Front tray(Optional) Back tray(Optional)
Optional accessories
: A: Front Tray: High-strength feeding device, the height can be adjusted according to different lower molds
B: High-precision back gauge positioning system, The back gauge positioning system is controlled by an AC servo motor to ensure fast positioning and accurate bending. The user can choose a 4-axis positioning system (X, RZ1 / Z2) as needed
C: CNC mechanical deflection compensation, mechanical lower deflection compensation device, automatically controlled compensation by CNC system
Factory View(Since 1993)
:
