| Quantity: | |
|---|---|
HLT
380V
Auto Part
Automatic
Oversea Service
3 Months
0.8mm Color Plate
LPG, LNG, Electricity
PLC + Touch Screen
Qxt200/30kg
Plate Tyoe Heat Exchanger
Electrophoresis Spray Coating
T/T, LC, Dp
Customized
1 Year
Seaworthy Package
as customer′s requirements
WLT
China Jiangsu
8424899990
100 Sets Per Year
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description

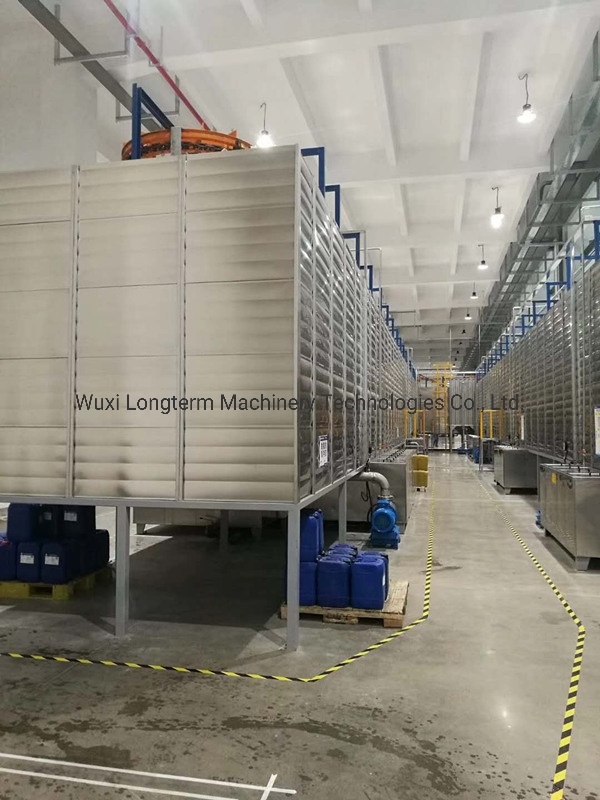

Pre-treatment system
Pre-treatment adopts suitable silane environmental protection processre-treatment adopts suitable silane environmental protection process

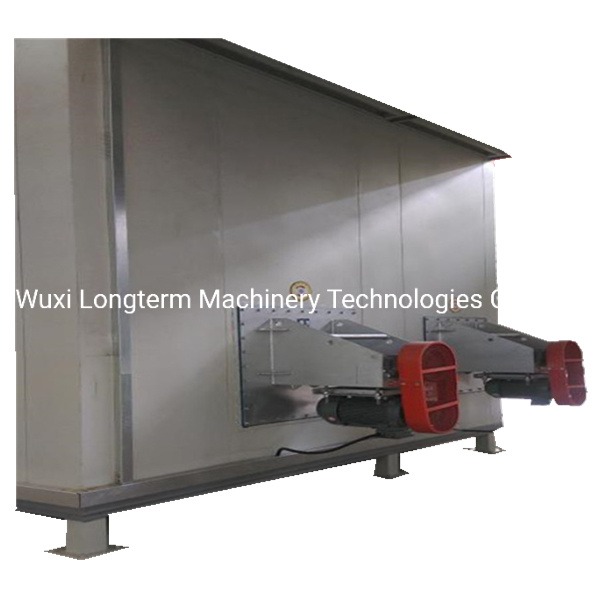

Curing oven
Curing oven adopts full bridge type to save the energy. Internal curing oven adopts 0.8mm galvanized steel plate, external curing oven adopts 0.8mm color plate.

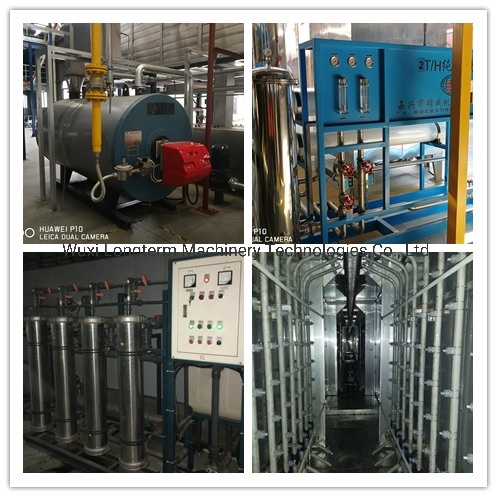

Detailed images
|
Item
|
Name
|
Time (min)
|
Temp (°C)
|
Method
|
|
1
|
Loading
|
|
|
Manual
|
|
2
|
Pure water clean 1
|
1
|
Room temp
|
Spray
|
|
3
|
Pure water direct injection
|
|
Room temp
|
Spray
|
|
4
|
Silane
|
1.5
|
Room temp
|
Spray
|
|
5
|
Pure water clean 2
|
1
|
Room temp
|
Spray
|
|
6
|
Pure water clean 3
|
0.75
|
Room temp
|
Spray
|
|
7
|
Pure water direct injection
|
|
Room temp
|
Spray
|
|
8
|
Drip
|
2.5
|
Room temp
|
|
|
9
|

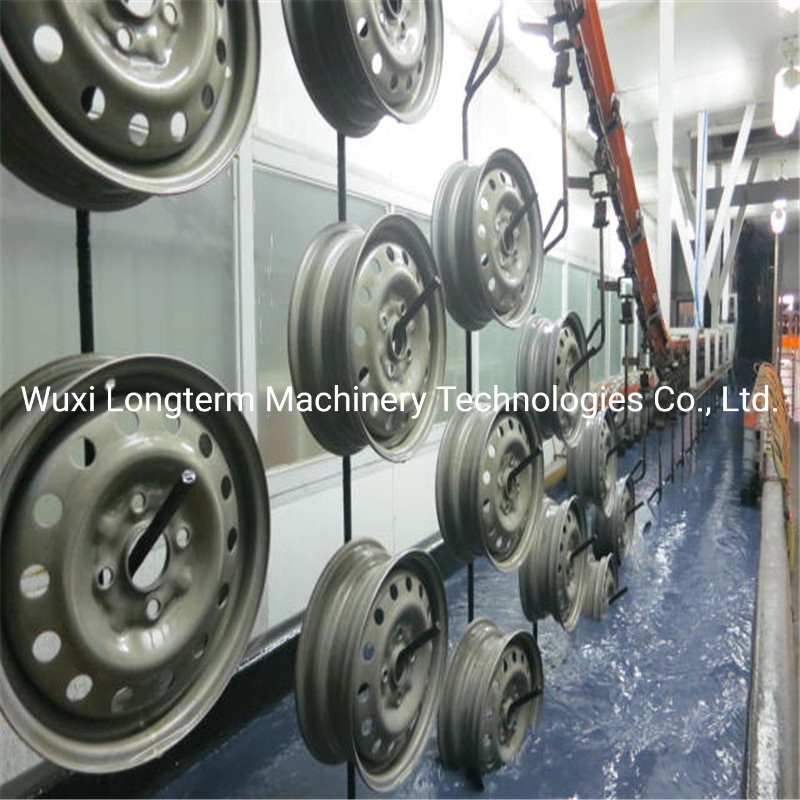

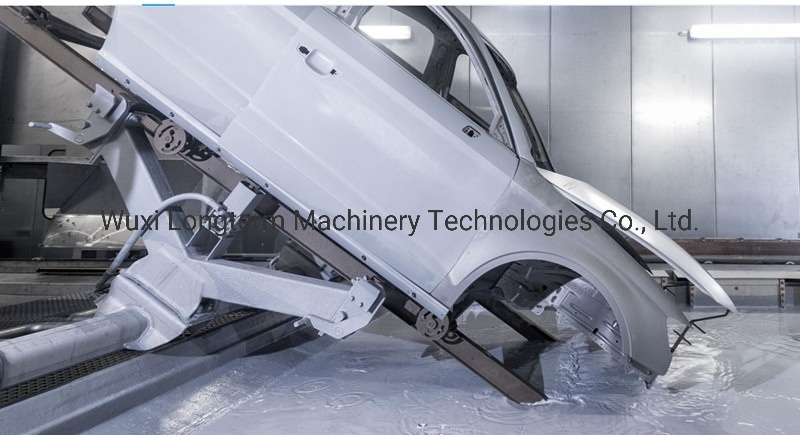

Electrophoresis
|
3
|
28-32
|
Sink
|
|
10
|
UF notch spray
|
|
Room temp
|
Spray
|
|
11
|
UF1 spray
|
0.75
|
Room temp
|
Notch spray
|
|
12
|
UF2 spray
|
0.75
|
Room temp
|
Spray
|
|
13
|
UF direct injection
|
|
Room temp
|
Spray
|
|
14
|
Pure water clean 4
|
0.75
|
Room temp
|
Spray
|
|
15
|
Pure water direct injection
|
|
Room temp
|
Spray
|
|
16
|
Drip
|
10
|
Room temp
|
|
|
17
|
Electrophoresis curing
|
25-26
|
160-170
|
Hot air recycle
|
|
18
|
Cooling
|
18
|
|
Nature
|
|
19
|
Unloading
|
|
|
Manual
|
