Gas Cylinder Manufacturing Equipments Powder Coating Line

Quantity:
  • 12.5kg/15kg

  • 180PCS/Hour

  • 6kg/12kg/15kg/50kg

  • 0.4-0.6MPa

  • 380V

  • 1.6ton

  • 15kw

  • 2 Sets

  • 380V 50Hz

  • Powder Coating Line

  • Standard Seaworthy Package

  • SGS, ISO9001

  • HLT

  • Wuxi, China

  • 85158000

  • 50000PCS/Year

  • Available | Customized Request

Product Description


Gas Cylinder Manufacturing Equipments Powder Coating Line

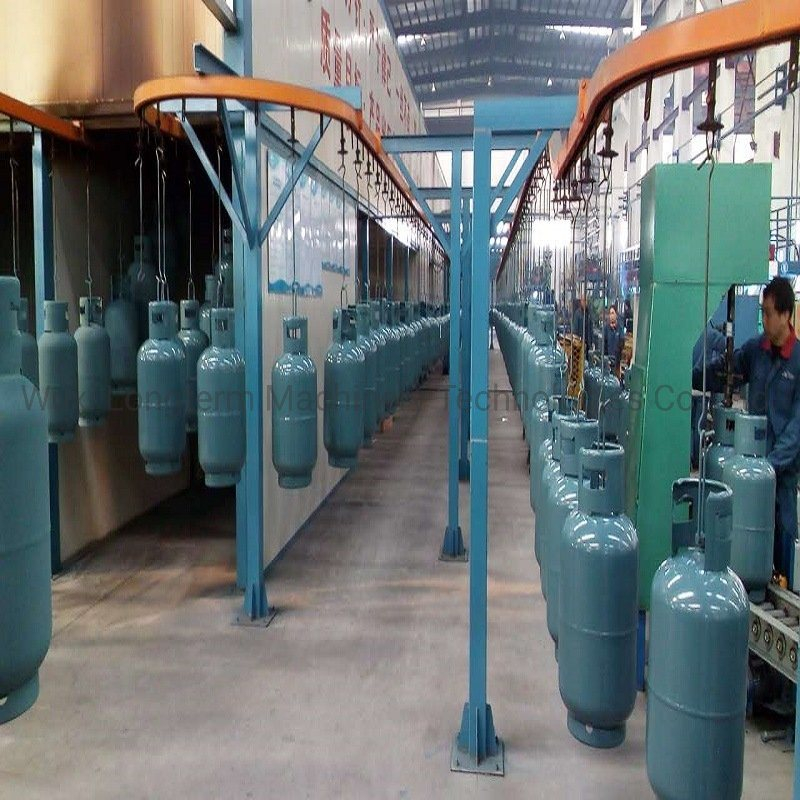

LPG Cylinder Electrostatic Powder Coating Line

Product Description
Max. workpiece size: Φ300xH570mm,Φ360xH1055mm
Workpiece weight: ≤35kg
Braced chain: QXT250/50Kg light chain
Machine capacity: 250pcs/hour
Heating source: Nature gas
Hanging type: One cylinder every two pitch, that means one cylinder per 500mm
Gas Cylinder Manufacturing Equipments Powder Coating Line

Using color-changed single grade filter core recycling powder room.

1. Technical parameter

Gas Cylinder Manufacturing Equipments Powder Coating Line
Gas Cylinder Manufacturing Equipments Powder Coating Line


2. Configuration

(1) Powder coating room

The shell of powder coating room is made of high-quality stainless steel, the side sheet thickness is 1.5mm, the top gate thickness is 1.5mm, the bottom of powder coating room uses metal support structure. Powder coating room equips with the floodlight, luminance is 500 Lux.

The powder coating room equips with a manual spraying opening, it can be used for pre-spraying and repair spraying. The light color of powder coating room and the integration lighting guarantee the excellent working condition, the operators can enter into the powder coating room and clean the room by a extended air suction pipe.

(2)Filter cartridge recycling device

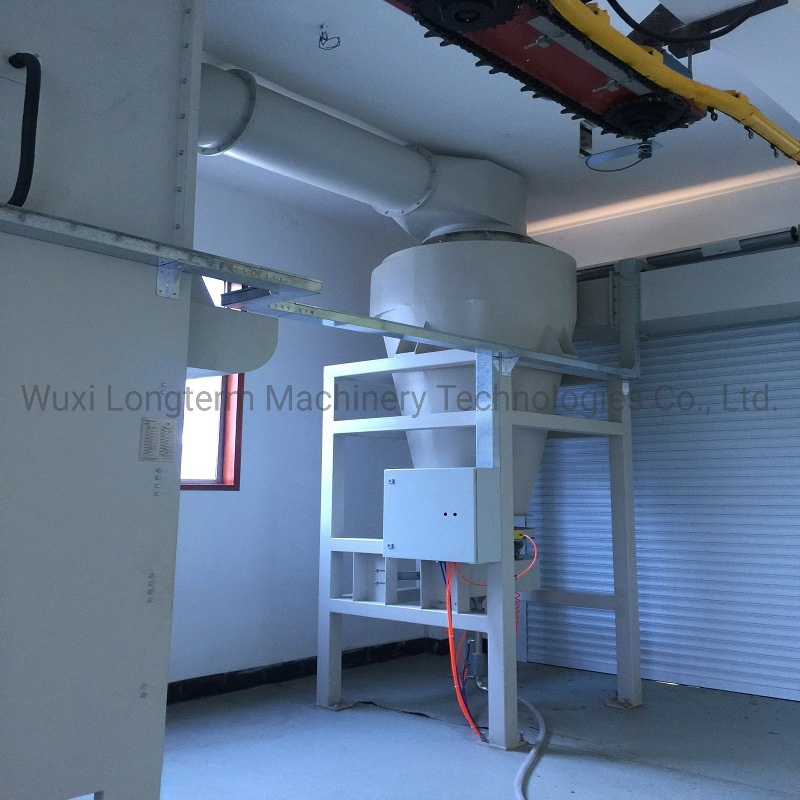

The back filter cartridge is used for splitting the micron powder from the air that is sent by the cyclone separator. In addition, the recycling fan guarantees the constant wind speed of the powder coating room. The material of filtration uses Toray. The air drained by fan can drain into the workshop. Airflow: 11000m3/h, motor power: 11KW, filter area: 165m2, compressed air consumption: 22 Nm3/h.

Filter control instrument is the intelligent control system using cartridge recycling reverse blowing device, it can not only control the pressure of the filter inside/outside automatically, once the pressure reaches the pre set point, the system will start the filter pulse blowback cleaning process automatically, but also has automatic optimize function, with the increase of working time, the filter control instrument will realize the filter pulse blowback according to the optimize process automatically. This system can save the consumption of compressed air greatly, extend the cartridge working life, reduce the manual cleaning number, lower the equipment noise at the same time.

Back filter cartridge recycling device incl.:

1. Back filter cartridge device equips with the shell.

2. Filter device equips with cartridge, fan impulse type filter

3. Filter

4. Clean air outlet equips with muffler

5. Residual powder collection box and vibrating screen

6. Air storage tank

3.Spray gun

Total: 1 sets manual spray gun, 2 sets automatic spray gun, 6 sets fixed spray gun.

FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
