| Quantity: | |
|---|---|
HLT
Nature Gas(LPG)
Auto + Manual
2000PCS/12hours
Qxt250/50kg Light Common Chain
<30kg

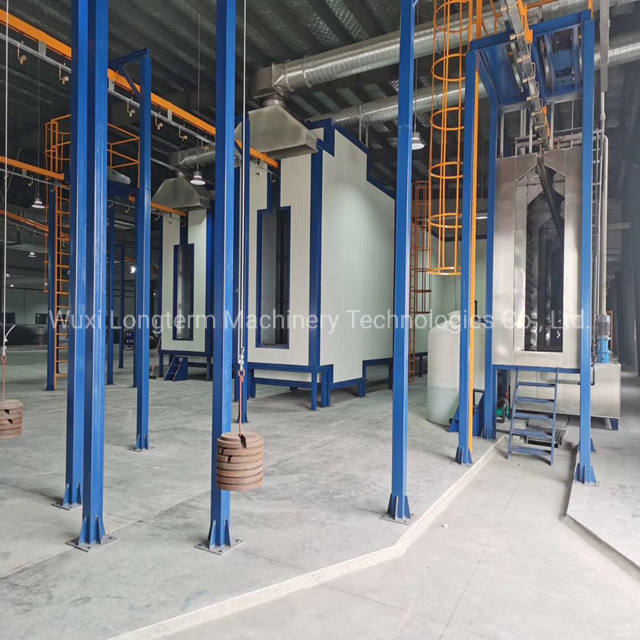

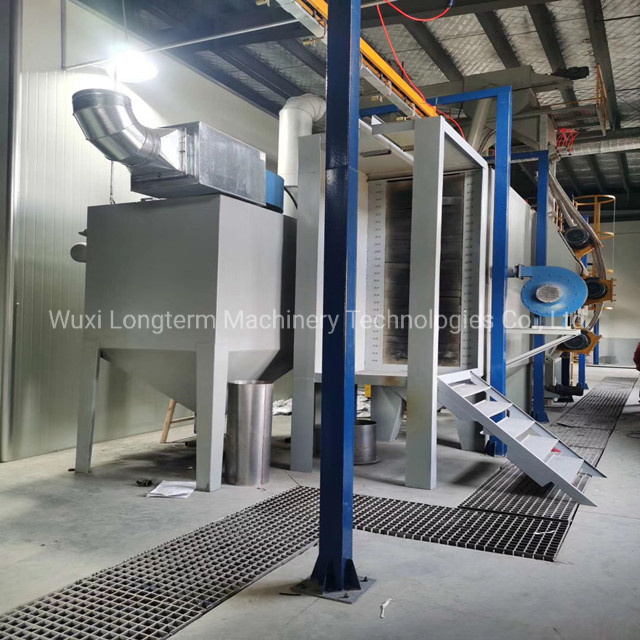

Powder Coating Spray Booth for Hardware
Standard Seaworthy Package
HLT
China Jiangsu
400sets/Year
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description
| Item | Name | Design | ||
| 1 | Porduct name | Metal Sheets/Hardware | ||
| 2 | Product material | Cold rolled plate (no rust, no oxide) (plate thickness 0.5-5mm) | ||
| 3 | Workpiece size | L2000W700 H1700(mm). Double point hanging | ||
| 4 | Wire speed through size | L2000W700 H1800(mm). (front high rear low hanging method) | ||
| 5 | Suspension way | Single or double point hanging, with C - type hanging and beam hanging | ||
| 6 | Suspension chain | Qxt250/50kg, | ||
| 7 | Maximum workpiece weight | Single point hanging ≤100Kg | ||
| 8 | Production line capacity | 2.0m/min (customized by the buyer), Note: the thick workpiece shall be slowed down | ||
| 9 | Speed adjust range | 0.5-3.0m/min | ||
| 10 | Heating energy | Nature gas | ||

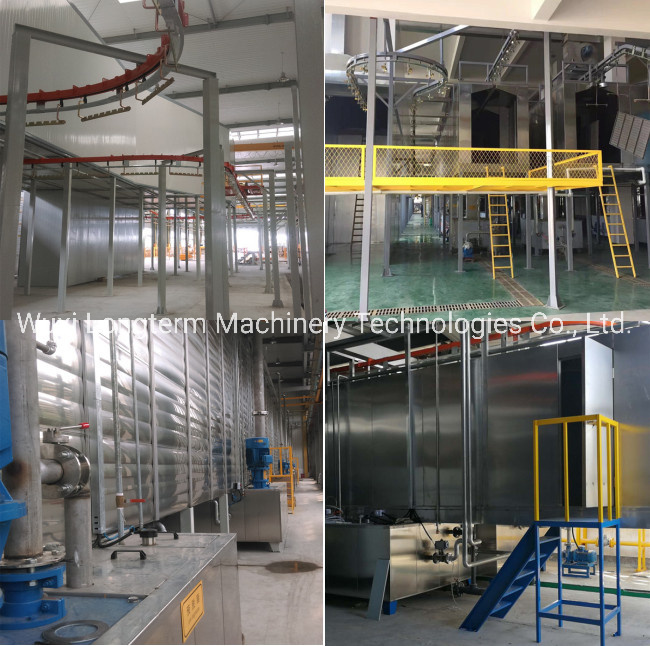

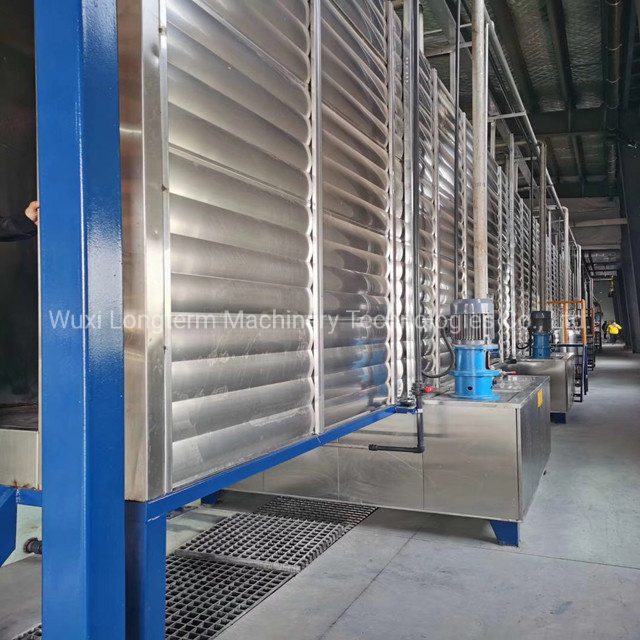

| Item | Process | Time (s) | Temperature(ºC) | Remark | Effect time (seconds) |
| 1 | Loading | / | Manually | ||
| 2 | Pre degrease | 60 | 50~55 | Heating by hot water | 60 |
| 3 | Main degrease | 120 | 50~55 | Heating by hot water | 120 |
| 4 | Water washing1 | 60 | R.T | 45 | |
| 5 | Pure water washing1 | 60 | R.T | Into the water washing1 | 45 |
| 6 | Pure water spraying1 | R.T | Into the pure water washing1 | ||
| 7 | Silicane | 90 | 15-30 | Hot water heating | 90 |
| 8 | Pure water washing2 | 60 | R.T | 45 | |
| 9 | Pure water washing3 | 60 | R.T | Into the pure water washing2 | 45 |
| 10 | Pure water spraying2 | R.T | Into the pure water washing3 | ||
| 11 | Drying | 600 | 130~170 | Temperature is adjustable(Natural gas direct heating) | 360-420 |
| 12 | Cooling | 600 | Natural cooling | 600 | |
| 13 | Powder coating | / | / | Automatic+Manually | |
| 14 | Powder curing | 1320 | 180~200 | Temperature is adjustable(Natural gas direct heating)heated air circulation | 1020 |
| 15 | Cooling | 600 | Natural cooling | 600 | |
| 16 | Unloading | Manually |
