Fully Automatic Powder Coating Spray Paint Line for Metal Sheet

Quantity:
  • HLT
  • Nature Gas(LPG)
  • Auto + Manual
  • 2000PCS/12hours
  • Qxt250/50kg Light Common Chain
  • <30kg
  • Powder Coating Spray Paint Line for Metal Sheet
  • Standard Seaworthy Package
  • HLT
  • China Jiangsu
  • 400sets/Year
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Fully Automatic Powder Coating Spray Paint Line for Metal Sheet
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet

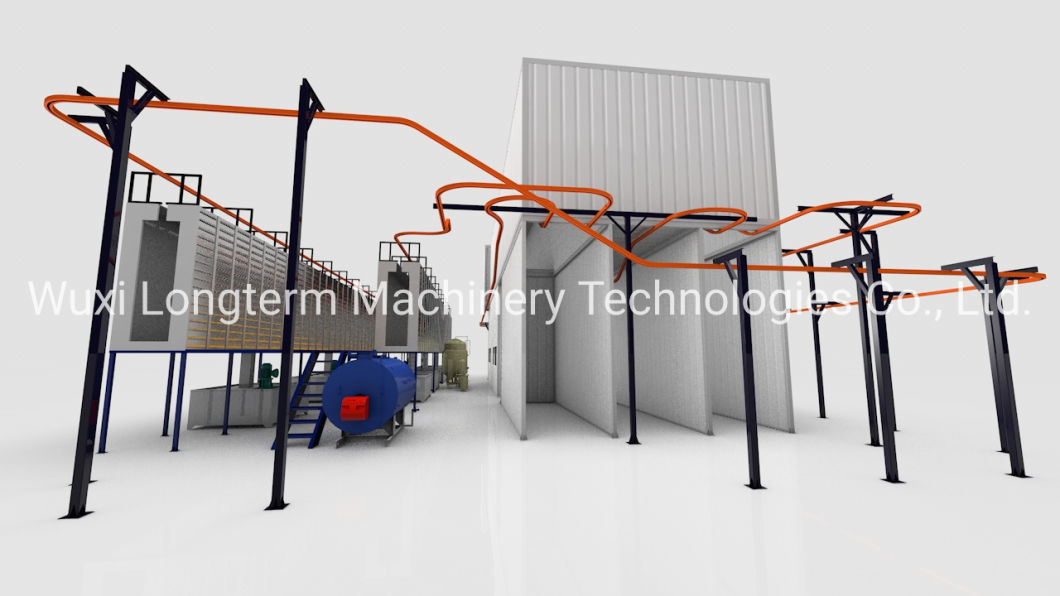

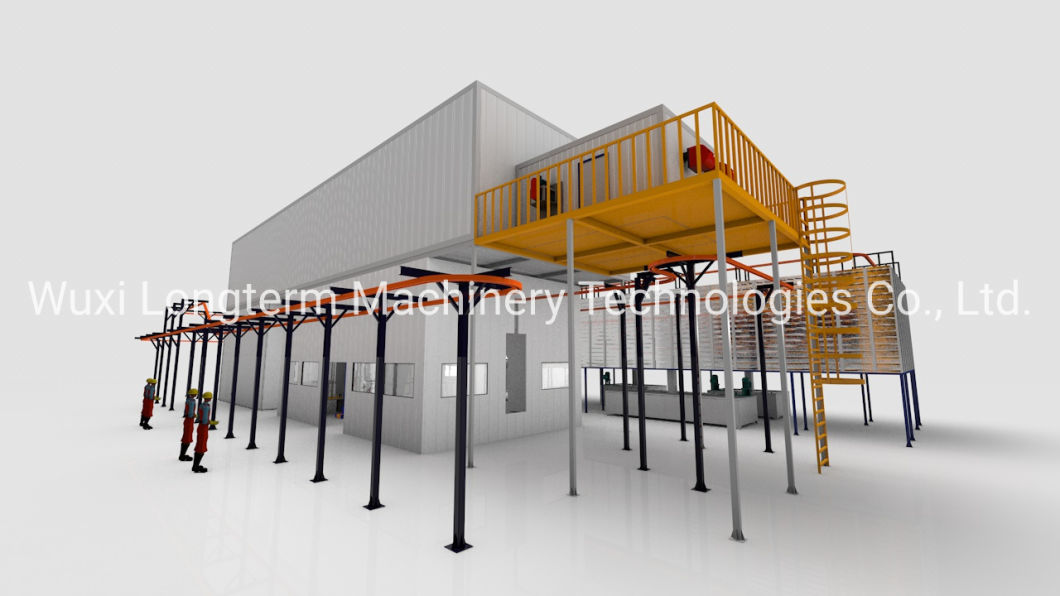

The spraying line is composed of surface joint pre-processor, drying oven, powder spraying, curing oven,hanging conveyor, electrical control system and other parts.

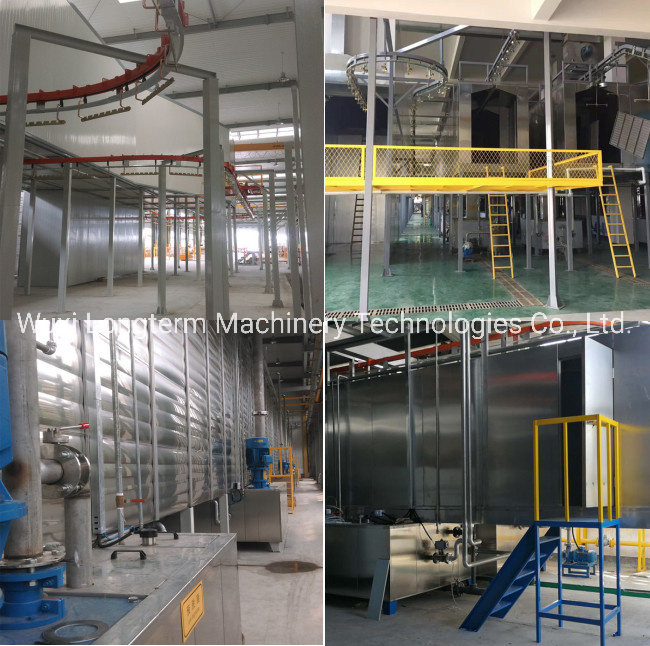

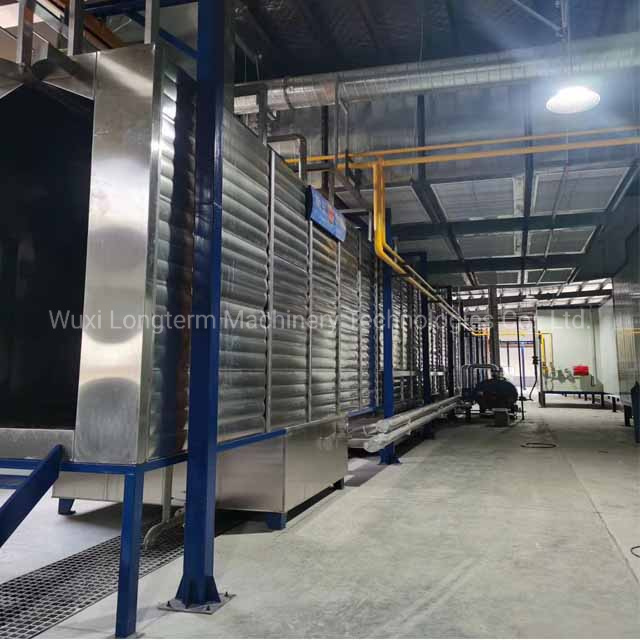

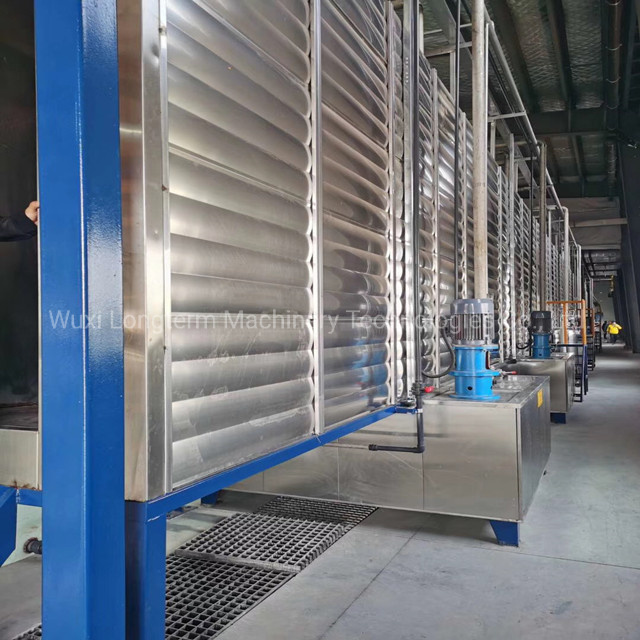

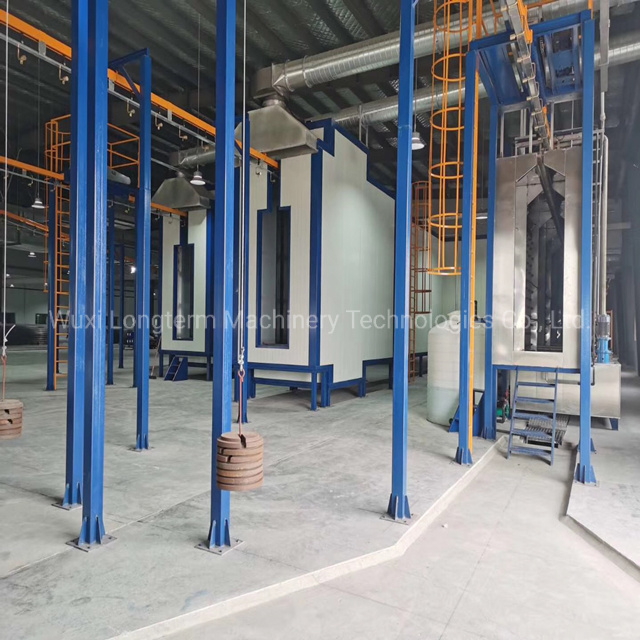

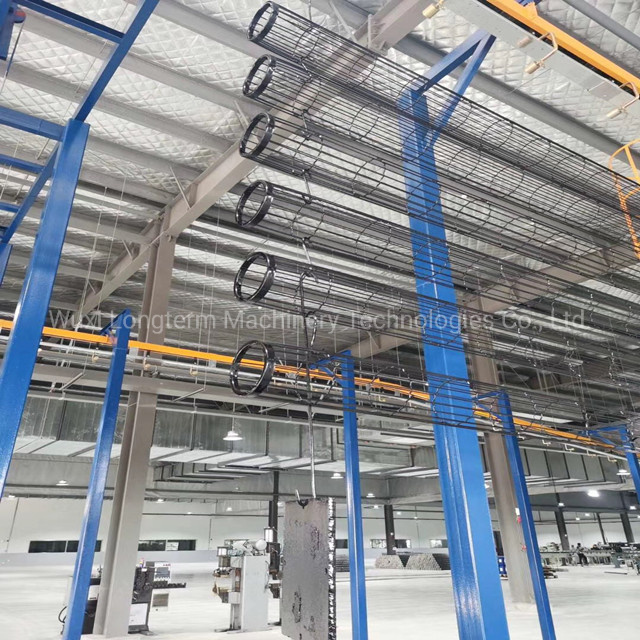

Powder spraying line detail pictures:
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet

Technical Parameters
Item Name Design
1 Porduct name Metal Sheets/Hardware
2 Product material Cold rolled plate (no rust, no oxide) (plate thickness 0.5-5mm)
3 Workpiece size L2000W700 H1700(mm). Double point hanging
4 Wire speed through size L2000W700 H1800(mm). (front high rear low hanging method)
5 Suspension way Single or double point hanging, with C - type hanging and beam hanging
6 Suspension chain Qxt250/50kg,
7 Maximum workpiece weight Single point hanging ≤100Kg
8 Production line capacity 2.0m/min (customized by the buyer), Note: the thick workpiece shall be slowed down
9 Speed adjust range 0.5-3.0m/min
10 Heating energy Nature gas

Process Flow
Item Process Time (s) Temperature(ºC) Remark Effect time (seconds)
1 Loading / Manually
2 Pre degrease 60 50~55 Heating by hot water 60
3 Main degrease 120 50~55 Heating by hot water 120
4 Water washing1 60 R.T 45
5 Pure water washing1 60 R.T Into the water washing1 45
6 Pure water spraying1 R.T Into the pure water washing1
7 Silicane 90 15-30 Hot water heating 90
8 Pure water washing2 60 R.T 45
9 Pure water washing3 60 R.T Into the pure water washing2 45
10 Pure water spraying2 R.T Into the pure water washing3
11 Drying 600 130~170 Temperature is adjustable(Natural gas direct heating) 360-420
12 Cooling 600 Natural cooling 600
13 Powder coating / / Automatic+Manually
14 Powder curing 1320 180~200 Temperature is adjustable(Natural gas direct heating)heated air circulation 1020
15 Cooling 600 Natural cooling 600
16 Unloading Manually

Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd is professional manufacturer of all coating/spraying lines in different industrials,such as Auto Parts Industry,Environmental Protection Equipment,Electrical Appliance etc.

Our spraying lines are sold to domestic and international famous enterprises:Cheetah car etc., JinGu\Jinfei car parts, Yueling car parts,Electrolux, Siemens, Philip , Atlas,WAM and domestic long march Launch Vehicle, Haier, Hisense,and exported to Russia, Vietnam, India, Syria , Pakistan, Mexico and more than 20 countries, while is the coating supplier for China Business Aircraft Group in 2009.
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet

Patent And Enterprise Certificate.
Wuxi Longterm coating is national hi-tech company, and has been awarded several honorary title by national and provincial government
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet
Fully Automatic Powder Coating Spray Paint Line for Metal Sheet

RFQ

Enable us to give you competitive price for correct items,could you please answer below question:

1.Workpiece size/specification,weight and process requirements(Powder coating or painting? )
2.Plant foundatation drawing,including plant height(the height between factory beam to the ground) and loading&unloading position
3.Heating energy:Electric,LPG or LNG?
4.The environmental requirements of your local government
5.Voltage
6.Daily and annual capacity
