A: Heat transfer printing machine B: Silk printing machine
1. Heat transfer printing machine
2. Silk printing machine
5. Technical Parameters:
Machine dimension: Length between 4000-4500mm; width: 1300mm
Roller Conveyor Length(A and B): 2500mm

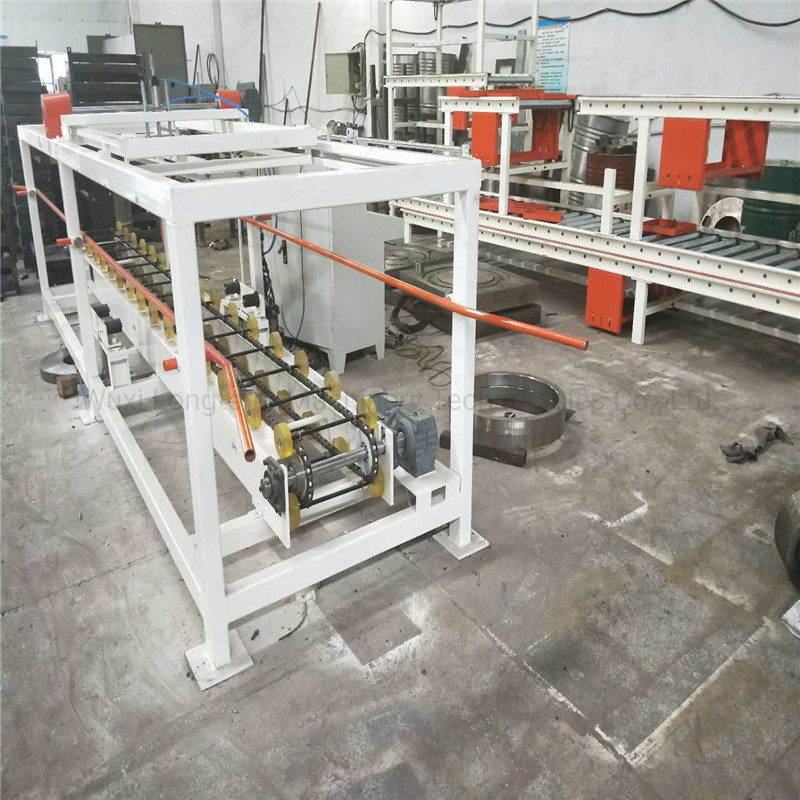

1. The left and right entry and exit roller conveyor lines, 2.5 meters for each.

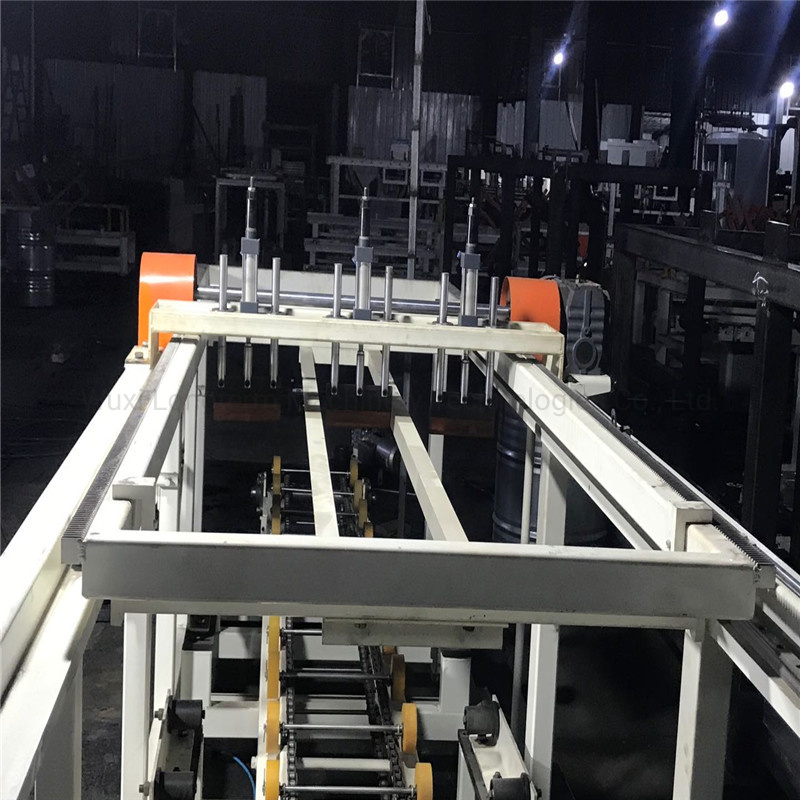

2. Two sets of drum turnover machines for loading and unloading.
3. One set of automatic silk screen printing machine (with automatic positioning).

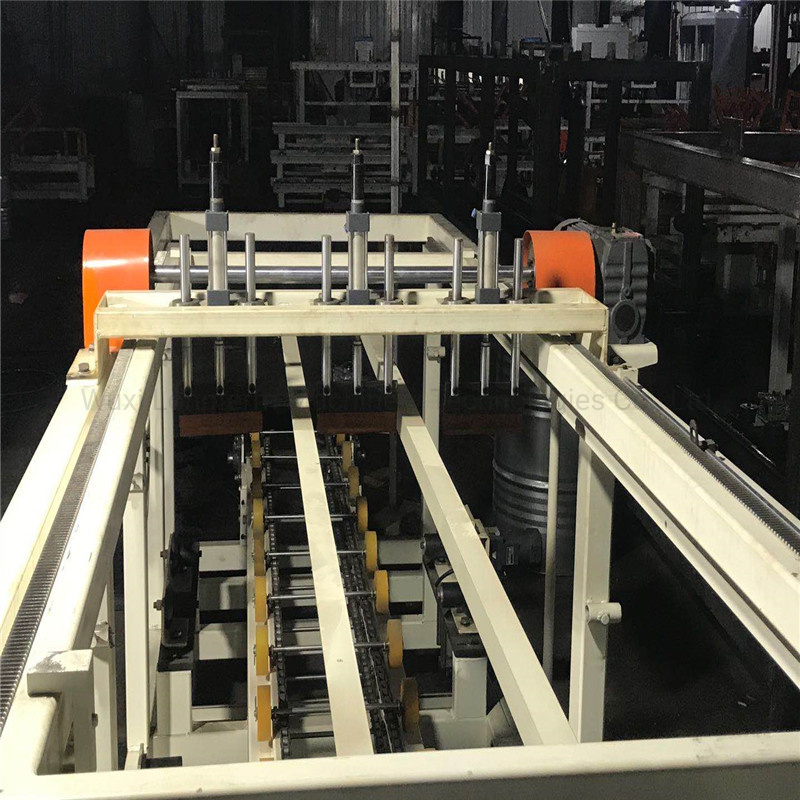

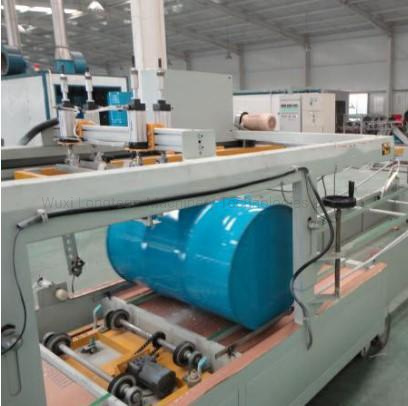

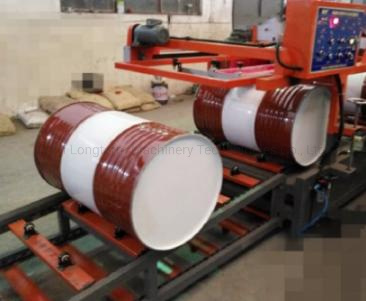

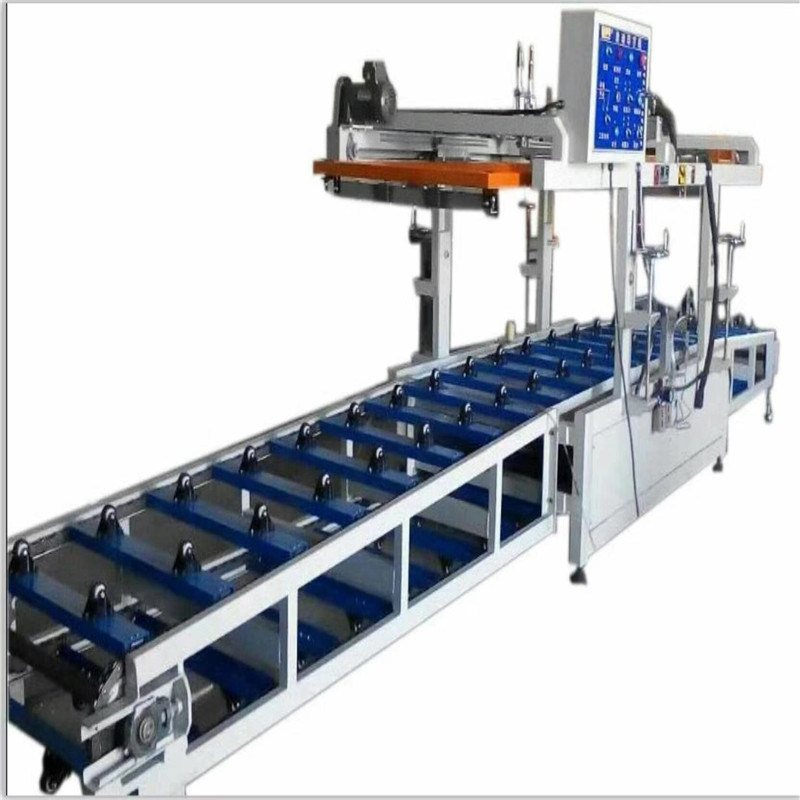

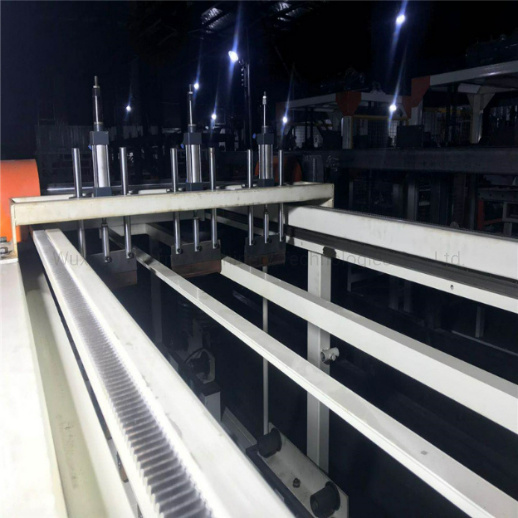

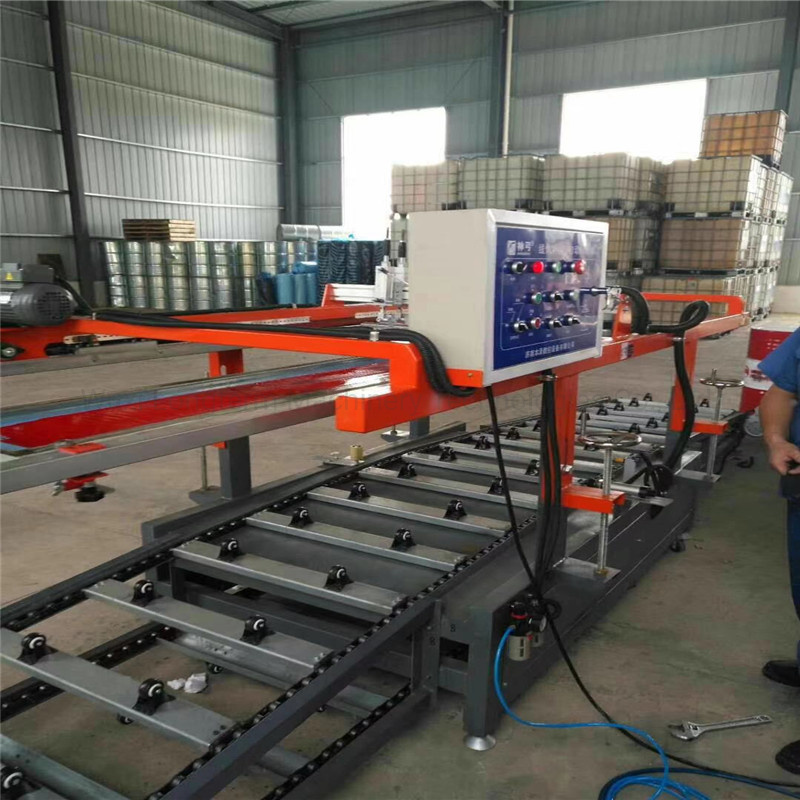

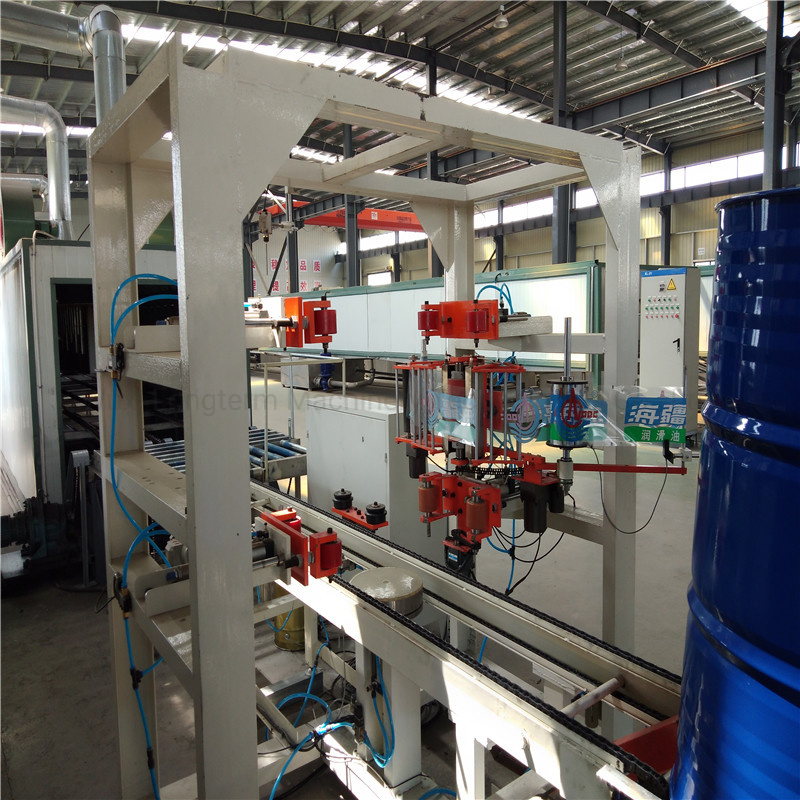

Cylindrical Drum Silk Printing Machine
1. The PLC microcomputer controls the action of each function, with a high degree of automation,
2. Automatically scrape ink, return ink, lift the worktable, etc.
3. The photoelectric should be monitored by switch, no printing if there is no drum.
4. Automatic drum feeding, automatic positioning, automatic printing, and automatic conveyor belt transmission after printing.
5. Manual loading and unloading drums.
6. The drum upper, middle,lower part can be printed at the same time or print separately.
Max printing diameter::600mm;
Min printing diameter:500mm;
Max printing length:1800mm;
Max printing speed:6 drums/min;
Three parts of steel drum could be printed at the same time
III.Printing Process:Drum entry(vertical type)
Through A B(silk printing) with Conveyors auto welding positioner B silk printing
To enable me send you offer for correct machines, please tell me following details:
A: Technical drawing
B: Size of the steel drum you want to manufacture
C: What's the capacity per shift/day?
