Automatic CNC Threading Machines Supplier Price for Fire Extinguisher CNG Oxygen Cylinder

Share to:

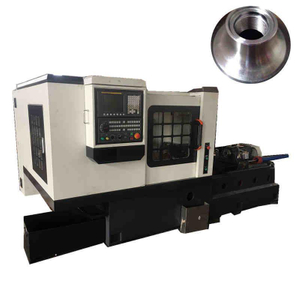

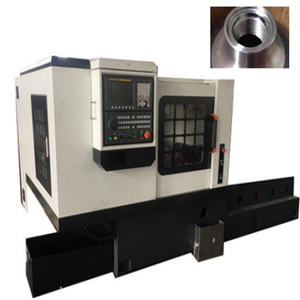

Automatic CNC Threading Machines Supplier Price for Fire Extinguisher CNG Oxygen Cylinder

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Numerical Control:
CNC/MNC
Processing Precision:
0.02~0.03(mm)
Performance Classification:
Economical CNC Machine Tools
Certification:
CE, ISO 9001
Condition:
New
Core Components:
Bearing, Motor, Gear, PLC
CNC or Not:
Yes, CNC
Function:
Drilling
Range of Spindle Speed:
100-1000r/Min
Spindle Motor Power:
Frequency Conversion
Workstation of Tool Holder:
4 Row Knives
Usage:
CNG Oxygen Car Cylinder
Hydraulic System:
Auto Loading Unloading, Milling
Control System:
Siemens 808d
Transport Package:
Customized Packaging
Specification:
customized
Trademark:
HLT
Origin:
China Jiangsu
Production Capacity:
500 Sets Per Year
Customization:
Available | Customized Request

Product Description

Product Description

Automatic CNC threading machines supplier price for Fire extinguisher CNG oxygen cylinder

Product Overview

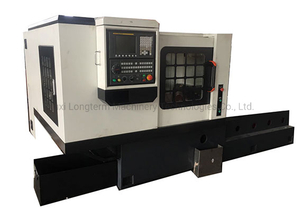

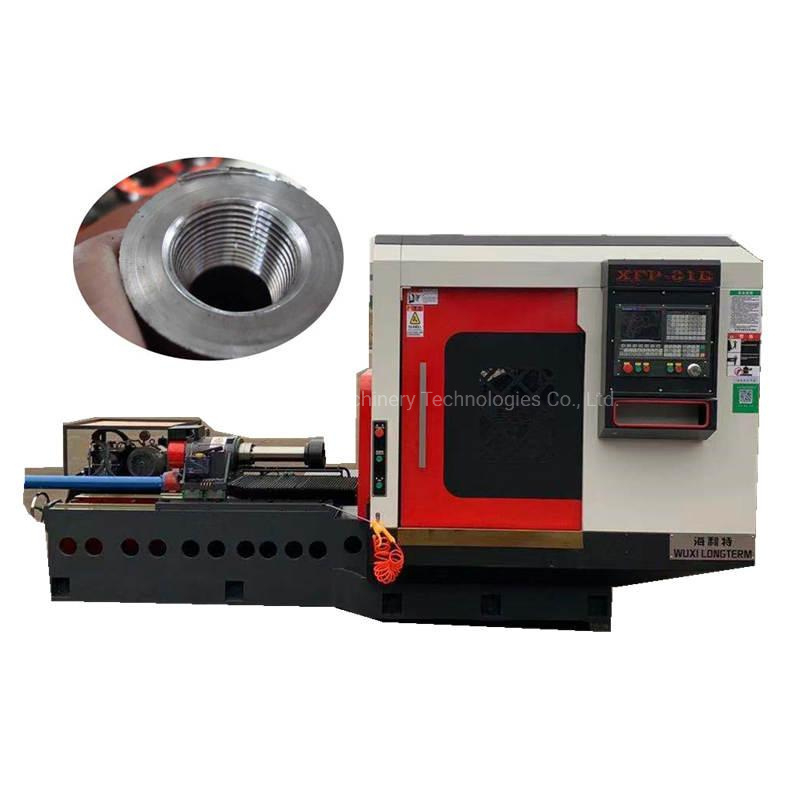

Automatic CNC Threading Machines Supplier Price for Fire Extinguisher CNG Oxygen Cylinder

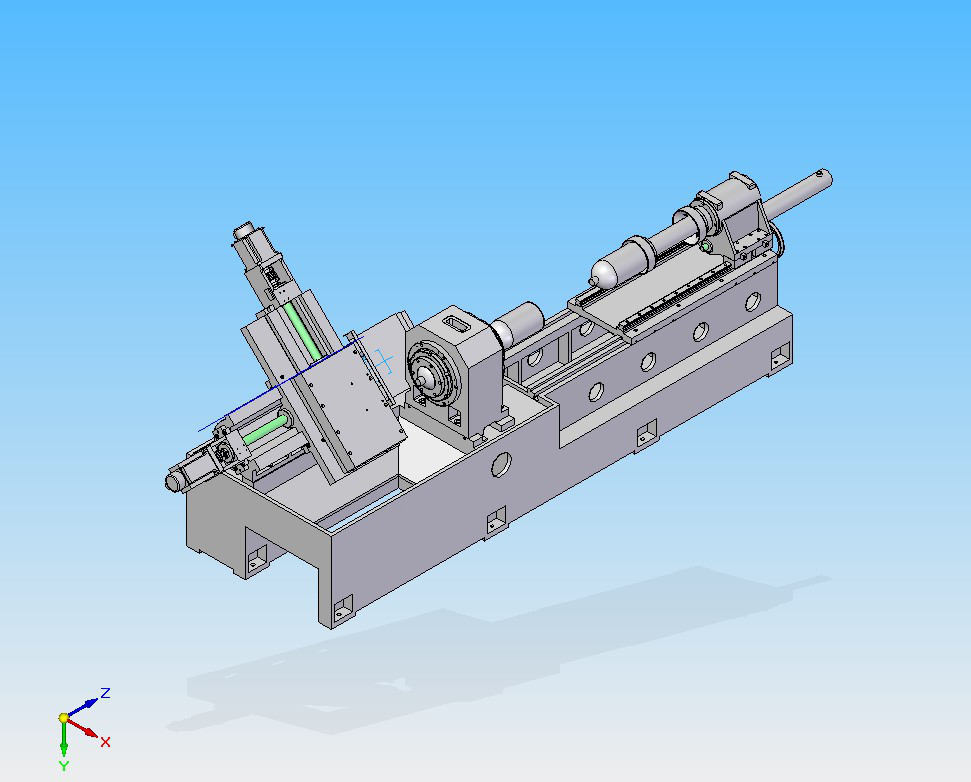

Machine Application

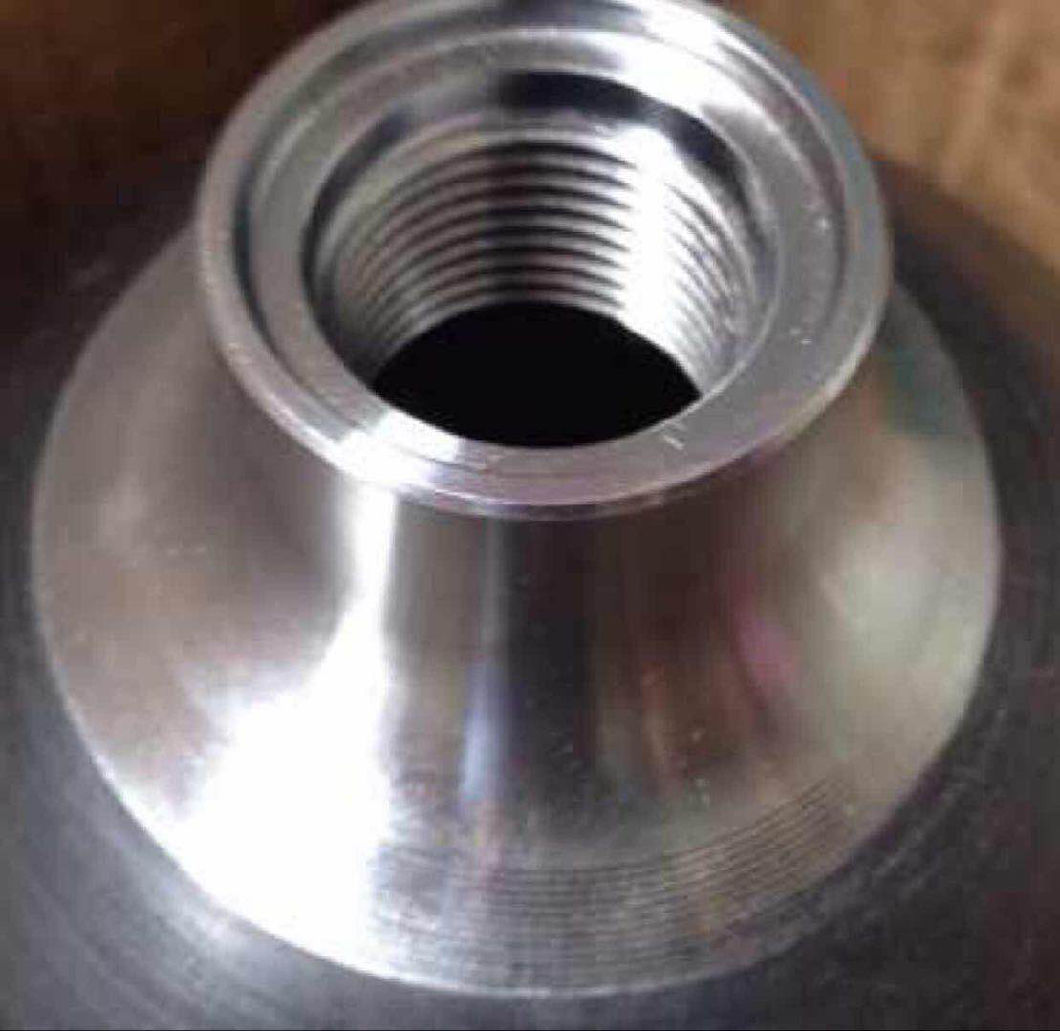

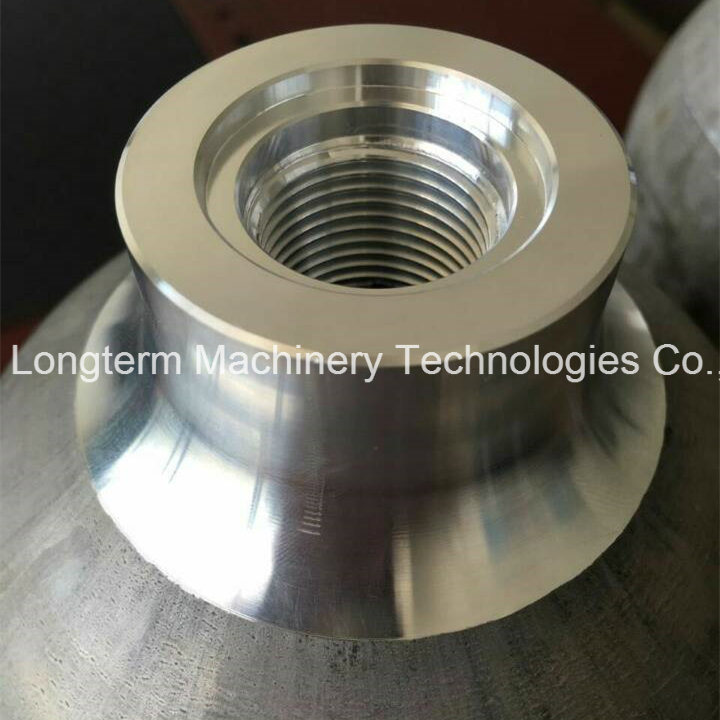

Seamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.

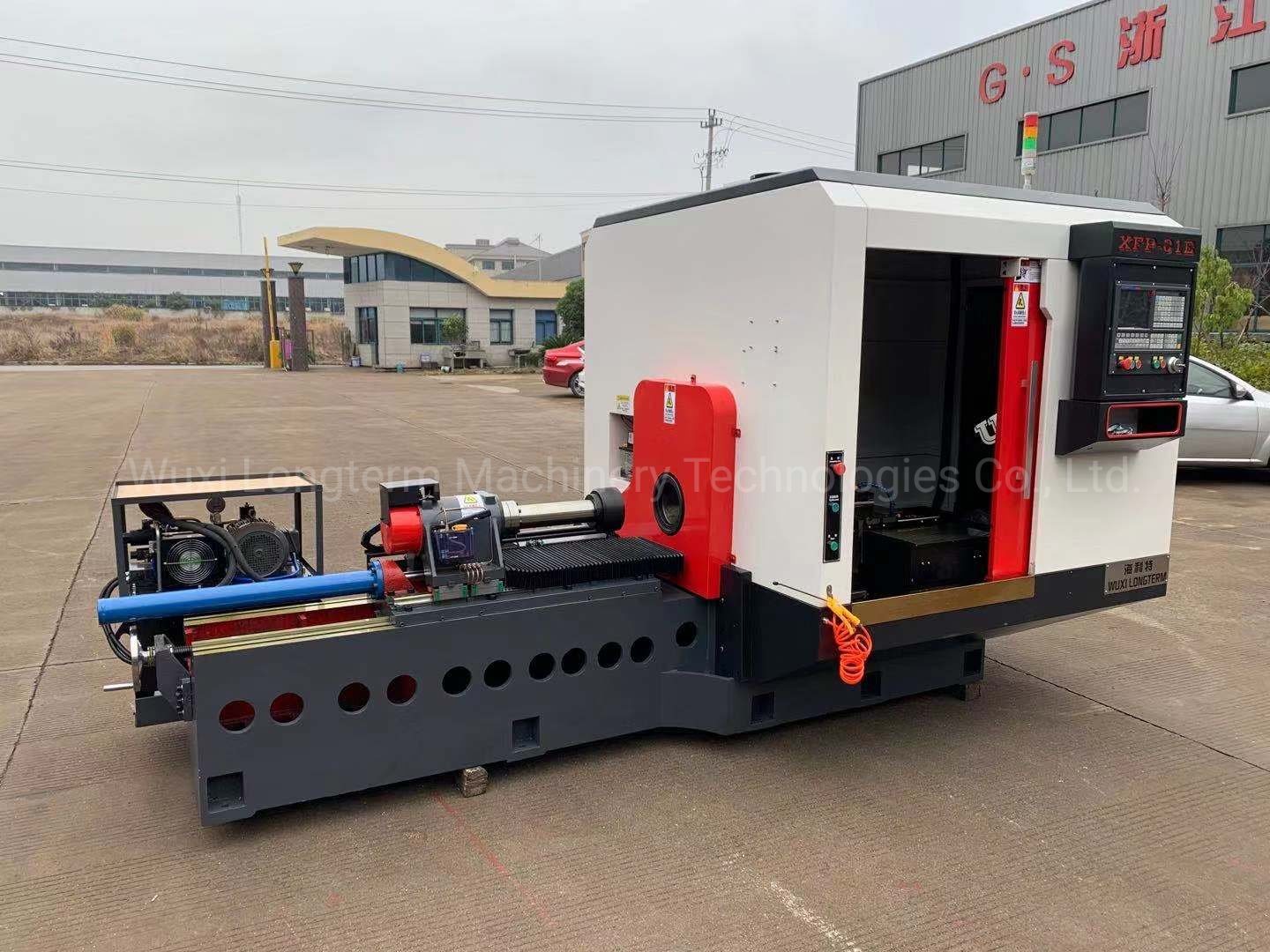

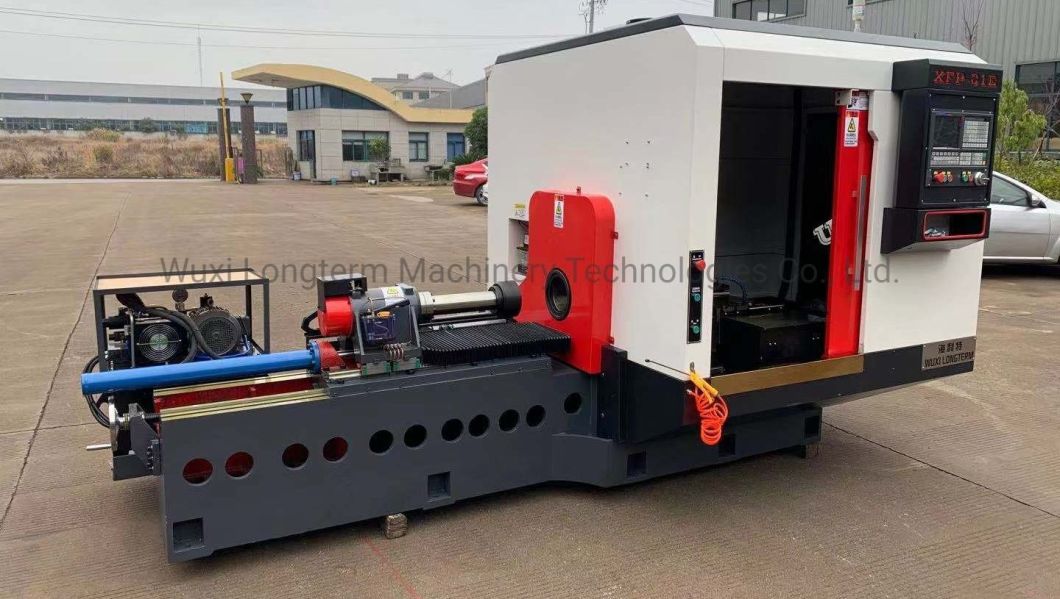

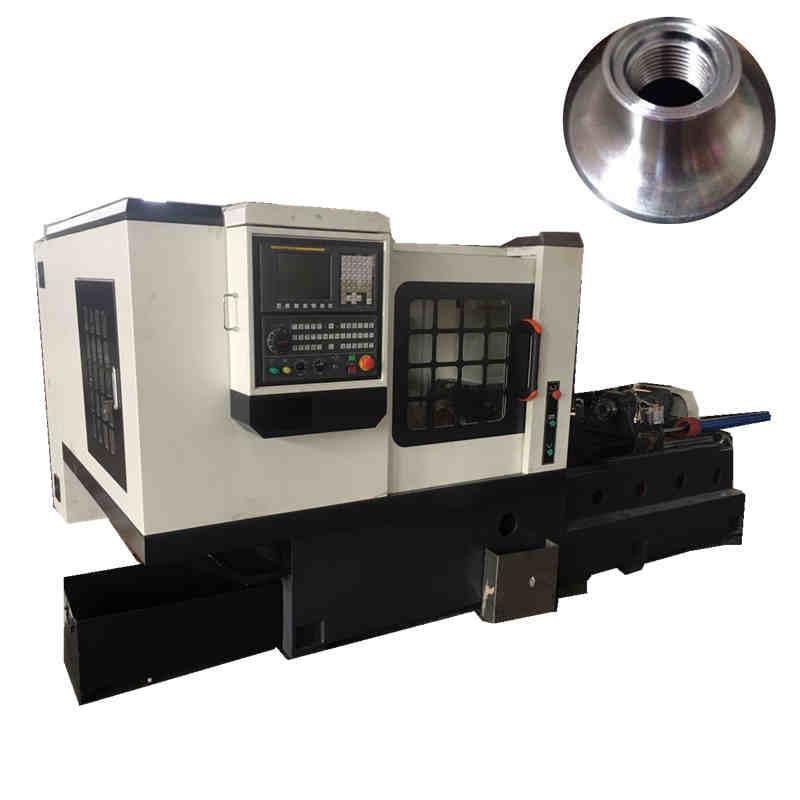

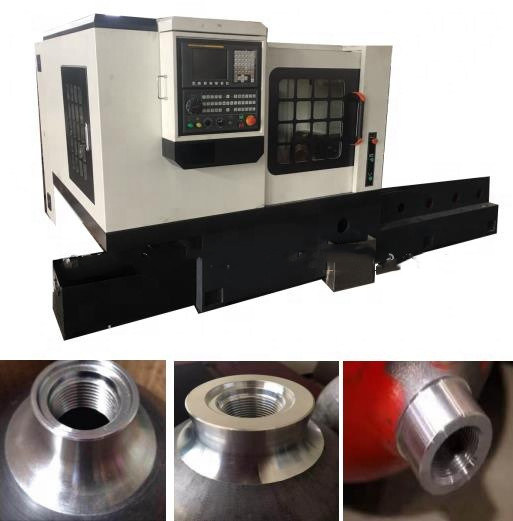

Automatic CNC Threading Machines Supplier Price for Fire Extinguisher CNG Oxygen Cylinder

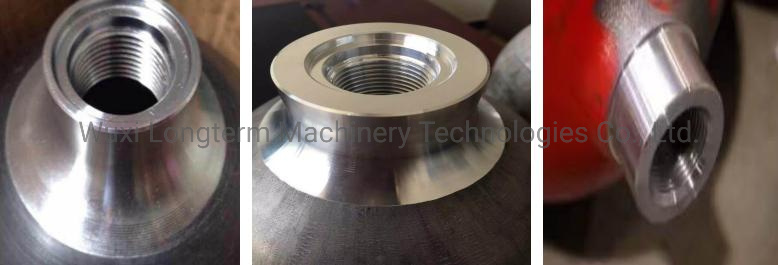

Machine processing :
Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter

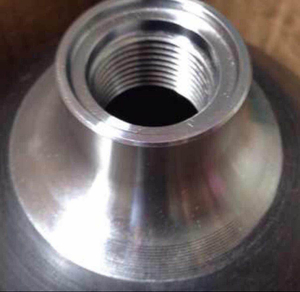

Step 3.Threading --adopts thread tool

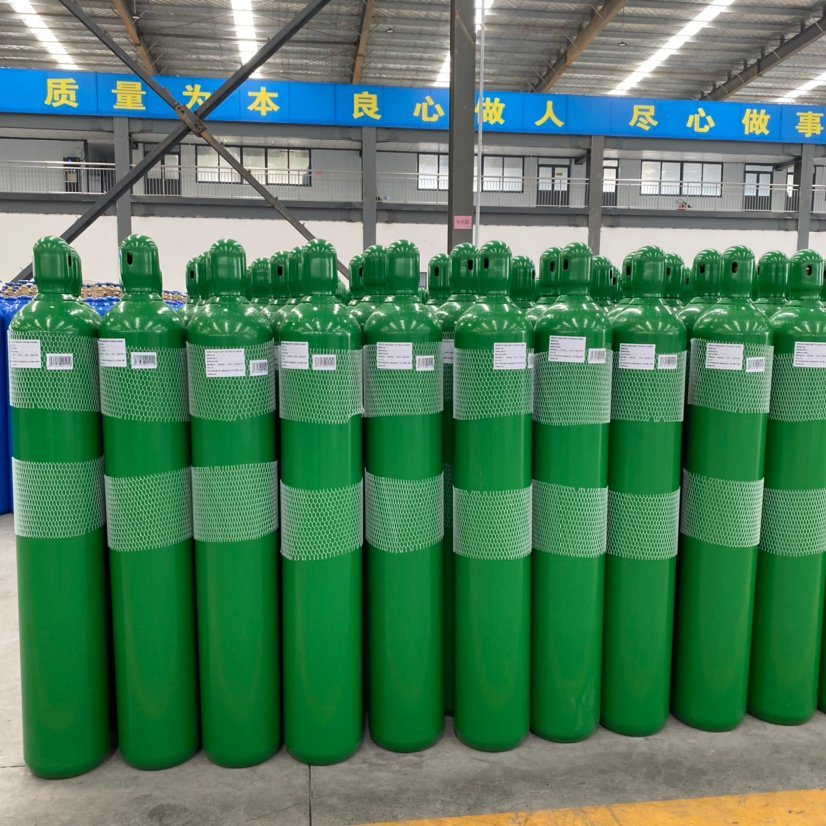

Application Application Application

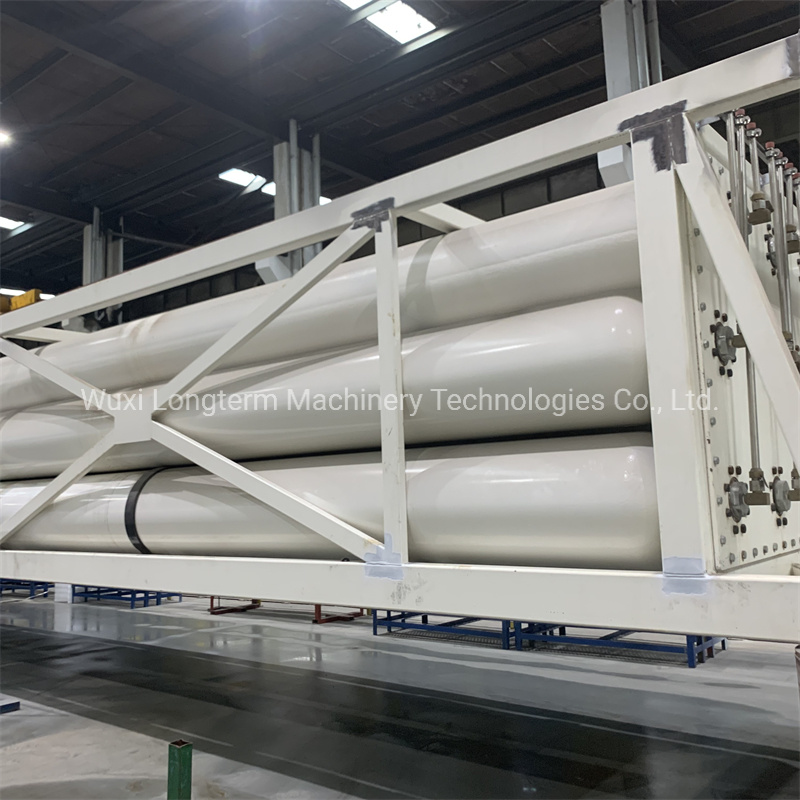

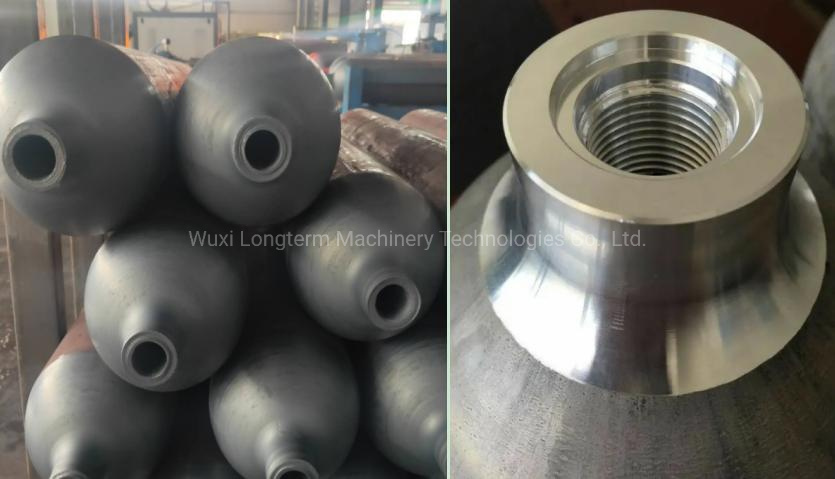

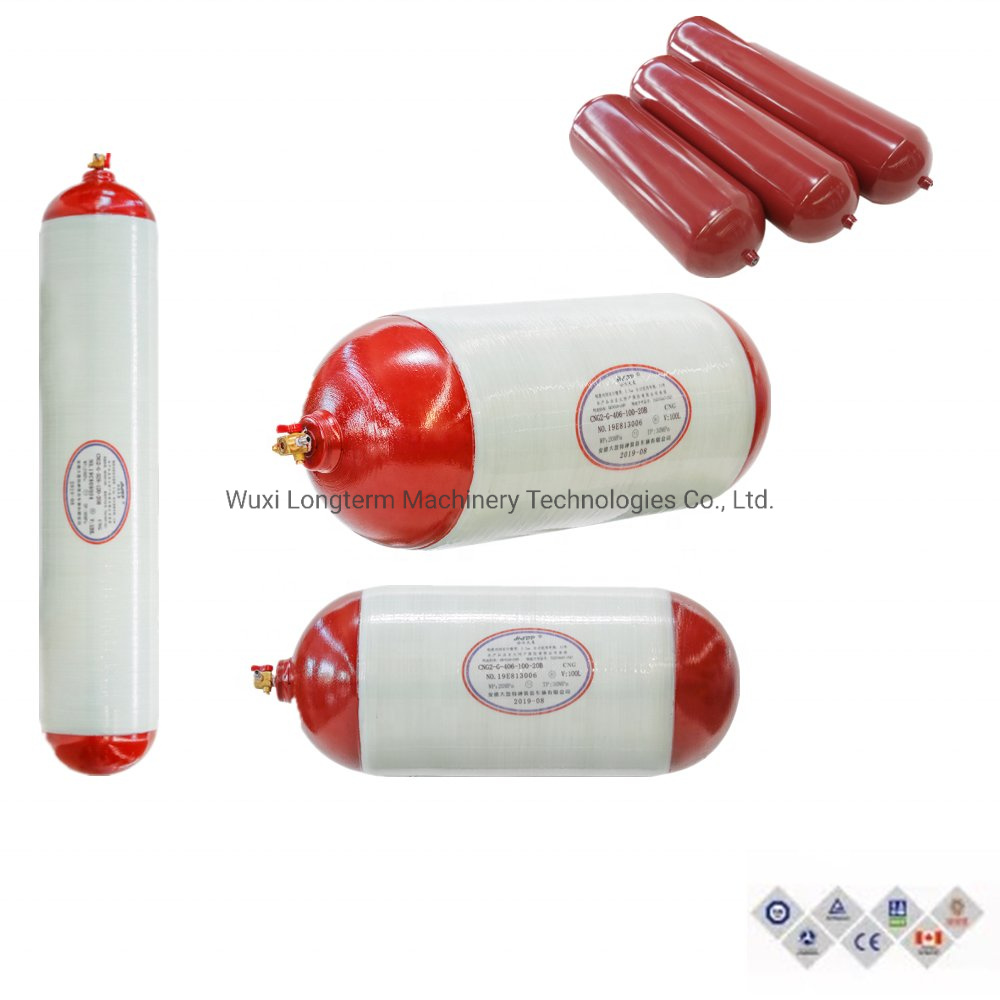

CNG Gas cylinder Type 1 Oxygen Cylinder long tube Trailer

CNG Gas cylinder Type 2

CNG Gas cylinder Type 3

CNG Gas cylinder Type 4

PRODUCT SPECIFICATIONS

No	Item	Data
1	Diameter range	φ141mm--φ356mm
2	Length range	300mm-2000mm
3	Main motor power	5.5KW converter motor
4	Converter motor	z-axis : 10M/MIN	X Stroke:10M/MIN
5	Tool holder	horizontal structure
6	Range of spindle speeds	100-1000r/min

Recommend Products

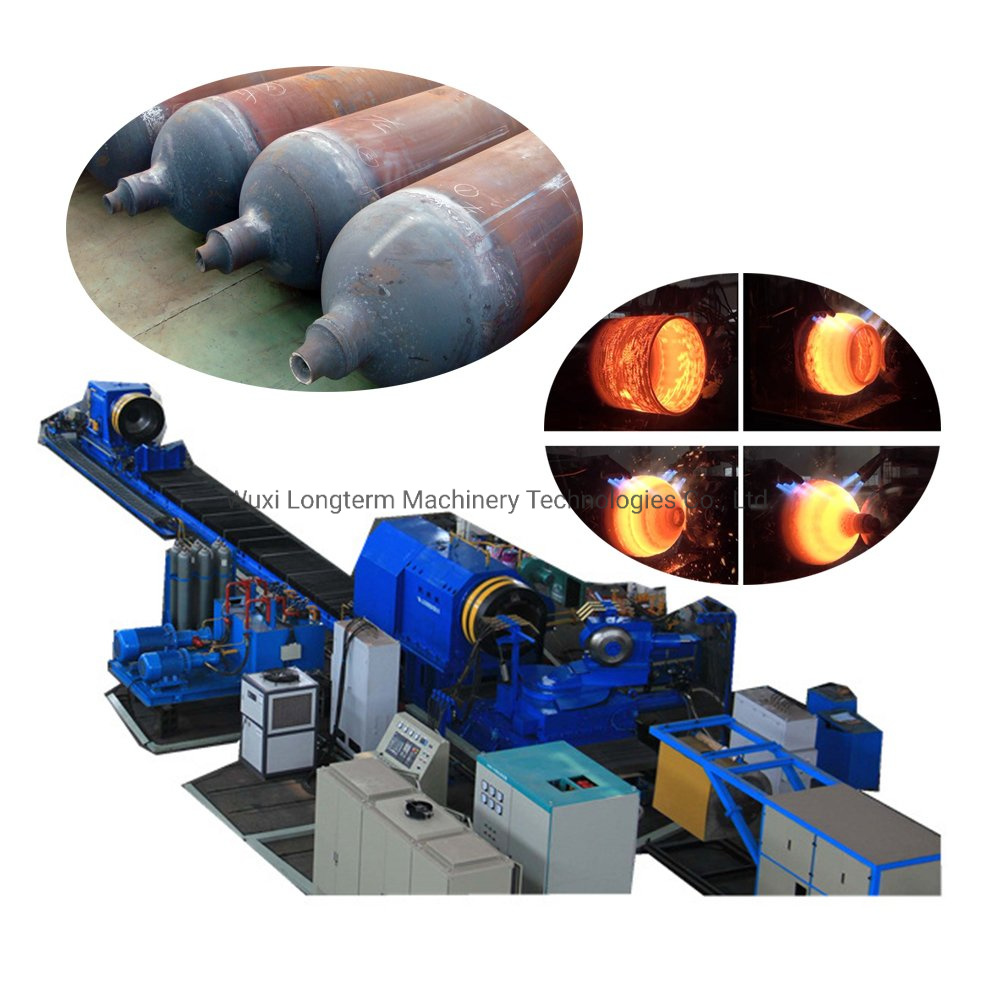

Hot spinning machine for seamless cylinder
