Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

Quantity:
  • Product Line
  • Gas Cylinder Hot Spinning Machine
  • Thg622, Thg660, Thg720, Thg920
  • 406-920mm
  • 5500-12500mm
  • 10-30mm
  • 1300mm
  • 200-355kw
  • 90°
  • CNC
  • 23000*3200*2300mm
  • Standard Seaworthy or Air Package
  • SGS
  • HLT
  • China, Jiangsu
  • 730799000
  • 50000000m/Year
  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Automatic steel drum production line

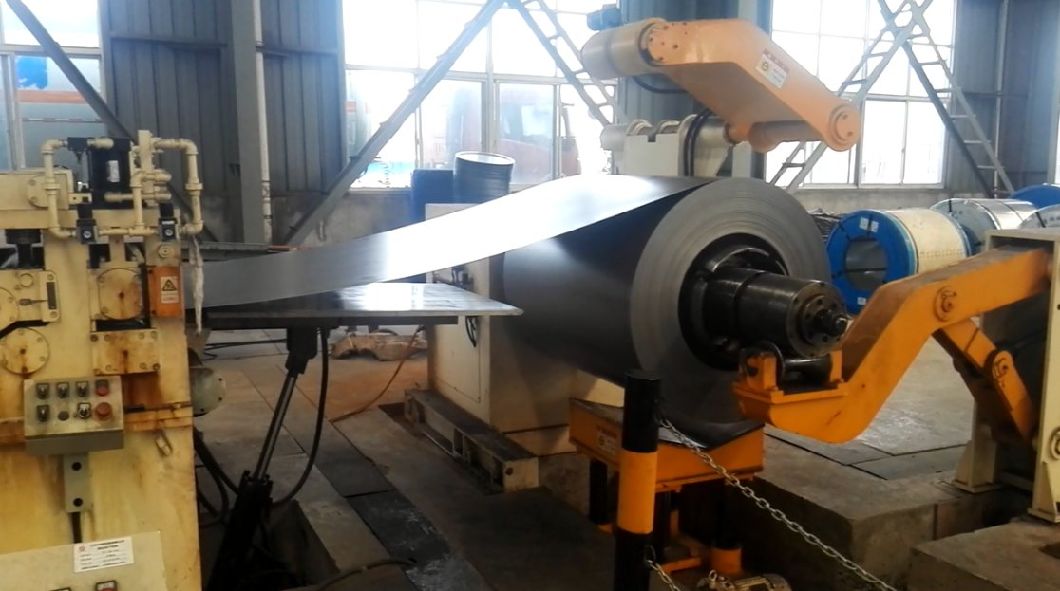

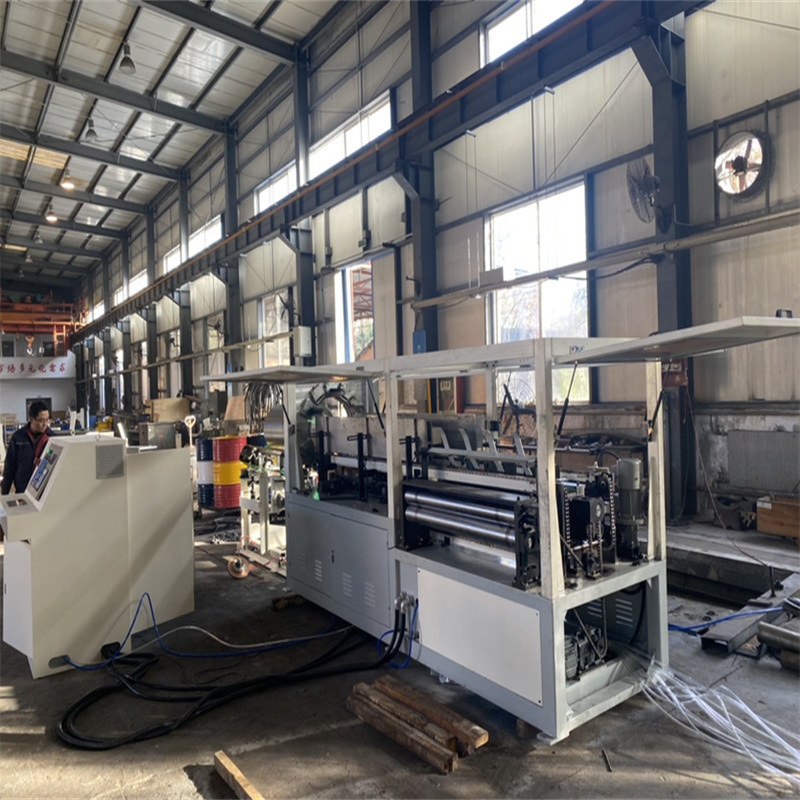

1. Drum body traightening & blanking line(Cap straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control


Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

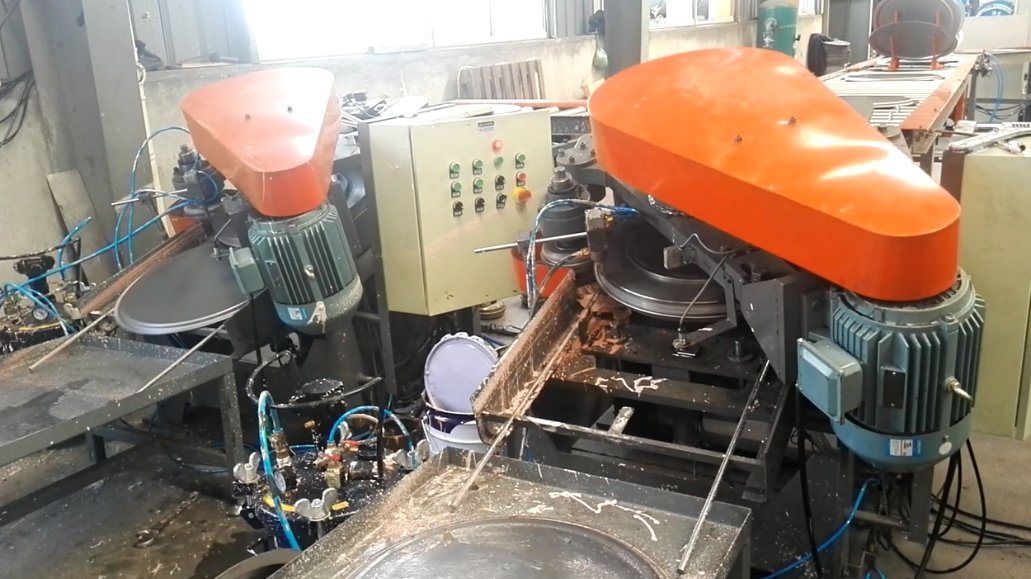

2. Automatic cap folding machine(with glue), speed: 6pcs/min

Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

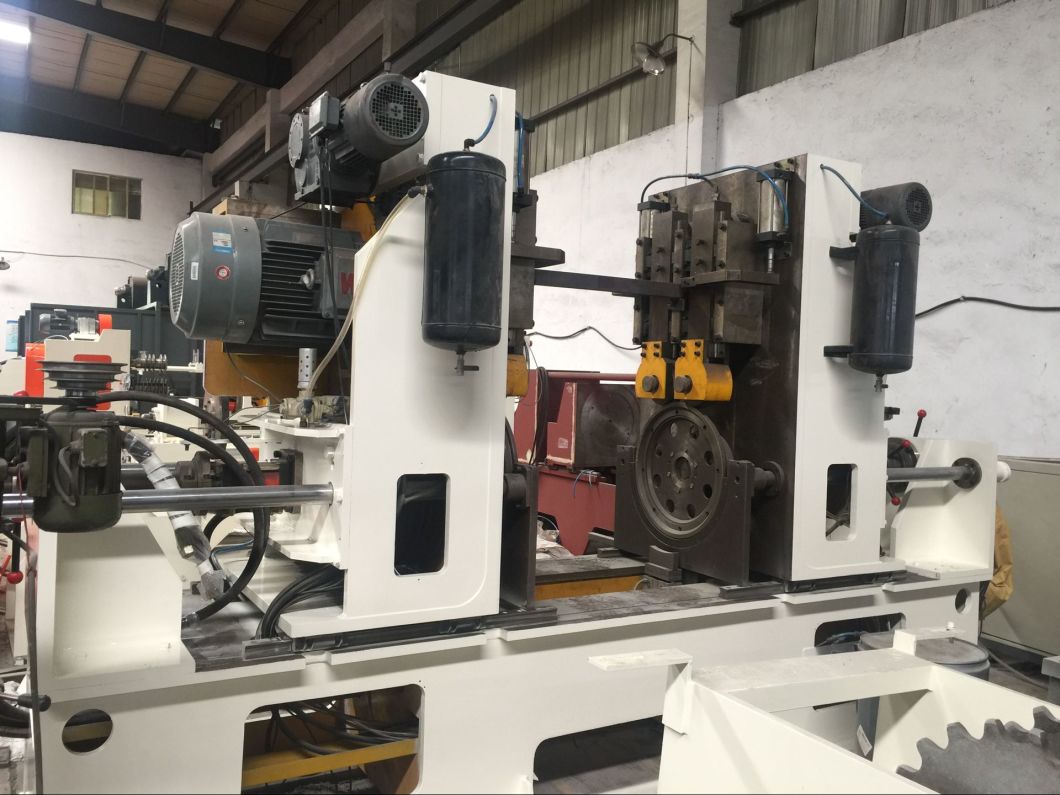

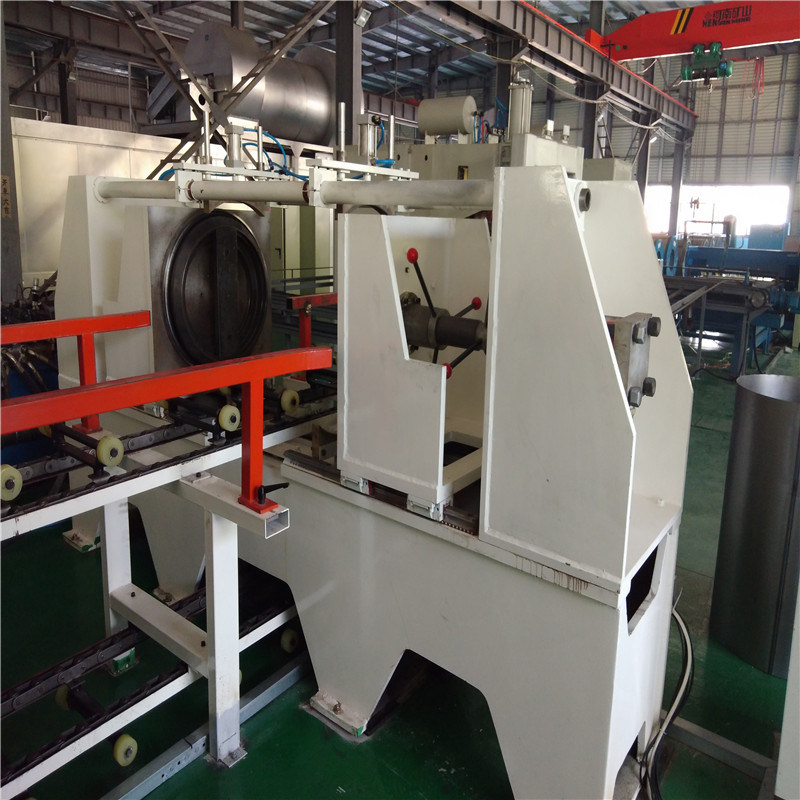

3. Drum body flanging and expanding machine, speed: > 6pcs/min
The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min


Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

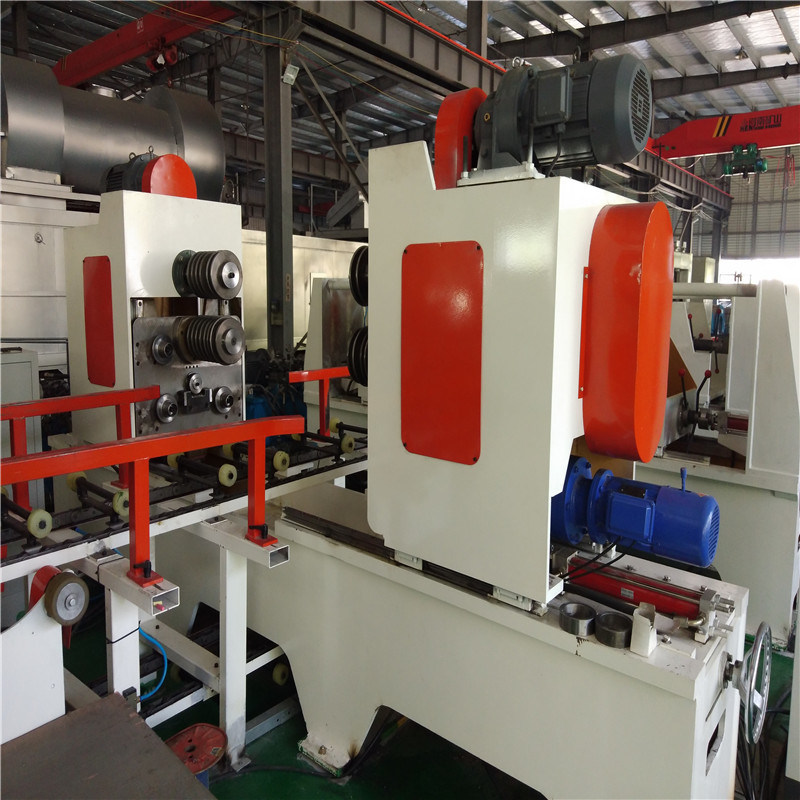

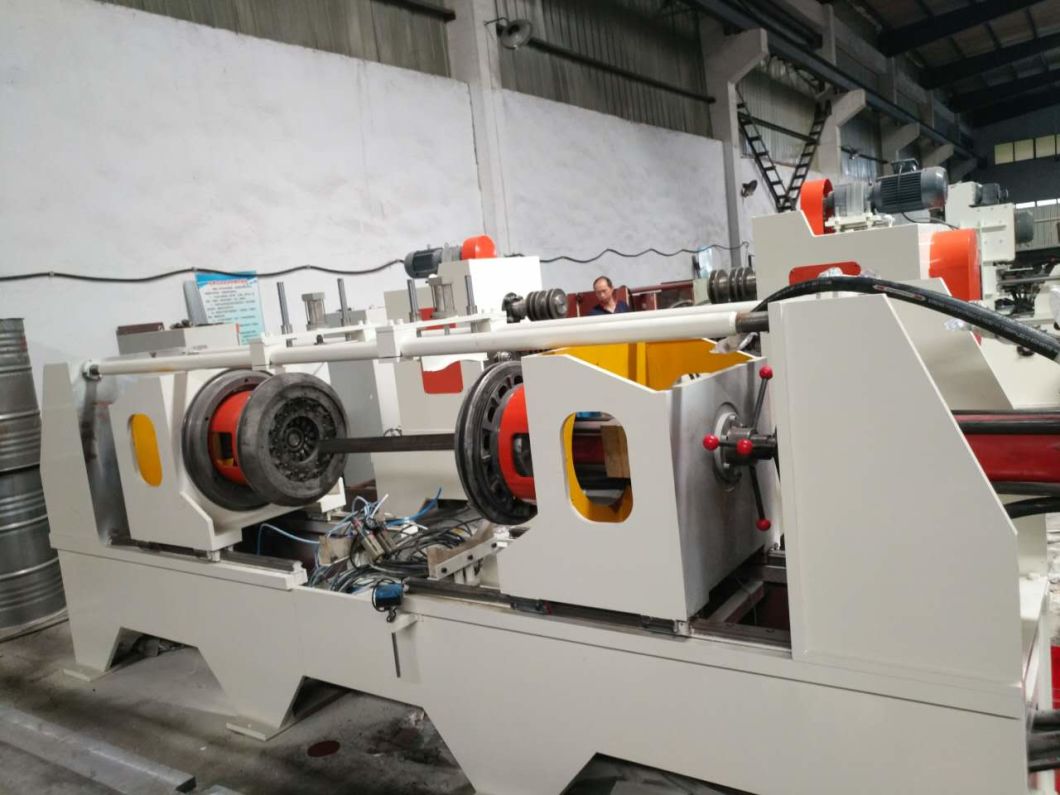

4. Drum assembly machine, speed: >6pcs/min
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min


Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

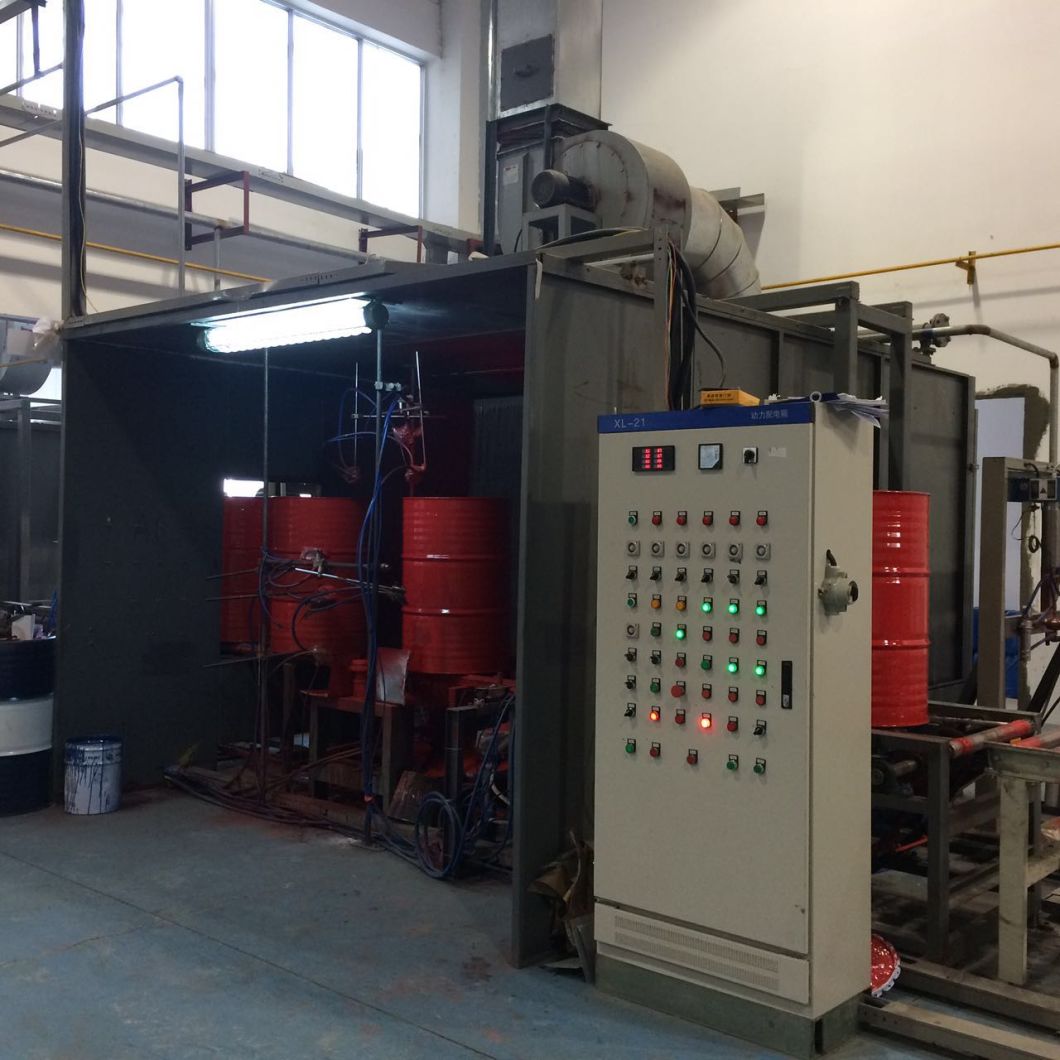

5. Painting booth
4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device


Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use

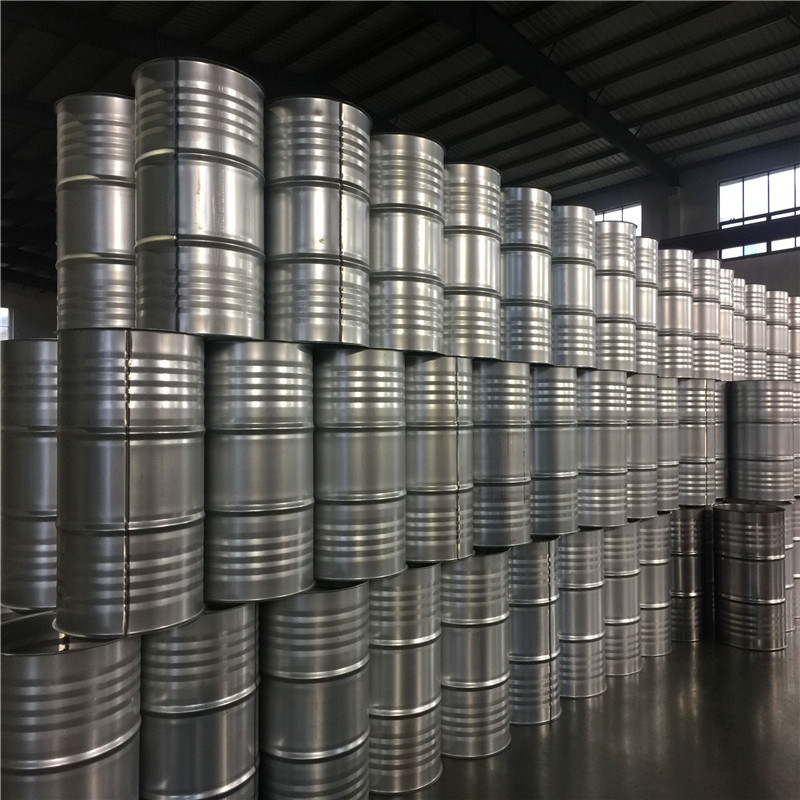

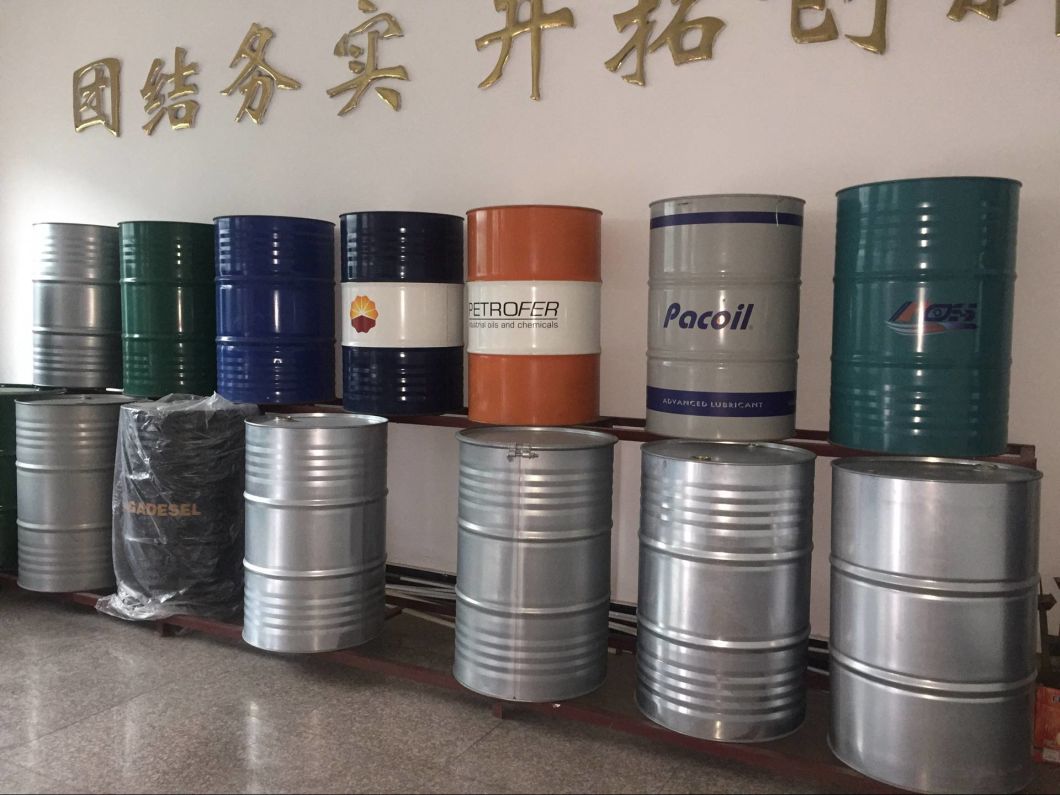

6. End products

Steel Drum Production Line with Flanging& Expanding &Assembly Machine for Drum Making Use
