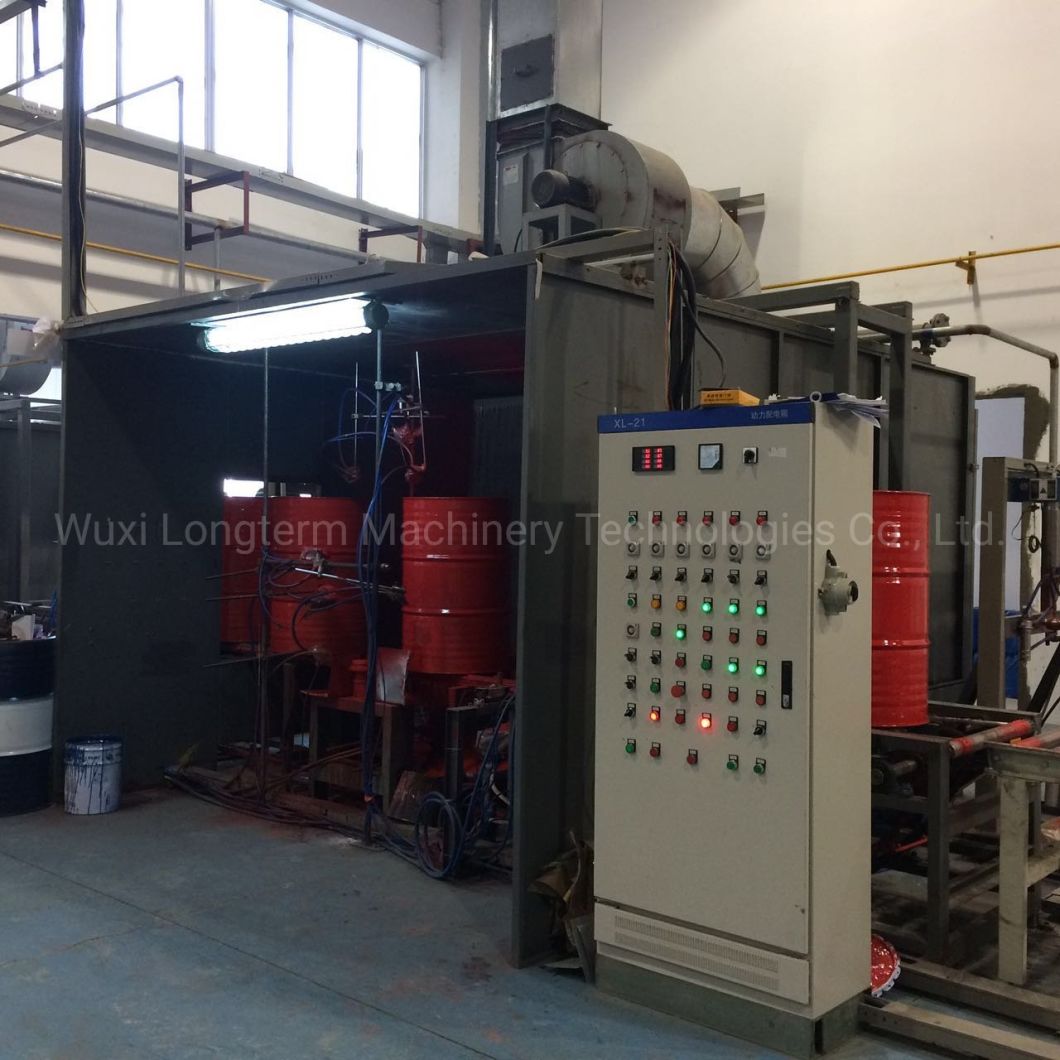

Steel Drum production line

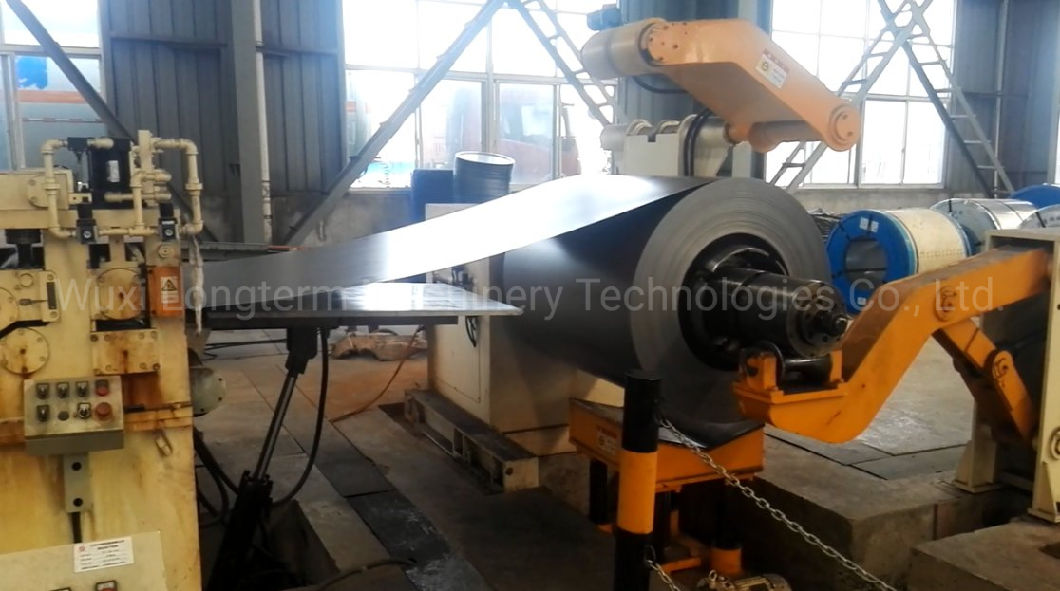

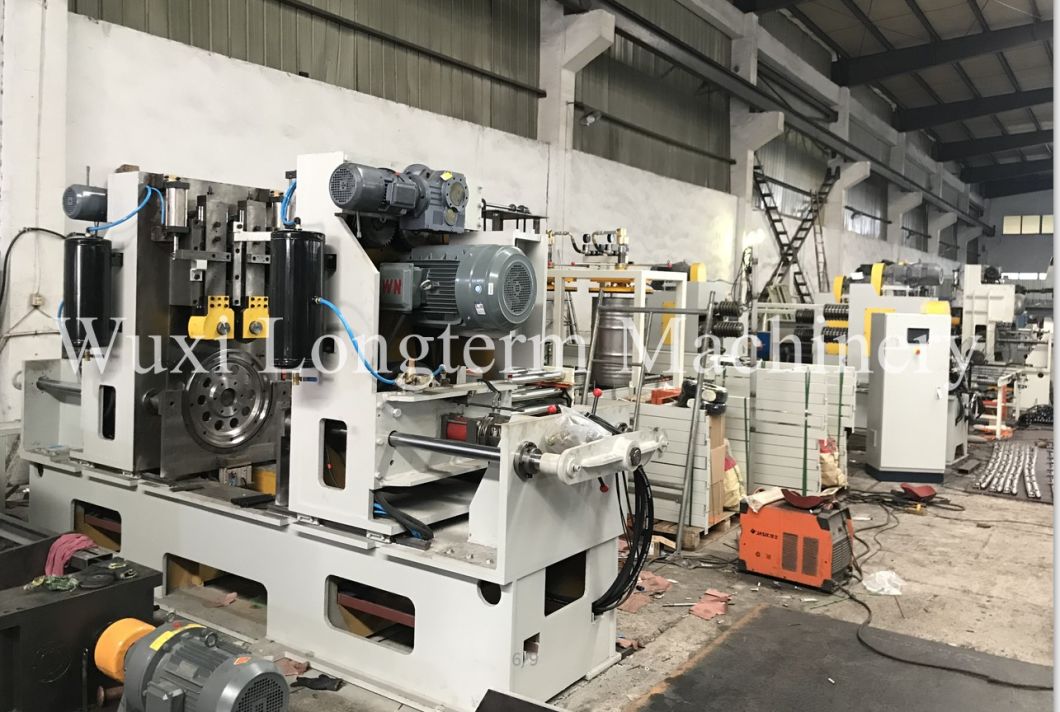

1. Drum body straightening & blanking line(Cap straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control

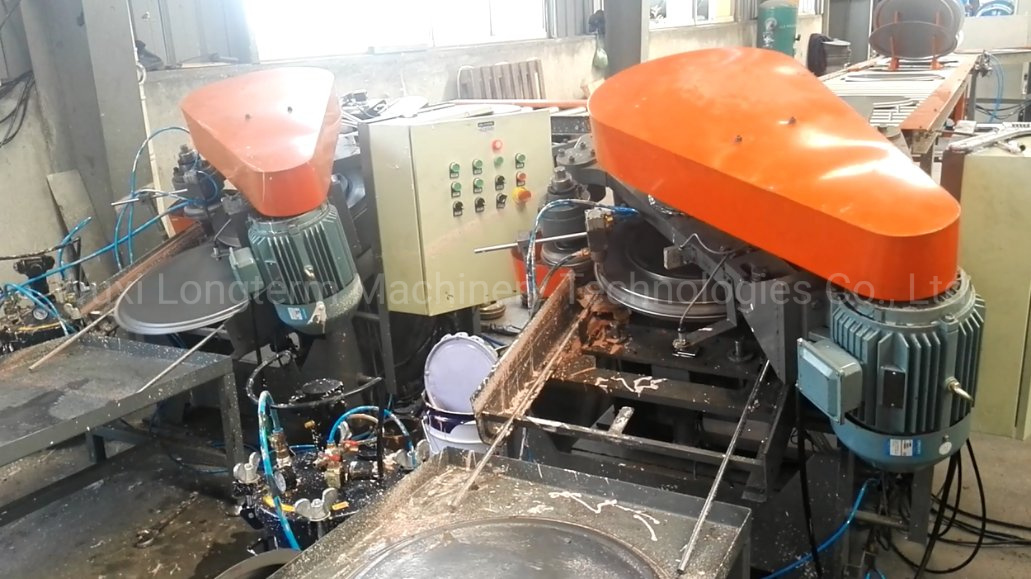

2. Automatic cap folding machine(with glue), speed: 6pcs/min

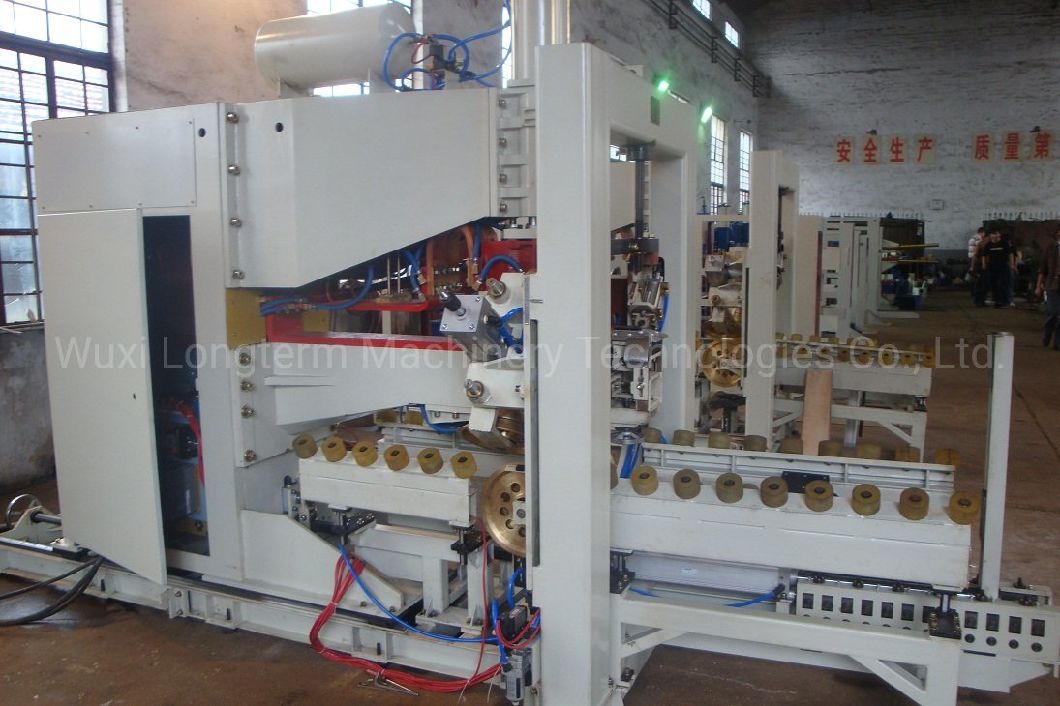

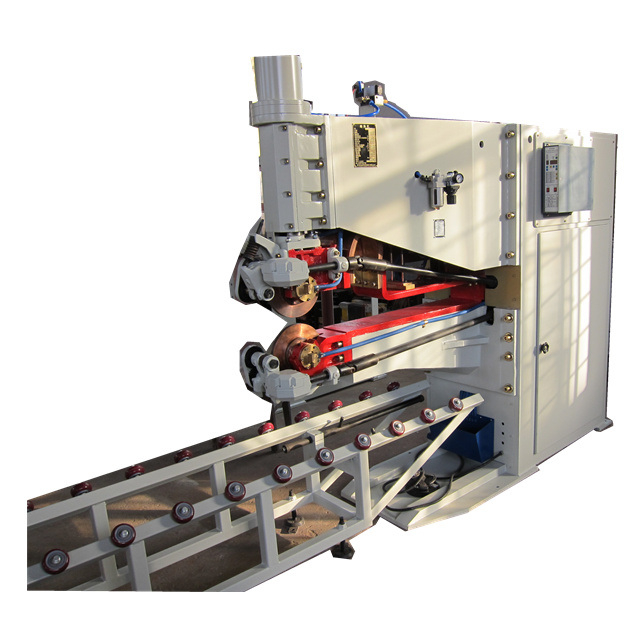

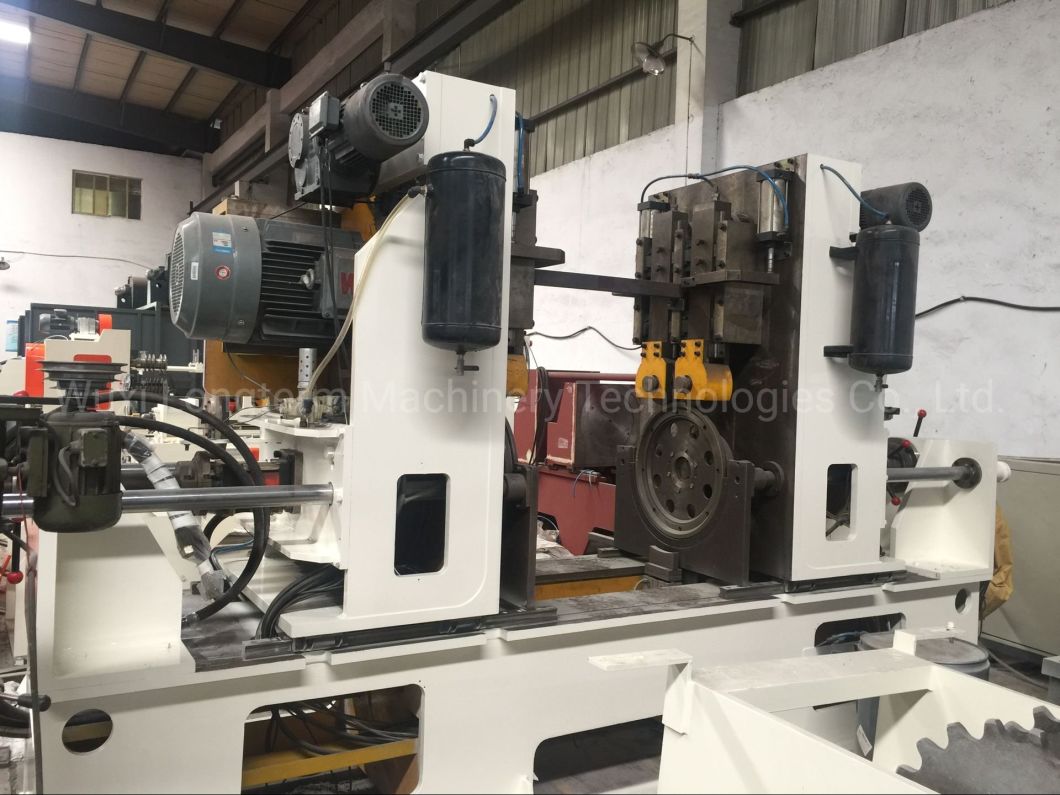

3. Longitudinal seam welding machine
1. Application: 200L, 208L steel drum welding, special specifications can be designed according to customers' requirement
2. Welding speed: 0-8m/min
3. Max. Welding Thickness: 1.5mm+1.5mm
4. Welding length: 400-1100mm
Technical parameter Model | FN1 200-5z | FN1-150-5 |
Description | Semi-automatic seam welding machine | Seam welding machine |
Drum diameter range | 360-600mm | 360-600mm |
Drum length range | 400-1100mm | 400-1100mm |
Max.welding thickness | 2+2mm | 1.2+1.2mm |
Welding speed | 0-7m/min | 5m/min |
Rated capacity | 200KVA | 150KVA |
Rated voltage | 380V | 380V |
Rated current | 526A | 395A |
Frequency | 50HZ | 50HZ |
Continuous capacity | 140KVA | 106KVA |
Continuous current | 370A | 279A |
Adjustable top electrode strode | 135mm | 135mm |
Dimension(L*W*H) | 4400*1400*2200mm | 2600*730*2100mm |
Air pressure | 0.5Mpa | 0.5Mpa |
Maximum working pressure | 7500N | 6000N |
Cooling water consumption | 1300L/H | 1300L/H |
4. Drum body flanging and expanding machine, speed: > 6pcs/min The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min
5. Drum assembly machine, speed: >6pcs/min Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min
