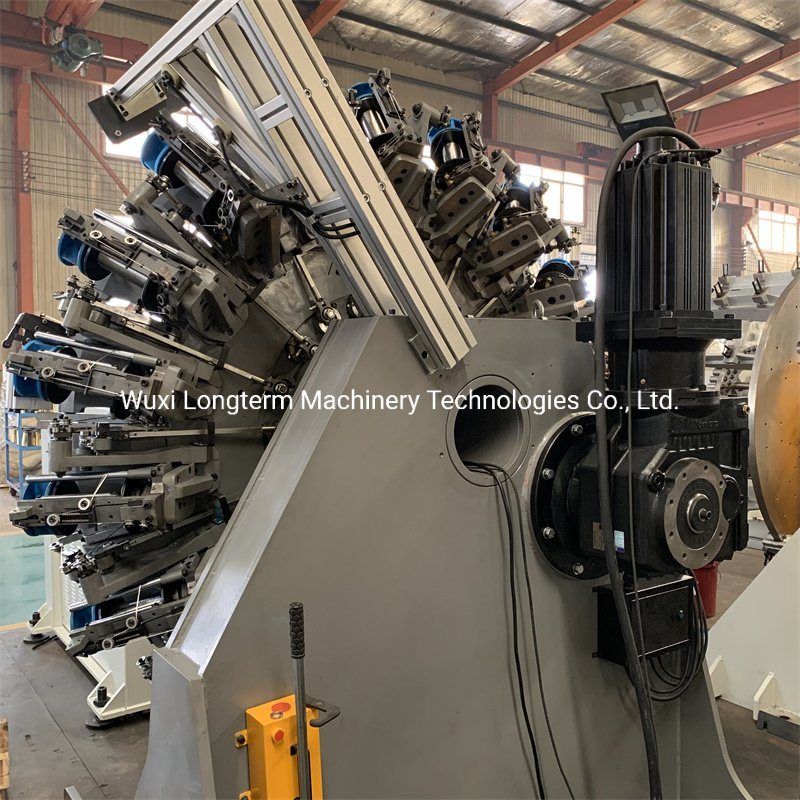

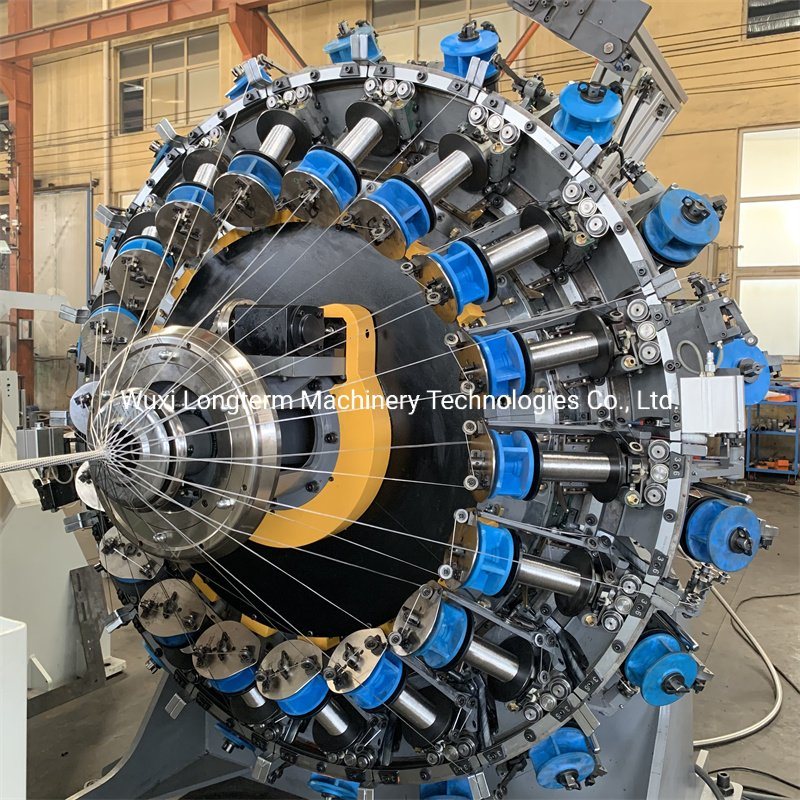

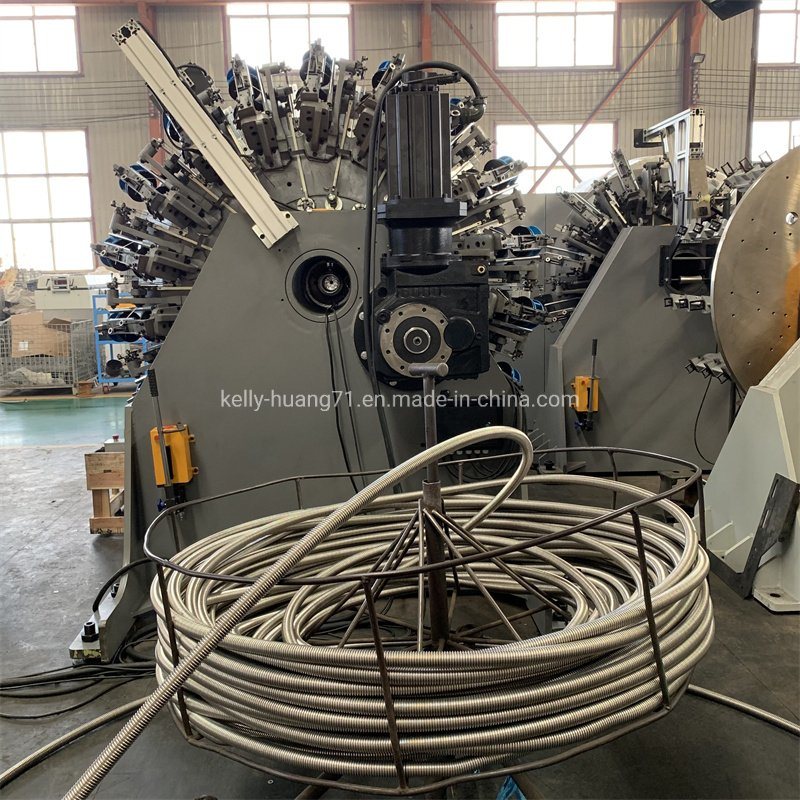

high speed horizontal rubber Hydraulic hose stainless wire braiding machine price Production Description

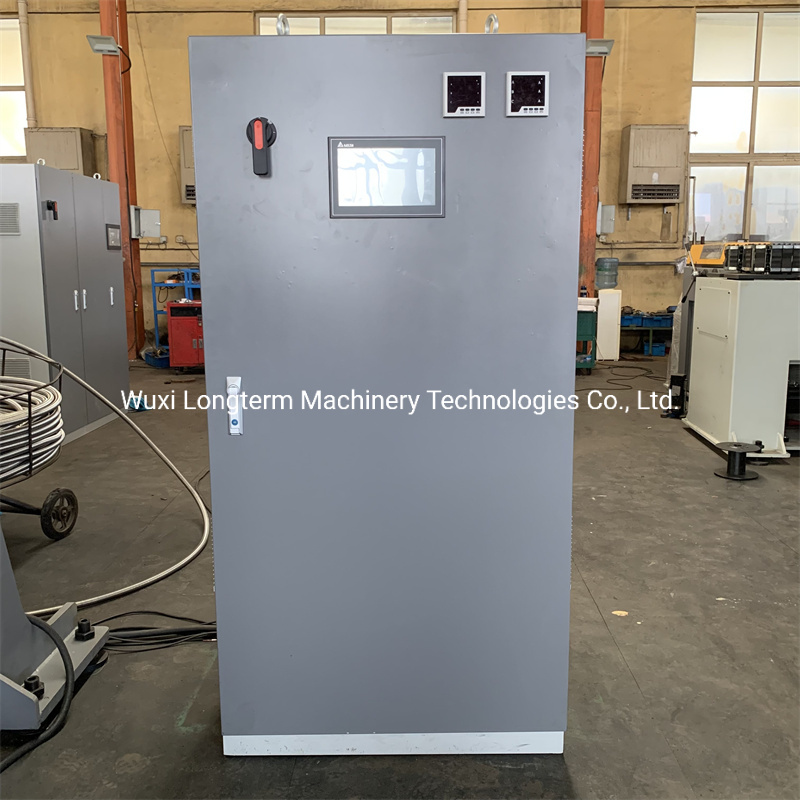

1. Control form: Automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60

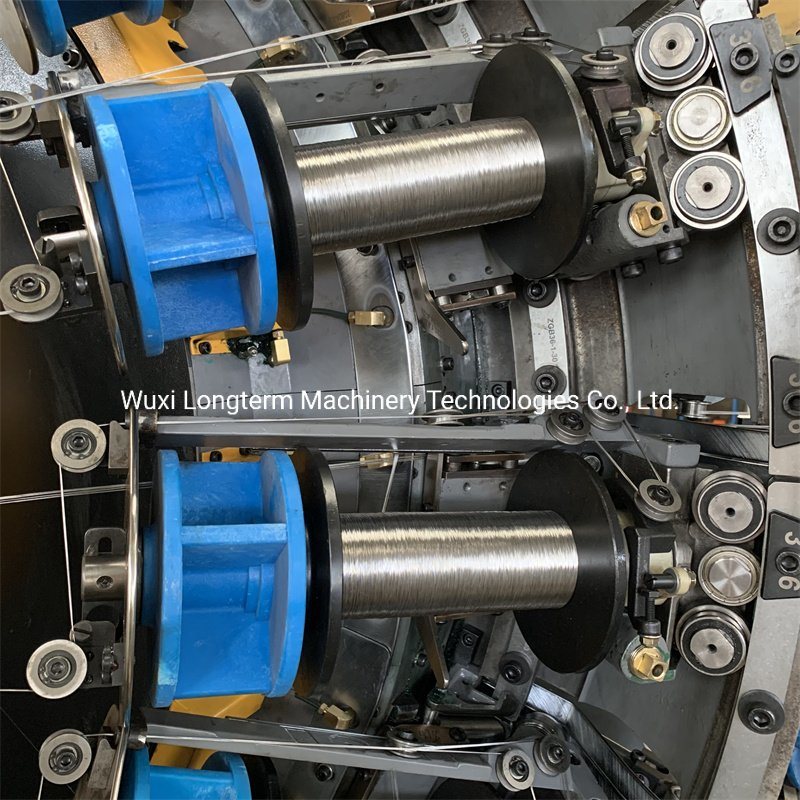

4. Spool capacity: 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layer
9. Dimensions mm: 4027*1980*2450 (length * width * height)

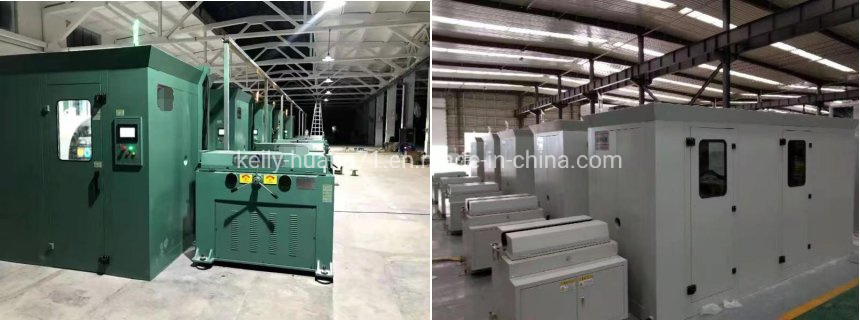

10. Noise reduction protection: full noise reduction protection room
|BJZ High-speed wire braiding machine main tech parameters (Single Decker ) |
|Product model ||BJZ16 ||BJZ20 ||BJZ24 ||BJZ36 |
|Spindle Rpm(r/min) ||45 ||35 ||30 ||18 |
|Max.Braiding diameter(mm) ||10 ||13 ||25 ||51 |
|Bobbin capacity(kg) ||7.5 ||7.5 ||7.5 ||7.5 |
|Braiding angle ||54°44" ||54°44" ||54°44" ||54°44" |
|Braiding angle ||3765*1728*2150 ||3765*1728*2150 ||3765*1728*2150 ||4027*1980*2450 |
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.

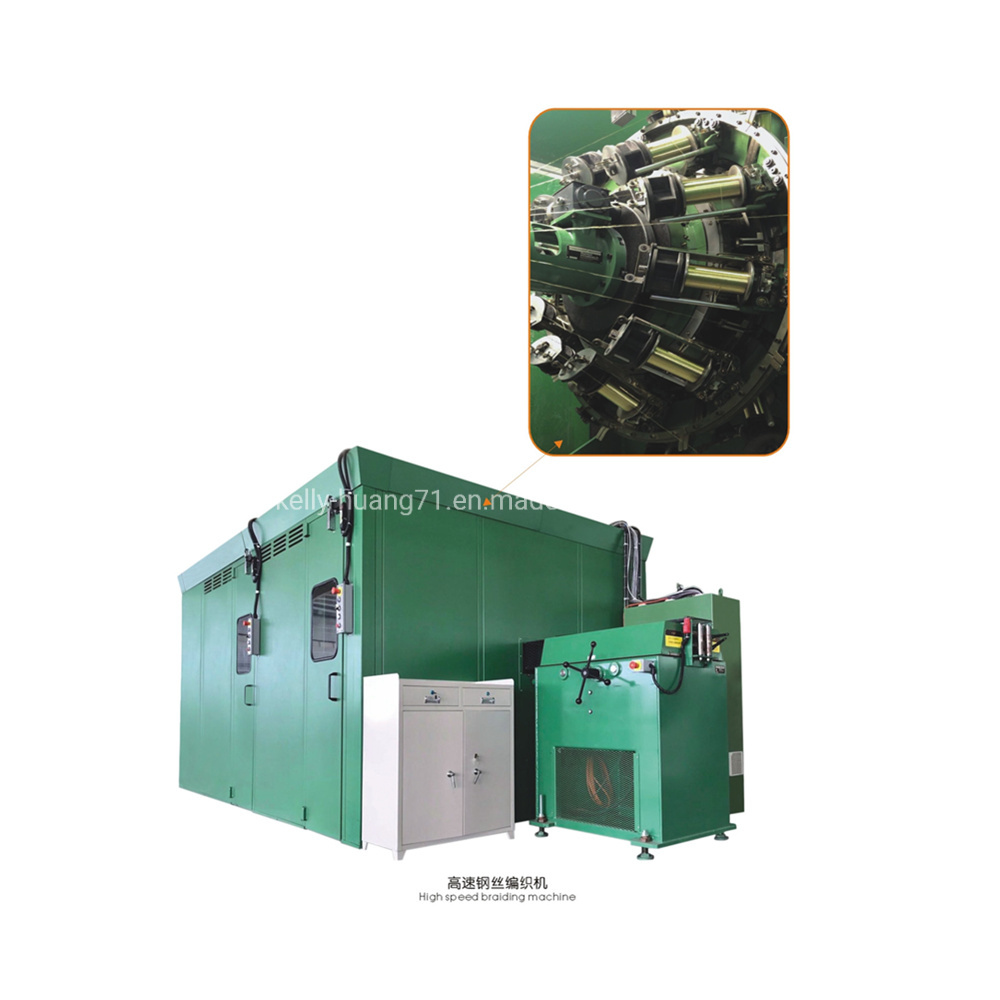

* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.

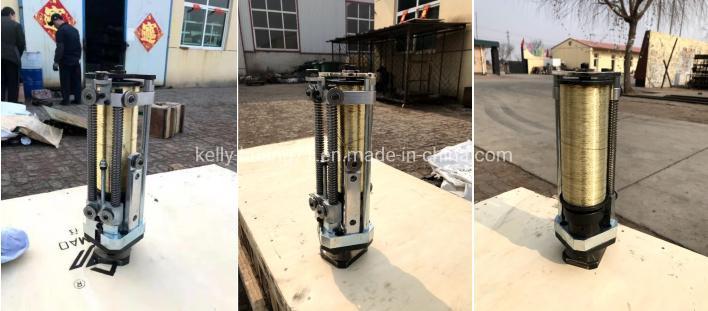

* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.

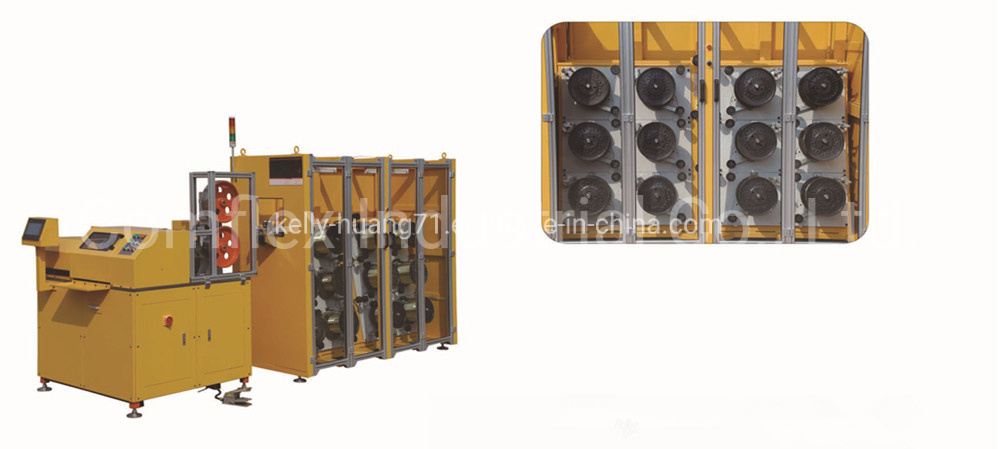

* Three color alarm prompt. Related Machine ZHG High Speed Bobbin Winder

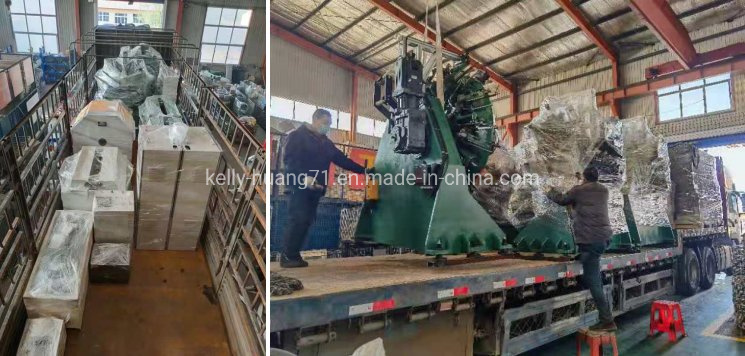

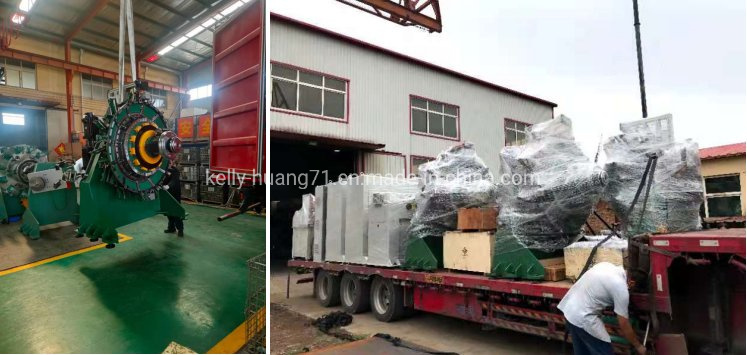

Package & Delivery
|High speed Bobbin re- winding machine |
|Products Model ||Take up Speed(m/s) ||take-up control method ||lay off control method ||winding diameter ||diameter of wire ||dimensions (L*H*H) |
|CF12 ||10 ||PLC+human-computer interface ||electric ||Φ180 ||Φ0.2-Φ0.4 ||3658*1160*1840 |
|CF18 ||10 ||PLC+human-computer interface ||electric ||Φ180 ||Φ0.2-Φ0.4 ||4533*1130*1840 |

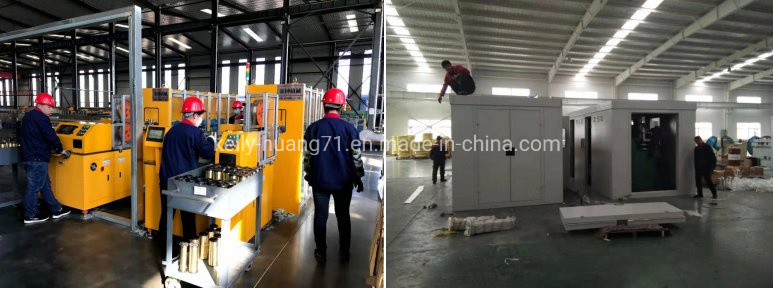

We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength. Our Service Our machines in customers' factory Site
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you the correct machinery:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
4. Do you have any requirements about production efficiency?
