High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine

Quantity:
  • Horizontal

  • Hydraulic Hose Stainless Wire Braiding Machine Pri

  • 0.2-0.4mm

  • 7~7.5kg

  • Stainless Steel, Copper Wire

  • 18r/Min

  • 60mm

  • 30-179mm

  • 1 or 2 Layers

  • Automatic Digital Control

  • Rubber Hose/Metal Hose

  • Container

  • 4027*1980*2450

  • Jiangsu, China

  • 84479090

  • 5000PCS/Year

  • US$ 50000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

high speed horizontal rubber Hydraulic hose stainless wire braiding machine price
Production Description

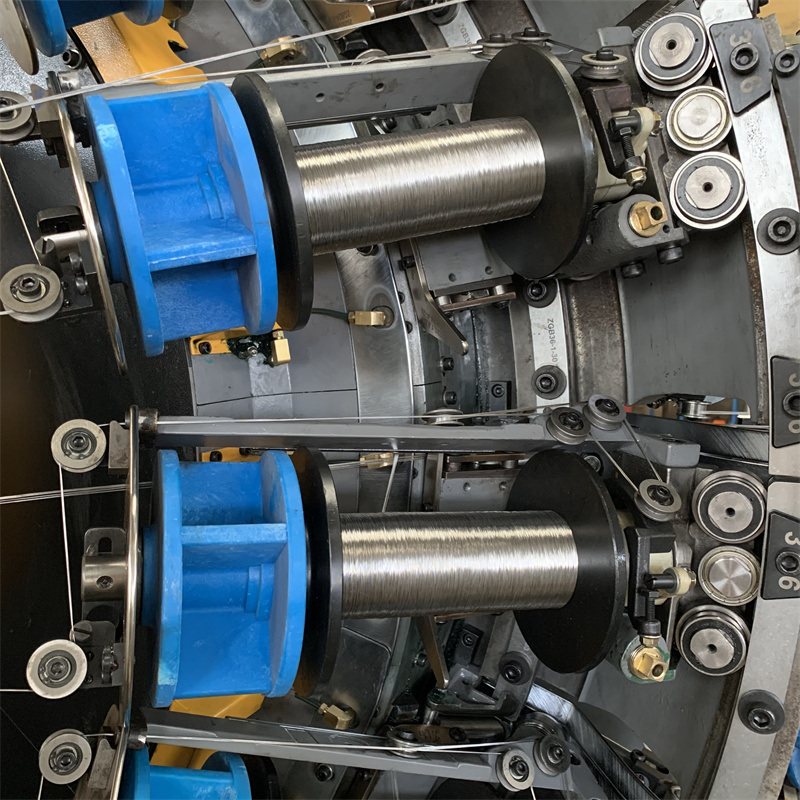

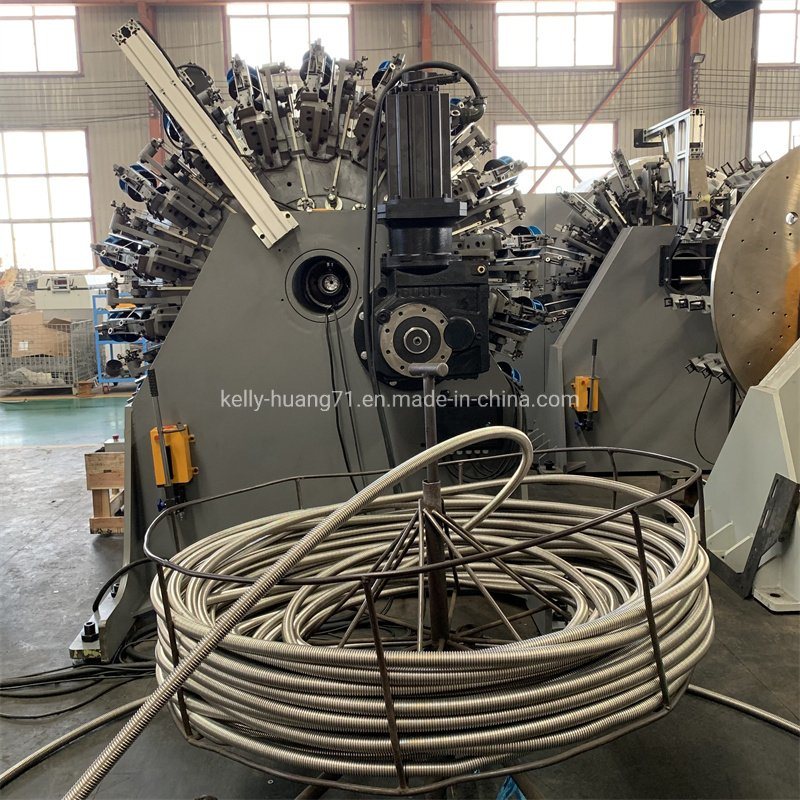

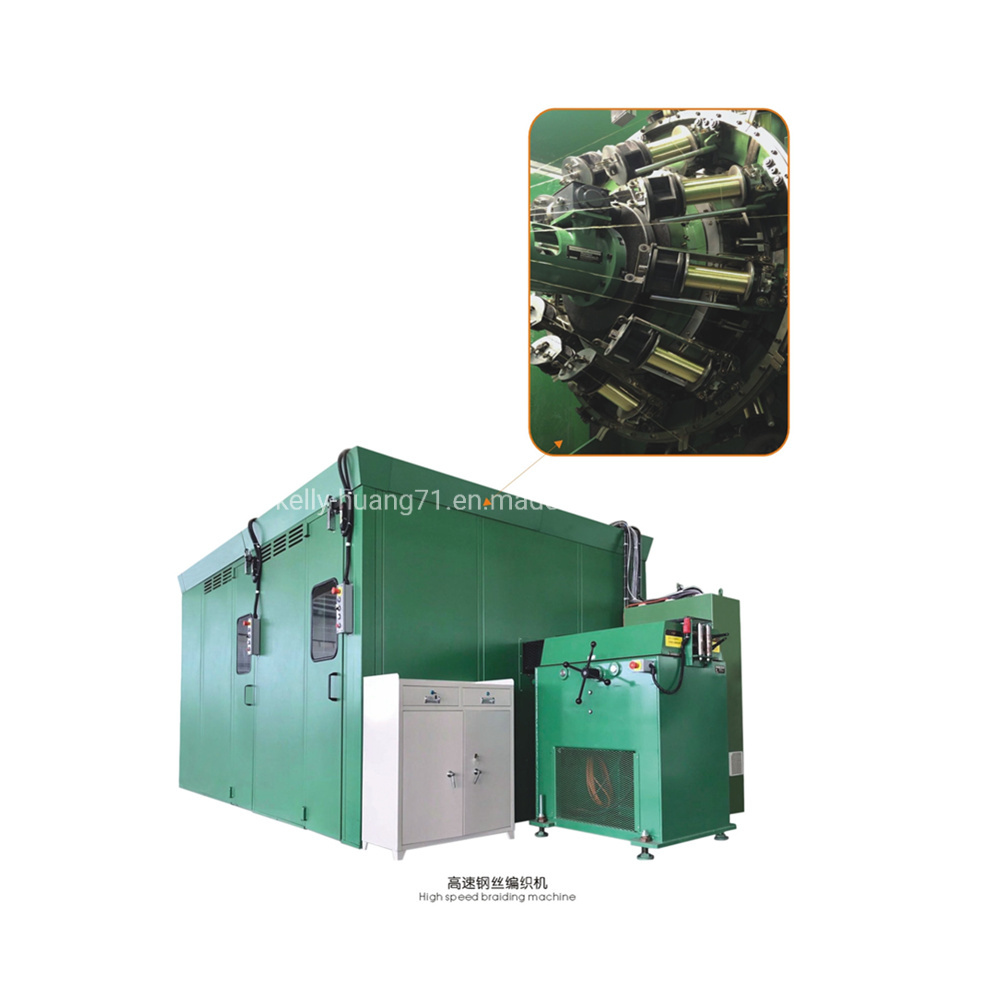

High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine
1. Control form: Automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60
4. Spool capacity: 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layer
9. Dimensions mm: 4027*1980*2450 (length * width * height)
10. Noise reduction protection: full noise reduction protection room

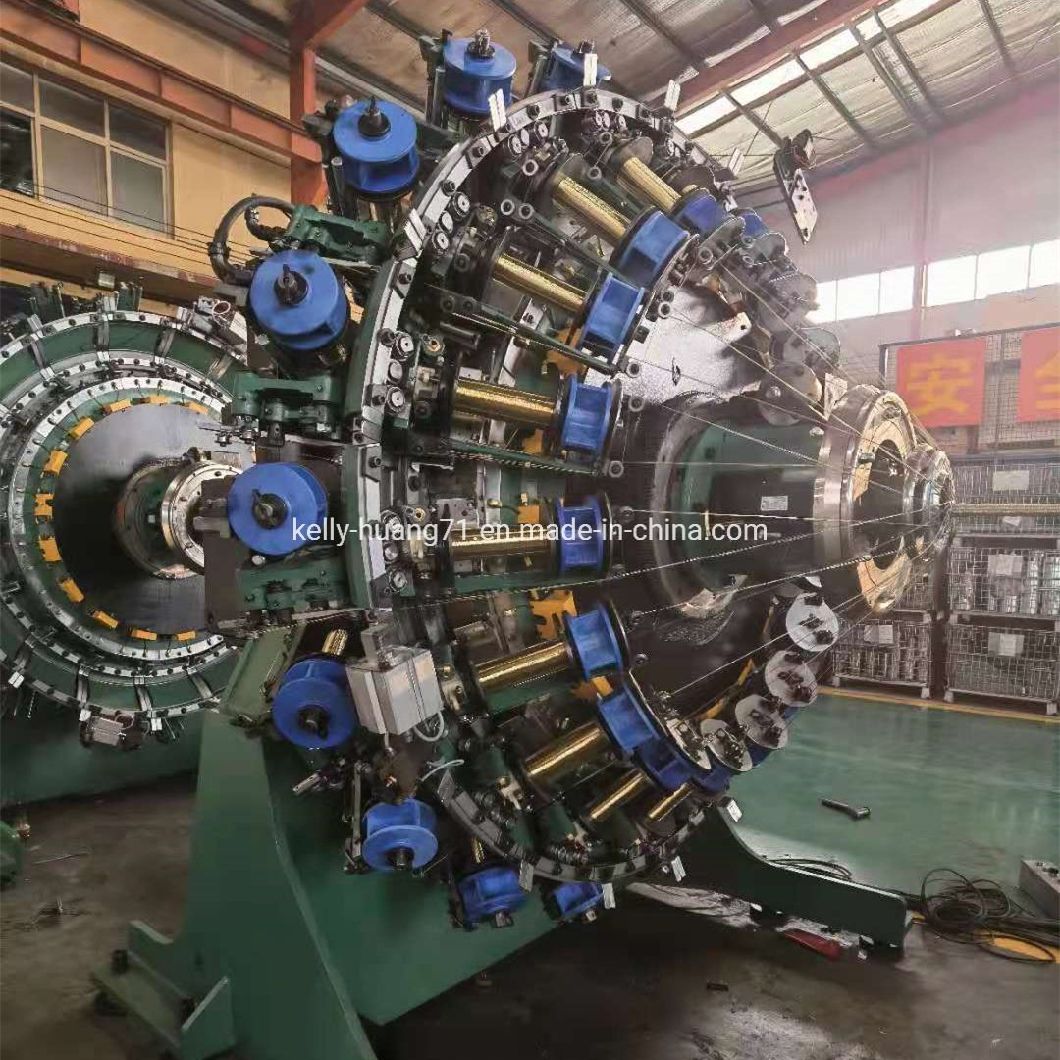

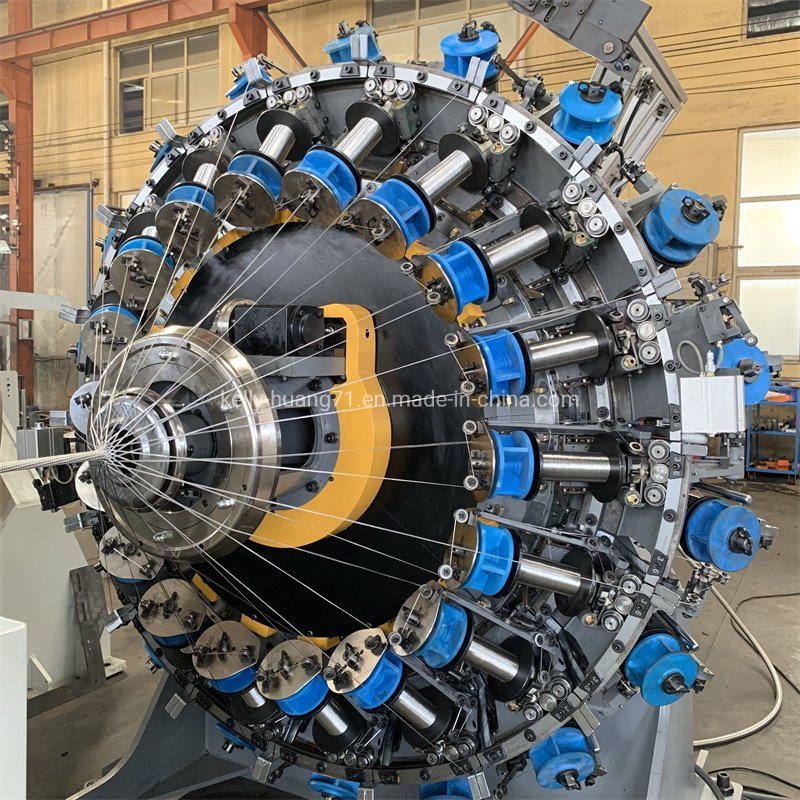

High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine
BJZ High-speed wire braiding machine main tech parameters (Single Decker )
Product model BJZ16 BJZ20 BJZ24 BJZ36
Spindle Rpm(r/min) 45 35 30 18
Max.Braiding diameter(mm) 10 13 25 51
Bobbin capacity(kg) 7.5 7.5 7.5 7.5
Braiding angle 54°44" 54°44" 54°44" 54°44"
Braiding angle 3765*1728*2150 3765*1728*2150 3765*1728*2150 4027*1980*2450
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine

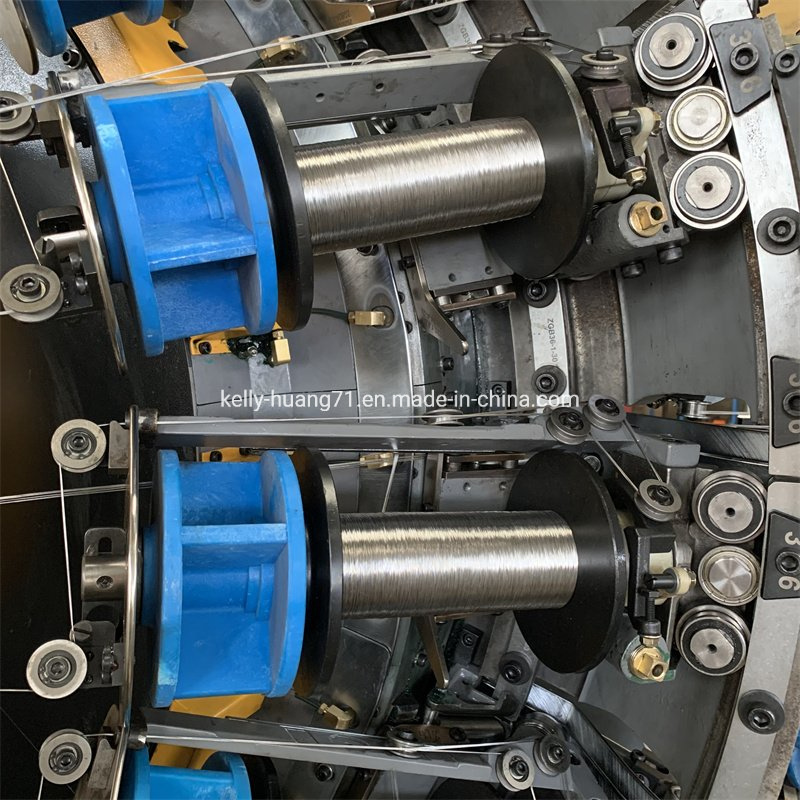

Spare Parts
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine
Advantage

* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.

Related Machine

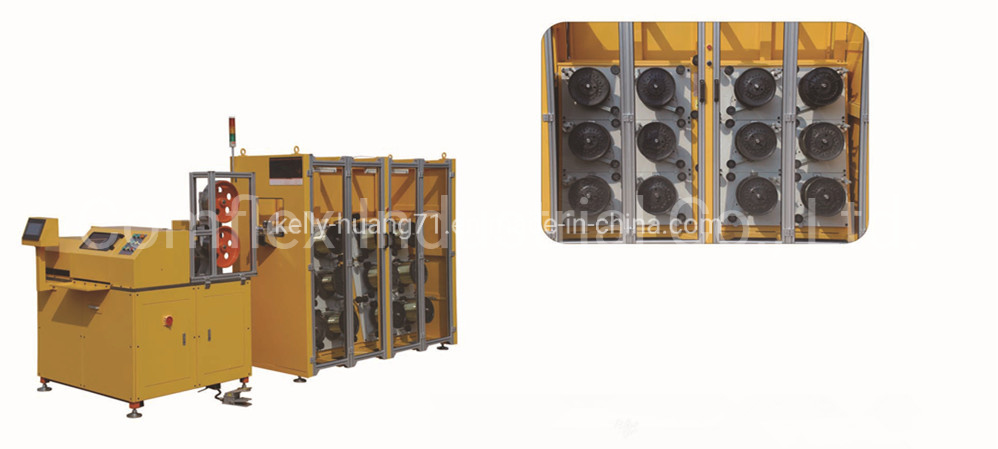

ZHG High Speed Bobbin Winder
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine
High speed Bobbin re- winding machine
Products Model Take up Speed(m/s) take-up control method lay off control method winding diameter diameter of wire dimensions (L*H*H)
CF12 10 PLC+human-computer interface electric Φ180 Φ0.2-Φ0.4 3658*1160*1840
CF18 10 PLC+human-computer interface electric Φ180 Φ0.2-Φ0.4 4533*1130*1840

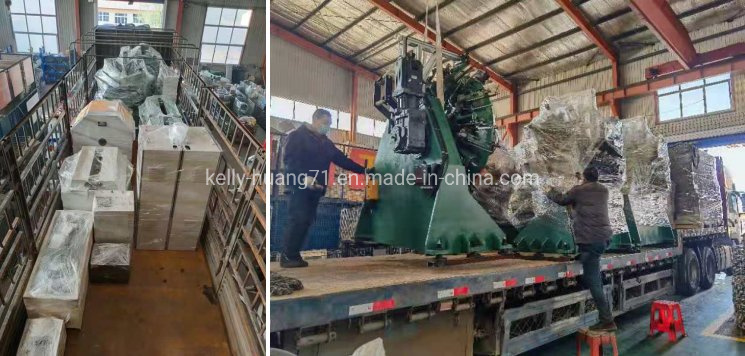

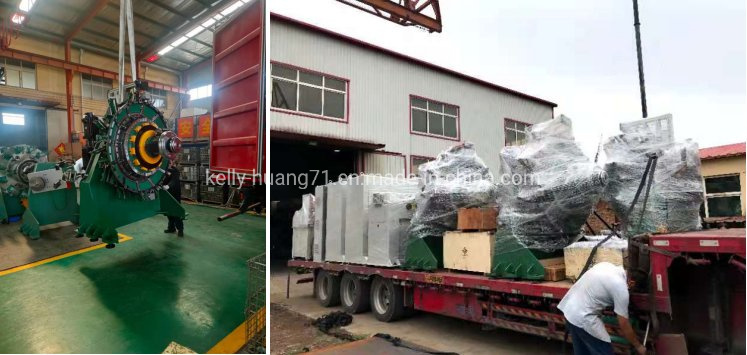

Package & Delivery
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading MachineHigh Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine

Company

We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.


Our Service
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine

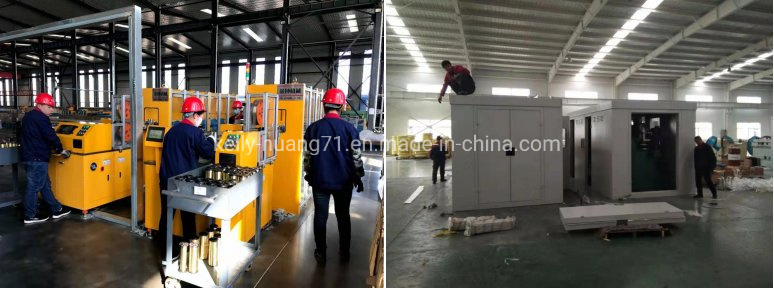

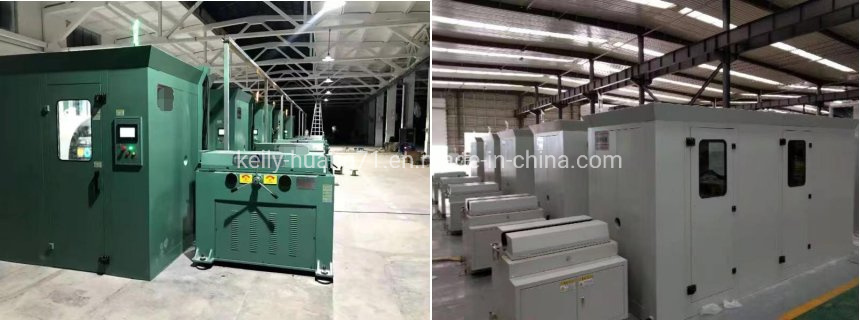

Our machines in customers' factory Site
High Speed Braiding Machine SS304 Copper Wire Braider Hose Brading Machine

FAQ
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience

2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire

3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you the correct machinery:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about production efficiency?
