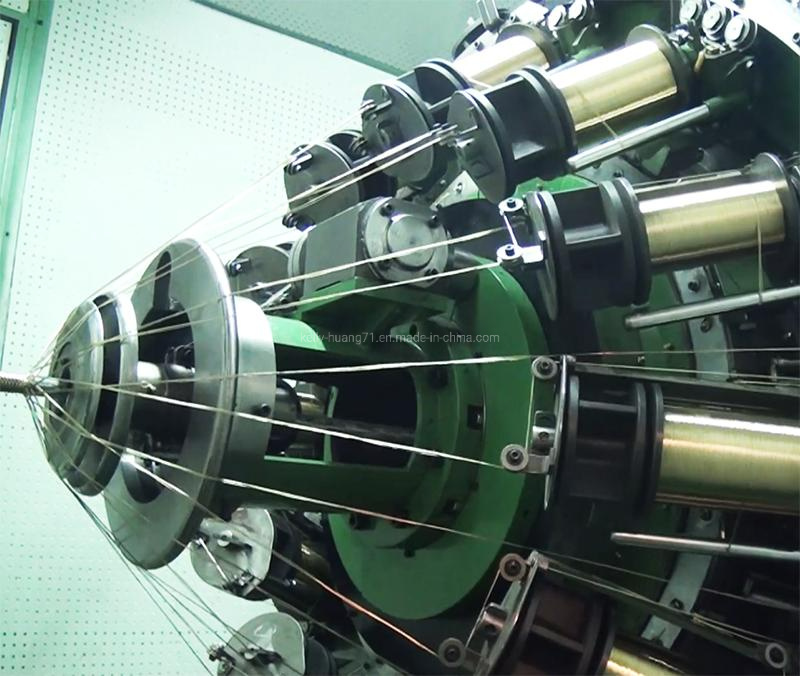

Horizontal Type Super High Speed Wire Braiding Machine for Metal/ Rubber Hose
Production Description

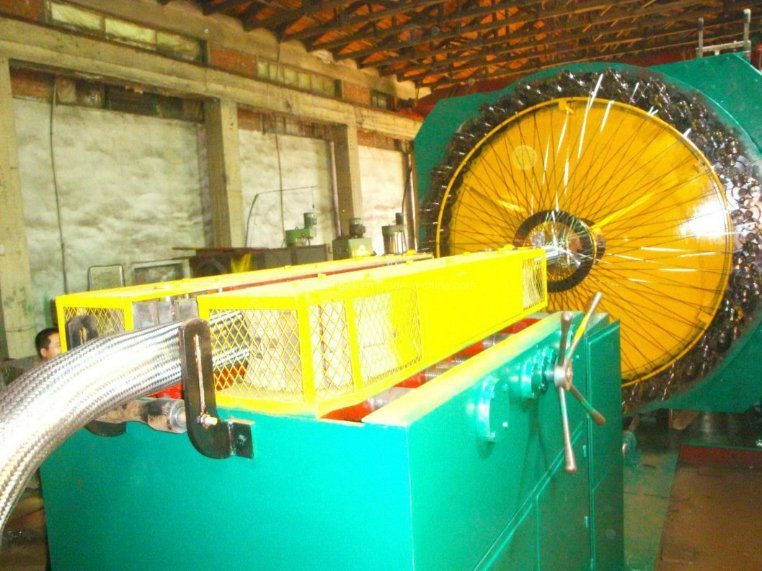

horizontal heavy steel wire braiding machine for flexible metal hose

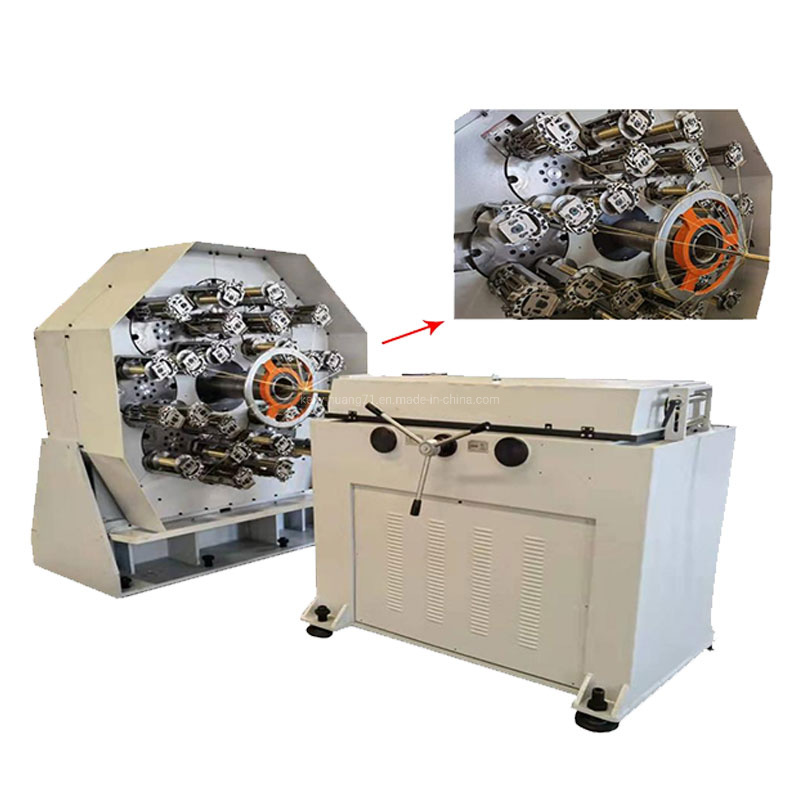

Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 128 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
| ZGB High-speed wire braiding machine main tech parameters (Single Decker ) |
| Product model | ZGB16-25 | ZGB20-25 | ZGB24-25 | ZGB36-25 |
| Spindle Rpm(r/min) | 90 | 80 | 68 | 45 |
| Max.Braiding diameter(mm) | 10 | 13 | 25 | 51 |
| Bobbin capacity(kg) | 11.4 | 13.3 | 13.3 | 13.3 |
| Braiding angle | 54°44" | 54°44" | 54°44" | 54°44" |
| Braiding angle | 6433*2744*2598 | 6433*2744*2598 | 6433*2744*2598 | 6433*3055*2598 |
Specification

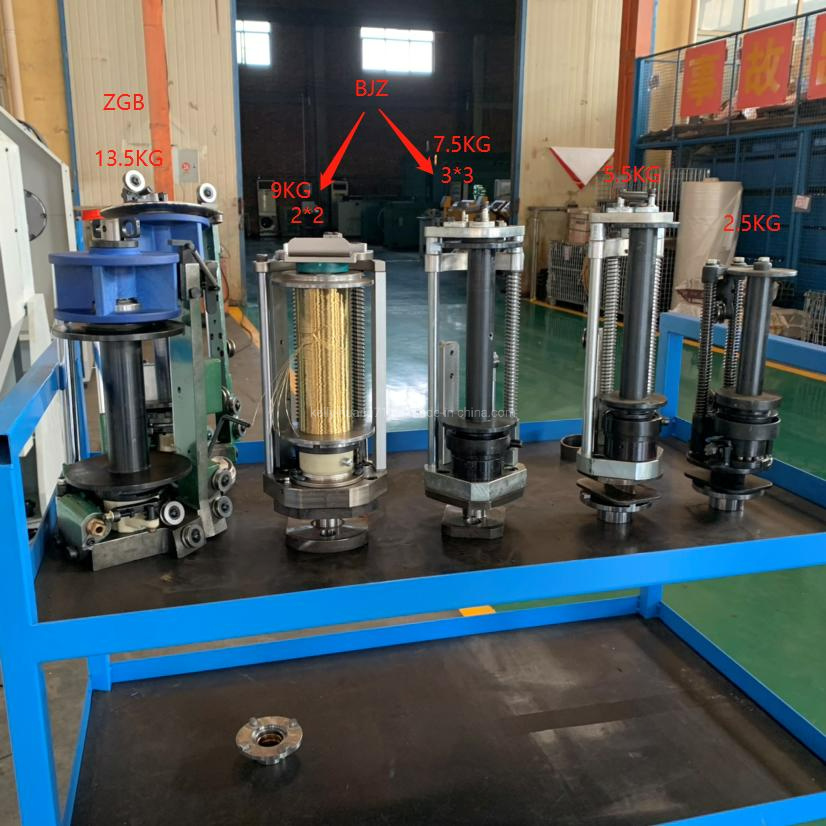

Spare Parts
Advantages
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.

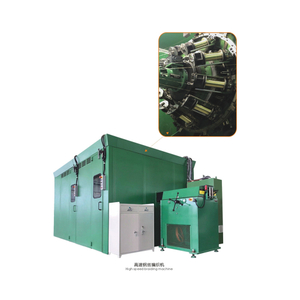

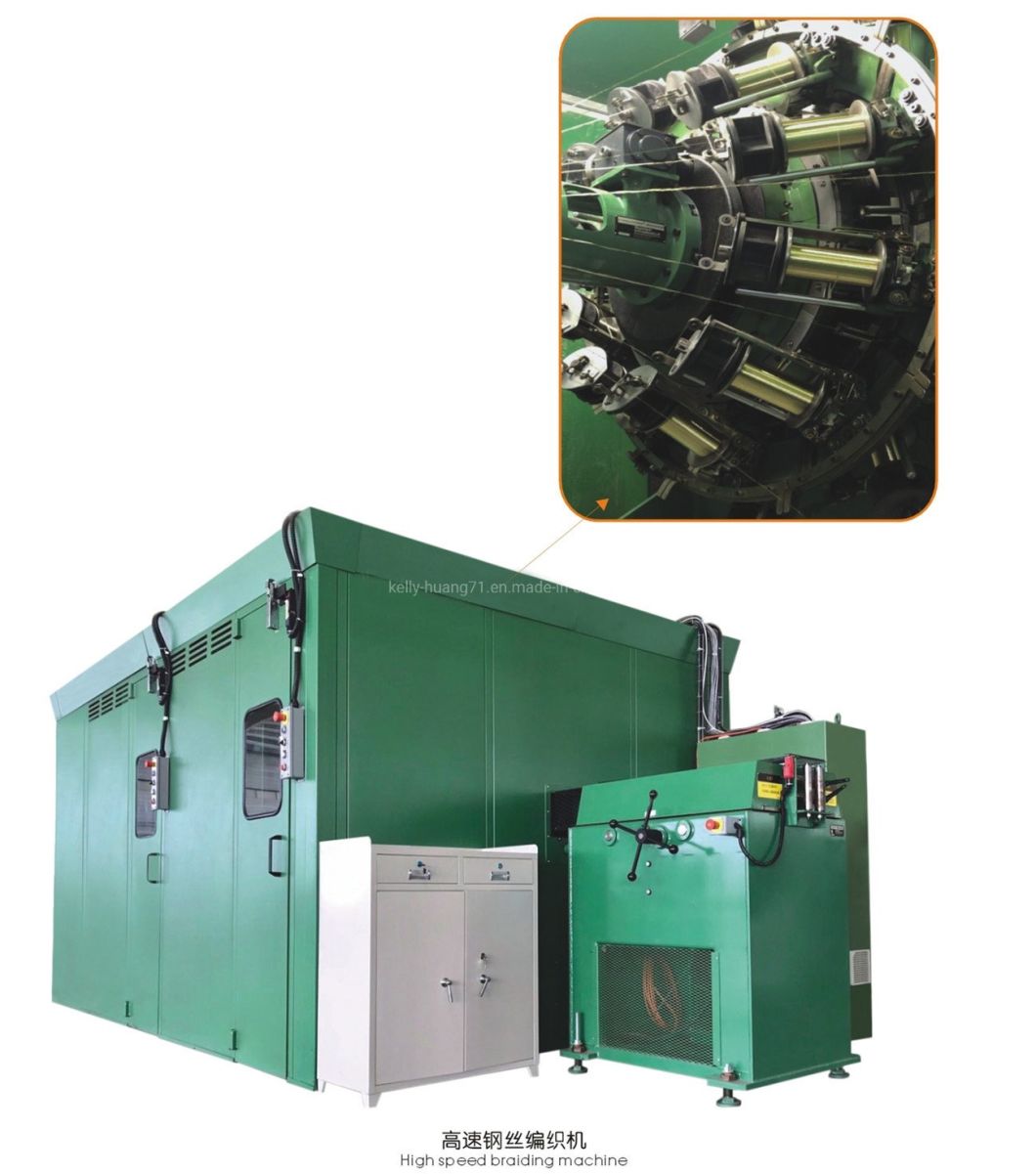

* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.

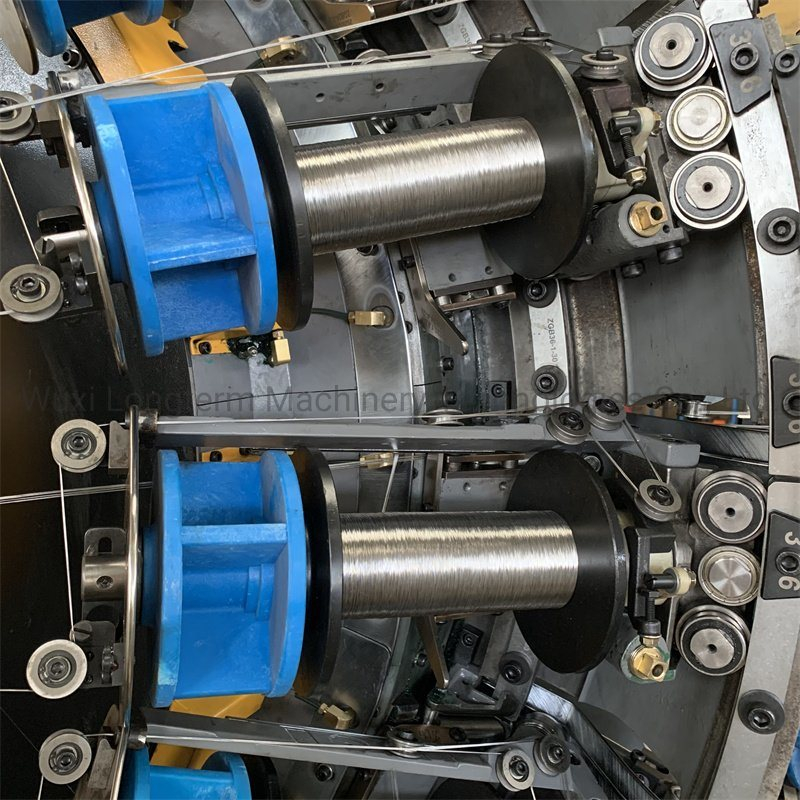

* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.

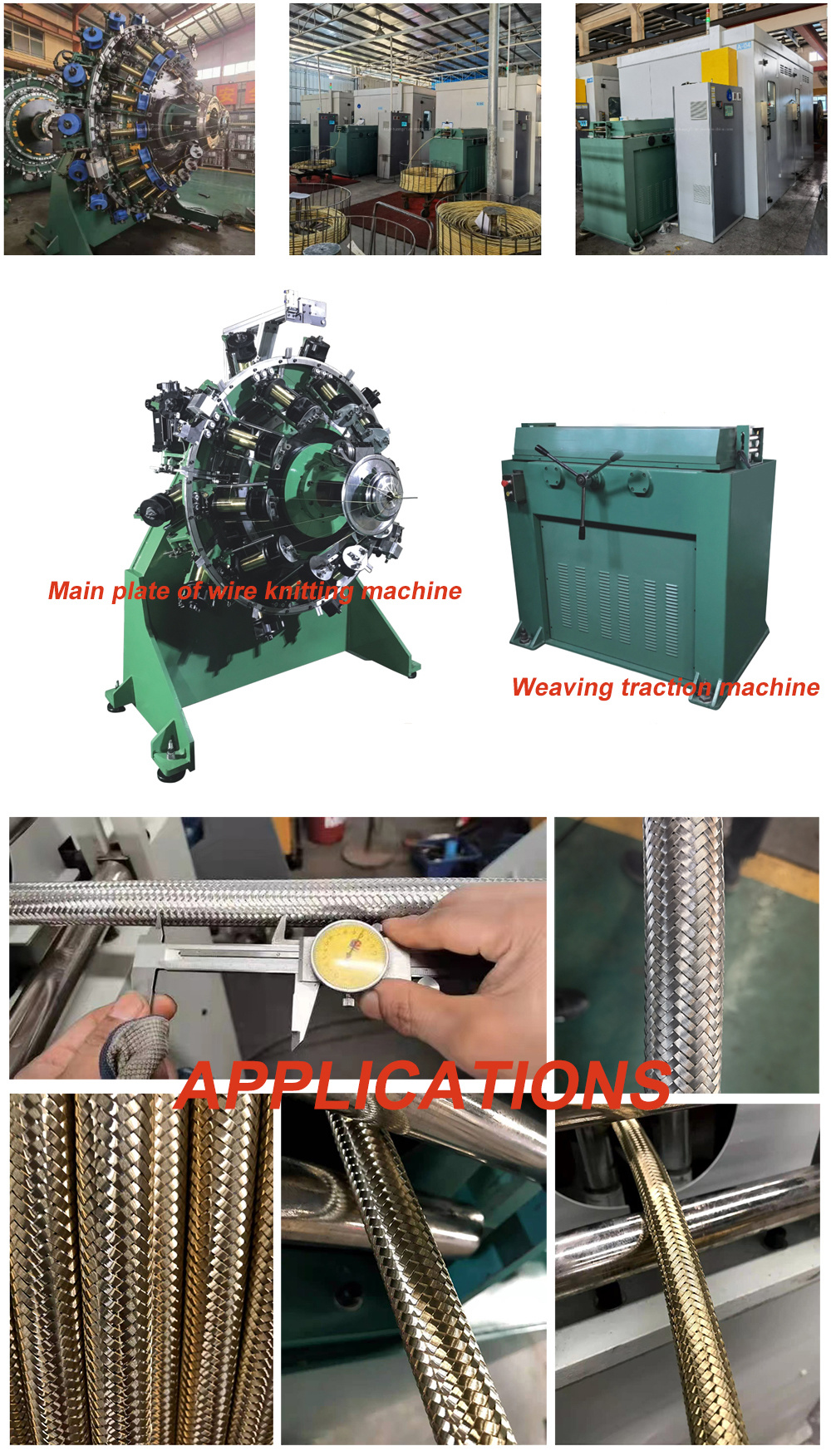

Related Machine
BJZ-20 Single decker middle speed wire braiding machine
Braiding diameter:10-31mm
Rotation speed:14.25r/min
Braiding angle:54°44′
Pitch distance:22-69mm
Pulling speed:21-66M/H
No.of carrier:24
Motor:4KW
GBG-96 carrier single decker normal speed wire braiding machine
Braiding diameter:150-400mm
Rotation speed:2.75r/min
Braiding angle:54°44′
Pitch distance:240-750mm
Pulling speed:50-120M/H
No.of carrier:96
Motor:11KW
Company Profile We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.
Our Service
FAQ
1. How much time require to complete one set of machines?
A: Delivery time: 3 months
2. How will you dispatch this machine in parts, I Means how many pieces like DECK, CATERPULLER, ACCOUSTIC GUARD & ELECTRICAL PANEL)
A: ZGB-braiding machine: Braiding decker, Equipment protection room

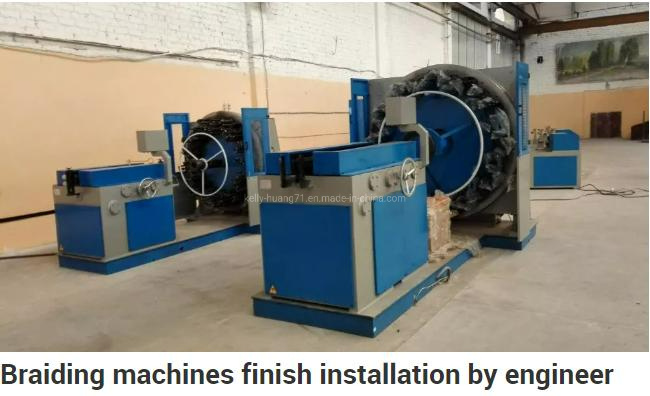

3.How we will assemble these parts in to machine?
A: After the production is completed, we need to simulate the installation of the equipment and shoot the installation tutorial video before delivery.
After the equipment is sent to our customer site, our customer only needs to install it step by step according to the installation tutorial video.
We need to know the following information to quote you the correct machinery: 1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about production efficiency?
