Single Band Conical Drum Silk Screen Printing Machine^

Quantity:
  • HLT
  • Tank Container
  • Liquid
  • Single Band Conical Drum Silk Screen Printing
  • 10 PCS/Min
  • PLC Controller
  • Mitsubishi
  • Automatically Loading and Unloading The Drum.
  • Steel Drum Printing
  • 380V,50Hz
  • 0.4---0.8kpa
  • Electric
  • Standard Seaworthy Packaging
  • HLT
  • HLT
  • Jiangsu, China
  • 8443192201
  • 5000 Sets Per Year
  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

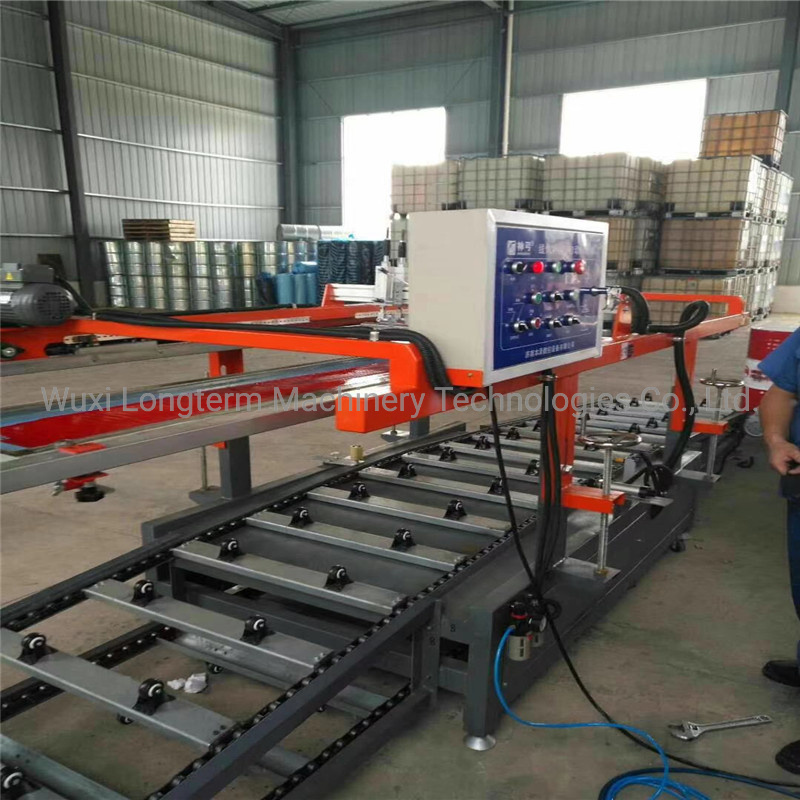

Single Band Conical Drum Silk Screen Printing Machine^


Single Band Conical Drum Silk Screen Printing Machine^


Main Parameter

Single Band Conical Drum Silk Screen Printing Machine^
Voltage:380V,50HZ. Three-phase four-wire system
Total power: 4.5KW
Air pressure: 0.4---0.8KPa
Drum diameter: 500-600mm, adjustable.
Drum height: 100-400mm, adjustable.
Screen printing accuracy: ≤1mm.
Machine dimension: Length between 4000-4500mm; width: 1300mm
Roller Conveyor Length(A and B): 2500mm


Main Parts
1. Structure: All steel structure, paint treatment.
2. The positioning system adopts program-controlled positioning.
3. The motor adopts national excellent brands.
4. The transmission chain adopts domestic high-quality carbon steel plate type rolling chain, equipped with a complete set of
medium-hardness polyurethane supporting drum (which can effectively avoid the drum surface from scratching the drum)
5. The control and industrial control system adopts German Siemens PLC program
controller, and the electronic control accessories choose national excellent brands.
Single Band Conical Drum Silk Screen Printing Machine^

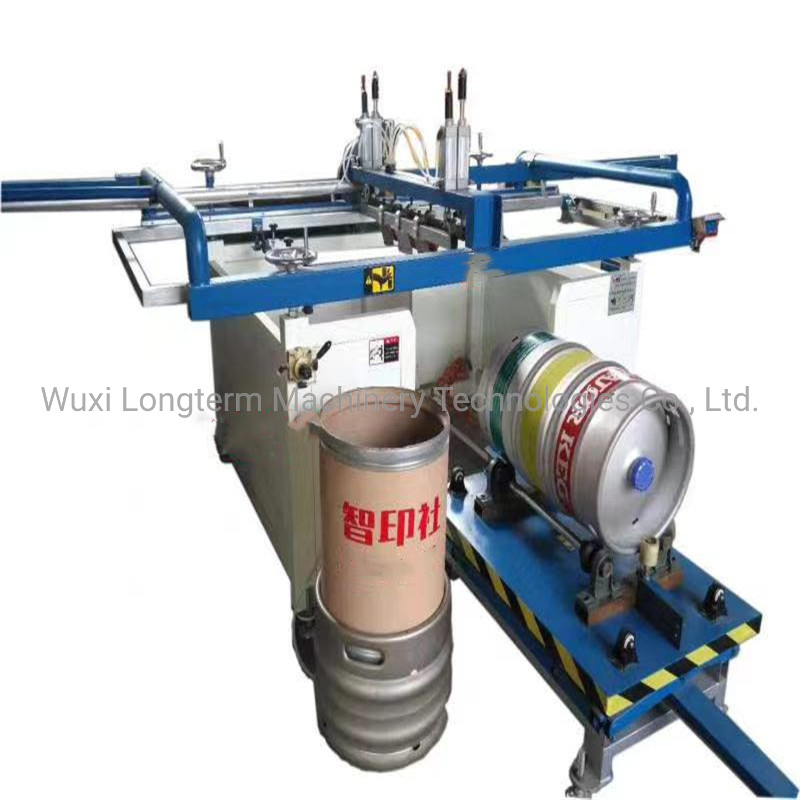

Small drum silk printing machine
Single Band Conical Drum Silk Screen Printing Machine^


Production Description:

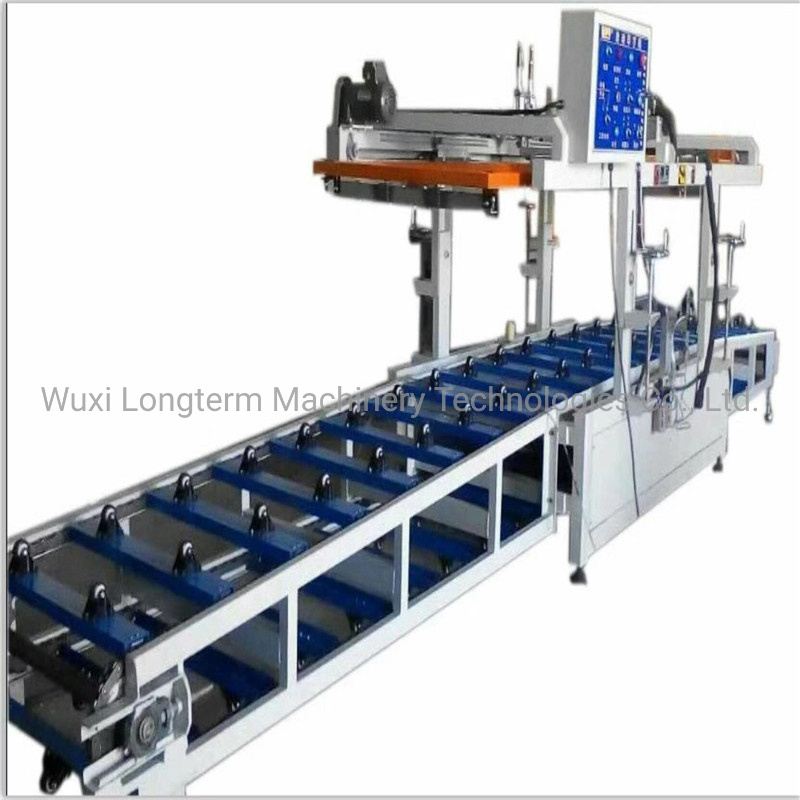

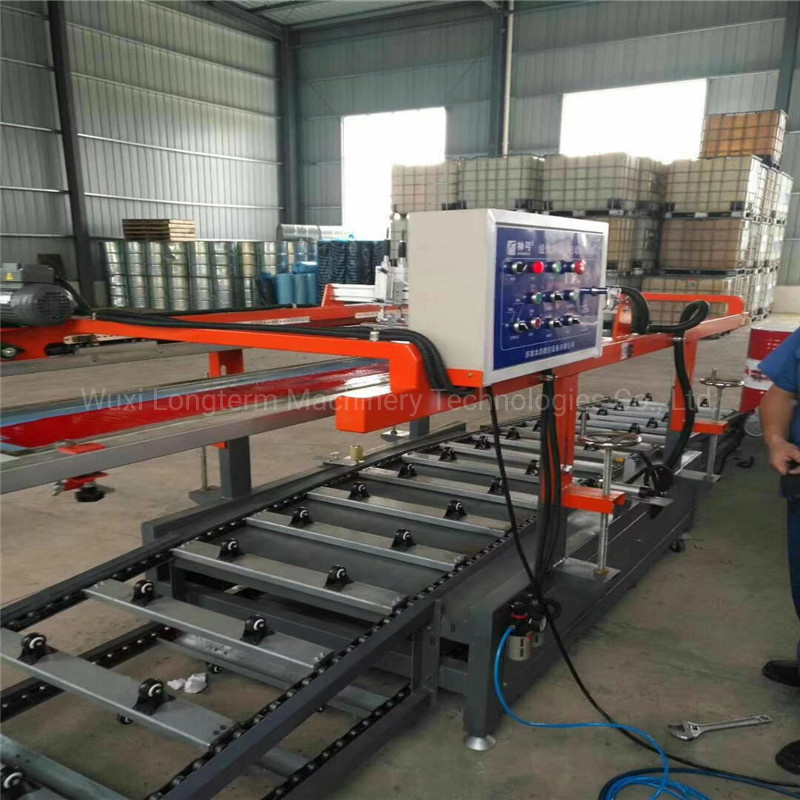

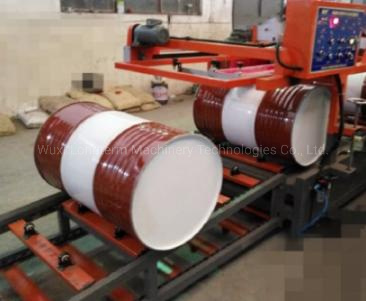

Option 1: Single-band Silk Printing Machine
Single Band Conical Drum Silk Screen Printing Machine^
The machine can print the up, middle and bottom of the drum at the same time.
Speed: 8-10 pcs/min
Automatically loading and unloading the drum.
PLC controller, the electronics are from domestic famous brand.

Main brand for important parts:
1. Machine body is 45# weld assembly, which has been tempered overall to ensure the machine body will not be deformed.
2. PLC: Mitsubishi
3. Pneumatic components: Taiwan Airtac
4. Pneumatic clutch: Italy OPMI
5. Electrics: Chint Group, Delixi

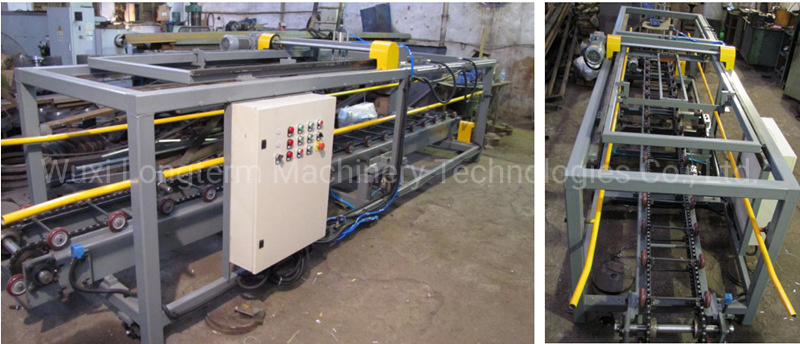

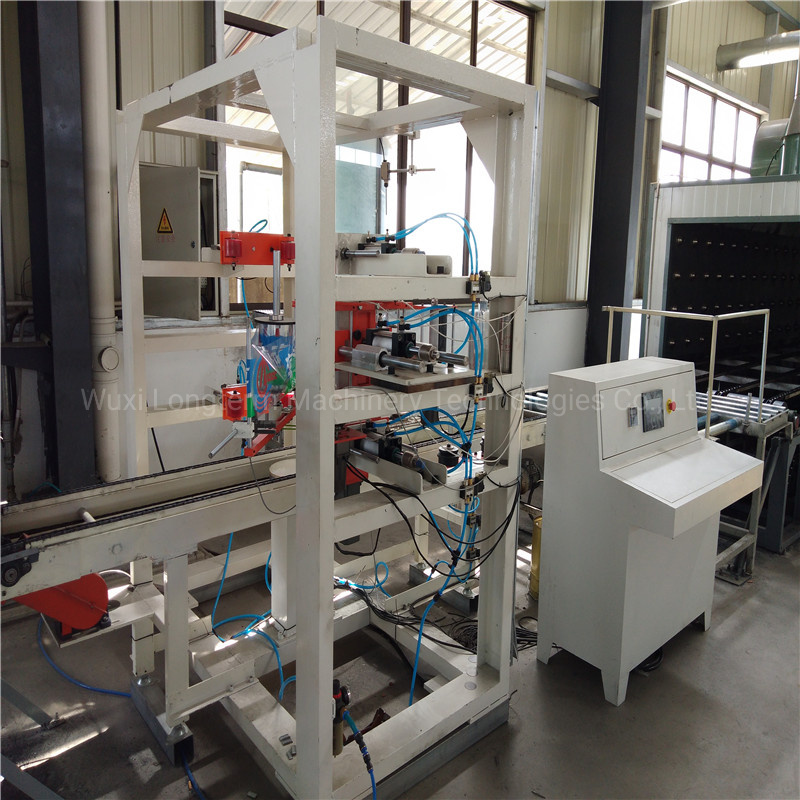

Option 2: Heat transfer printing machine
Single Band Conical Drum Silk Screen Printing Machine^


Technical parameter
*Power: 4kw*Voltage: 220V/380V
*Air pressure: 0.6Mpa
*Efficiency: about 6 pcs/min
*PLC control:Mitsubishi
*This machine can print up to any two parts of the barrel. You can freely adjust the machine to print on the segment you want.Single Band Conical Drum Silk Screen Printing Machine^

Single Band Conical Drum Silk Screen Printing Machine^

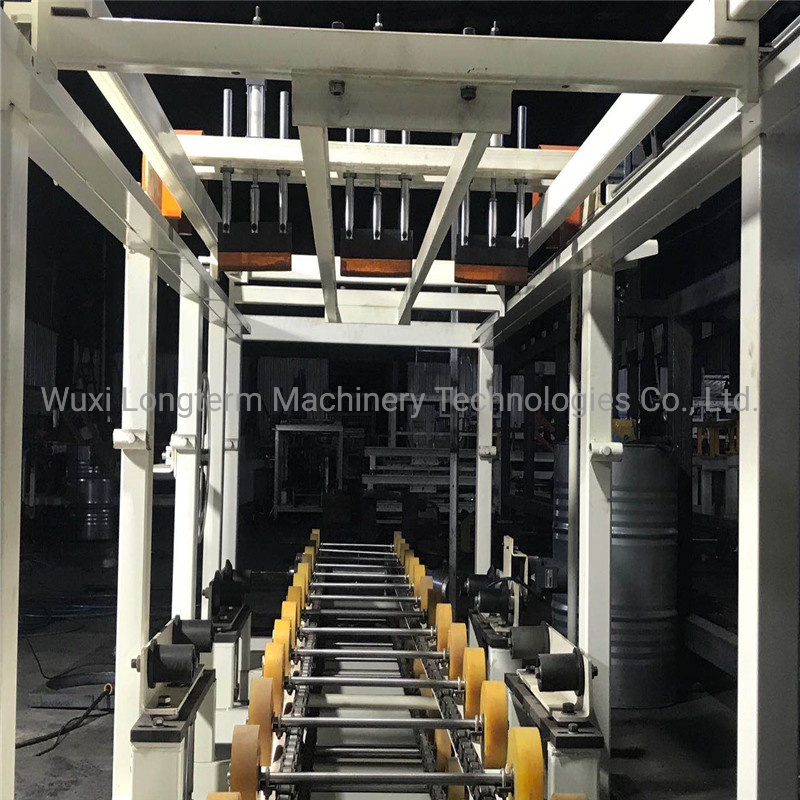

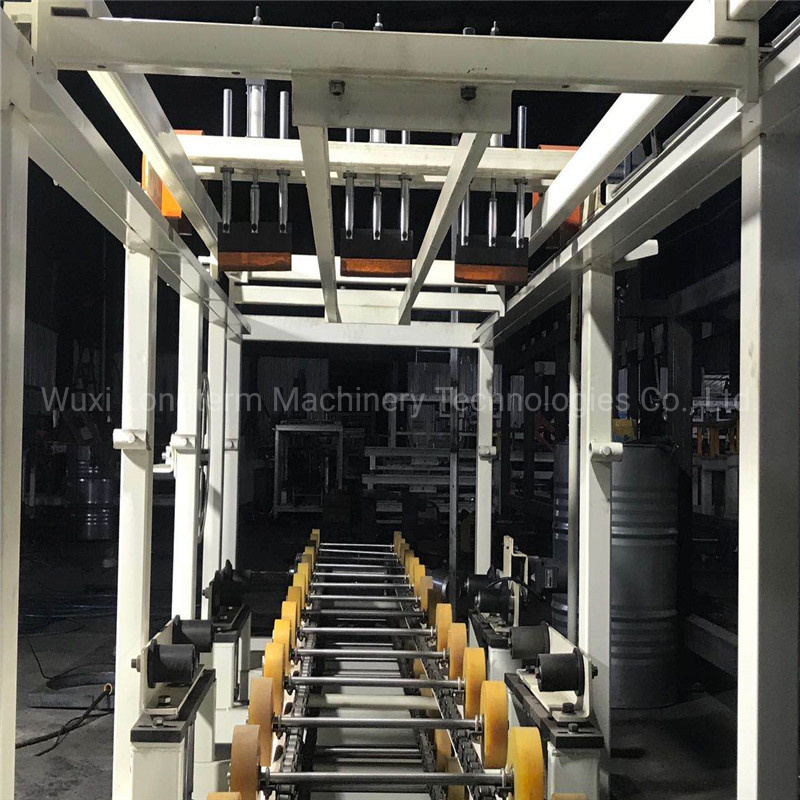

Option 3: Three-band Screen Printing Machine

Single Band Conical Drum Silk Screen Printing Machine^

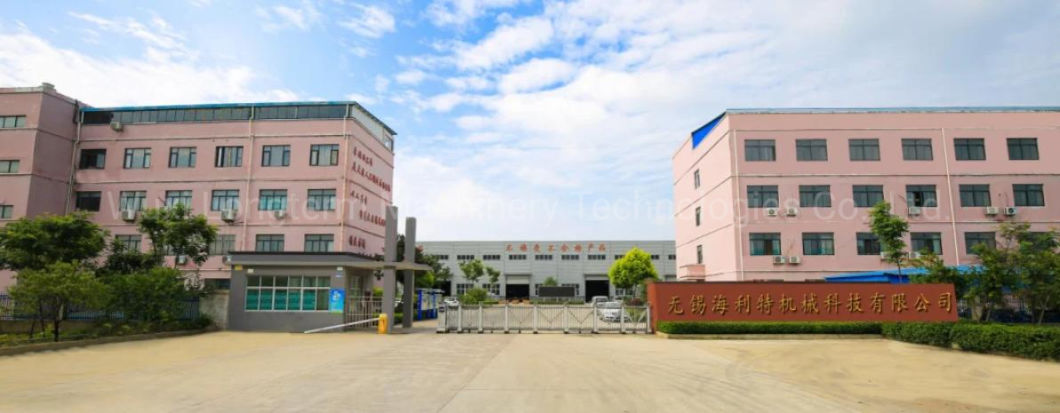

Company Introduction

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling ≷uing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Hungary,Malaysia, Bangladesh, Vietnam, Turkey, Columbia,India, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.

Single Band Conical Drum Silk Screen Printing Machine^

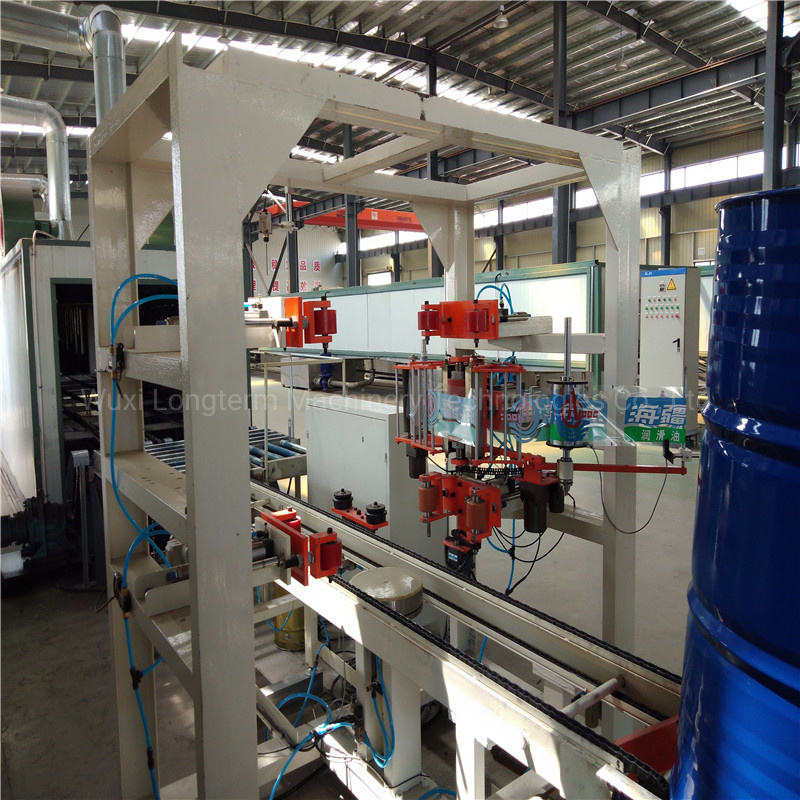

Packaging &Shipping

Machine package-plywood package for standard seaworthy package
Single Band Conical Drum Silk Screen Printing Machine^

FAQ

To enable me give you correct proposal for correct machines, please tell me following details:

A: Technical drawing of steel drum
B: Size of the steel drum you want to manufacture
C: What's the capacity per shift/day?
