Shot Blasting Machine for LPG Gas Cylinder Manufacturing

Quantity:
  • HLT

  • New

  • Customized

  • 12.5kg/15kg

  • From Dn200-400mm

  • 150-200PCS/Hour

  • 35kw

  • High-Speed Fuel Burner

  • 8 PCS Gas Burner

  • 380V, 50Hz

  • 16ton

  • Shot Blasting Machine

  • Standard Seaworthy Package

  • SGS, ISO9001

  • HLT

  • Wuxi, China

  • 85158000

  • 50000PCS/Year

  • Available | Customized Request

Product Description

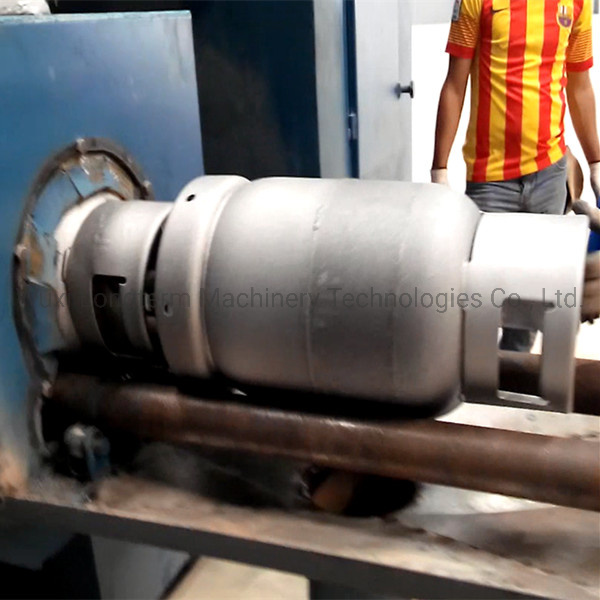

Shot Blasting Machine for LPG Gas Cylinder Manufacturing

1. Machine description

Our shot blasting machine is especially made for gas cylinder. Using the high speed shot to hit the surface of the cylinder, so that to clean the oxide-scale and make the cylinder surface silver gray and remove the inner stress of the cylinder, improve the surface adhesive force. Meanwhile, we will increase the compressive pre-stress through shot blasting to improve rigidity.

2. Main technical data

No

Name

Model

Unit

1

Efficiency

170

pcs/h

2

Workpiece

Weight

<50

kg

Size

33kg φ356×1055

mm

12.5kg φ302×570

3

Shot blasting machine

Quantity

4

set

Model

Q034Z8I

Sands consumption

220 ´ 4

kg/min

Motor power

15´ 4

KW

4

Shot

Particle size

0.5~0.8

mm

Material

Cast steel shot,wire shot

Hardness

HRC45~55

First input

About 2000

kg

5

Bucket hoister

Lifting capacity

60

t/h

Bucket width

215

mm

Bucket distance

300

mm

Line speed

1.25

m/s

Valid lifting distance

7000

mm

Motor power

5.5

kw

6

Shot slag separator

Separator capacity

60

t/h

Separator air volume

1000

m3/h

Separator efficiency

>99.5%

Valid separator width

1000

mm

Rotation speed of rotary screen

43

r/min

Motor

3

kw

7

Ventilation and dust removal system

Chamber air volume

12000

m3/h

Separator air volume

1000

m3/h

Total air volume

About 13000

m3/h

Dust removal type

(cyclone+filter drum)secondary dust remover

Dust remover model

CLT240

Filter area

240

m2

Main fan power

15

kw

8

Spiral conveyor

Convey capacity

60

t/h

Motor power

3

kw

9

Machine total power

~83.5

kw

3. Machine structure

The whole machine structure consists of shot blasting chamber(1 set), shot blasting machine(4 sets), hoister(1 set), separator(1 set), platform, ladder, railing(1 set), spiral conveyor(1 set), shot supply system(4 sets), electric control system(1 set), dust remover system(1 set), pneumatic control system.

A.Shot blasting chamber and sealing protection system

Chamber structure and protection

Shot blasting chamber is welded by structural steel and steel sheet with enough strength and rigidity. There are wear-resisting cast iron protection plates everywhere in the shot blasting chamber to prevent the shot getting out of the chamber. There is also wear-resisting grating plate to prevent the shots hit the funnel.

Top groove sealing

To protect the hook and slider inside of the top of the chamber, we use protection plate and wear-resisting slab, nylon brush to create a labyrinth sealing tape(Switzerland+GF+our company technology). Making sure no spot will come out of the chamber.

B.Shot blasting assembly

Shot blasting assembly consists of shot blasting machine and motor.

Shot blasting arrangement:

This machine has totally four shot blasting machine, the arrangement of angle and position is designed by computer dynamic simulation, then confirm. Trying the best to avoid empty shot to increase the shot utilization rate.

Shot blasting machine:

Our direct-connected shot blasting machine combine the technology features of English SPENCER and American WHEELBRATER. Shot blasting machine consists of impeller and impeller driving plate, orientation sleeve, motor, cover piece, high chrome wear-resisting protection plate, slab, shot feeding tube, bottom plate and so on.

The impeller directly connect with the driving motor , so that avoid spares - transfer belt. Also it takes small occupied area, can be suitable with the shot blasting position.

The features of the shot blasting machine:

l High efficiency: reduce about 10%-15% energy consumption, the shot blasting capacity is up to 16~20kg/min·kW.

Shot Blasting Machine for LPG Gas Cylinder Manufacturing

l Valid sealing: use protection plate and wear-resisting slab, nylon brush to create a labyrinth sealing tape(Switzerland+GF+our company technology). Making sure no spot will come out of the chamber.

l Quick dis-assembly of the blade: do not need any other toolings, dis-assembly 8 blades only need 5-10 minutes. Since the blades are fixed by the impeller's rotation centrifugal force, so you need to take out the orientation sleeve and impeller before dis-assembly the blades.

l Adopt double-disc impeller, very stable, the shot area is concentrated and uniform.

l The blades and impeller and orientation sleeve are high chrome wear-resisting material. The blade weight tolerance <5g, largely lower the noise(<85db).

l Beautiful appearance and structure.

l The inhibiting device is installed on the shot blasting. When we open the top of the shot blasting machine, it ensures the machine will not start to keep people safe.

l The whole shot blasting noise depends on shot blasting machine. We also can customize the sound proof box on the machine, also we can directly shield the whole machine.

C.Shot slag separator

Shot Blasting Machine for LPG Gas Cylinder Manufacturing

Description:

Our separator is the most advanced technology in the world, the separator efficiency≥99.5%, adopts technology from Swiss GEORGE FISCHER DISA(GIFA) and American Pangborn. The separator is the key parts of the shot blasting machine, the size of separating area will directly affect the separating.

Components of the separator: rotary screen and winnowing system.

Shot Blasting Machine for LPG Gas Cylinder Manufacturing

Working principle of the separator

Shot Blasting Machine for LPG Gas Cylinder Manufacturing


The shot slag mixtures will be lifted into the rotary screen by hoister. Outside the rotary screen are the spiral blades, which will discharge large pieces of debris through slag-drip hole. Then the shots, gravels and dust will be spread evenly along the separator, equally pressure on the balance plate. If the shot pressure to the balance plate against torque risen from cutter point < cutter point torque from balance plate, the balance plate will be closed. If the shot pressure to the balance plate against torque risen from cutter point = cutter point torque from balance plate, the balance plate will be free and shots will fall as a think curtain. Because the hopper opening area on the balance plate is fixed, the shot pressure on the balance plate against cutter point torque is fixed also. Only needing to adjust the position of balance weight, it can separate in high quality.

During the process of falling below, the shots slag mixture will do curvilinear motion, driven by horizontal air flow. Due to the difference of the weight and size of the shot and slag, their deflection is different, then they will separated. The dust will be inhaled into the dust remover, broken shot and slag and scale cinder will enter the trash tank, finally the qualified shot will enter the storage hopper and be recycling used.

Range of the separator: To ensure the best separating, the shot diameter is f1.2~f3.0mm, the separating efficiency is ≥99.5%.

D. Bucket hoister

Principle and constitution of the bucket hoister: the machine is driven by flat belt, will unload the material through centrifugal gravity. The hoister consists of cycloidal reducer, upper and bottom roller, tape conveyor, hopper, closed material cylinder, tension device. The feeding hole is connected with spiral conveyor, and the discharge hole is connected with the separator.

Function and structure

The cover of the hoister is bending formed and welded. There is access door on the cover, which is convenient for changing the material hopper in time. When you open the door on the bottom cover, you can repair the bottom driving device and eliminate the obstruction of the shots. When it is working, the hopper on the tape conveyor will lifted up the shots to the top driven by the motor. Lastly, the shot will enter the separator. To ensure the tape conveyor will not slip during the working process, the roller is like squirrel cage, which enhance the friction between the tape and belt wheel, also prolong the service life. When the belt is slack, we can tighten the belt through the tension device. The pulse wheel is installed on the bottom spindle of the hoister, which can monitoring the working condition. When problems occurred, PLC will get this signal and keep the safe of the machine.


E. Spiral conveyor

Shot Blasting Machine for LPG Gas Cylinder Manufacturing

Function of the spiral conveyor: It will be directly installed on the hopper at the bottom of the chamber. The exit of the conveyor is connected with the hoister. Spiral blades will mix all scattered shot slag mixture on the bucket hoister.

Constitution of the spiral conveyor: cycloidal reducer, screw spindle, conveyor cover, mounted bearings. That is a standard horizontal shot conveyor, and is the main part of the shot recycling system.

The spiral blades is 16Mn. The inner and outer circle is drawing by special technics with accurate pitch and size. Can be use for a long time.

4. Electrical specification

A. Working condition

Power: three phase four wire, alternating current 380V, 33Z

Environment temperature: 0ºC~+55ºC

Environment humidity:35~45%(non-condensate)

B. Summarize

The electric system is operated manually, showing the working state and part fault diagnosis function. It has shot blasting cycle timer, can accumulate the working time and how it. The system is very safe with interlocking and self-locking function and emergency stop button.

5. Inspection standard

Shot blasting machine: impeller body radial run-out≤0.15mm, face run-out≤0.05mm, dynamic balance detection≤18 N.mm, blank running the main spindle for one hour, the temperature will increase≤35ºC.

Separator: After separator, in the qualified shots, slag≤1%, in the dust and other dun-dries, qualified shot≤0.5%.

6. Supply range

No

Name

Qty

Remark

1

Cleaning room

1

Wear-resisting cast steel plate

2

Shot blasting assembly 2

2

American WHEELERB

RATOR technology

Protection plate is high chrome cast steel, Cr≥18%

3

Shot blasting assembly 2

2

4

Electric system

1

Normal control

5

Bucket hoister

1

Cycloidal reducer

6

Spiral conveyor

1

Cycloidal reducer

7

Shot slag separator

1

American PANBRON technology with cycloidal reducer

8

Shot control system

4

Imported Airtac air cylinder

9

Chamber

1

Wear-resisting rubber protection plate

10

Pneumatic system

1

Imported Airtac pneumatic components, air source system, air cylinder

11

Dust remover

1

Cyclone dust remover, impulse filter dust remover, fan, tube, chimney

12

Platform,ladder, rail

1

7. Carried spares

Name

Model

Quantity

Note

Impeller

Q034Z8-3

4

Orientation sleeve

Q034Z8-2

4

Blade

Q034Z8-1

32

8. Diagram

Shot Blasting Machine for LPG Gas Cylinder Manufacturing



FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
