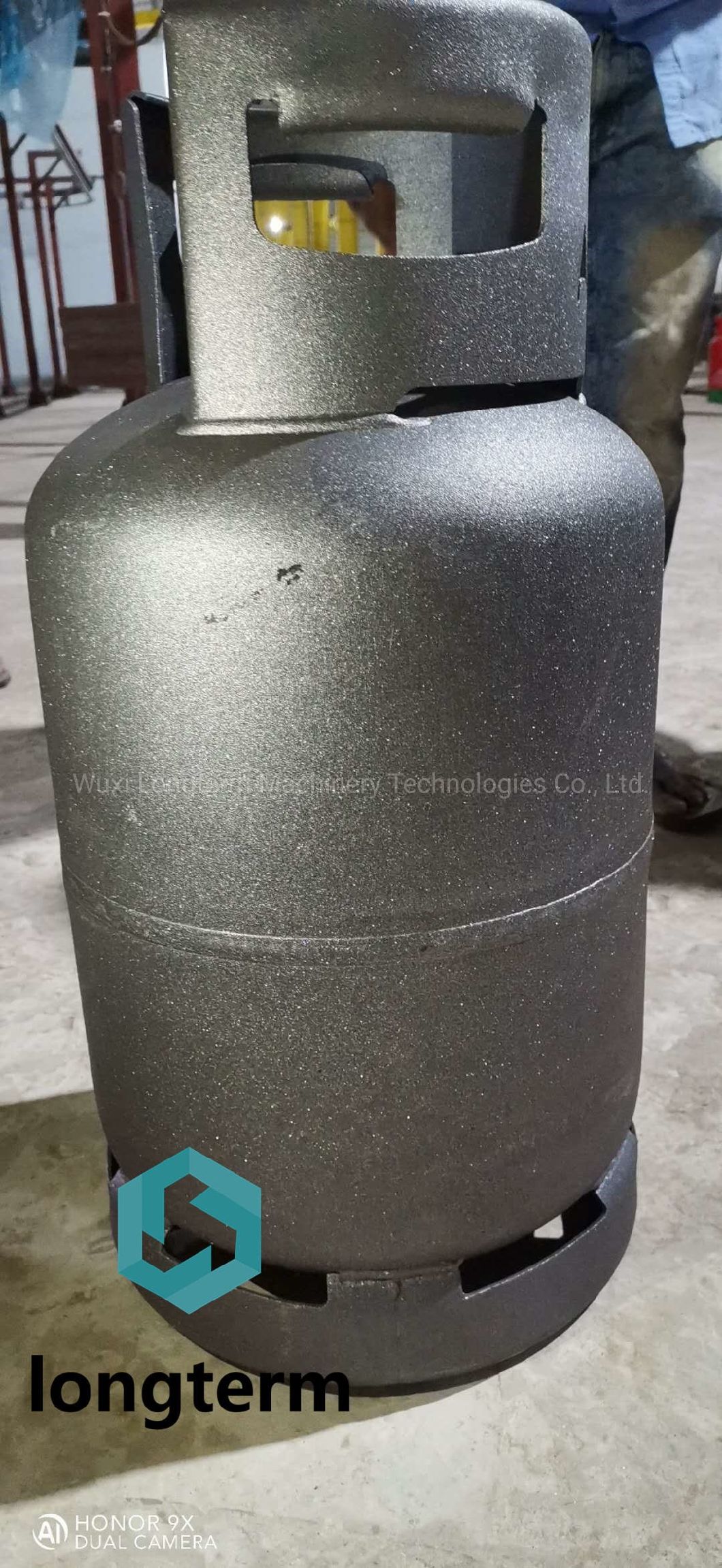

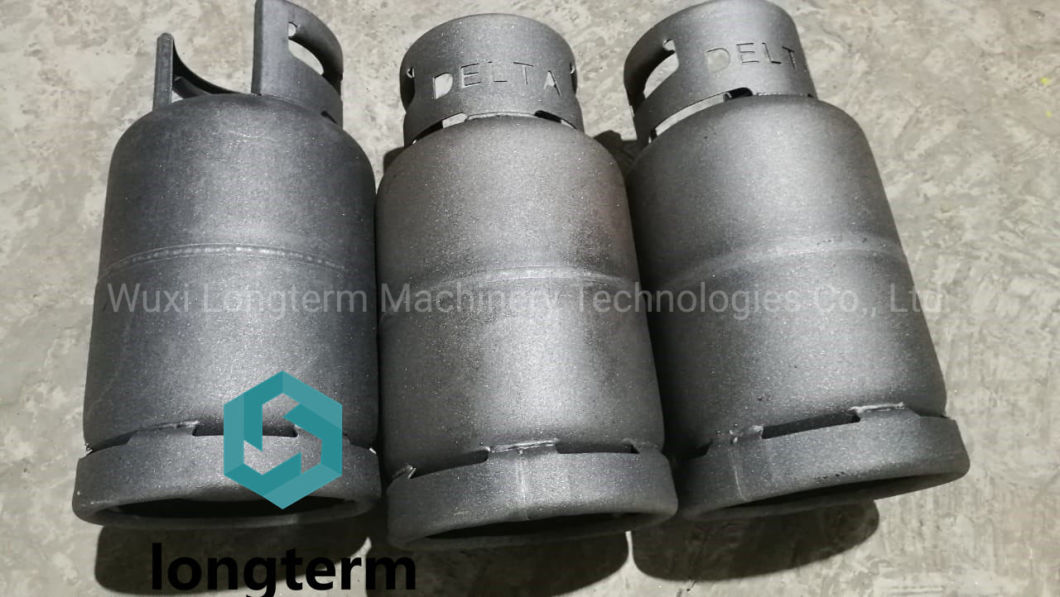

The shot blasting machine refers to the casting equipment that uses the high-speed projectile thrown by the shot blasting machine to clean or strengthen the surface of the casting. The shot blasting machine can shake out, de-core and clean the castings at the same time. In some areas, it is also called a sandblaster and a sandblaster. Vertical shot blasting machine, connected with powder spraying line conveyor chain; efficiency 1300PCS/8HThis machine is a special shot blasting machine for liquefied gas cylinders. With the help of the high-speed pill stream ejected by the multifunctional high-efficiency shot blasting device, it hits the surface of the liquefied gas cylinder and achieves the effect of shot blasting to remove the oxide scale, so that the surface of the cylinder is silver-gray, and it has the effect of eliminating stress and improving the adhesion of the surface coating. ; The shot blasting process can also be used to increase the surface pre-compression stress of the above-mentioned workpiece, improve the fatigue strength, and achieve the purpose of shot blasting.

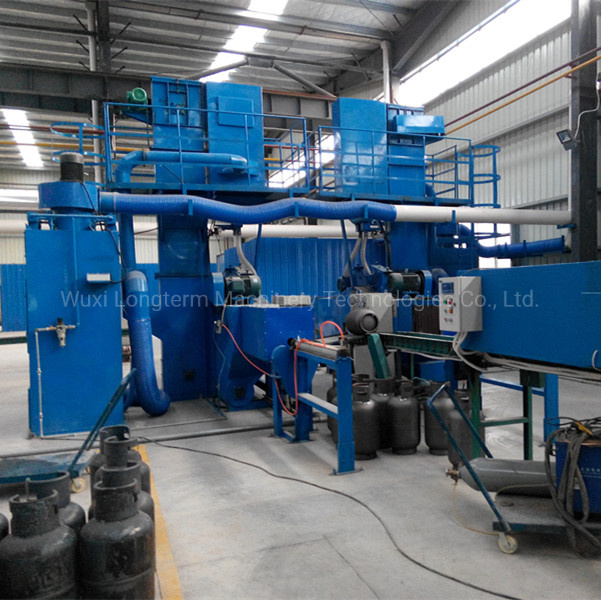

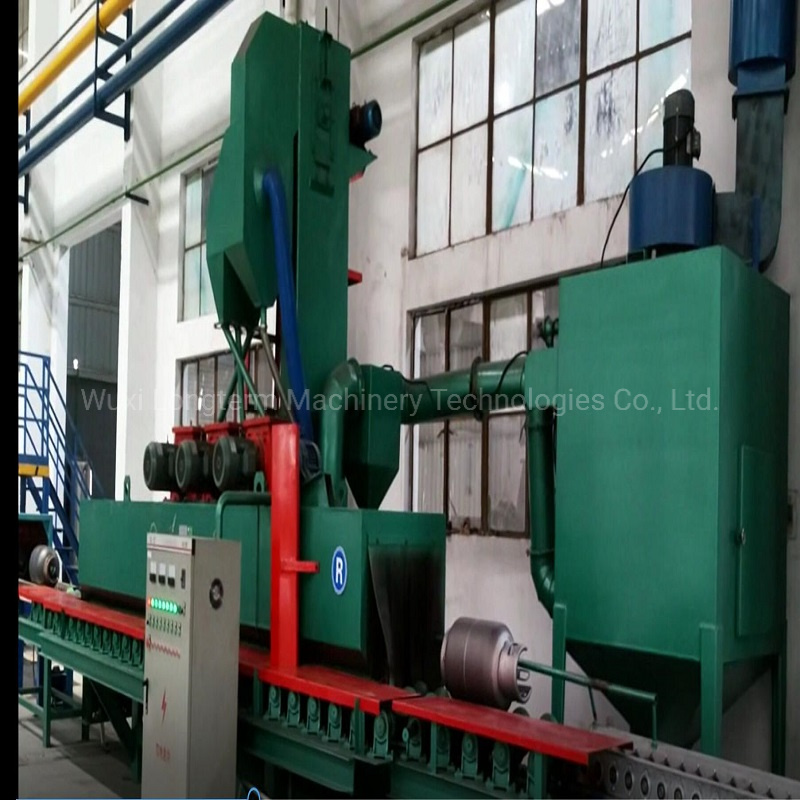

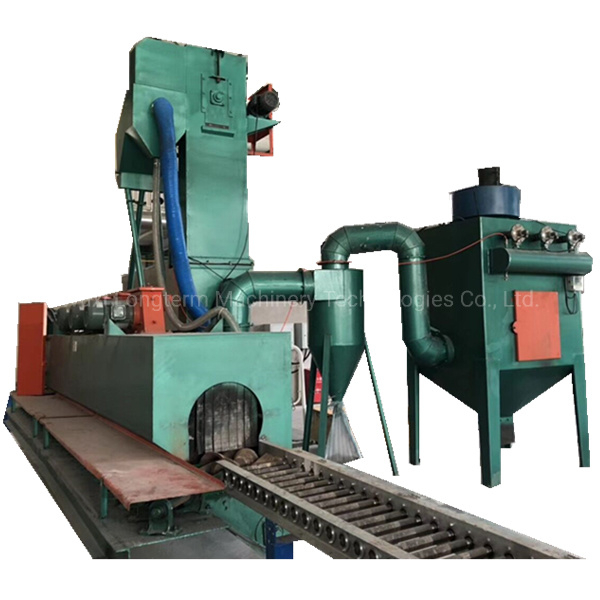

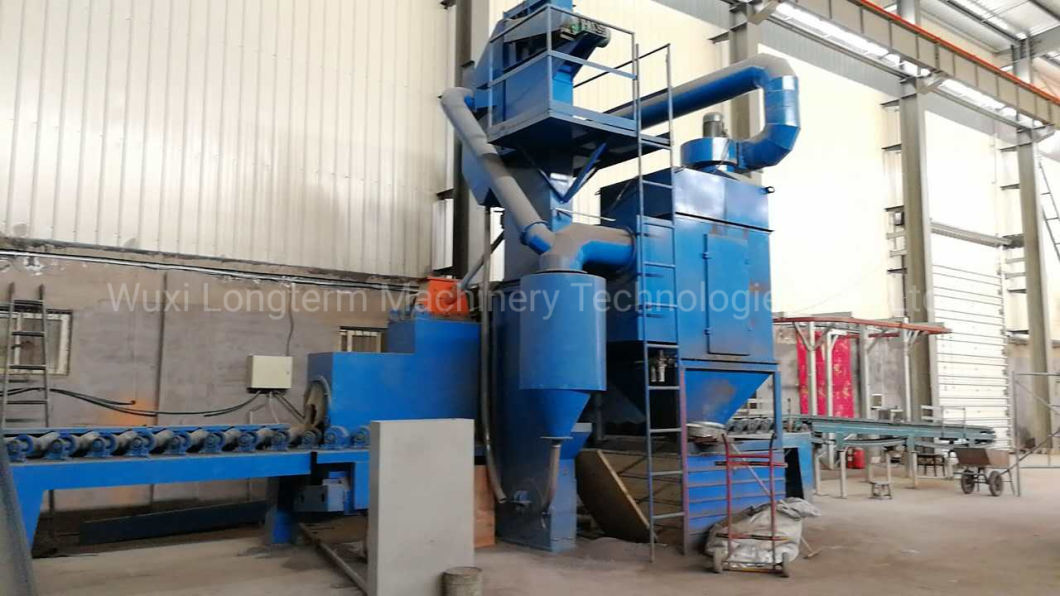

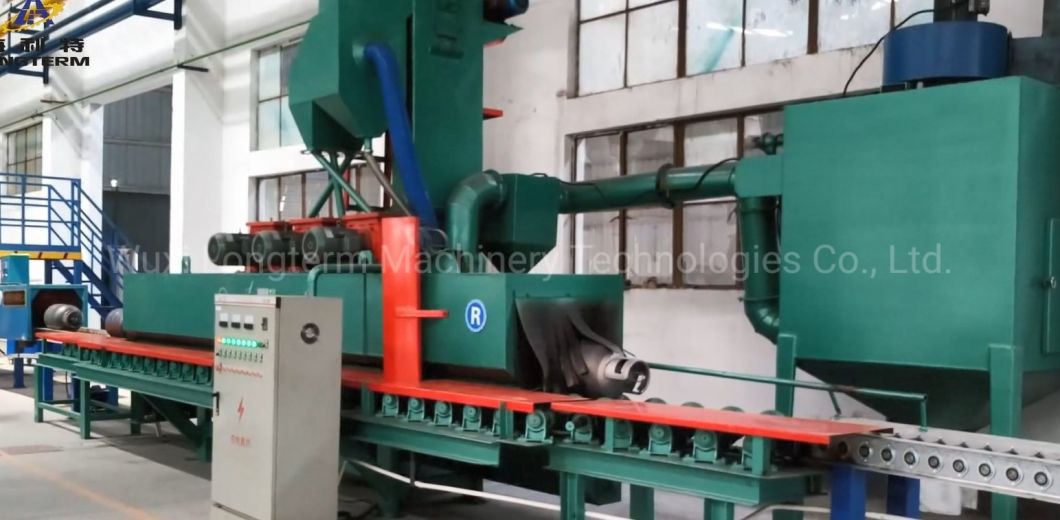

Shot Blasting Machine for different sizes of LPG Gas Cylinders^
The shot blasting machine is mainly composed of 4 parts:
| Productivity || 275 pieces/h |
|Workpiece parameters Workpiece mass ||<50 kg |
|Workpiece size || 20lb φ305×447 mm |
|Quality grade || GB8923-88A-B, Sa2.5 or SISO55900-1986 A-B Sa2.5 (Swedish standard) |
|Use abrasive: || 0.8~1.2 (steel cut shot) |
|Steel surface roughness ||Steel surface roughness |
|Noise level: ||Noise level: |
| Total machine power || 4sets |
1. The shot blaster generally uses a high-speed rotating impeller to project the projectile in a certain direction under the action of high centrifugal force. During the working process, some shot blasting machines can swing at a certain angle or move up and down.
2.projectile collection, separation and transportation system.
3. The carrier that makes the casting run and turn continuously during the shot blasting cleaning process.
4. Dust removal system. Package and delivery Our exhibition on LPG Fair

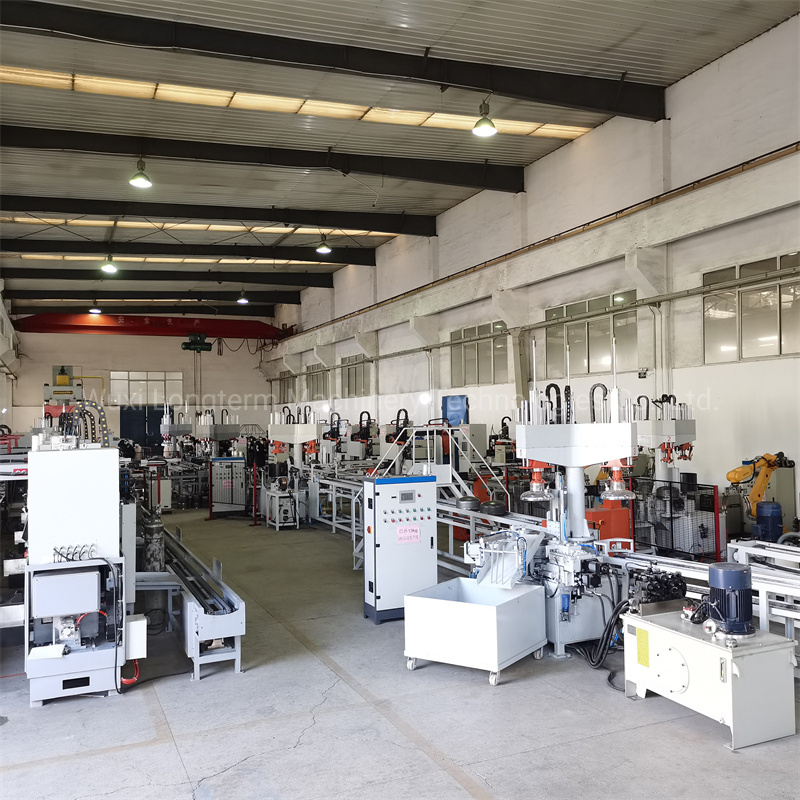

We specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time. Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh, Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya, Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the manpower and increasing the productivity.
FAQ Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing We need to know following information to quote you correct machines: In order to hel you make a right machine, here is osme queston need check with you as below: 1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(such as 6kg, 12kg)
3..What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
