CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

Quantity:



Inquire Add to Basket

Automation:
Automatic
Certification:
CE, CB, CSA, ETL, RoHS, UL, UR
Feature:
Critical Cleaning / Residue Free
Condition:
New
Customized:
Customized
Efficiency:
40 PCS/H
Name:
CNG Cylinder Shot Blasting Machine
Power:
50kw
Shot Blaster:
Hj360 Shotblaster
Amount of Steel Shot:
3 T
Cartridge Number:
12
Blasting Capacity:
250kg/Min
Steel Shot or Steel Cut Wire Shot:
1.0~1.5
Rotary Conveying Capacity:
45t/H
Conveyor System Speed:
1~4r/Min
Color:
Customized
Max Rate of Flow:
300 Kg/Min
Dirt Catcher Power:
7.5kw
Discharged Dust Consistence:
Lower Than 80mg/M3
Machine Noise:
Lower Than 90 dB
Transport Package:
Standard Seaworthy Package
Origin:
Jiangsu, China
HS Code:
8424300000
Production Capacity:
5000PCS/Year
Customization:
Available | Customized Request

Product Description

Product Description

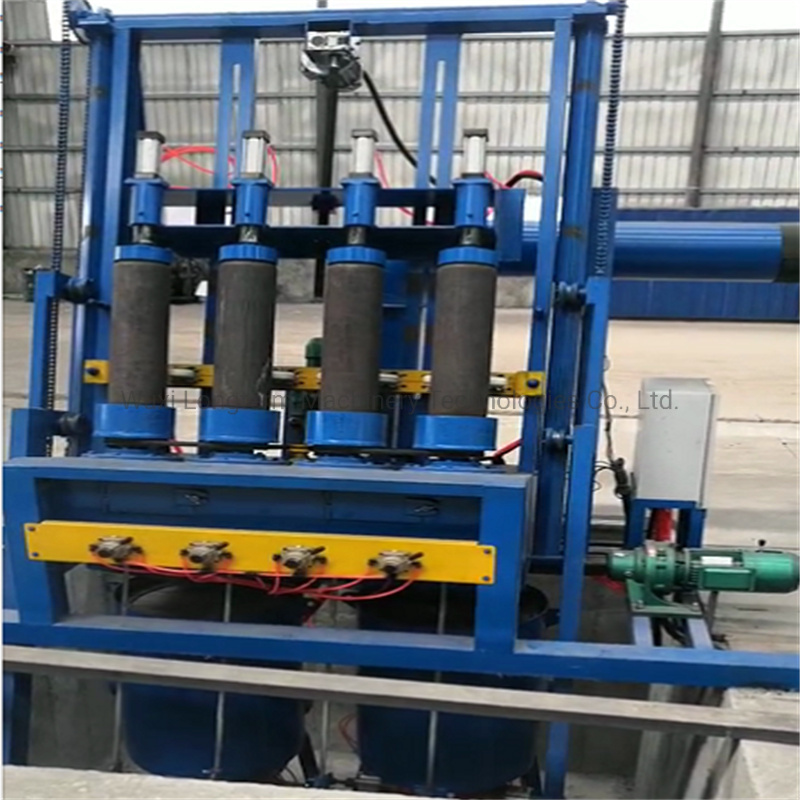

CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

Production Induction:

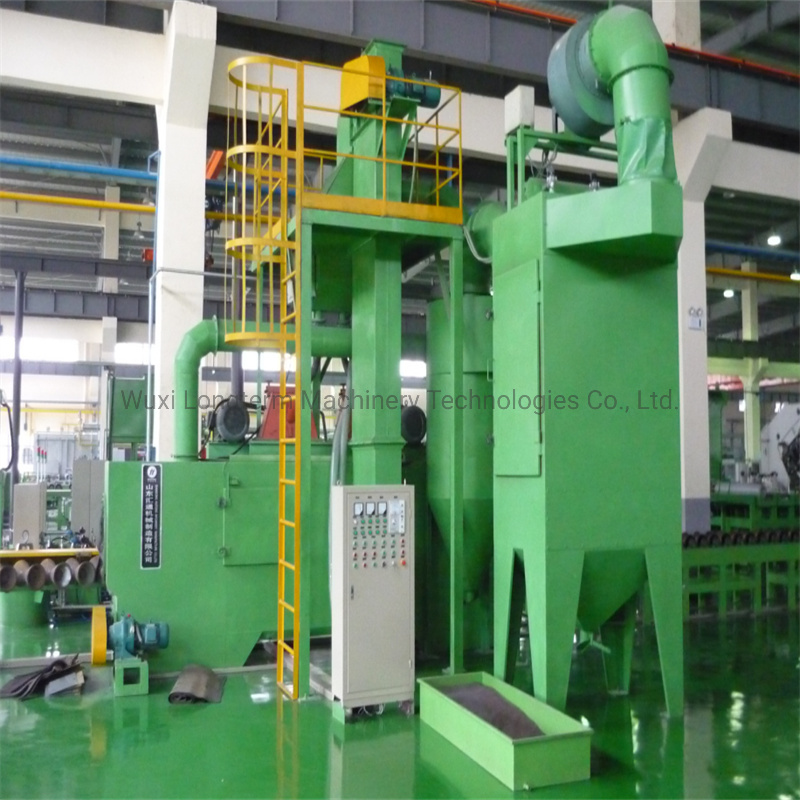

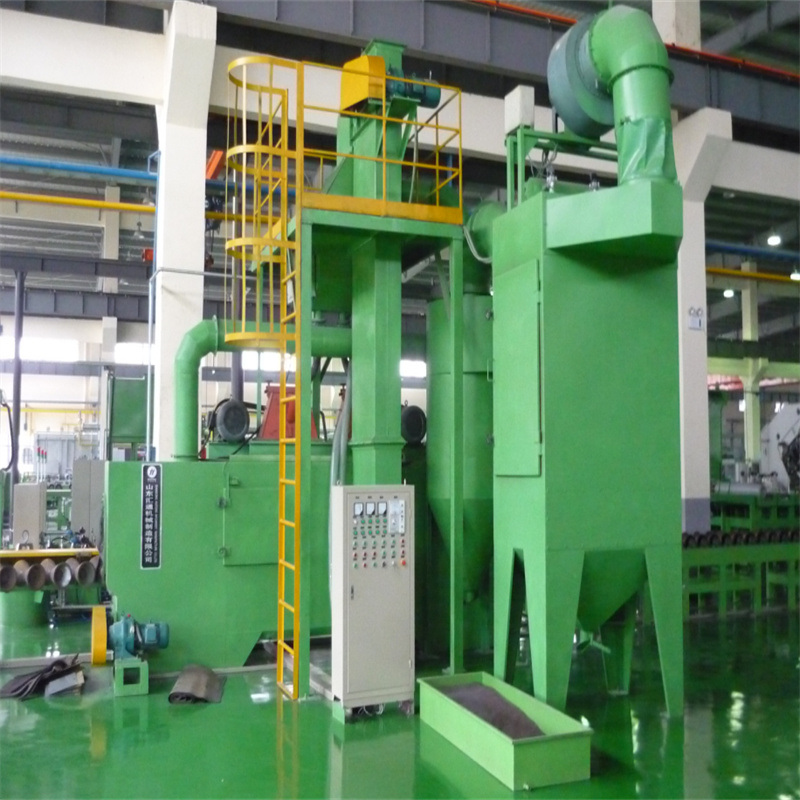

1.Cylinder internal sand blasting machine

Sandblasting is a method of using compressed air to blow out quartz sand at high speed to clean the surface of parts.The main function of sandblasting is to remove rust and scale on the surface, such as parts after heat treatment.Sandblasted sand, which is just river sand, is no different from that used in construction, except that the sandblasted sand is screened, contains less mud, and has a particle size specification. Of course, some industries are also different. For example, the shot blasting in the shipbuilding industry uses real steel shot, and the sand blasting uses metal ore (not river sand-quartz sand).

1. During the sandblasting process, clean up the attachments, welding slag, grease and other dirt on the metal surface;
2. During the sandblasting process, the air temperature should also be kept below 85 degrees;
3. The compressed air used in the sandblasting process needs to be treated by a cooling device and an oil-water separator to ensure that the compressed air is dry and oil-free;
Fourth, the best choice of abrasive is ceramic sand and iron sand. The abrasive is required to be angular, clean, dry and free of oil.

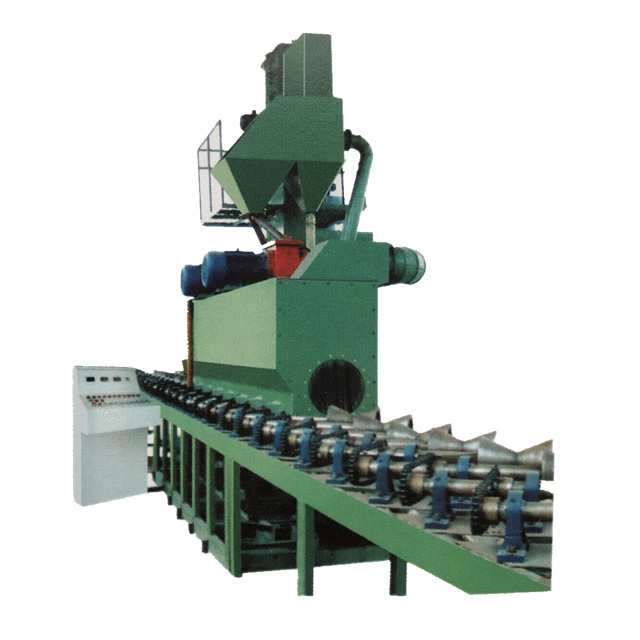

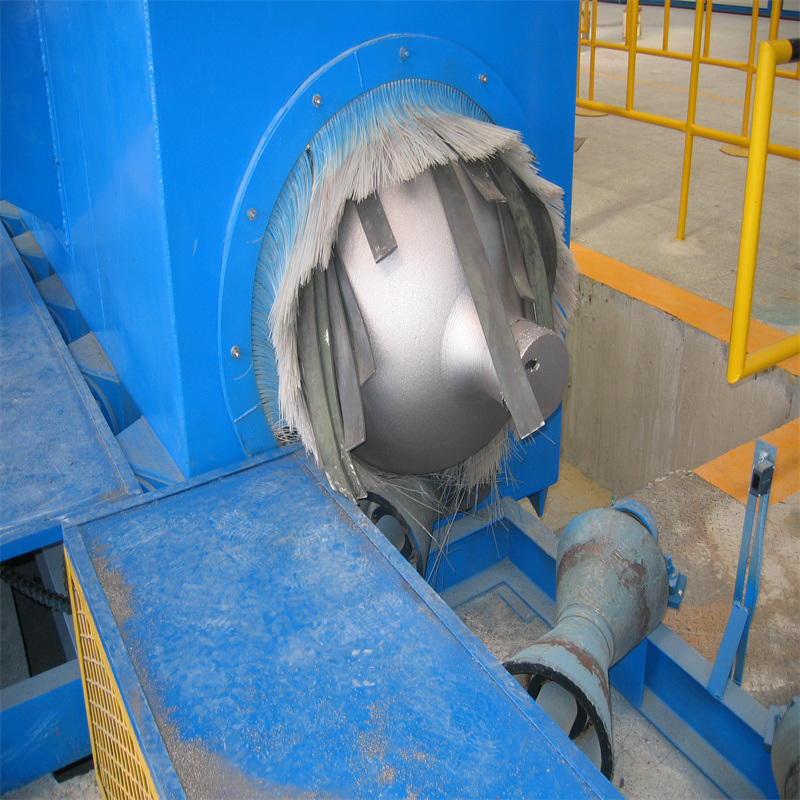

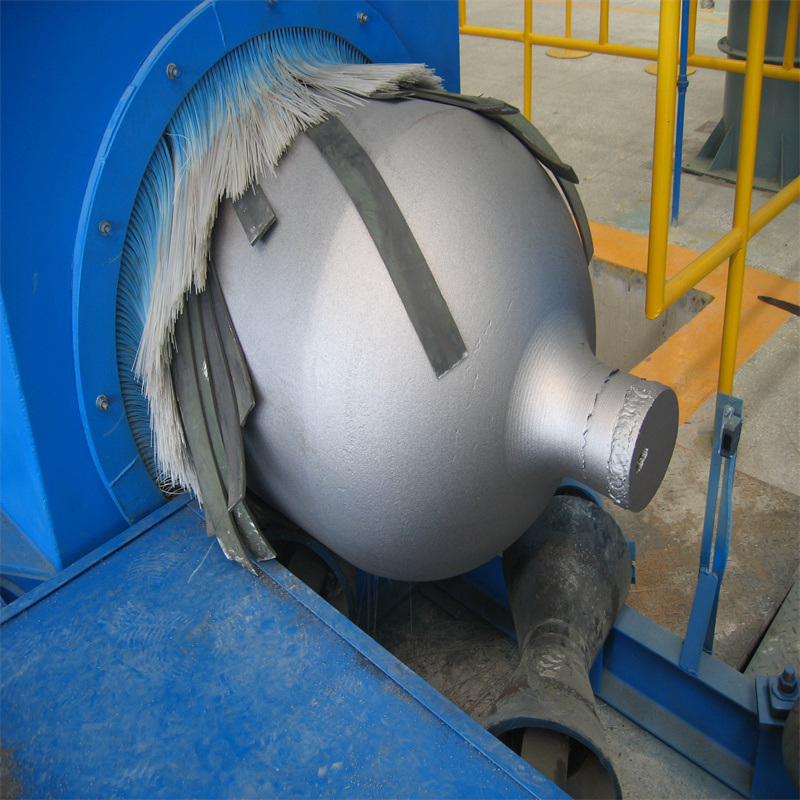

2.External shot blasting machine
The shot blasting machine refers to the casting equipment that uses the high-speed projectile thrown by the shot blasting machine to clean or strengthen the surface of the casting. The shot blasting machine can shake out, de-core and clean the castings at the same time. In some areas, it is also called a sandblaster and a sandblaster.
CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

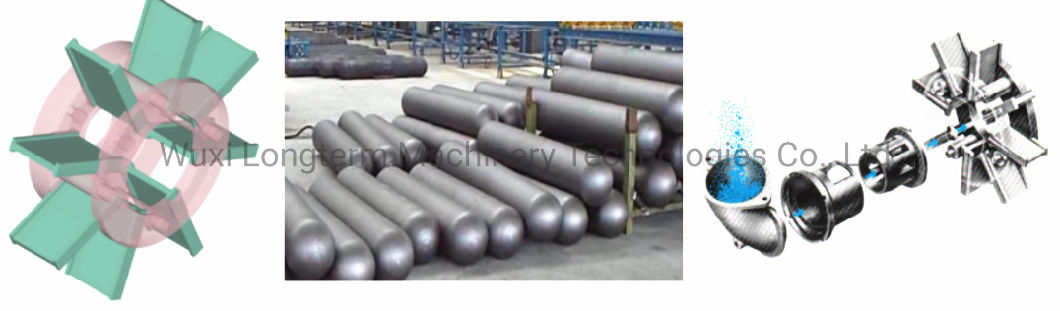

1. Shot blasting is to use a high-speed rotating impeller to throw small steel shot or small iron shot out to hit the surface of the part at high speed, so the oxide layer on the surface of the part can be removed.
2. Shot blasting has many functions and functions. It not only removes rust and oxide scale, but also improves surface roughness, removes machining burrs, eliminates internal stress of parts, reduces deformation of parts after heat treatment, and improves surface wear resistance of parts. pressure capacity, etc.
3. The steel shot and iron shot used in shot blasting are not actually shot in the real sense. To be precise, it is a small steel wire or a small steel rod, which only looks like a ball after a period of use.
CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

Technical parameters:
1.Cylinder internal sand blasting machine

No. of Stations:	2
Roughness of the surface	20-50um
Efficiency of the cleanness	150-180pcs/8h
Dimension	4200×5000×3300mm
Shot blasting machine type	ST60-DC-2D
No. of guns	2
Working pressure	0.8MP
Volume	0.5t
Total consumption of compressed air	12m3/min
Speed	(1200-1500)kg/h
Dust collector	Filter cartridge dust collector
Total power	7.5KW

2.External shot blasting machine

NO	Product Name	QTY	Main Parameters
1	Workpiece size		Dia:Φ219-Φ406mm
1	Workpiece size		Length:800-2100mm
2	Cleaning requirement		Meet standard of
2	Cleaning requirement		GB8923-88 A-B Sa2 1/2
3	Production speed		Max size:Φ410 40pcs/h
4	Shot blaster	2	Type:Q034 Power: 2×15KW
5	Steel shot		Steel shot or steel cut wire shotΦ1.0~1.5
6	Amount of steel shot		3 T
7	Conveyor system	1	Speed:1~4r/min
7	Conveyor system	1	(electromagnetic speed control)
8	Bucket elevator	1	Capacity: 45t/h
9	Rotary conveying	1	Capacity: 45t/h
10	Segregator	1	Capacity: 45t/h speed:4~5 m/s
11	Steel shot controller	2	Pneumatic valve
11	Steel shot controller	2	Max rate of flow:300 kg/min
12	Dirt catcher	1	Cartridge number:12
			Power: 7.5kW
			Cyclone dust removal+ cartridge
13	Discharged dust consistence		≤80mg/m3
14	Machine Noise		≤90 dB
15	Total Power		~50kW

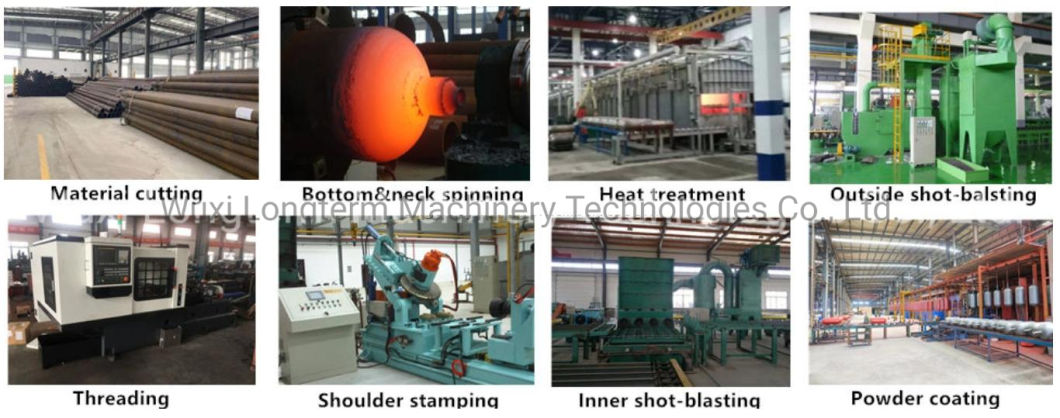

Processing Details:

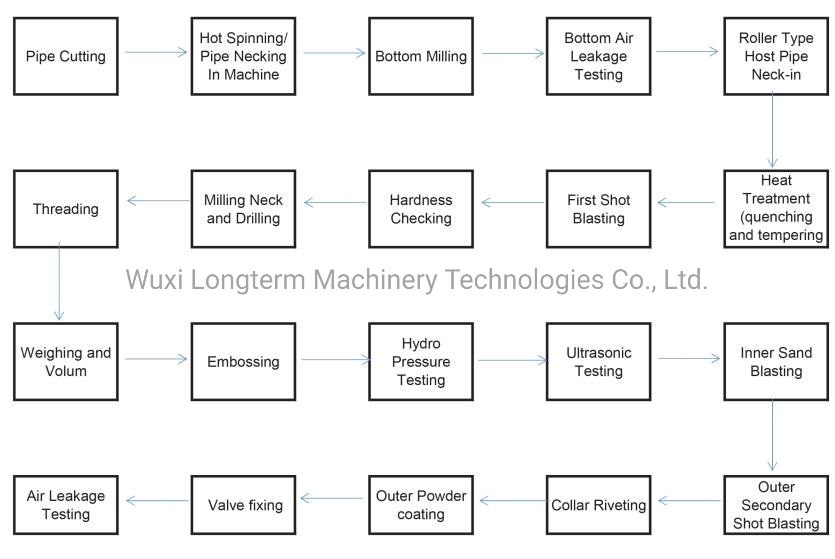

CNG Cylinder Production Line Flow Chart
CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

Related Machines:

Hot Spinning Machine

The key process of CNG gas cylinder processing is bottom closing and month closing.These two processes use special equipment to spin seamless steel pipes. The entire bottle body is one body, and no welds are allowed.

LONGTERM is the manufacturer in the field of hot spinforming machinery in China, with a well established reputation for outstanding performance.

CNG Gas Cylinder Threaded Screw Machine

1.The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as
well as threading, which are realized by NC programming.

2.Single station device is adopted for input and output materials(semi-automatic);

3.The work piece clamping adopts the front top
bowl positioning.

CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).

Package and delivery:
Package: Standard seaworthy package for CNG cylinder making machines
Delivery: 30 days after your advance payment

Our company:
Wuxi Longterm Machinery Technologies Co.,Ltd:

LONGTERM is the manufacturer in the field of CNG Cylinder Making Machines in China, with a well established reputation for outstanding performance.
Recognized worldwide for its proprietary design and manufacturing know how. LONGTERM has been involved in this industry since 1990. We got here on the basis of providing strong support to clients who buy our machinery.

When you 'down' - our job is get you back 'up'

Servicing on our machinery has been greatly facilitated by advances in remote control software. This allows us to troubleshoot issues half way around the world and gets you up and running in time frames!
We understand what our customers need to stay competitive:

* Custom quality parts
* At an affordable rate
* In the fastest possible

Meeting these goals requires precision in everything we do.
We are proud to offer these hot spinforimng services. But more importantly, we're proud we've helped our customers meet their component manufacturing demands, to grow their business.
CNG Gas Cylinder Seamless Steel Cylinder Shot Blasting Machine

FAQ:
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.

Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG machinery with more than 25 years of experience and a strong professional R & D team

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

We need to know the following information to make the quotation to you:

1. The technical drawing of the cylinder.
2. Daily capacity.
