Semi-Automatic LPG Cylinder Screen Printing Machine

Quantity:
  • Longterm Machinery

  • Product Line

  • 2PC/Min

  • 0.5 Ton

  • 2 Color Once

  • LPG Cylinder Printing Machine

  • 700*600mm(L*W)

  • <2g/PCS

  • 1.5kw

  • 2.65-4mm

  • 6kg, 12kg, 25kg, 48kg, or Customized

  • 250~800mm or Customized

  • Standard Seaworthy Package

  • LONGTERM

  • China

  • 50/Year

  • Available | Customized Request

Product Description

Printing machine

A. Product Description
Printing size:700*600mm(L*W)
Max. Producing efficiency:2pc/min
(include the cylinder loading&unloading time)
Ink consumption:<2g/pcs
Color: two colors once
Motor power:1.5KW
Weight: 0.5T

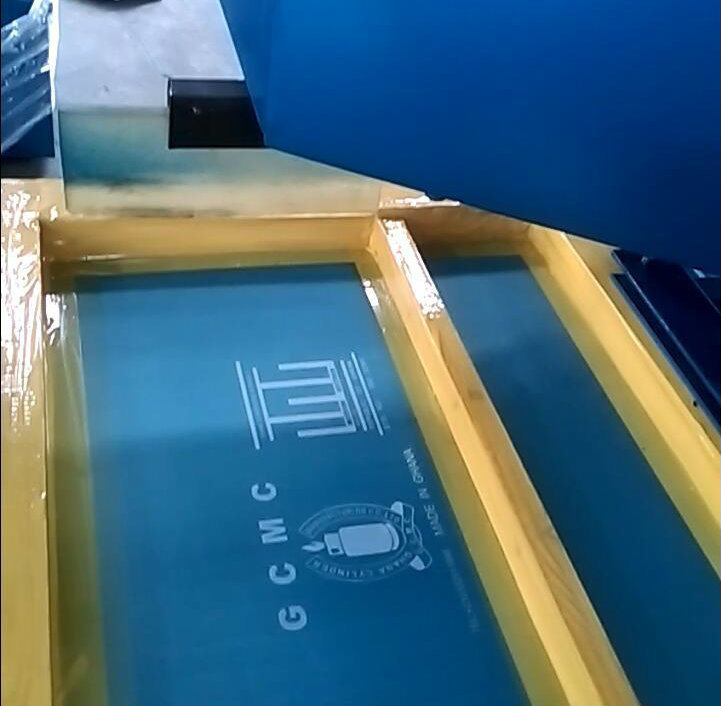

The machine has included one screen.
Semi-Automatic LPG Cylinder Screen Printing Machine

B. Automatic lpg gas cylinder production line
Machine list:
No Machine name
1 Mechanical decoiler,straightening and blanking line(with scrap shearing machine)
2 Deep drawing machine
3 Auto flushing machine for deep drawn heads
4 Automatic trimming &polishing machine
5 Automatic hole punching &logo making machine
6 Automatic socket welding machine
7 Automatic handle welding machine
8 Lower end dish trimming and polishing machine
9 Lower end dish automatic joggling machine
10 Automatic bottom base welding machine
11 Assembly and spot welding machine
12 Circumferential welding machine
13 LPG gas furnace(heat treatment)
14 Automatic online hydro testing machine
15 Drying oven
16 Shot blasting machine
17 Zinc metalizing machine
18 Powder coating line or Liquid Painting Line
19 Valve mounting machine
20 Air leakage testing machine
21 Printing machine
22 Handle decoiler &straightening and cutting line
23 Handle hole punching machine
24 Hydraulic Presser-letter stamping(Optional)
25 Handle end bending machine(Optional)
26 Hydraulic coding machine
27 Handle rolling machine
28 Handle top R forming machine
29 Handle low R forming machine
30 Vertical Bottom base rolling machine
31 Double welding position welding fixture
32 Base forming machine
33 Hydraulic Precision sheet shearing machine(33KG only)
34 Sheet rolling machine(33KG only)
35 Automatic Seam Welder(33KG only)

Production Process
Semi-Automatic LPG Cylinder Screen Printing Machine

Automatic trimming & polishing machine with arms for both end dishes
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line
Semi-Automatic LPG Cylinder Screen Printing Machine

Automatic hole punching & logo making machine with arms for female half/top half
Punch the hole on top of the cylinder& stamp the logo
Semi-Automatic LPG Cylinder Screen Printing Machine
Double head Circumferential welding machine
fully automatic welding and monitoring.
Semi-Automatic LPG Cylinder Screen Printing Machine

C. FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
