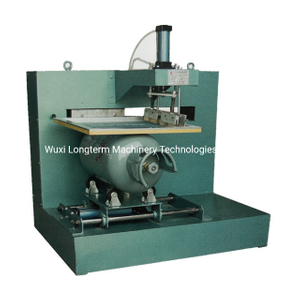

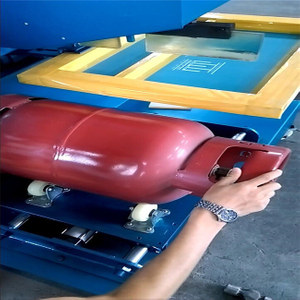

Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders

Quantity:
  • Cylinder Printing
  • USB2.0
  • Windowsxp64
  • Screen Printer
  • 1.5kw
  • 500kg
  • 6kg, 12kg, 25kg, 48kg, or Customized
  • 250~800mm or Customized
  • 2.65-4mm
  • Standard Seawood Package
  • Customized
  • LTM
  • Wuxi, Jiangsu, China(Mainland)
  • 8443192290
  • 1000 Sets/ Year
  • Available | Customized Request

Product Description

Product Description

Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders

Product Parameters
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders
item
value
Plate Type
Screen Printer
Applicable Industries
Manufacturing Plant
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Hansheng
Usage
Cylinder Printer
Automatic Grade
Automatic
Color & Page
Two colors
Voltage
1.5kw
Dimensions(L*W*H)
Customized
Weight
500KG
Certification
ISO
Max. Print Area
700*600mm
Warranty
1 Year
Key Selling Points
Long Service Life
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC, Engine
Production efficiency
>2pcs/min
Ink consumption
≤2g/pc
Color Range
2 color once
Cylinder Size
6kg, 12kg, 25kg, 48kg, or Customized
Cylinder Diameter
250~800mm or Customized
Cylinder Thickness
2.65-4mm

Features:

1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability, reliability,and most efficiency.

2: Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines hardware parts are made by CNC directly from CAD.

3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.

4: With PLC control system. Fast setup & quick tooling change over for customer's easy operation and adjustment.

5: Adopted with No-product- no print system, auto counter, safety alarm device.

6: Optional: Made based on the customer's special requirements. devices, antistatic dust removing
device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor, offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.

7:Electronic UV Curing System for mostly power rate saving, assuring the UV lamp's longest life span,
adjustable UV identity from 20%-100%

Advantages:

1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High precised and perfect registering double-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: equipped with electronic control UV curing system for adjust the UV density ranges from 0-100%

Company Profile

Our company specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.

Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya, Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious
improvement on saving the manpower and increasing the productivity.

Exhibition
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders
Part of Customers
Our Team
Logo Printing Machine Silk Screen Printing Machine for LPG Gas Cylinders

FAQ

Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
