Rotate Type Hydro Testing Machine for LPG Gas Cylinder Manufacturing Line

Used for the recycling of residual gas and liquid in the LPG cylinder.

1. Power:7.5kw

2. Gas & liquid separator:0.4m⊃3;

3. Air source pressure:0.4-0.6Mpa

4. Turnover period:<30s/time

5. One time residual cleaning time:≥2min

6. Overall size:4700*1500*2050mm

7. Working efficiency: 125 cylinders/hour

Quantity:
  • HLT
  • Longterm
  • 84629190

Product Description

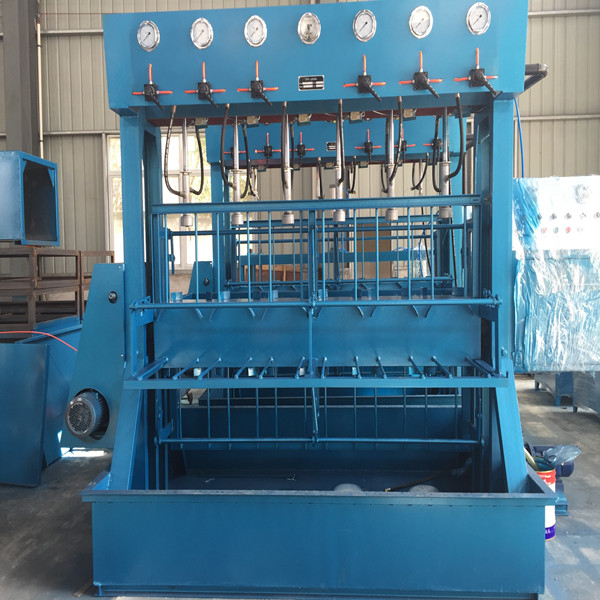

Rotate Type Hydro Testing Machine for LPG Gas Cylinder Manufacturing Line


The machine finishes the water pouring, hydraulic test, air pressure water draining out by independent step. There is transportation channel at the down part, which forms a complete set with conveying line .It adopts the water pump supplying and can be used circularly.


main parameter
gas pressure0.6-0.8MPa
hydraulic pressure testing pressure3.4MPa
drain air pressure0.6-0.8MPa
pour timeabout 50second (adjustable)
keep press time60second
drain timeabout 50second (adjustable)
weight4500Kg

hydro testing machine1_副本

It is special for steel cylinder of liquefied gas cylinders, applicable to manufacturers and testing station for wuthstand voltage test on cylinder. Irrigation, pressurization, pressure, maintaining centralized control and automatic pouring completed by using water pump, equipped with a water tank, water can be recycled.


Our Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.


FAQ

LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
