Professional High Pressure Vessel Welding Equipmen
Continuous Seam Welder
6000*2000*5000mm
1 Year
380V / 50Hz or Customized
31kVA
60%~100%
90 Days
50-1000mm/Min
Ce / ISO9001: 2008
Welding Machine / Welding Rotator
Control Cabinet / Computer Control
The Submerged Arc Welding
1.0~1.6mm
2800mm/Min
Standard Seaworth Package
Longterm
Longterm
China, Jiangsu
851531900
2 Sets/Quarter
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description

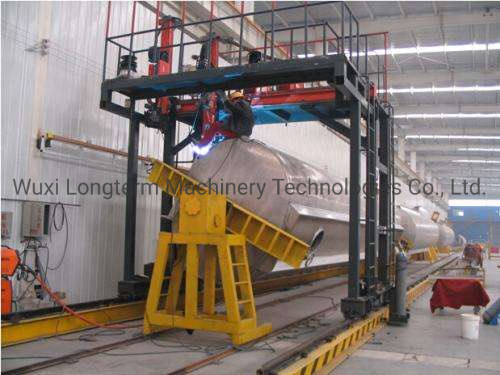

Pressure Vessel / Big LPG Tank Welding Procedures
Specific Parameters

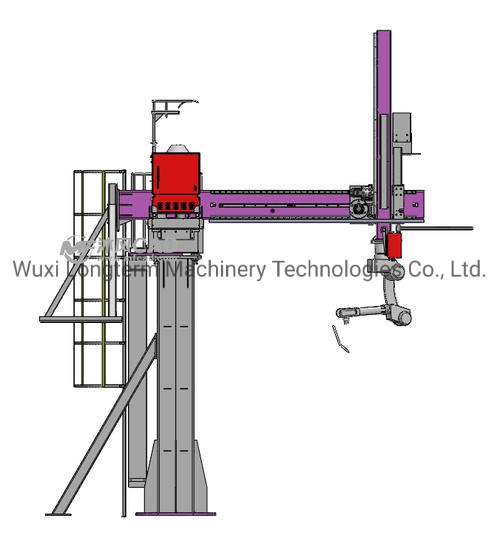

| Products form | DLH-Heavy duty | DLH-Middle size | DLH-Light duty | DLH-Small size | ||
| Model | DLH6070 | DLH5060 | DLH4050 | DLH3040 | DLH2030 | DLH1015 |
| Vertical elevation stroke | 6000 mm | 5000 mm | 4000 mm | 3000 mm | 2000 mm | 1000 mm |
| Boom retracting stroke | 7000 mm | 6000 mm | 5000 mm | 4000 mm | 2000 mm | 1000 mm |
| Frame rotation angle | ± 180° | ± 360° | ||||
| Frame rotation speed | 0.3 rpm | Manual | ||||
| 0.3 | ||||||
| Boom elevation speed | 1 m/min | 0.3 m/min | ||||
| Boom feeding speed | 0.12-1.2 m/min | Manual | ||||
| Trolley feeding speed | 3 m/min | Manual | ||||
| Trolley rail span | 2000 mm | 1800 mm | 1000 mm | 800 mm | ||
Products Files
For high productivity seam welding of cylinders,using MIG,or MAG processes.
The part loading tooling can be rapidly changed to accommodate different part diameters.
The automatic centering device,part hold down blade,finger banks,and part loading cylinders are sequenced through a PLC (programmable logic control) and interfaced to the included system control.
The side beam track is fitted with hardened round ways for smooth precise travel.
The carriage uses hardened bearings and a precision DC motor with tachgenetator feedback.
Linear style drive for the carriage is standard.
Various speed ranges and speed holding accuracie are available.
Copper backing bars and reversible copper finger tips are standard.

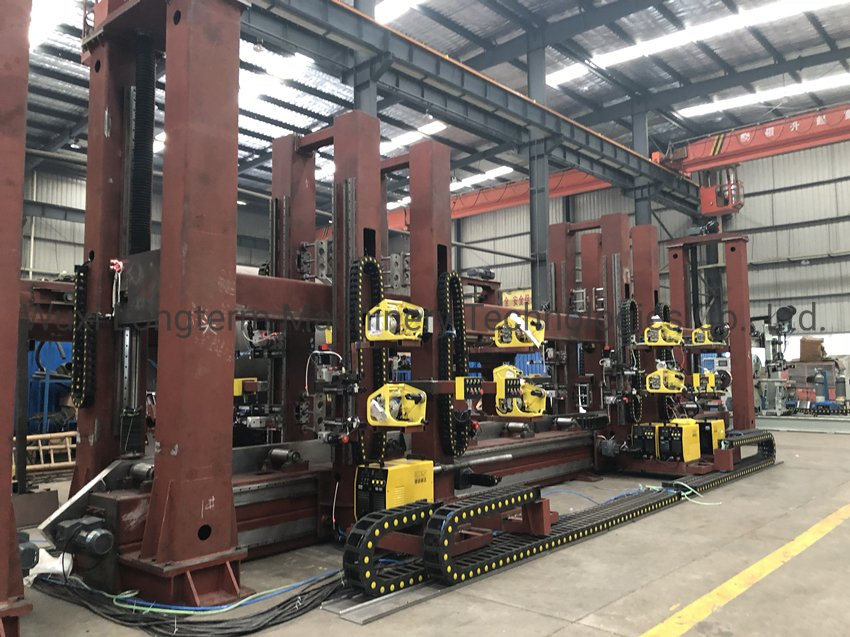

Circumferental seam welder with 2 torches
For high productivity seam welding of cylinders,using MIG processes.
Adjustable cradle lift system to aid the operator in loading and unloading parts.
Remote podium for mounting controls.
Pneumatic torch retractors sequenced by the system controller.
Welding process integrated and weld tested.
Two welding processes for making two welds simultaneously.
Tooling for the headstock and tailstock to locate the part on rotational centerline.
