China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

Share to:

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Product Name:
High Speed Argon Arc Longitudinal MIG Seam / Circu
Machine Type:
Continuous Seam Welder
Dimension(L*W*H):
6000*2000*5000mm
Warranty:
1 Year
Power Supply:
380V / 50Hz or Customized
Power:
31kVA
Rated Duty Cycle:
60%~100%
Lead Time:
90 Days
Welding Speed:
50-1000mm/Min
Certification:
Ce / ISO9001: 2008
Main Equipment:
Welding Machine / Welding Rotator
Control Mode:
Control Cabinet / Computer Control
Welding Manner:
The Submerged Arc Welding
Welding Wire Diameter:
1.0~1.6mm
Gantry Longitudinal Returning Speed:
2800mm/Min
Transport Package:
Standard Seaworth Package
Specification:
Longterm
Trademark:
Longterm
Origin:
China, Jiangsu
HS Code:
851531900
Production Capacity:
2 Sets/Quarter
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

China Self Aligning Pipe Welding Machine, Pressure Vessel Mig Pipe Welding Equipment#

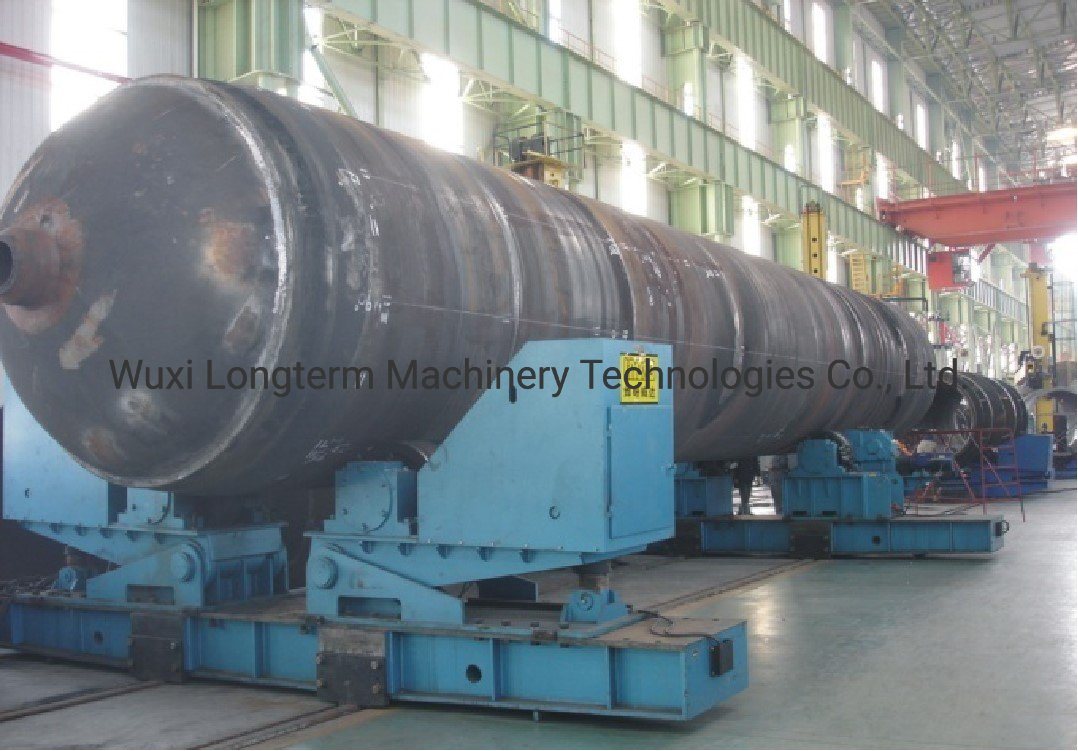

Pressure Vessel / Big LPG Tank Welding Procedures

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

Specific Parameters

Products form	DLH-Heavy duty		DLH-Middle size		DLH-Light duty	DLH-Small size
Model	DLH6070	DLH5060	DLH4050	DLH3040	DLH2030	DLH1015
Vertical elevation stroke	6000 mm	5000 mm	4000 mm	3000 mm	2000 mm	1000 mm
Boom retracting stroke	7000 mm	6000 mm	5000 mm	4000 mm	2000 mm	1000 mm
Frame rotation angle	± 180°					± 360°
Frame rotation speed	0.3 rpm				Manual
Frame rotation speed	0.3				Manual
Boom elevation speed	1 m/min					0.3 m/min
Boom feeding speed	0.12-1.2 m/min					Manual
Trolley feeding speed	3 m/min				Manual
Trolley rail span	2000 mm		1800 mm		1000 mm	800 mm

Products Files

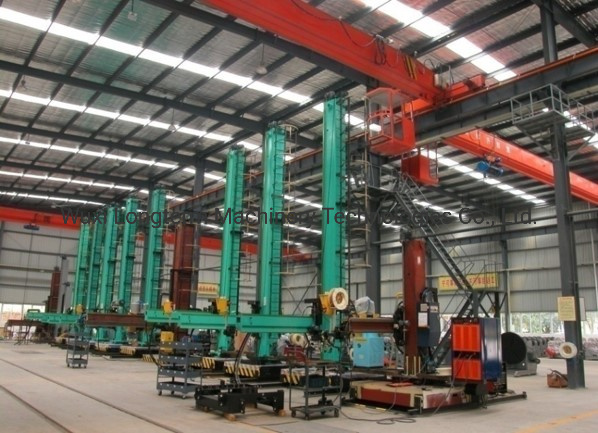

Welding manipulator:

Automatic welding manipulator: CE, ISO
1. Working with turning rolls and weld.

2. Kinds: Three styles: Fixed style, fixed style with rotative, moved style with rotative.

3. Advantage: Mechanical precision is higher, positioning is correct

4. Also can design and make according to your requirement.

5. Also can provide Seam Tracking and Monitoring Device, Weld Flux Recovery and Transfer Device according your requirement.

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

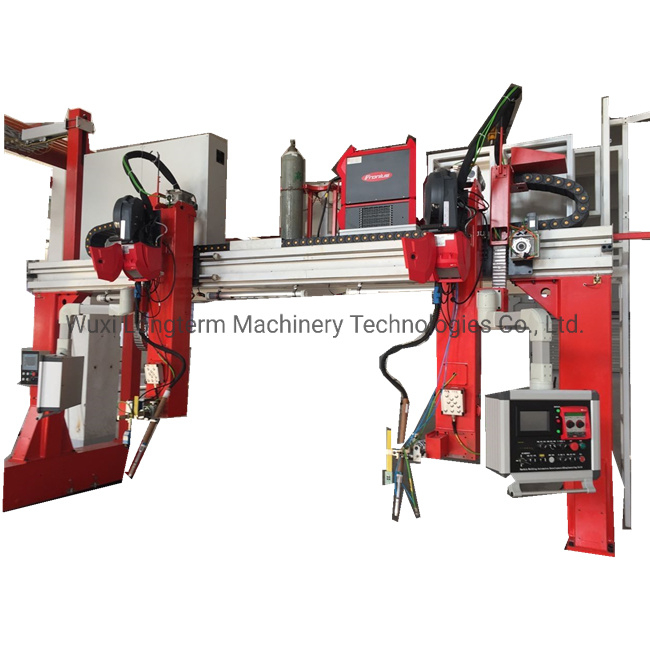

Automatic longtitudinal seam welder

For high productivity seam welding of cylinders,using MIG,or MAG processes.
The part loading tooling can be rapidly changed to accommodate different part diameters.

The automatic centering device,part hold down blade,finger banks,and part loading cylinders are sequenced through a PLC (programmable logic control) and interfaced to the included system control.

The side beam track is fitted with hardened round ways for smooth precise travel.

The carriage uses hardened bearings and a precision DC motor with tachgenetator feedback.

Linear style drive for the carriage is standard.

Various speed ranges and speed holding accuracie are available.

Copper backing bars and reversible copper finger tips are standard.

Circumferental seam welder with 2 torches

For high productivity seam welding of cylinders,using MIG processes.

Adjustable cradle lift system to aid the operator in loading and unloading parts.

Remote podium for mounting controls.

Pneumatic torch retractors sequenced by the system controller.

Welding process integrated and weld tested.

Two welding processes for making two welds simultaneously.

Tooling for the headstock and tailstock to locate the part on rotational centerline.

Machine Running

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

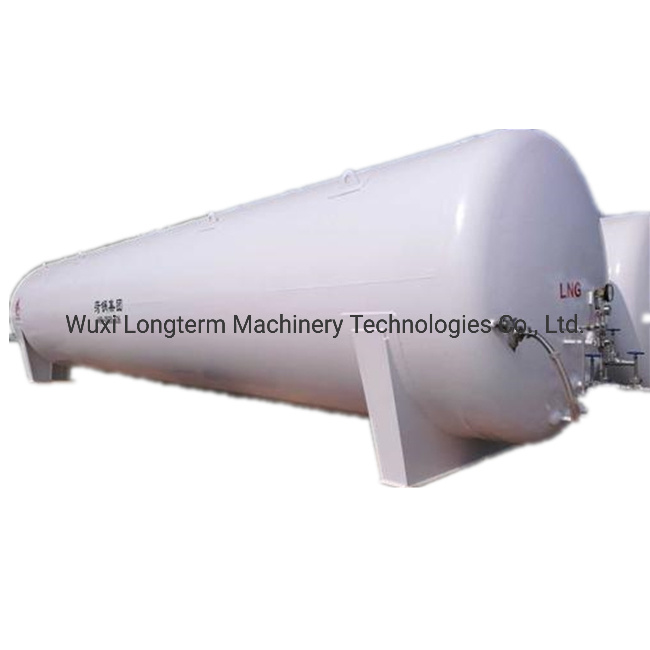

Application

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

Compressed air receiver

Compressed air is air kept under a pressure that is greater than atmospheric pressure. Compressed air is an important medium for
transfer of energy in industrial processes, and is used for power tools such as air hammers, drills, wrenches and others, as well
as to atomize paint, to operate air cylinders for automation, and can also be used to propel vehicles.

Recompression chambers

A diving chamber is a vessel for human occupation, which may have an entrance that can be sealed to hold an internal pressure
significantly higher than ambient pressure, a pressurised gas system to control the internal pressure, and a supply of breathing
gas for the occupants.

Oil refinery

Oil refinery or petroleum refinery is an industrial process plant where crude oil is transformed and refined into more useful products such as petroleum naphtha, gasoline, diesel fuel, asphalt base, heating oil, kerosene, liquefied petroleum gas, jet fuel and fuel oils

Packing and Delivery

Our Company

Wuxi Longterm machinery has been focus on the LPG/LNG cylinders and water heater tanks and medium size fire extinguisher cylinder welding since 1978. We are renowned in China and even the world for our leading teacnology. Wuxi Longterm weld has domestic operations located in Jiangsu Province, Sichuang Province and international engineering and manufacturing in China.. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

Certifications

China Self Aligning Pipe Welding Machine, Pressure Vessel MIG Pipe Welding Equipment#

FAQ

Q:How can you guarantee the quality of welding station?

A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order.And we have one year guaranteed,free parts can be send free within one year.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

Q:How long is the warranty for machines?

A:Machines warranty is 24 months after receive our machine. in Warranty time,we can provide new free parts for changing.

Q:Can you engineer come to our place to help with machine installation & commission?

A:Yes, our engineers are available to travel to your factory for machine installation and commissiong.
