Pressure Vessel Column and Boom Welding Manipulator Machine

Quantity:
  • Pressure Vessel Column and Boom Welding Manipulato
  • Continuous Seam Welder
  • 6000*2000*5000mm
  • 1 Year
  • 380V / 50Hz or Customized
  • 31kVA
  • 60%~100%
  • 90 Days
  • 50-1000mm/Min
  • Ce / ISO9001: 2008
  • Welding Machine / Welding Rotator
  • Control Cabinet / Computer Control
  • The Submerged Arc Welding
  • 1.0~1.6mm
  • 2800mm/Min
  • Standard Seaworth Package
  • Longterm
  • Longterm
  • China, Jiangsu
  • 851531900
  • 2 Sets/Quarter
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Pressure vessel column and boom welding manipulator machine

Pressure Vessel Column and Boom Welding Manipulator Machine

Pressure Vessel / Big LPG Tank Welding Procedures

Pressure Vessel Column and Boom Welding Manipulator Machine

Specific Parameters

Products form
DLH-Heavy duty
DLH-Middle size
DLH-Light duty
DLH-Small size
Model
DLH6070
DLH5060
DLH4050
DLH3040
DLH2030
DLH1015
Vertical elevation stroke
6000 mm
5000 mm
4000 mm
3000 mm
2000 mm
1000 mm
Boom retracting stroke
7000 mm
6000 mm
5000 mm
4000 mm
2000 mm
1000 mm
Frame rotation angle
± 180°
± 360°
Frame rotation speed
0.3 rpm
Manual
0.3
Boom elevation speed
1 m/min
0.3 m/min
Boom feeding speed
0.12-1.2 m/min
Manual
Trolley feeding speed
3 m/min
Manual
Trolley rail span
2000 mm
1800 mm
1000 mm
800 mm



Products Files

Welding manipulator:

Automatic welding manipulator: CE, ISO
1. Working with turning rolls and weld.

2. Kinds: Three styles: Fixed style, fixed style with rotative, moved style with rotative.

3. Advantage: Mechanical precision is higher, positioning is correct

4. Also can design and make according to your requirement.

5. Also can provide Seam Tracking and Monitoring Device, Weld Flux Recovery and Transfer Device according your requirement.


Pressure Vessel Column and Boom Welding Manipulator Machine



Automatic longtitudinal seam welder

For high productivity seam welding of cylinders,using MIG,or MAG processes.
The part loading tooling can be rapidly changed to accommodate different part diameters.

The automatic centering device,part hold down blade,finger banks,and part loading cylinders are sequenced through a PLC (programmable logic control) and interfaced to the included system control.

The side beam track is fitted with hardened round ways for smooth precise travel.

The carriage uses hardened bearings and a precision DC motor with tachgenetator feedback.

Linear style drive for the carriage is standard.

Various speed ranges and speed holding accuracie are available.

Copper backing bars and reversible copper finger tips are standard.



Pressure Vessel Column and Boom Welding Manipulator Machine

Circumferental seam welder with 2 torches

For high productivity seam welding of cylinders,using MIG processes.

Adjustable cradle lift system to aid the operator in loading and unloading parts.

Remote podium for mounting controls.

Pneumatic torch retractors sequenced by the system controller.

Welding process integrated and weld tested.

Two welding processes for making two welds simultaneously.

Tooling for the headstock and tailstock to locate the part on rotational centerline.


Pressure Vessel Column and Boom Welding Manipulator Machine

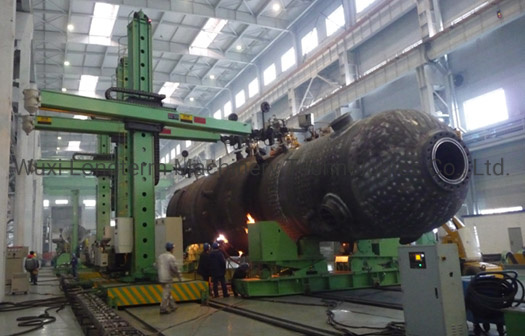

Machine Running


Pressure Vessel Column and Boom Welding Manipulator Machine


Application

Pressure Vessel Column and Boom Welding Manipulator Machine

Compressed air receiver

Compressed air is air kept under a pressure that is greater than atmospheric pressure. Compressed air is an important medium for
transfer of energy in industrial processes, and is used for power tools such as air hammers, drills, wrenches and others, as well
as to atomize paint, to operate air cylinders for automation, and can also be used to propel vehicles.

Recompression chambers

A diving chamber is a vessel for human occupation, which may have an entrance that can be sealed to hold an internal pressure
significantly higher than ambient pressure, a pressurised gas system to control the internal pressure, and a supply of breathing
gas for the occupants.

Oil refinery

Oil refinery or petroleum refinery is an industrial process plant where crude oil is transformed and refined into more useful products such as petroleum naphtha, gasoline, diesel fuel, asphalt base, heating oil, kerosene, liquefied petroleum gas, jet fuel and fuel oils



Packing and Delivery
Pressure Vessel Column and Boom Welding Manipulator Machine


Our Company

Wuxi Longterm machinery has been focus on the LPG/LNG cylinders and water heater tanks and medium size fire extinguisher cylinder welding since 1978. We are renowned in China and even the world for our leading teacnology. Wuxi Longterm weld has domestic operations located in Jiangsu Province, Sichuang Province and international engineering and manufacturing in China.. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.

Pressure Vessel Column and Boom Welding Manipulator Machine


Certifications

Pressure Vessel Column and Boom Welding Manipulator Machine








FAQ

Q:How can you guarantee the quality of welding station?

A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order.And we have one year guaranteed,free parts can be send free within one year.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

Q:How long is the warranty for machines?

A:Machines warranty is 24 months after receive our machine. in Warranty time,we can provide new free parts for changing.

Q:Can you engineer come to our place to help with machine installation & commission?

A:Yes, our engineers are available to travel to your factory for machine installation and commissiong.
