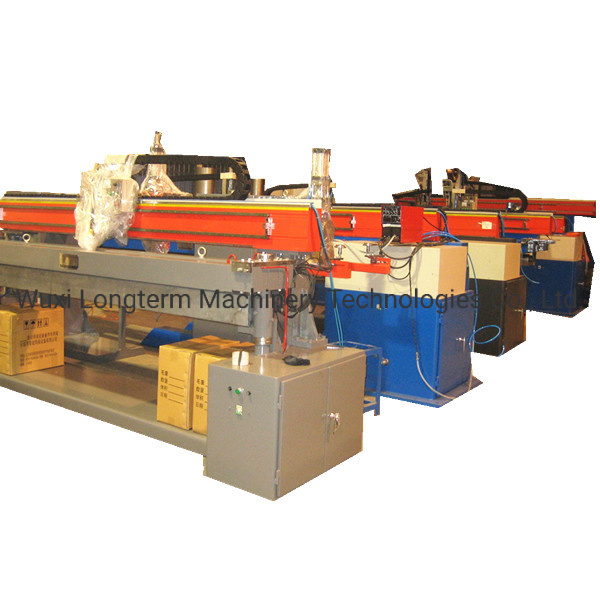

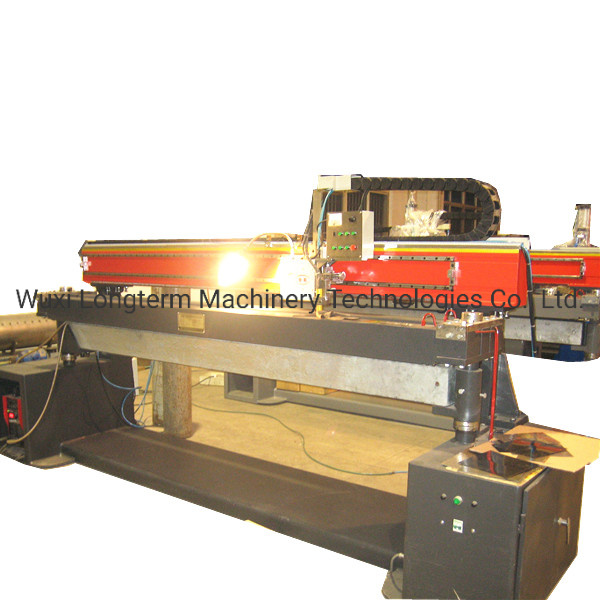

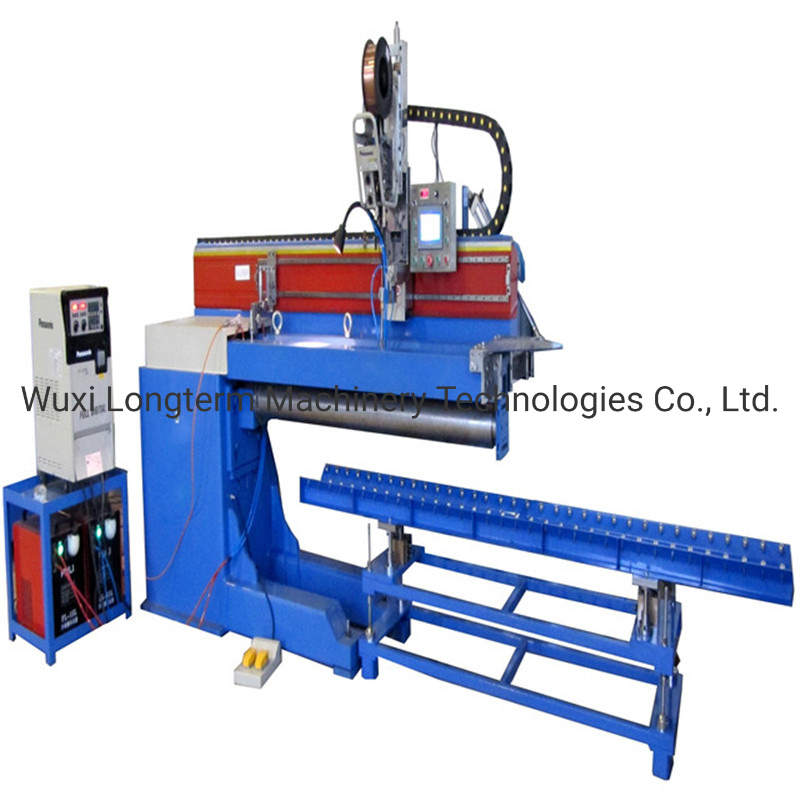

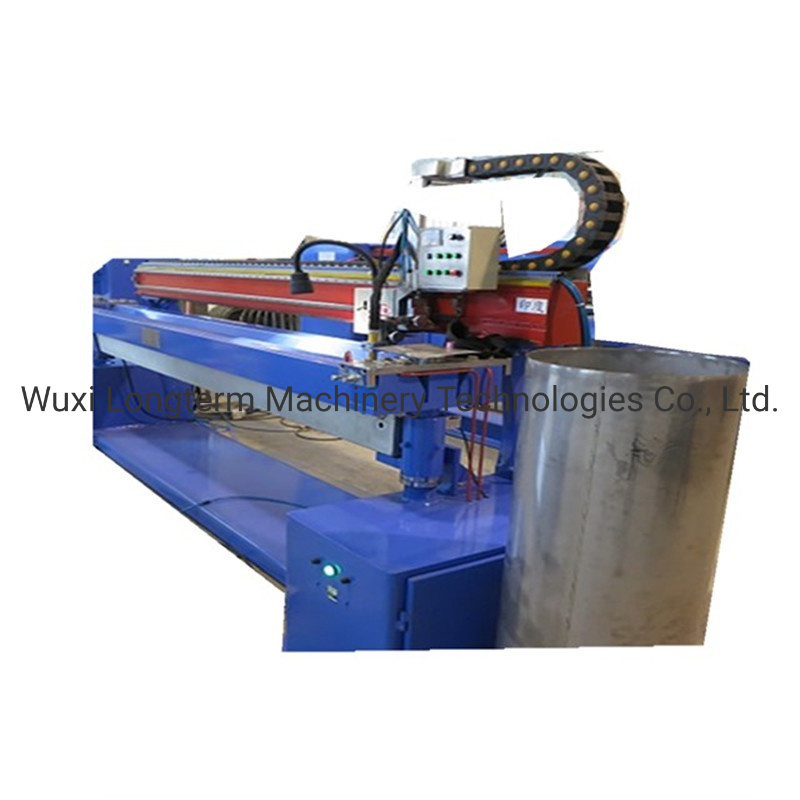

Pressurized Stainless Steel Solar Water Tank Longitudinal Seam Welding Machine, Straight Seam Welder*
Application: Automatic longitudinal seam welding machine normally used for stainless steel solar water heater inner tank.
Machine are designed for straight line, linear welding applications.
Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank. | Welding Diameter | 200-400mm |
| Welding Length | 1000-3000mm |
| Welding Thickness | 0.5-1.5mm |
| Material | Sus304,316L and galvanized steel |
The series of Open type automatic TIG welding machine can can implement automatic welding metal materials,such as stainless steel,cold rolled sheets, aluminum and so on. This equipment is without deformation during working , without grain boundary corrosion,high welding speed, good quality and high degree of automation Solar Water Tank Cover Circumferential Seam Welding Machine Technical parameters: | Welding Diameter | 200-400mm |
| Welding Length | 1000-3000mm |
| Welding Thickness | 0.5-1.5mm |
| Material | Sus304,316L and galvanized steel |
| Rated voltage | 380VAC 50HZ |
| Rated power | 18KW+0.75KW |
| Compressed air | 0.45 Mpa |
| Electrical parts warranty | 1 year |
| Electrical programming | All imported |
| Pneumatic components | Airtac |
| Electrical appliances | Domestic CHNT or renmin |
| Transmission parts | For the top of the Taiwan silver linear guide. |
Solar Water Tank Pipe Nipple Welding Machine
Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank. Main Specification: | Speed | 30-40s/one nipple |
| Power | 220V |
| MAX POWER | 5KVA |
| NIPPLE DIAMETER | 1/2'' 3/4'' 1'' |
| Machine Size | 2100 × 750 × 2350 mm |
| Compressed air | 0.45MPa |
| Thickness of roll | 0.3mm-1.5mm |
Welding details Finished Products Company Introduction WUXI LONGTERM MACHNIERY TECHNOLOGIES Co.Ltd is an integrated company which specialize in solar water heater tankWith decades of developing, our machine have been applied almost all models in welding industry. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.
Our clients are from all over the world, our service are famous all over the world. Package&Shipping
Customer Visiting
Onsite Inspection FAQ Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type
Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
1. Whether you have technical drawing of solar tank or not.
2. Material of tank (galvanized steel or stainless steel 304,316)
3. Thickness of the tank
4. Diameter range of tank
5. Length of tank
6. Are you new in this area or you already have some machines in the workshop?
7. Capacity you require, i.e. how many pieces and sizes you want to make per day?
