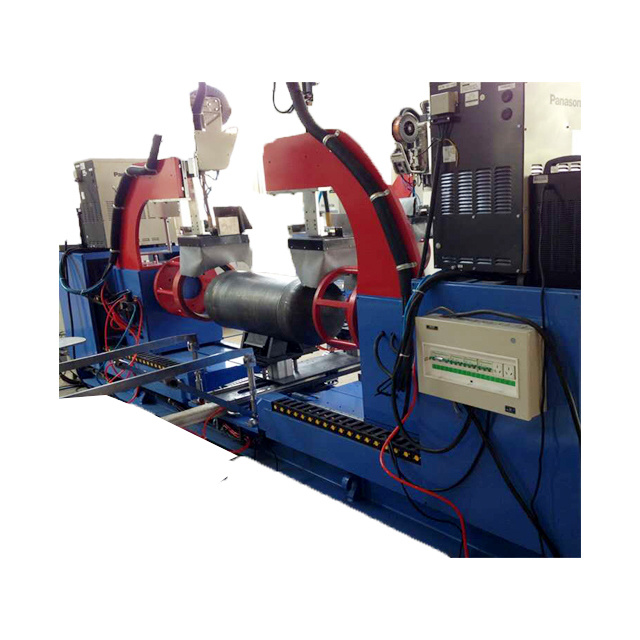

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

Share to:

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

Quantity:



Inquire Add to Basket

Product Name:
Solar Water Tank Longitudinal Seam Welding Machine
Welding Material:
SS304,316L and Galvanized Steel
Welding Length:
1000-3000mm
Welding Thickness:
0.5-1.5mm
Welding Diameter:
200-400mm
Welding Mode:
TIG/MIG/Mag/Saw Welding
Power:
3kw
Control Mode:
PLC
Machine Color:
Can Be Customized
Payment Terms:
by Tt/LC
Rated Voltage:
380VAC 50Hz
Compressed Air:
0.45 MPa
Rated Power:
18kw+0.75kw
Transport Package:
Standard
Specification:
Can be customized
Trademark:
HLT
Origin:
Wuxi, Jiangsu
HS Code:
8515390000
Production Capacity:
500 Sets Per Year
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

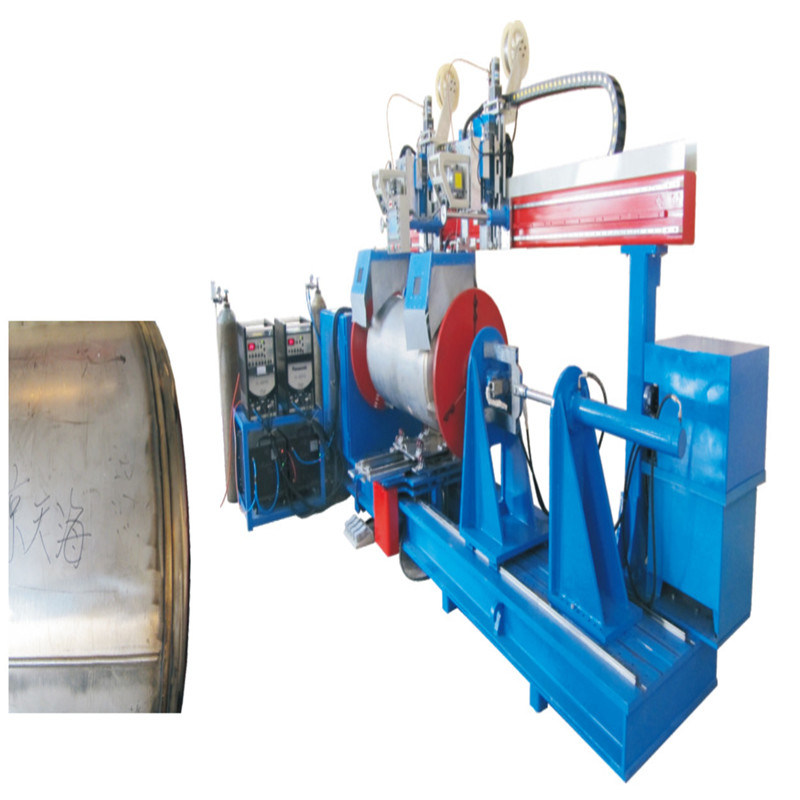

Water Heater Inner Tank Shell TIG Girth Welding machine/ Circular Seam Welder

Technical parameters:

Welding Diameter	200-400mm
Welding Length	1000-3000mm
Welding Thickness	0.5-1.5mm
Material	Sus304,316L and galvanized steel
Rated voltage	380VAC 50HZ
Rated power	18KW+0.75KW
Compressed air	0.45 Mpa
Electrical parts warranty	1 year
Electrical programming	All imported
Pneumatic components	Airtac
Electrical appliances	Domestic CHNT or renmin
Transmission parts	For the top of the Taiwan silver linear guide.

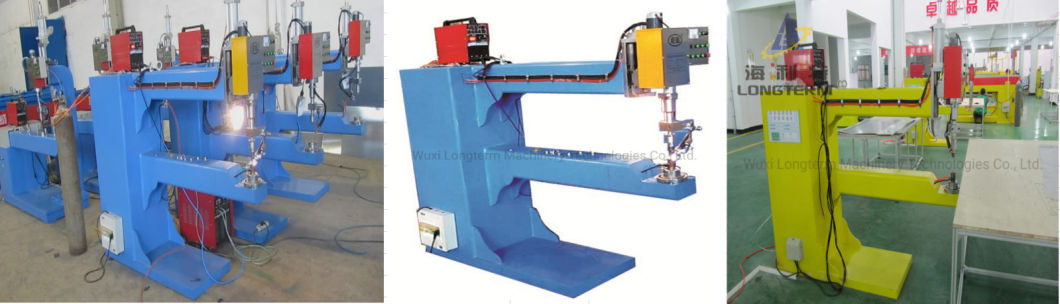

Application:

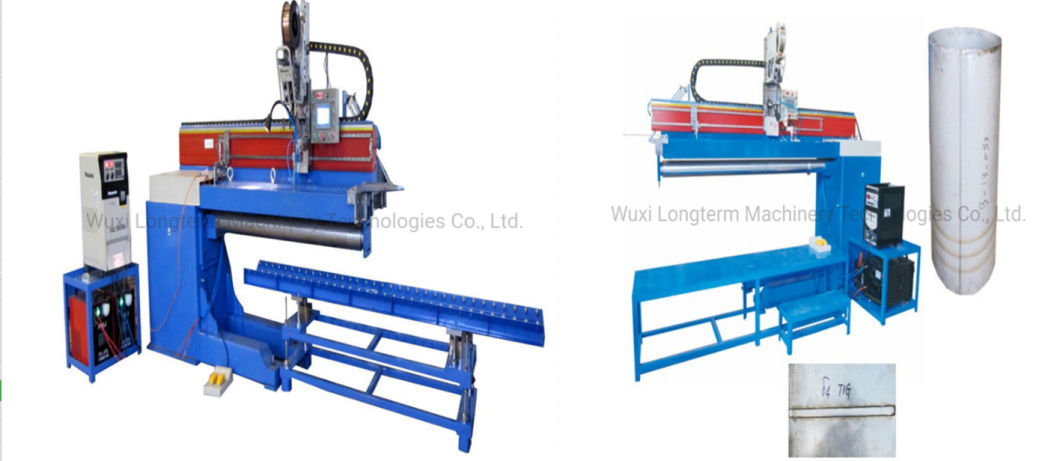

Automatic longitudinal seam welding machine normally used for stainless steel solar water heater inner tank.

Machine are designed for straight line, linear welding applications.
Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank.

Welding Diameter	200-400mm
Welding Length	1000-3000mm
Welding Thickness	0.5-1.5mm
Material	Sus304,316L and galvanized steel

The series of Open type automatic TIG welding machine can can implement automatic welding metal materials,such as stainless steel,cold rolled sheets, aluminum and so on. This equipment is without deformation during working , without grain boundary corrosion,high welding speed, good quality and high degree of automation

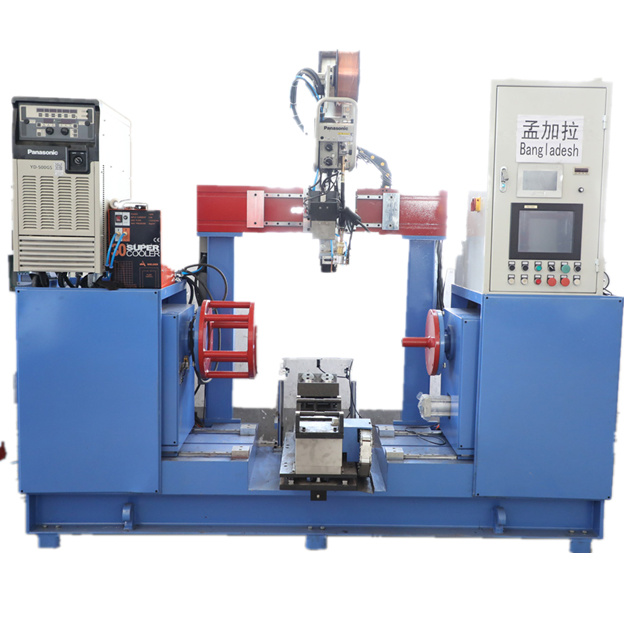

Solar Water Tank Pipe Nipple Welding Machine

Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank.

Main Specification:

Speed	30-40s/one nipple
Power	220V
MAX POWER	5KVA
NIPPLE DIAMETER	1/2'' 3/4'' 1''
Machine Size	2100 × 750 × 2350 mm
Compressed air	0.45MPa
Thickness of roll	0.3mm-1.5mm

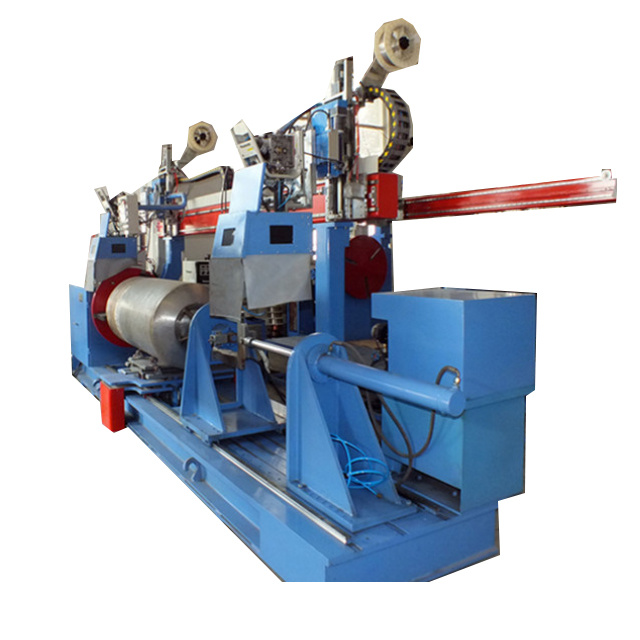

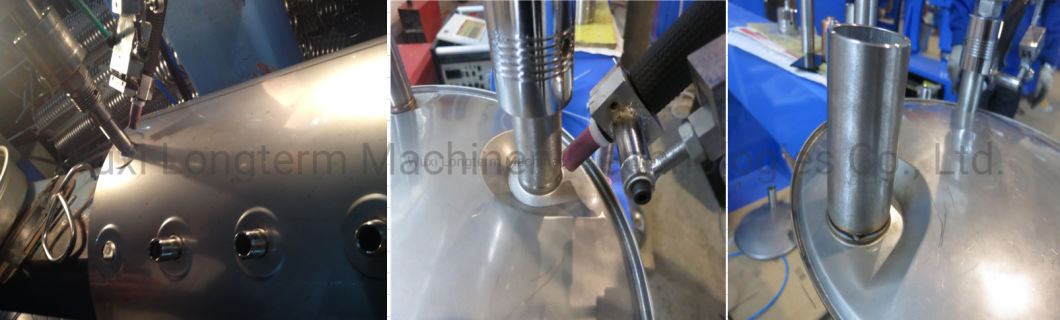

Welding details
Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

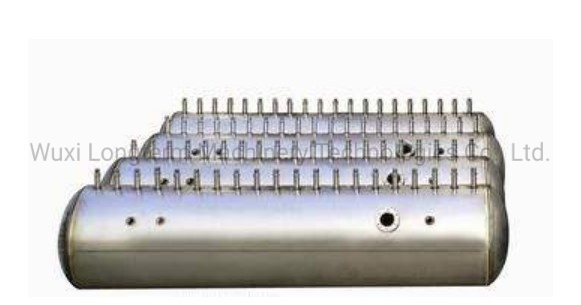

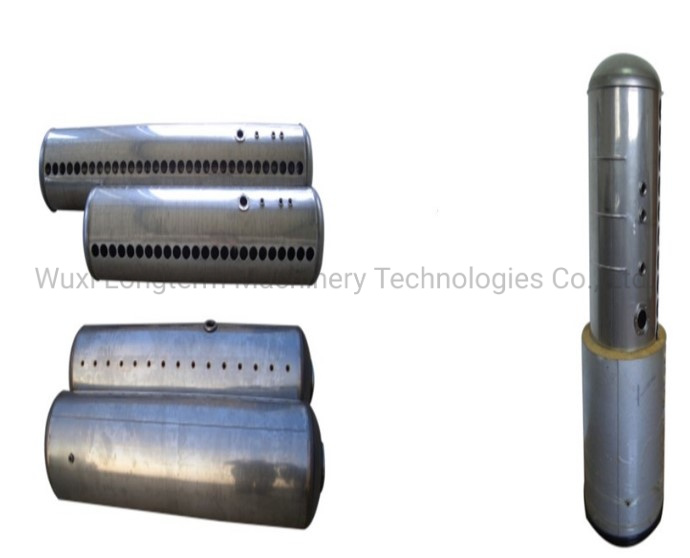

Finished Products

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

Company Introduction

WUXI LONGTERM MACHNIERY TECHNOLOGIES Co.Ltd is an integrated company which specialize in solar water heater tankWith decades of developing, our machine have been applied almost all models in welding industry. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.

Our clients are from all over the world, our service are famous all over the world.

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

Package&Shipping

Customer Visiting

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

Onsite Inspection

Water Heater Inner Tank Shell TIG Girth Welding Machine/ Circular Seam Welder

FAQ

Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type

Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:

1. Whether you have technical drawing of solar tank or not.
2. Material of tank (galvanized steel or stainless steel 304,316)
3. Thickness of the tank
4. Diameter range of tank
5. Length of tank
6. Are you new in this area or you already have some machines in the workshop?
7. Capacity you require, i.e. how many pieces and sizes you want to make per day?
