Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*

Quantity:
  • HLT
  • SS304,316L and Galvanized Steel
  • 1000-3000mm
  • 0.5-1.5mm
  • 200-400mm
  • TIG/MIG/Mag/Saw Welding
  • 3kw
  • PLC
  • Can Be Customized
  • by Tt/LC
  • 380VAC 50Hz
  • 0.45 MPa
  • 18kw+0.75kw
  • Standard
  • Can be customized
  • HLT
  • Wuxi, Jiangsu
  • 8515390000
  • 500 Sets Per Year
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

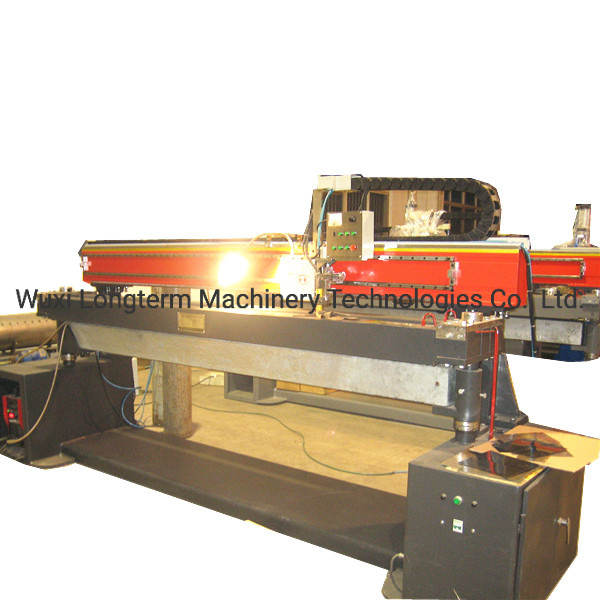

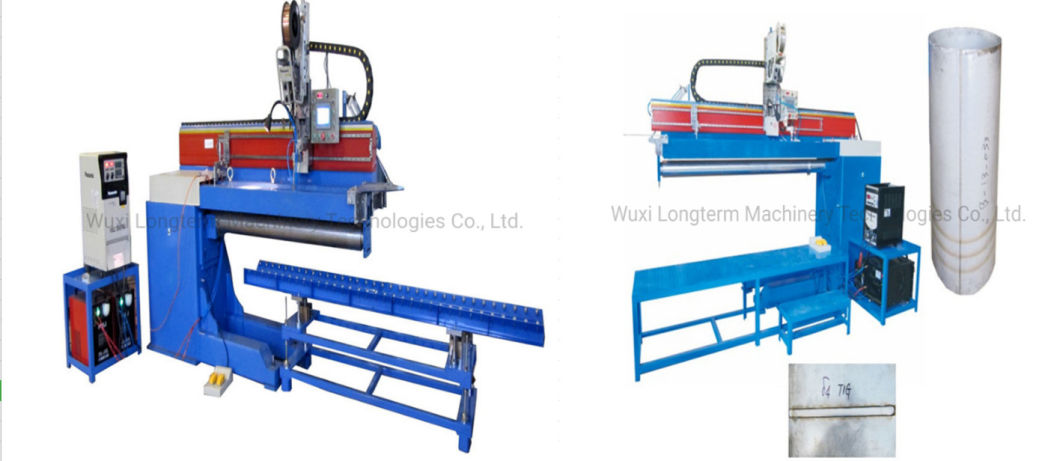

Solar Water Heater Longitudinal Welder, liner Seam Welding Machine*

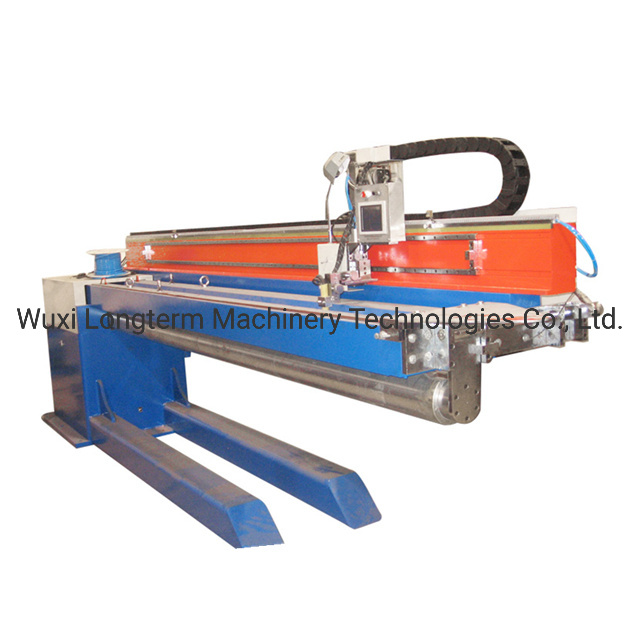

Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*


Application:

Automatic longitudinal seam welding machine normally used for stainless steel solar water heater inner tank.

Machine are designed for straight line, linear welding applications.
Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank.

Welding Diameter 200-400mm
Welding Length 1000-3000mm
Welding Thickness 0.5-1.5mm
Material Sus304,316L and galvanized steel

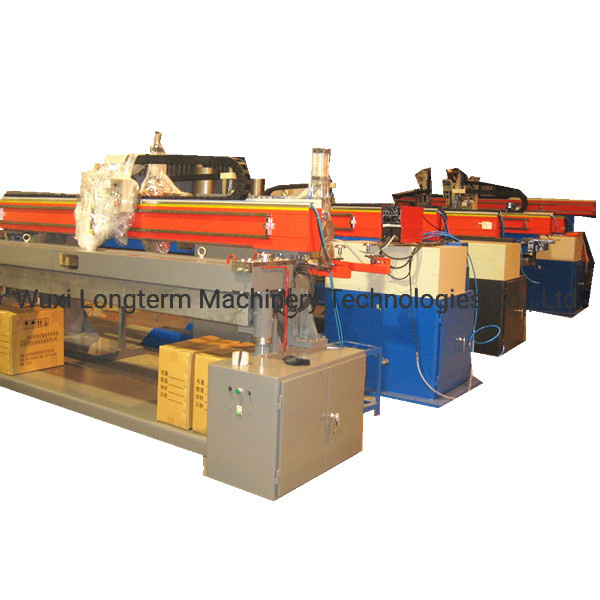

Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*


The series of Open type automatic TIG welding machine can can implement automatic welding metal materials,such as stainless steel,cold rolled sheets, aluminum and so on. This equipment is without deformation during working , without grain boundary corrosion,high welding speed, good quality and high degree of automation

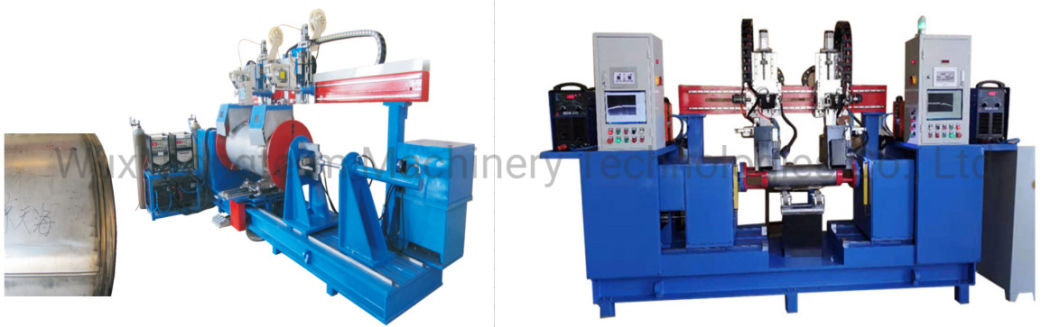

Solar Water Tank Cover Circumferential Seam Welding Machine

Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*

Technical parameters:
Welding Diameter 200-400mm
Welding Length 1000-3000mm
Welding Thickness 0.5-1.5mm
Material Sus304,316L and galvanized steel
Rated voltage 380VAC 50HZ
Rated power 18KW+0.75KW
Compressed air 0.45 Mpa
Electrical parts warranty 1 year
Electrical programming All imported
Pneumatic components Airtac
Electrical appliances Domestic CHNT or renmin
Transmission parts For the top of the Taiwan silver linear guide.

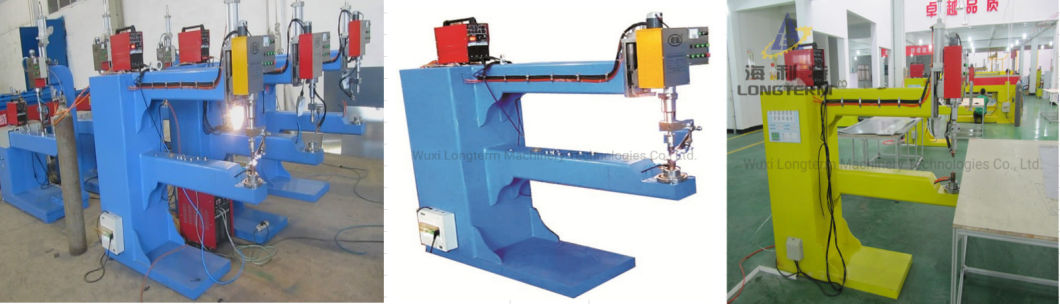

Solar Water Tank Pipe Nipple Welding Machine


Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*



Complete with 1 set of pulse WSM315A welding power supply and 1 set of cooling circulating water tank.


Main Specification:
Speed 30-40s/one nipple
Power 220V
MAX POWER 5KVA
NIPPLE DIAMETER 1/2'' 3/4'' 1''
Machine Size 2100 × 750 × 2350 mm
Compressed air 0.45MPa
Thickness of roll 0.3mm-1.5mm

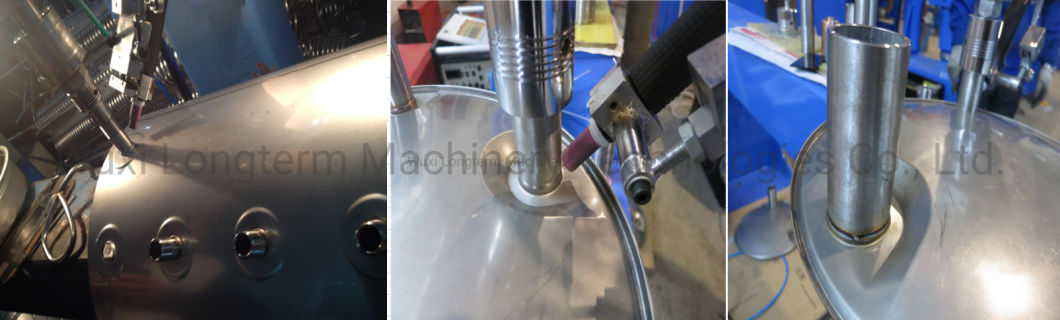

Welding details
Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*

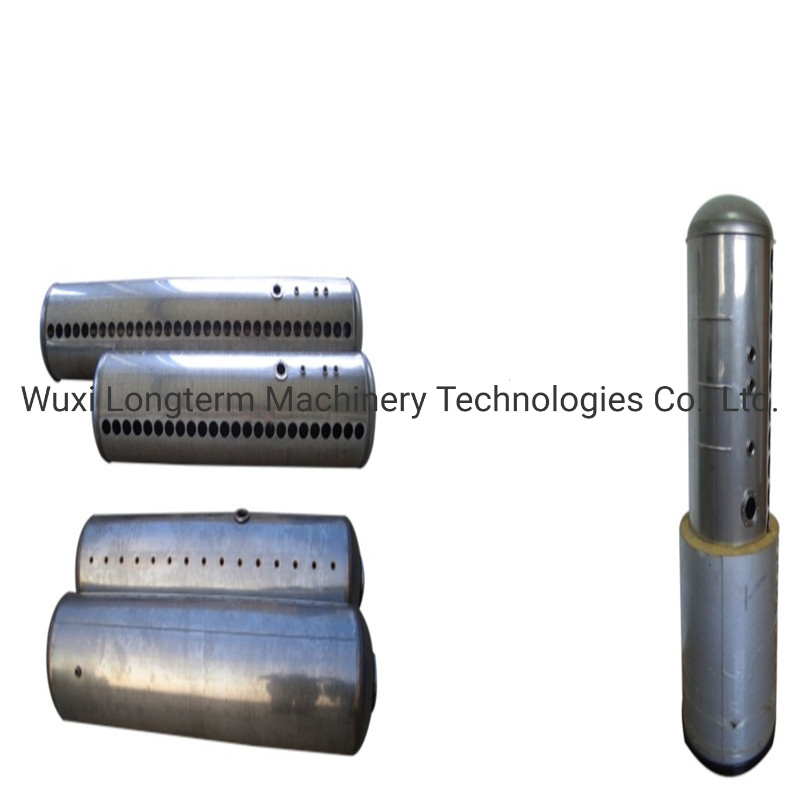

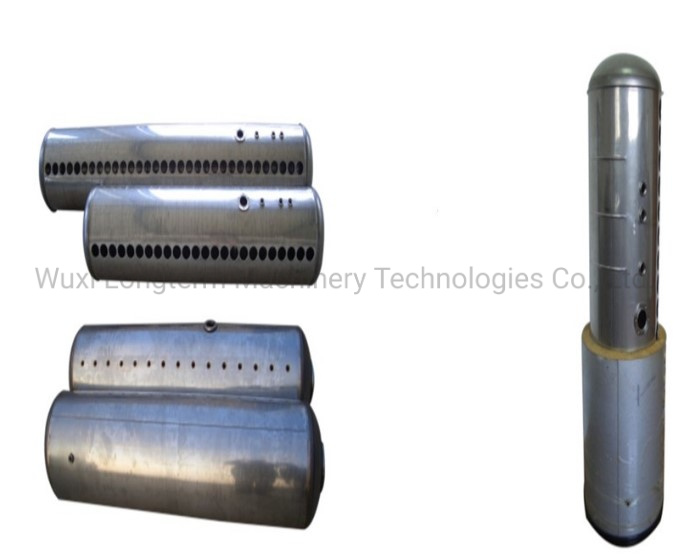

Finished Products

Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine* Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*





Company Introduction

WUXI LONGTERM MACHNIERY TECHNOLOGIES Co.Ltd is an integrated company which specialize in solar water heater tankWith decades of developing, our machine have been applied almost all models in welding industry. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.

Our clients are from all over the world, our service are famous all over the world.


Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*


Package&Shipping
Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*

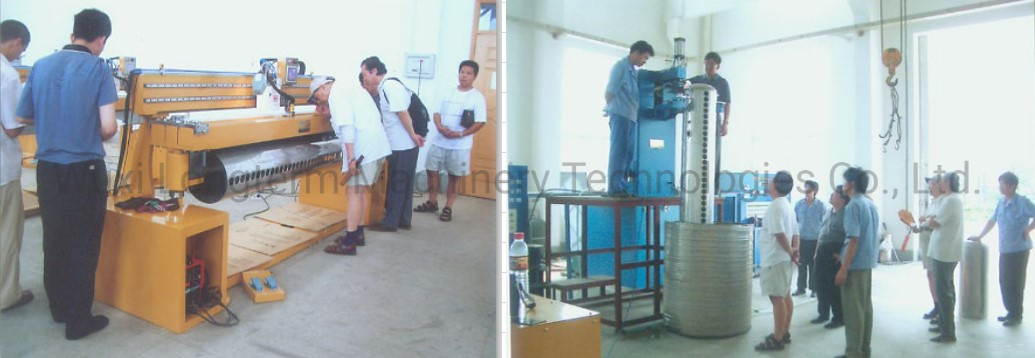

Customer Visiting


Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*
Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*



Onsite Inspection

Solar Water Heater Longitudinal Welder, Liner Seam Welding Machine*


FAQ

Q: What kind of solar water your machine can produce?
A: Non-pressurized solar heater, pressurized solar heater, enameling tank, solar panel type

Q: Can you design machines according tank technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:


1. Whether you have technical drawing of solar tank or not.
2. Material of tank (galvanized steel or stainless steel 304,316)
3. Thickness of the tank
4. Diameter range of tank
5. Length of tank
6. Are you new in this area or you already have some machines in the workshop?
7. Capacity you require, i.e. how many pieces and sizes you want to make per day?
