Oil/Steel Drum Manufacturing Machine

  • HLT

  • 2+2mm

  • Tank Welding, Vessel Welding

  • 1150mm

  • 7

  • Direct Current

  • Spot Welding Machine

  • Spot Welders

  • 3+3mm

  • 263

  • 850kg

  • Standard Seaworthy Package

  • SGS

  • HLT

  • China Jiangsu

  • 830710000

  • 500 One Year

  • Available | Customized Request

Product Description

Oil/Steel drum manufacturing machine

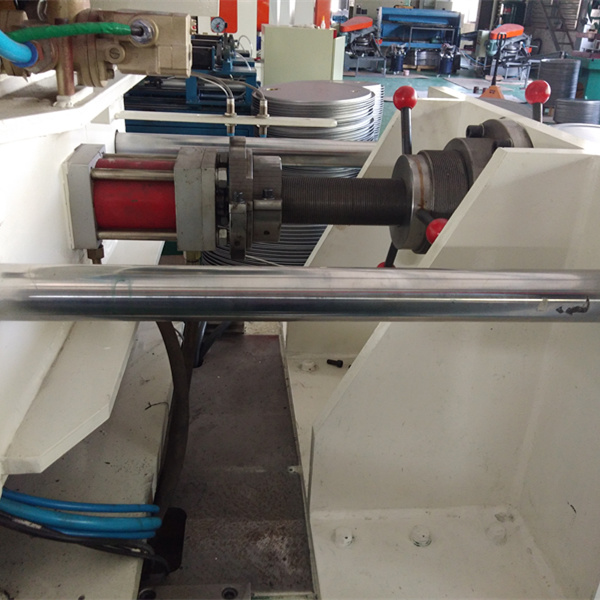

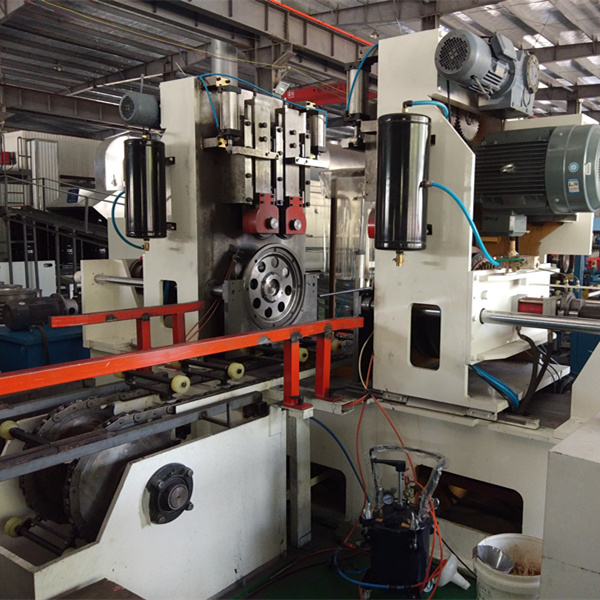

Detail pictures of steel drum manufacturing machines:
Oil/Steel Drum Manufacturing Machine

Product information
This machine can weld the oil drum automatically without spot welding.It can welds the drum high speed and high efficiency. fully satisfy a wide range of the industrial applications are equipped with microprocessor control, safety concomitant side buttons, electric pedal and solenoid valve, upon request they can be fitted with special controls to suit any special configurations.
- Lower round arm with adjustable height and lateral adjustment.
- Electrodeholders with electrodes for spot welding and possibility of easily fitting barholders for projection welding.
- Inferior arm holder can be rotated for use with larger arm gap.
Description Unit Data
Rated capacity KVA 100
Rated voltage V 380
Rated current A 263
Frequency HZ 50
Continuous capacity KVA 45
Continuous current A 118
Duty cycle % 20
Secondary floating voltage V 3.65~7.3
Secondary voltage regulation 8
Second voltage rating 7
Rated Max.welding thickness of weldment mm 3+3
Rated welding thickness of weldment mm 2+2
Extension elongation of electrode arm mm 1150
Adjustable top electrode strode mm 20
Maximum working pressure N 11500
Air pressure MPa 0.5
Cooling water consumption L/h 700
Weight of welder kg 850
External dimension(length*width*height) mm 1610*730*1460
Installation dimension (length*width*diameter) mm 1205*500*18

Company information

Our company is located in Wuxi National Hi-Tech Development Zone where there are more than 300 international famous companies.
Our company was established in the year of 1994, covering area more than 10000m2 and building area more than 8900m2. There are more than 100 employees working in our factory, among them, there are 10 engineers for design machineries.
We are very strong in Arc welding/Resistance welding, DN series spot welding, FN longitudinal seam welding, HN series circumferential seam welding, multi point spot welding, TN series protruded welding machine, UN series butt welding, etc..Max. power is 3000KVA.Our welding equipment are very popular for following industry:
1.Steel drum, 100L-225L,i .e.53galon, 55galon,etc..
2.Car/truck/motorcycle fuel tank including diesel, petro
3. Heat Exchanger
4. Radiator of transformer

FAQ for steel drum welding machine
1. Why choose us as your supplier?
We are most professional in steel drum welding equipment with more than 30
years of experience
2. What can you supply for steel drum manufacturing?
A. Full automatic longitudinal seam welding machine
B. Semi-automatic seam welding machine
C. Spot welding + seam welding machine
3. What sizes you machine can weld?
Standard international size:100L-225L

We need to know the following information to quote you correct machineries:
1.What power supply in your country?
Voltage and power
2. Size and Diameter of the Steel Drum
3. Thickness and length of the Drum
For instance: 0.6--1.2mm
4.Material of the drum
Carbon steel or stainless steel
5.Technical drawing of the drum
